Troubleshooting.
Pinout from PCM and OBD?
1 Reply
JACOBANDNICKOLAS
- MECHANIC
- 108,269 POSTS
Hi,

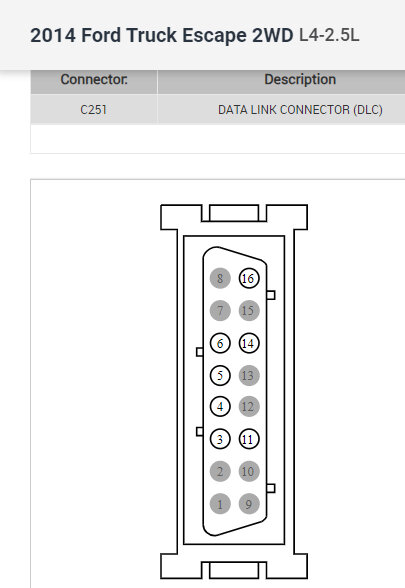

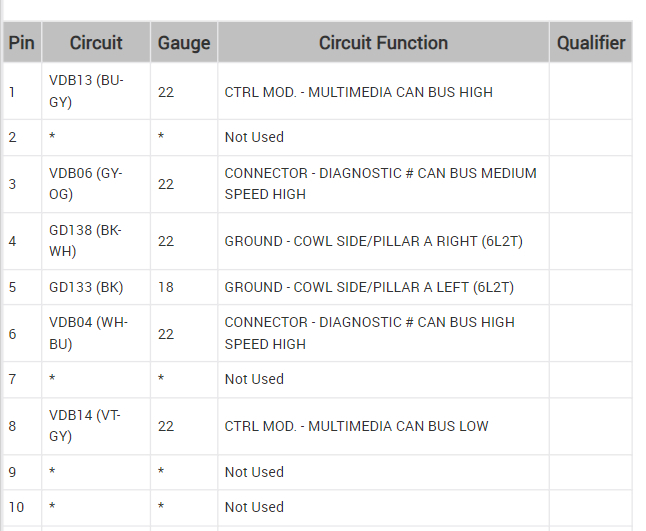

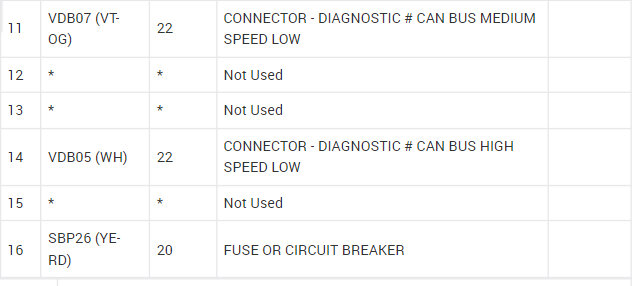

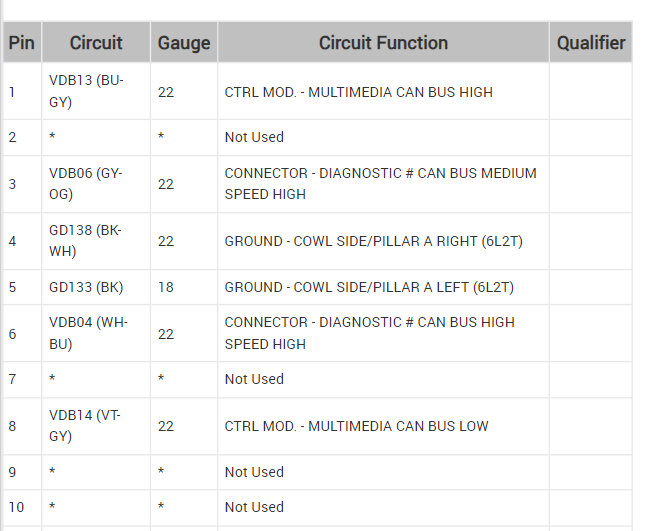

It sounds like you have a headache on your hands. As far as the connector views, I attached them below. Pics 1-3 are the data link connector.

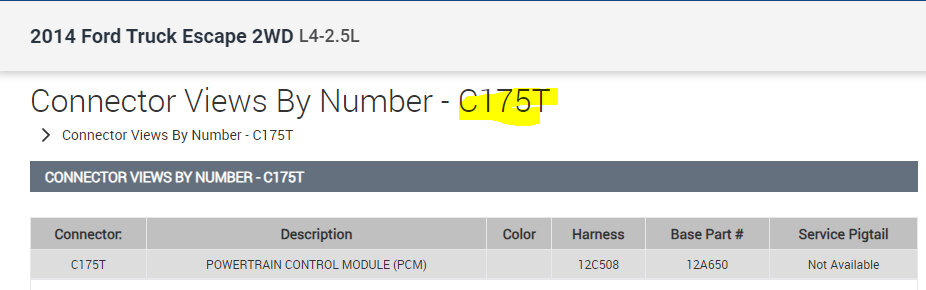

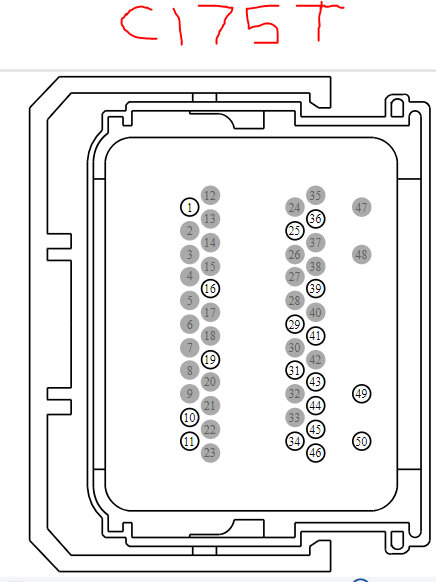

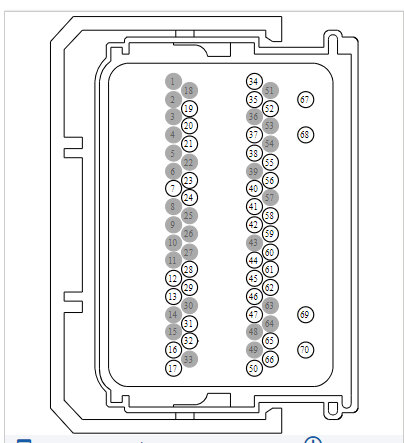

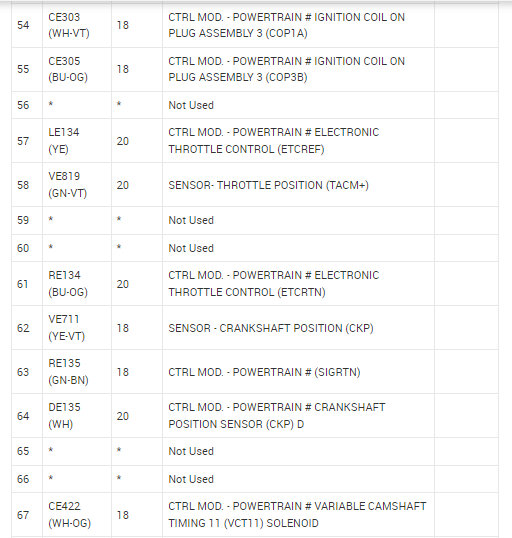

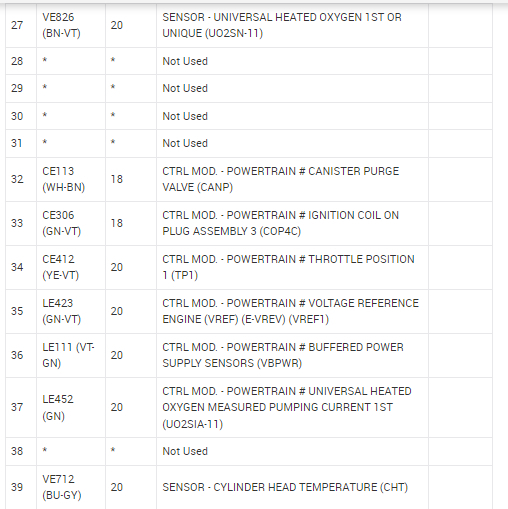

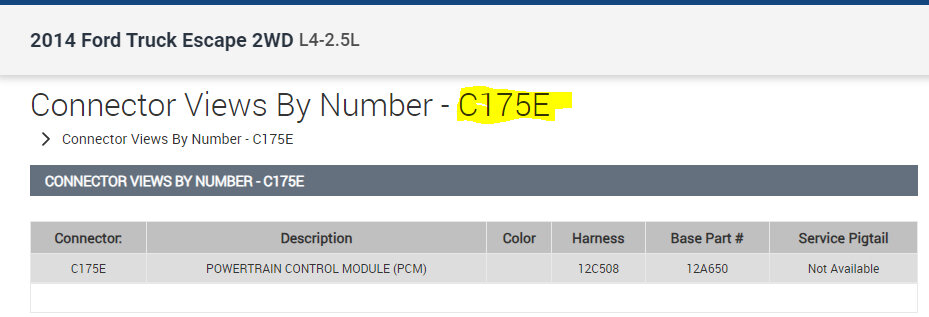

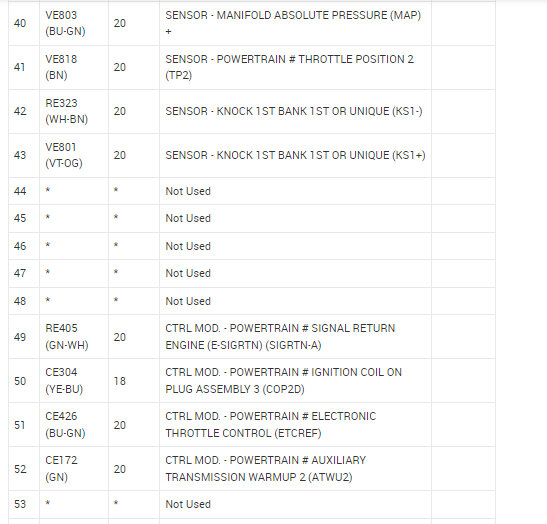

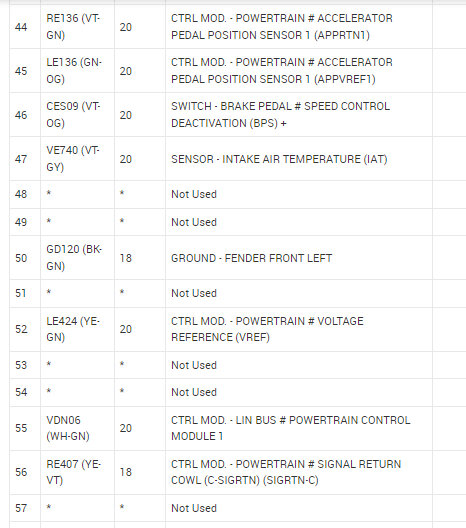

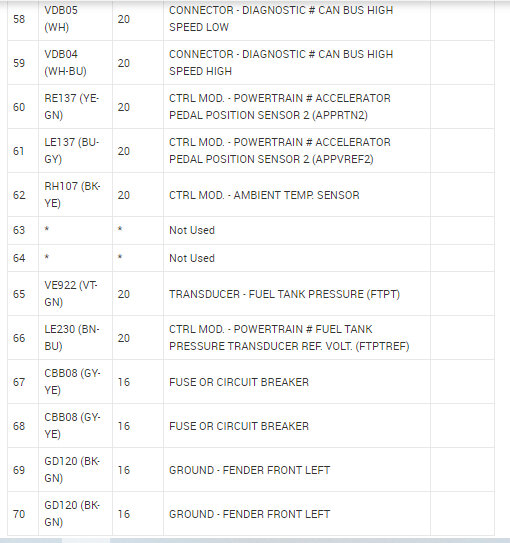

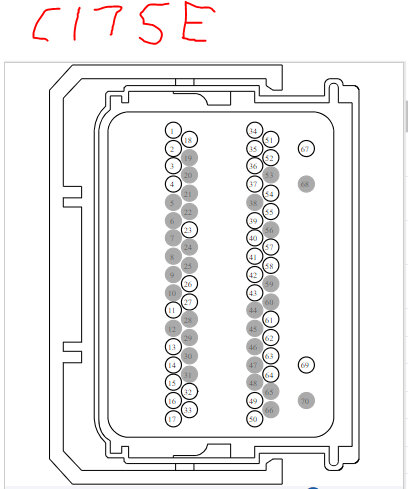

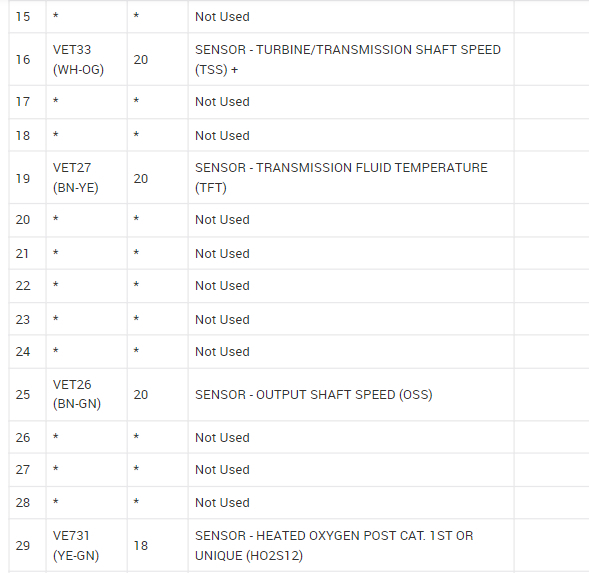

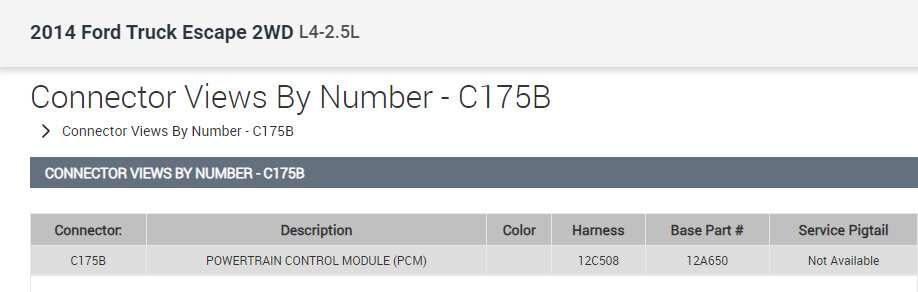

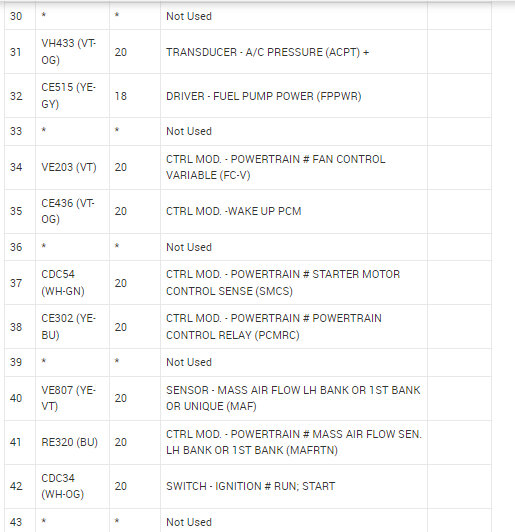

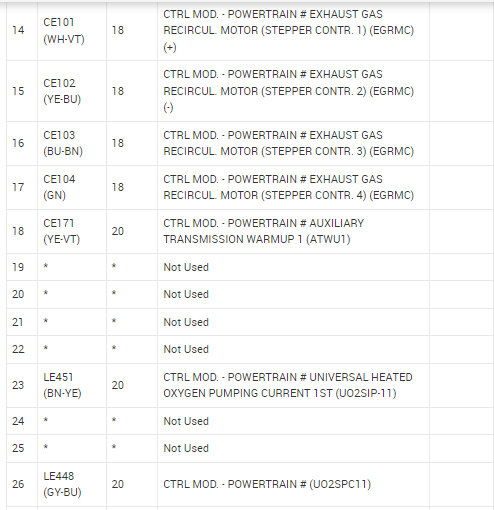

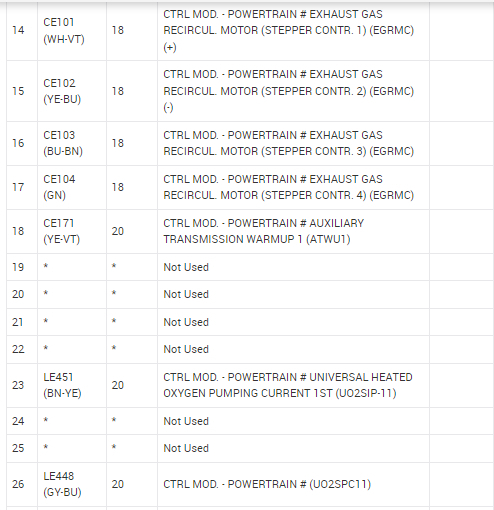

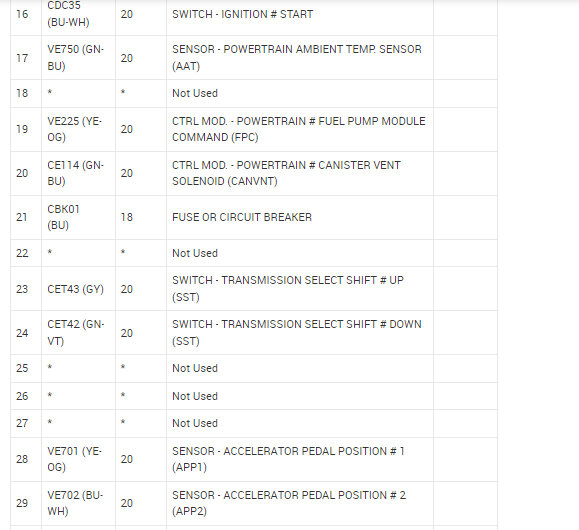

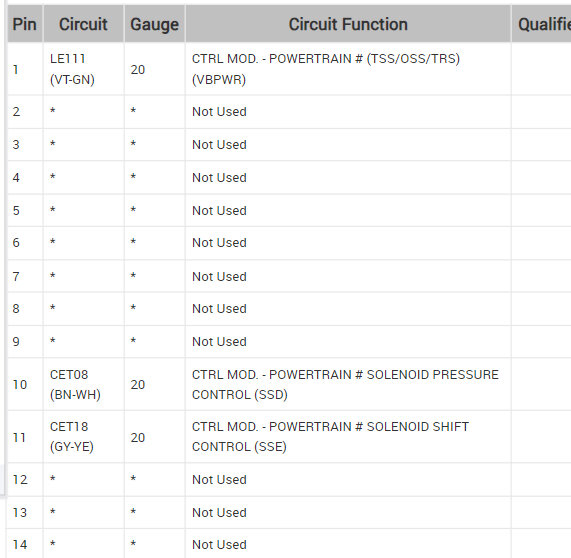

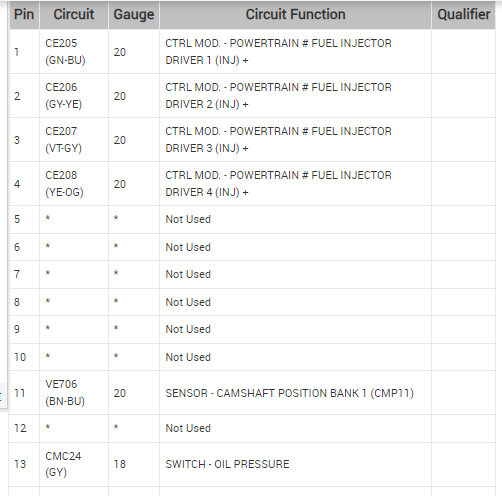

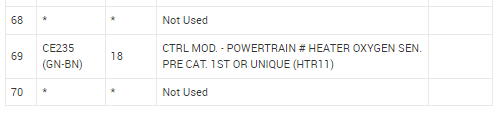

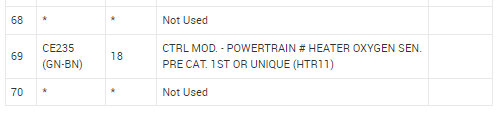

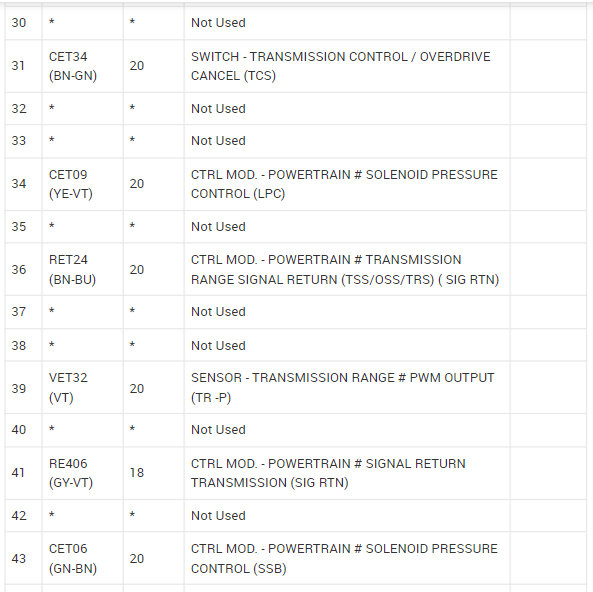

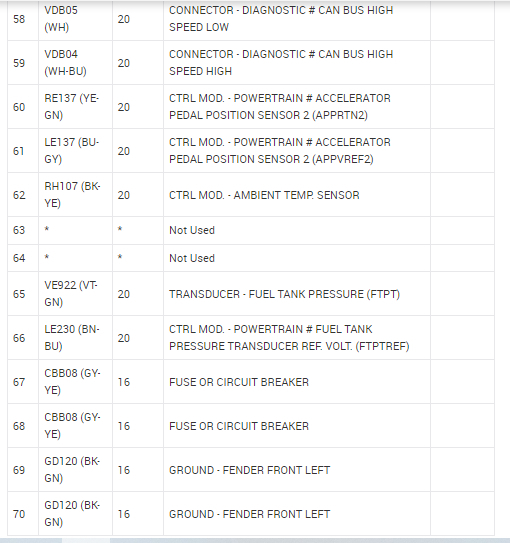

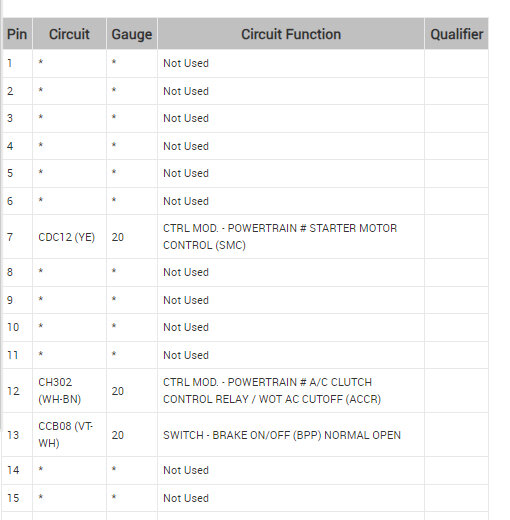

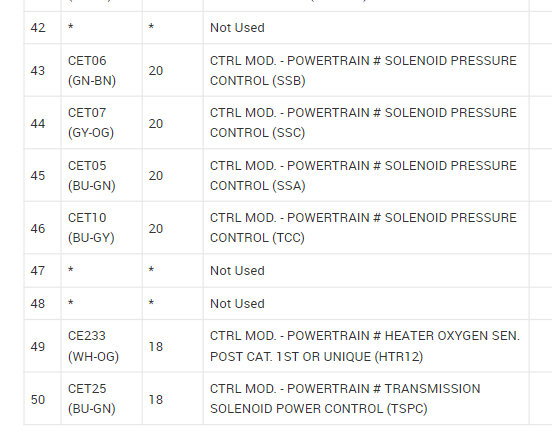

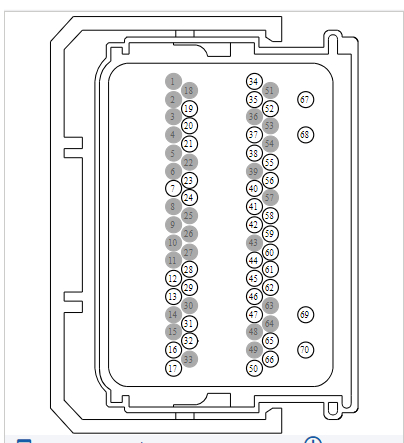

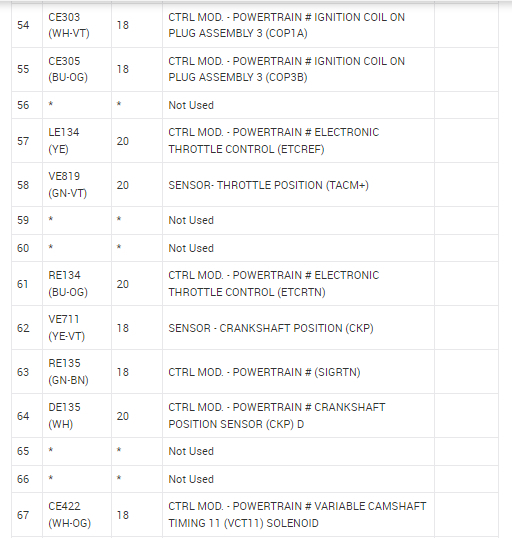

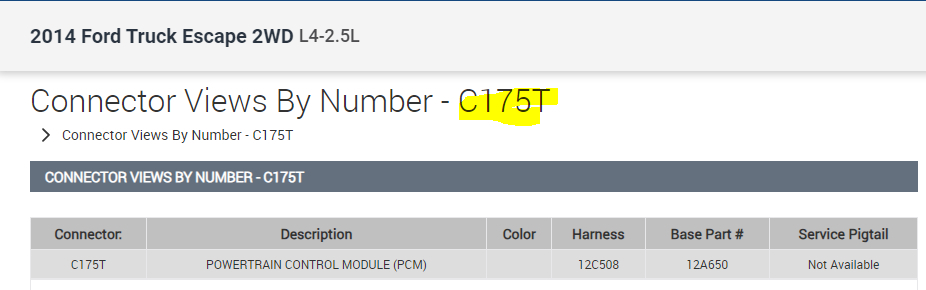

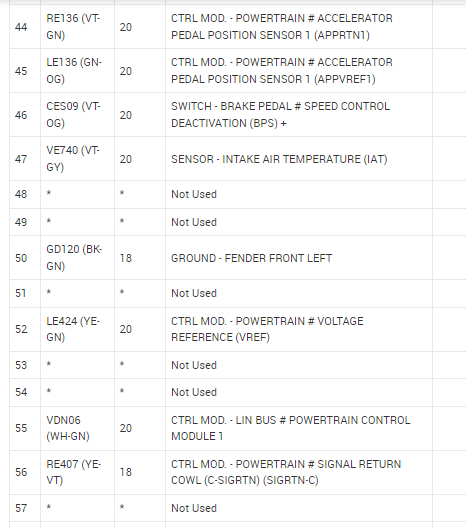

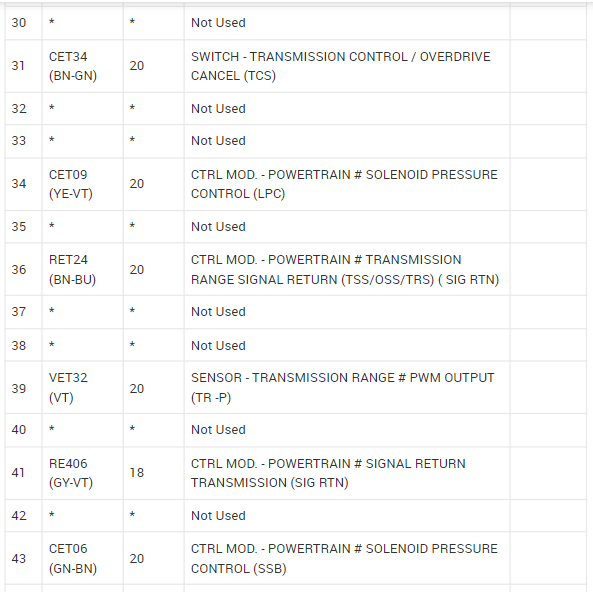

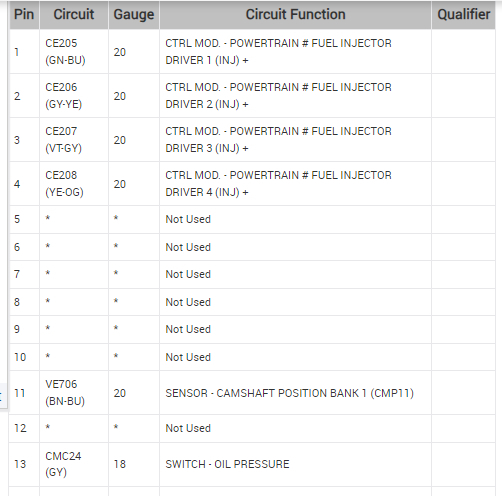

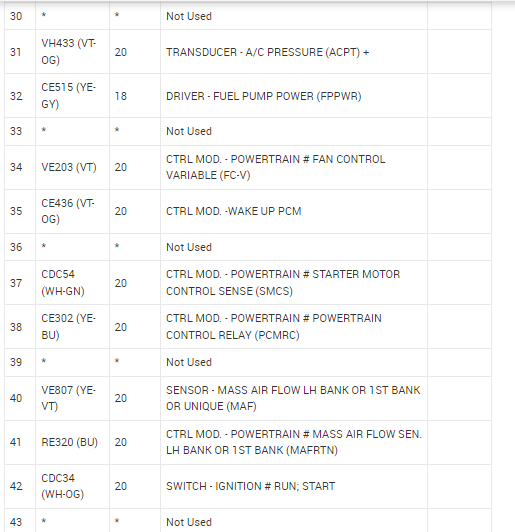

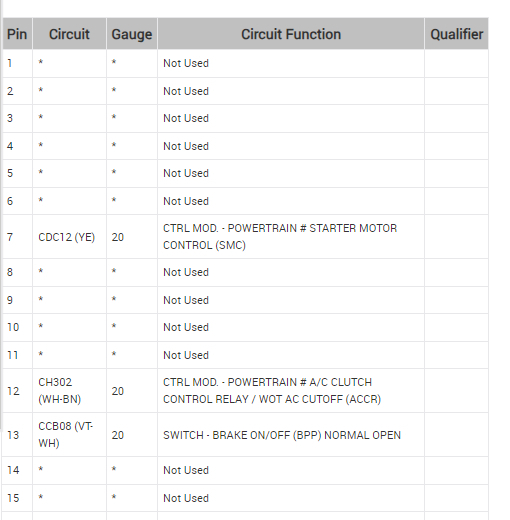

There are three connectors at the PCM. I first put the connector view and then the function of each pin. So, each time you come to a new connector, the following pics are the functions.
Let me know if this is what you need.
Take care,
Joe
See pics below.
