PCM pinout needed

2003 FORD FOCUS
5,000,000 MILES • 2.3L • 4 CYL • 2WD • AUTOMATIC
Avatar
BACKSTREETALLYCAT
  • MEMBER
  • 1 POST
it has three plugs on it. i need to know which pin on which plug is for the camshaft position sensor.
Sep 1, 2019 at 1:39 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
SCGRANTURISMO
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 4,897 POSTS
Hello,

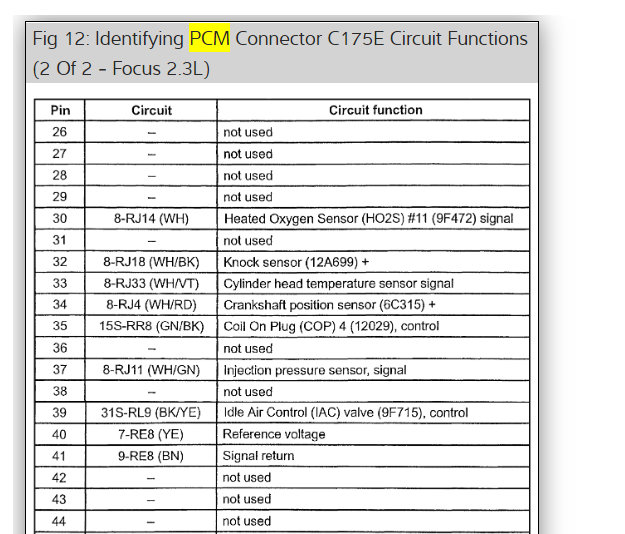

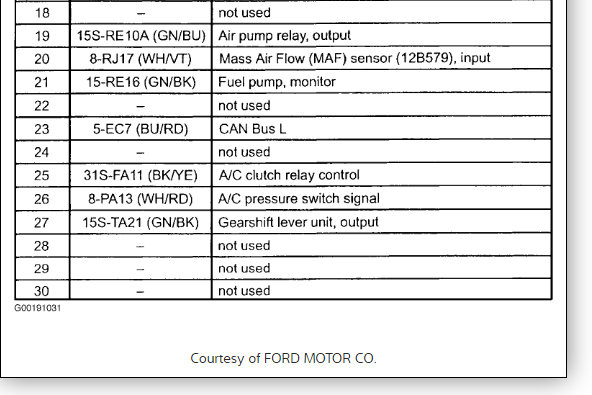

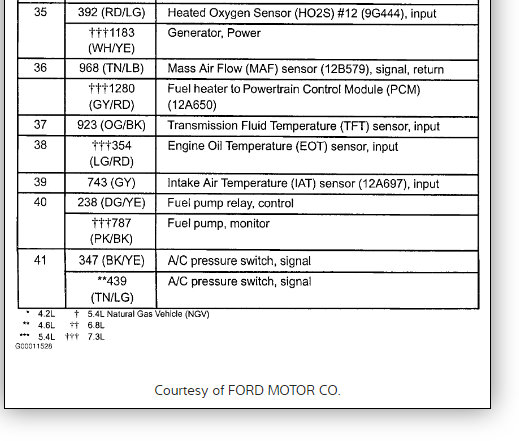

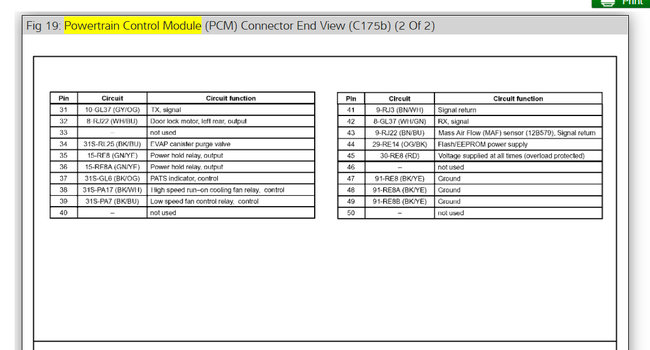

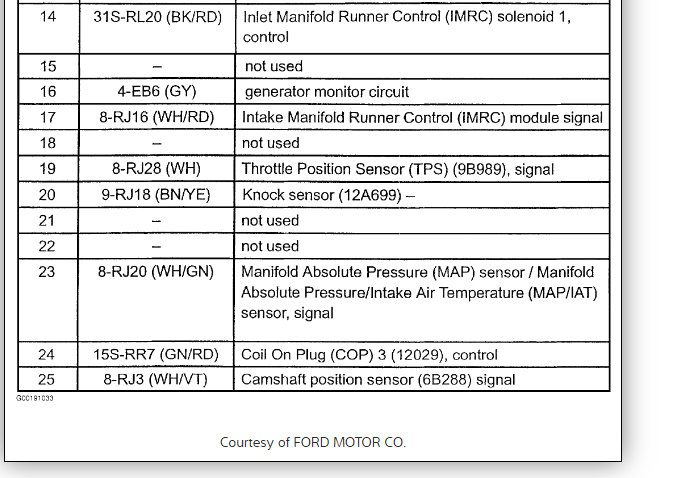

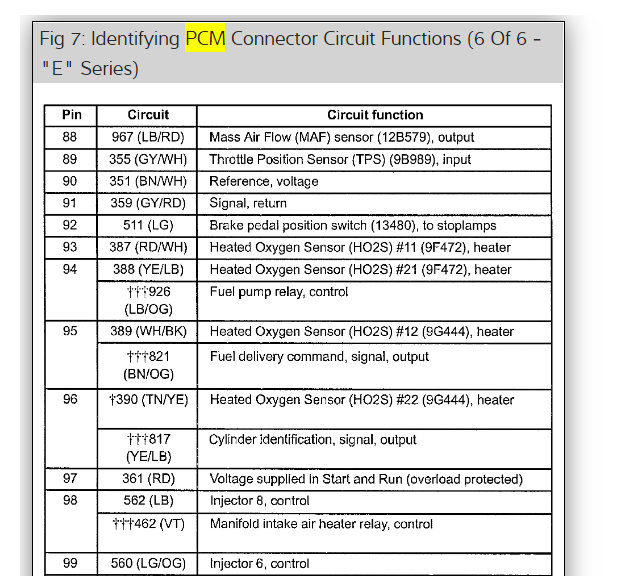

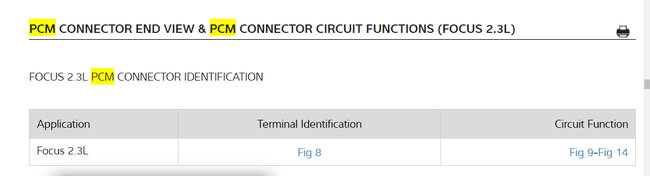

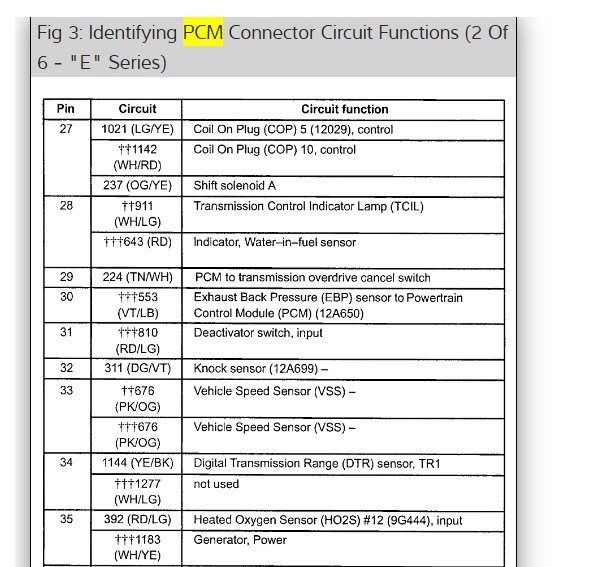

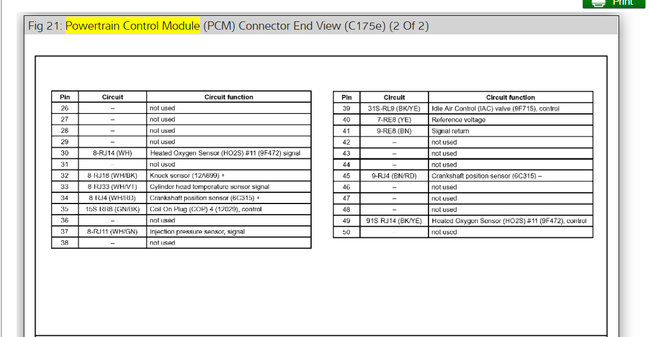

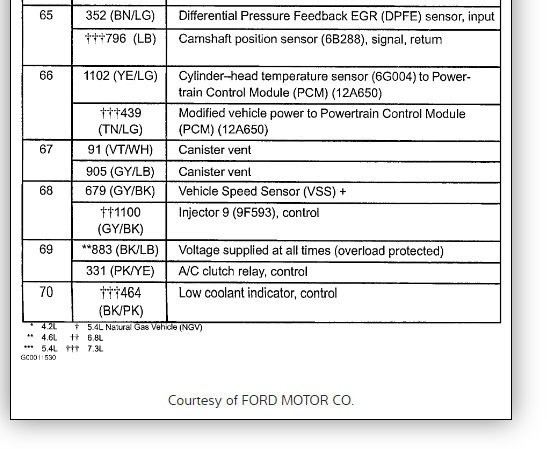

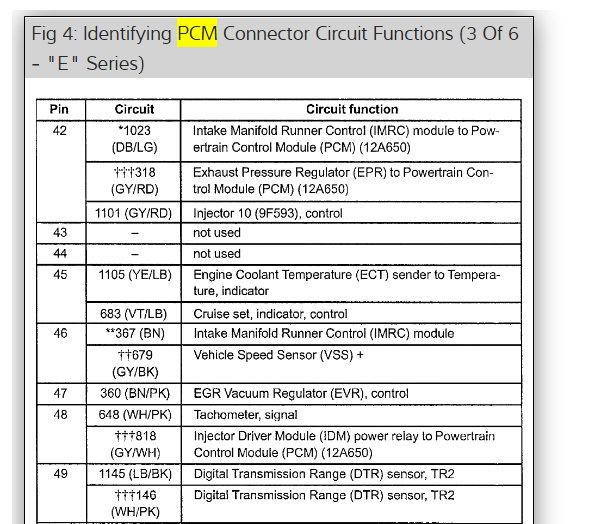

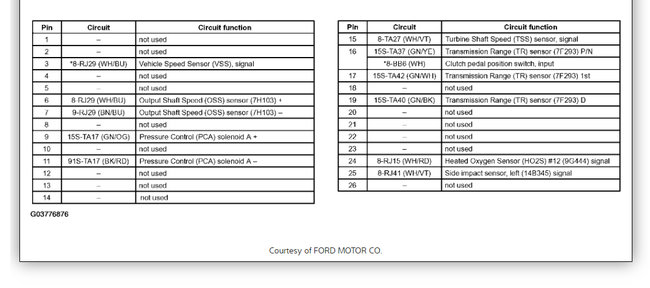

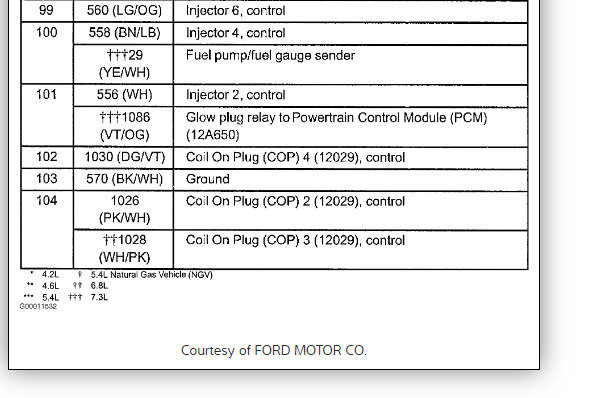

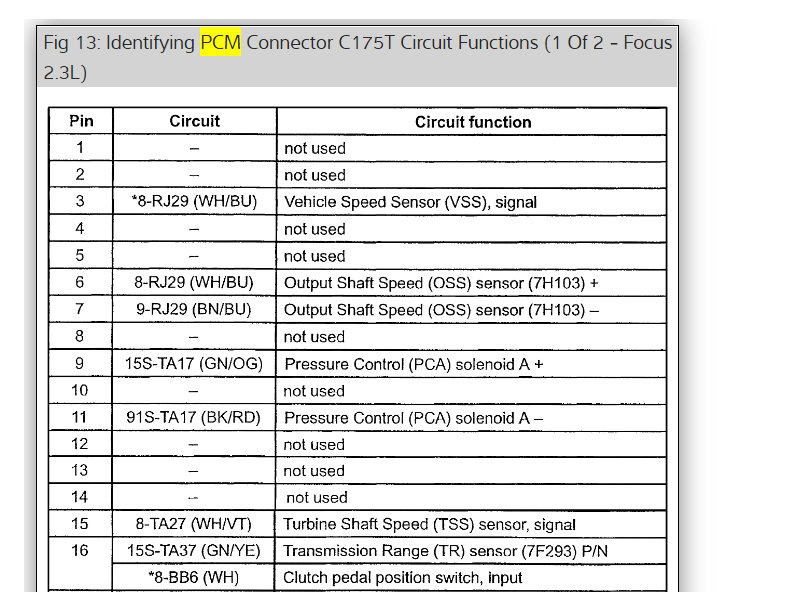

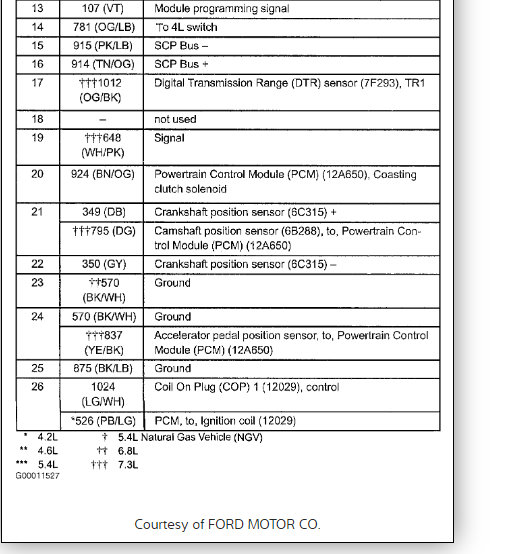

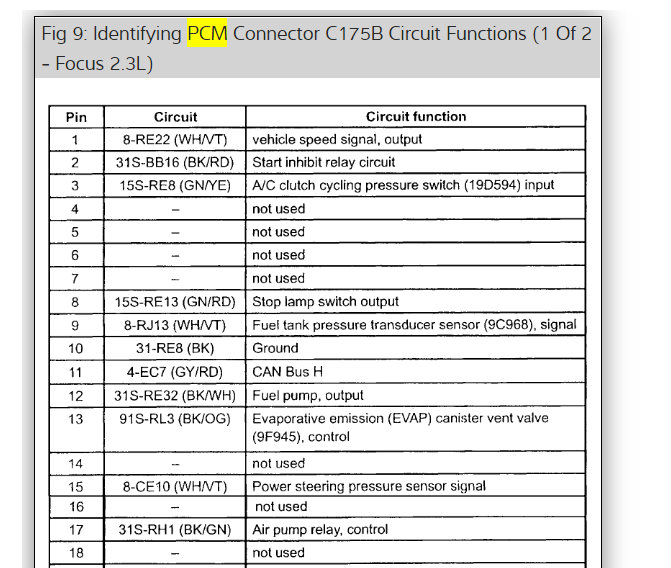

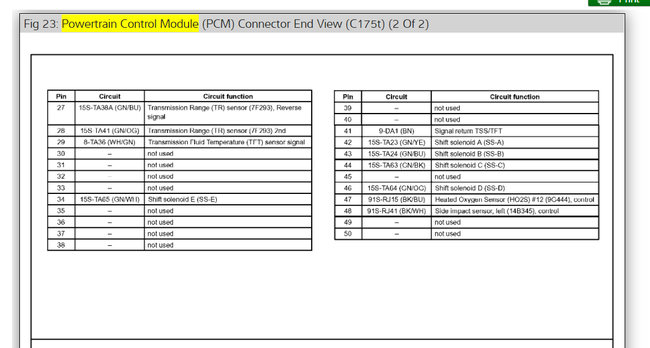

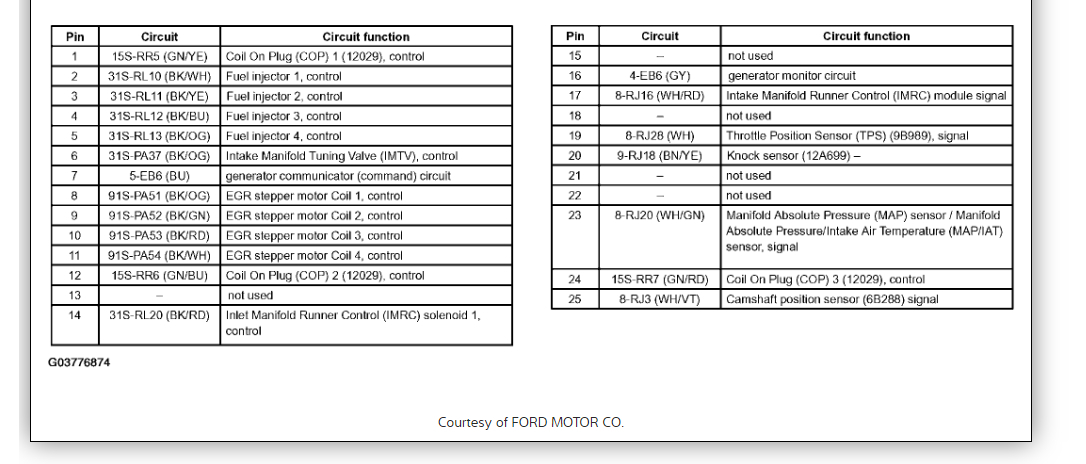

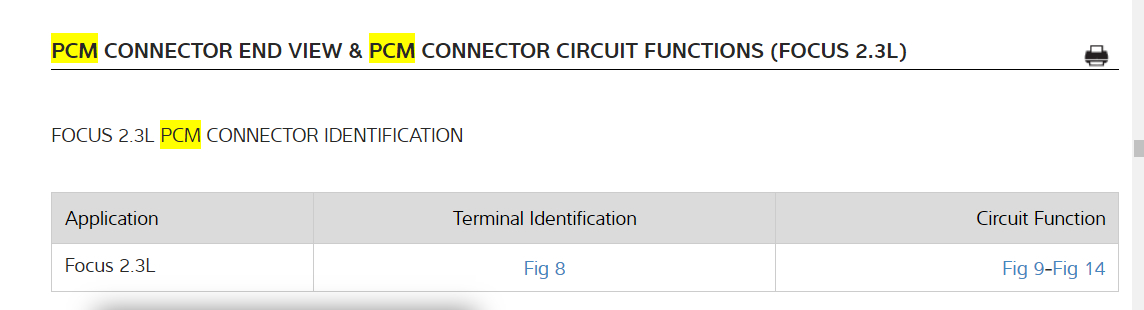

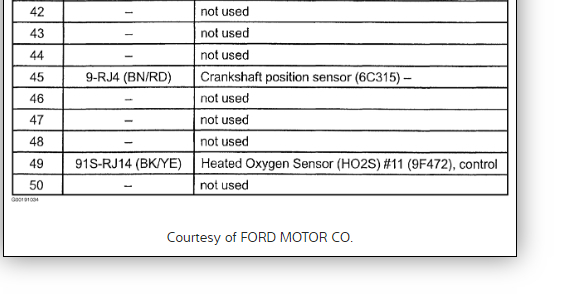

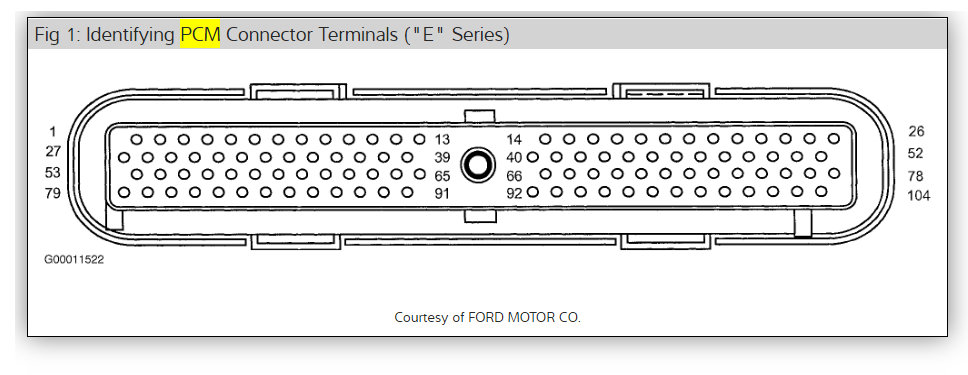

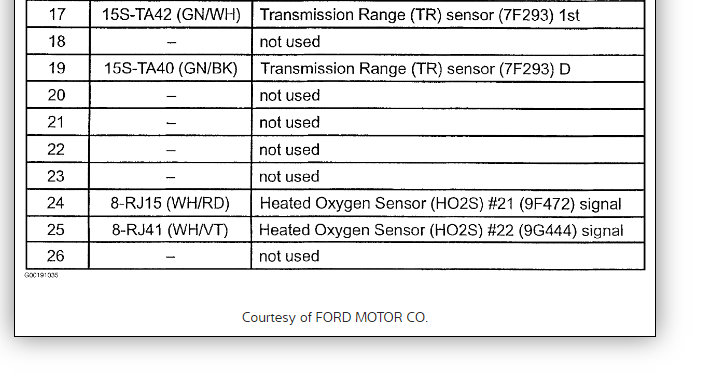

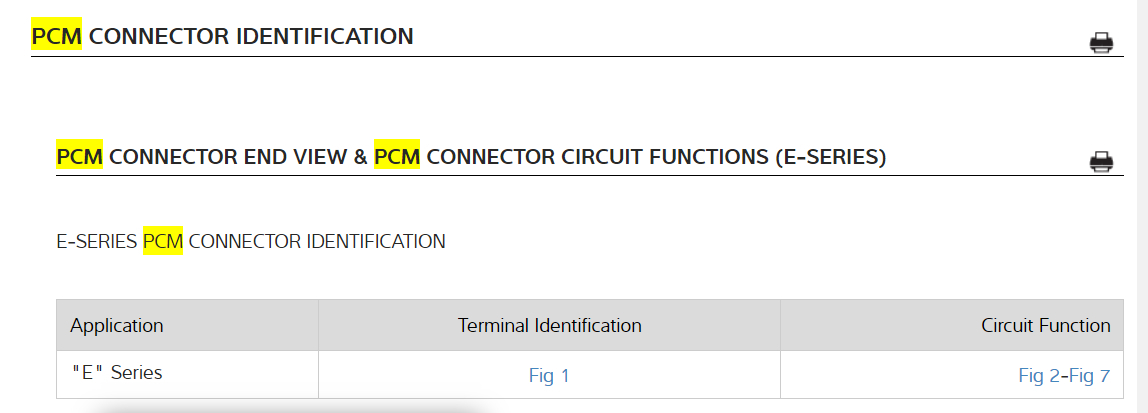

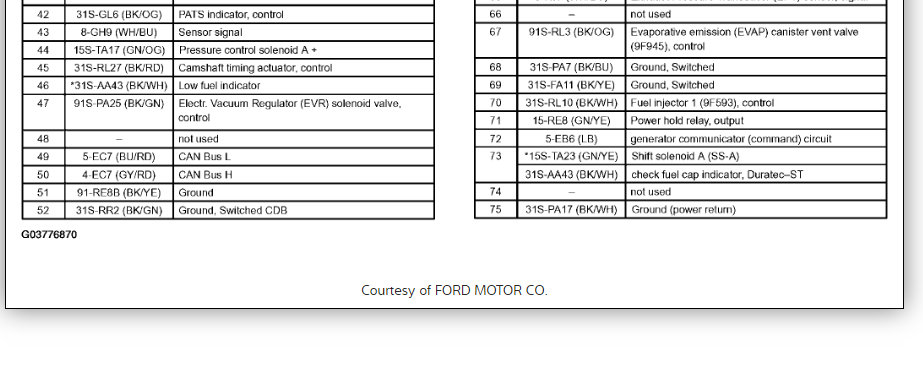

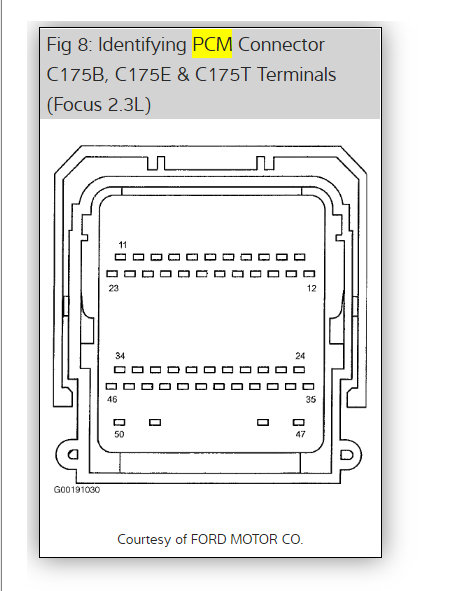

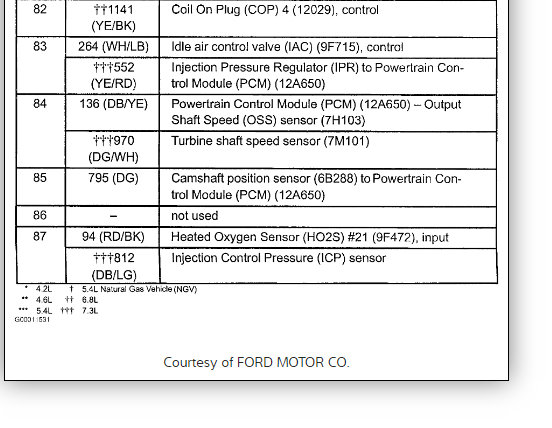

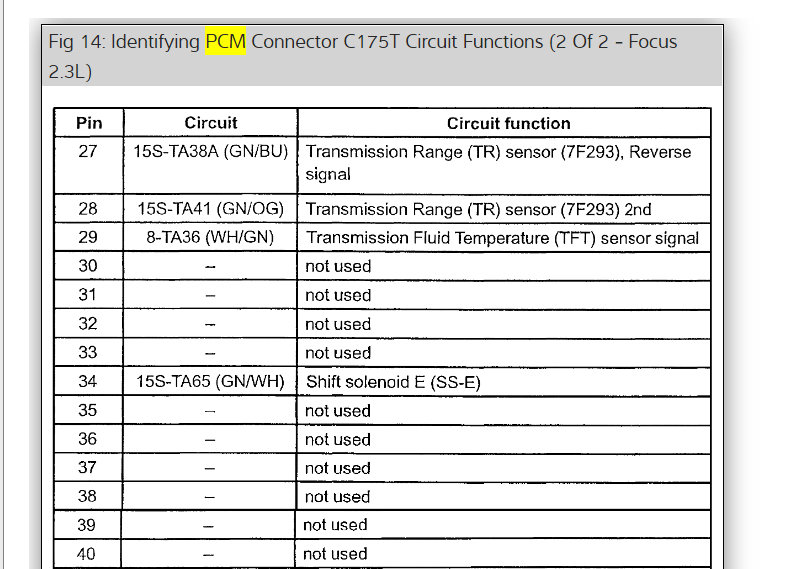

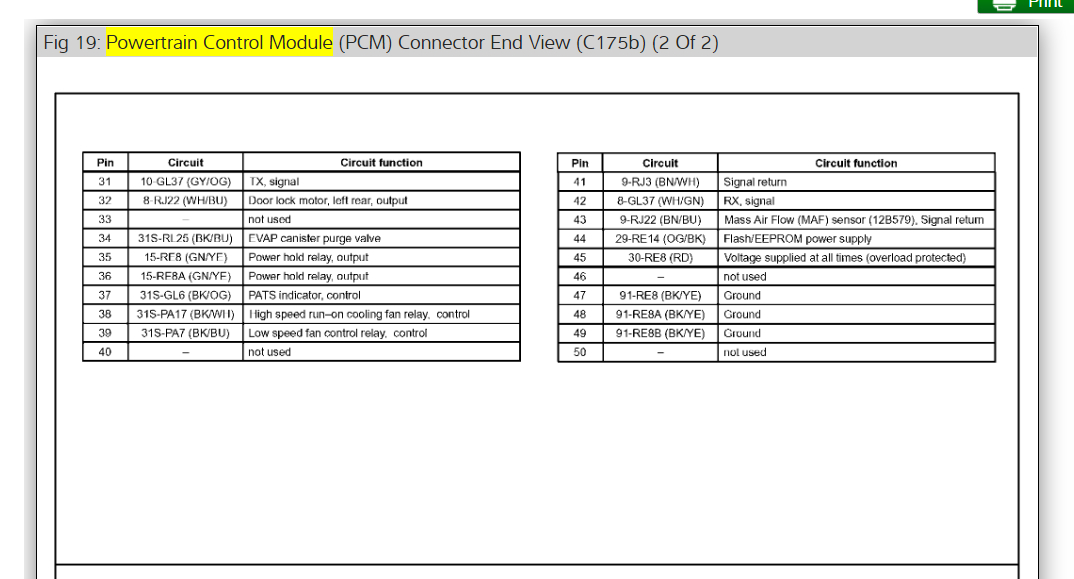

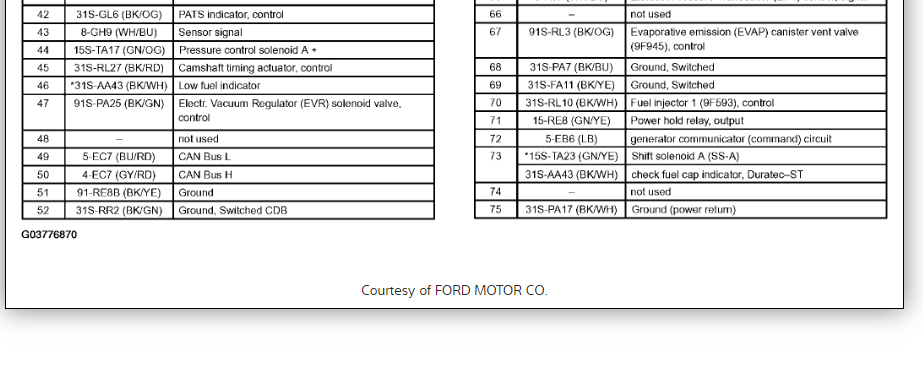

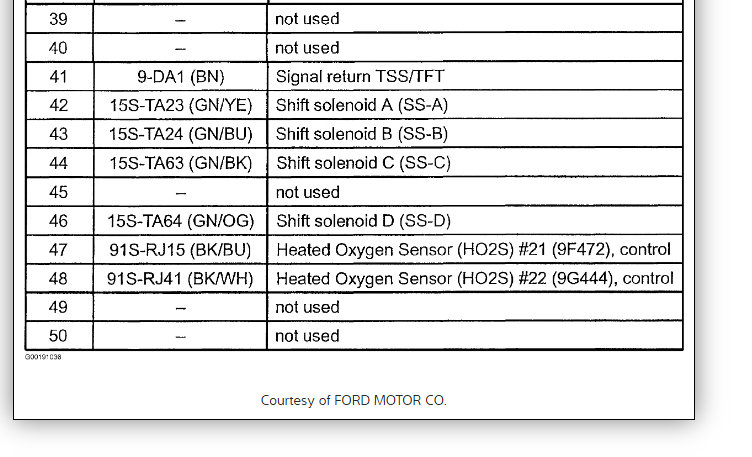

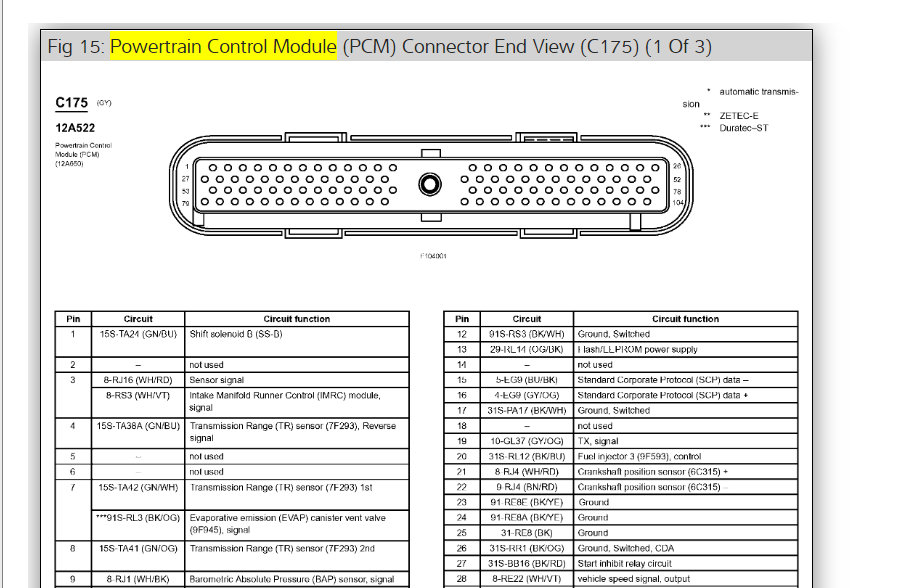

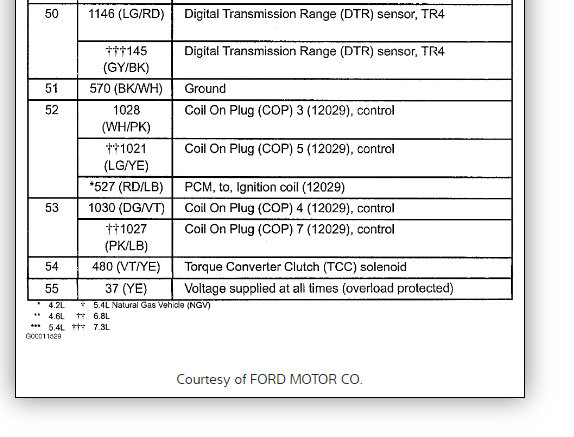

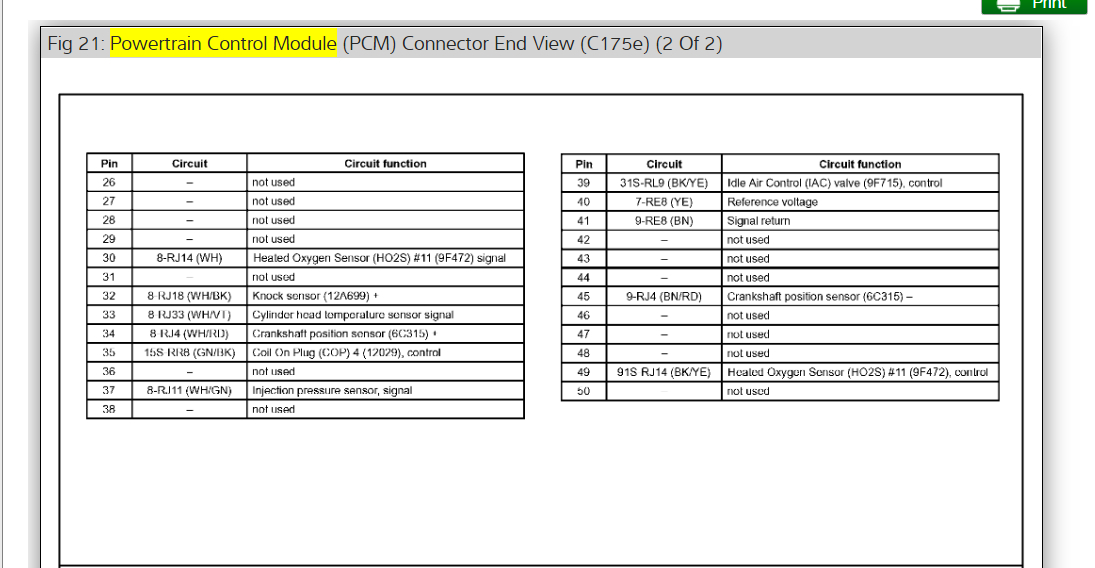

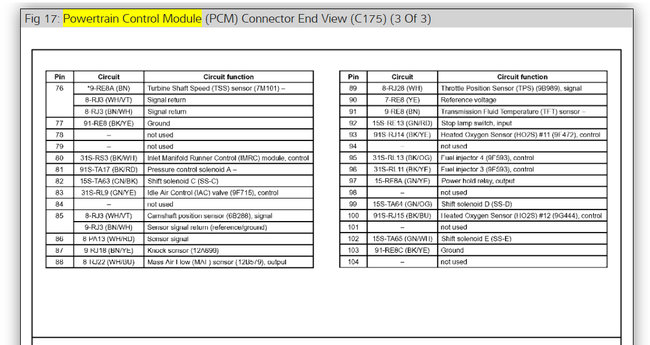

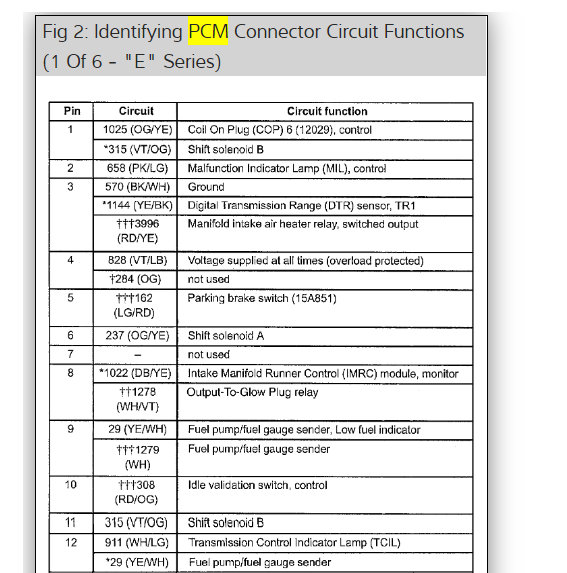

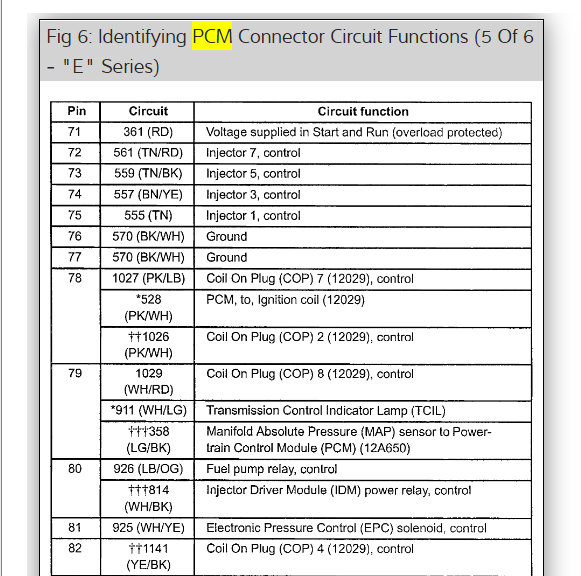

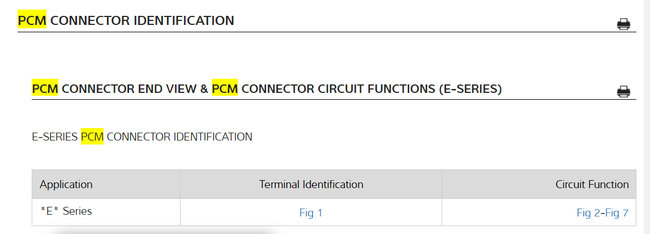

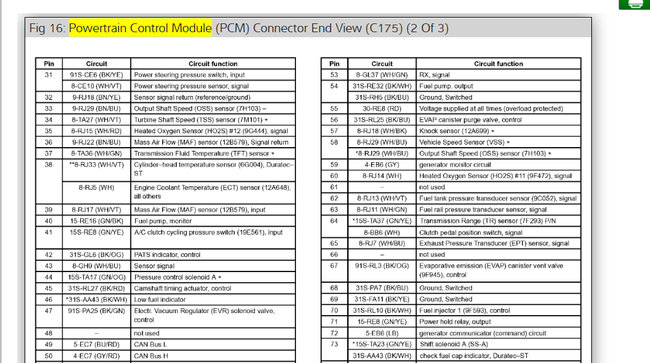

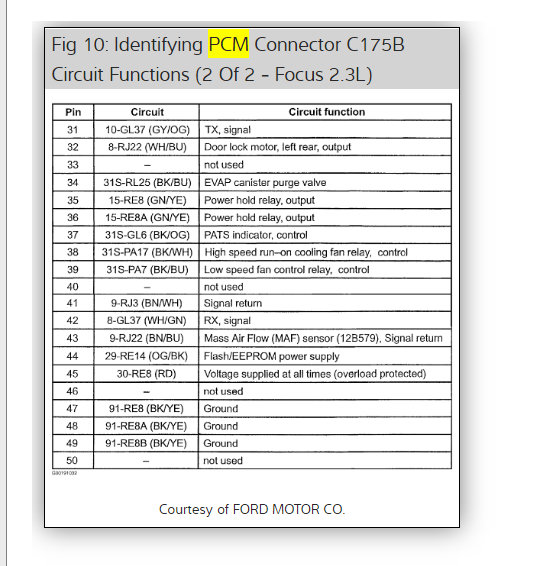

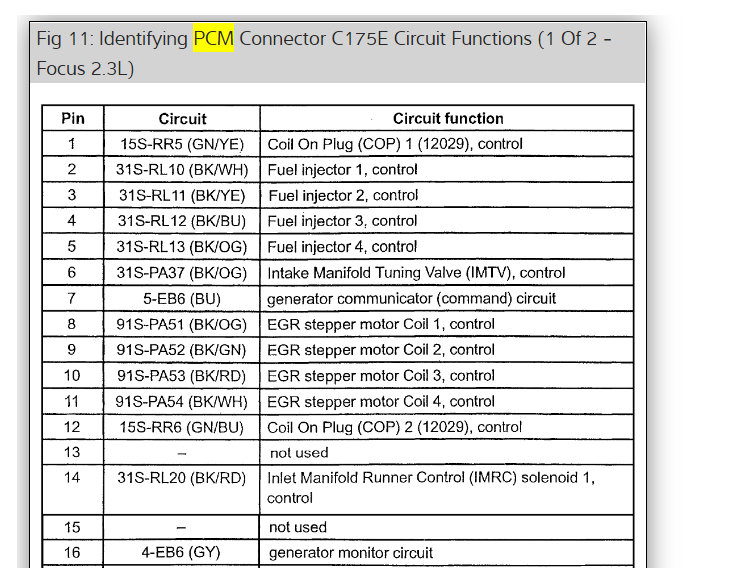

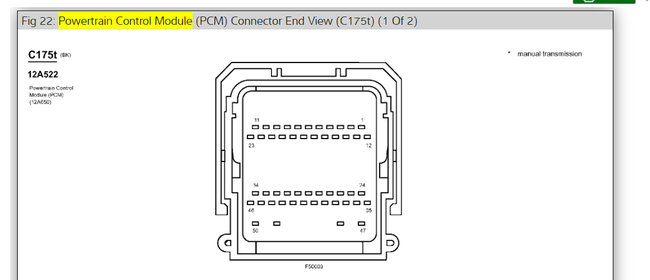

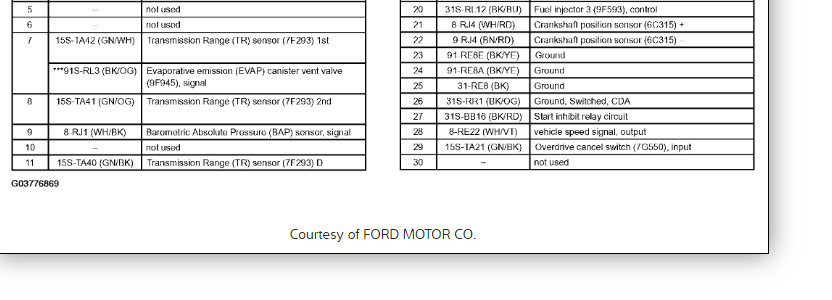

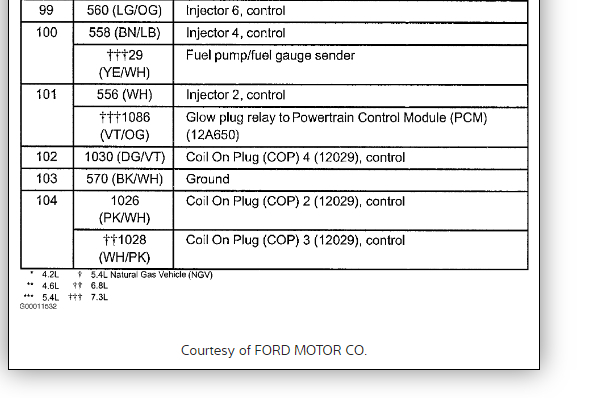

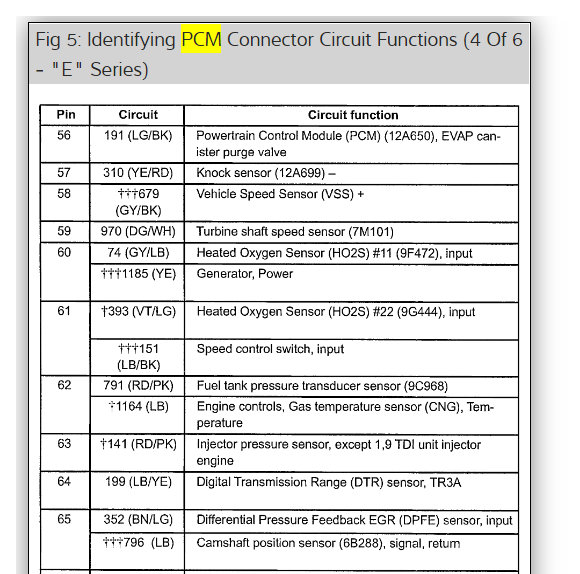

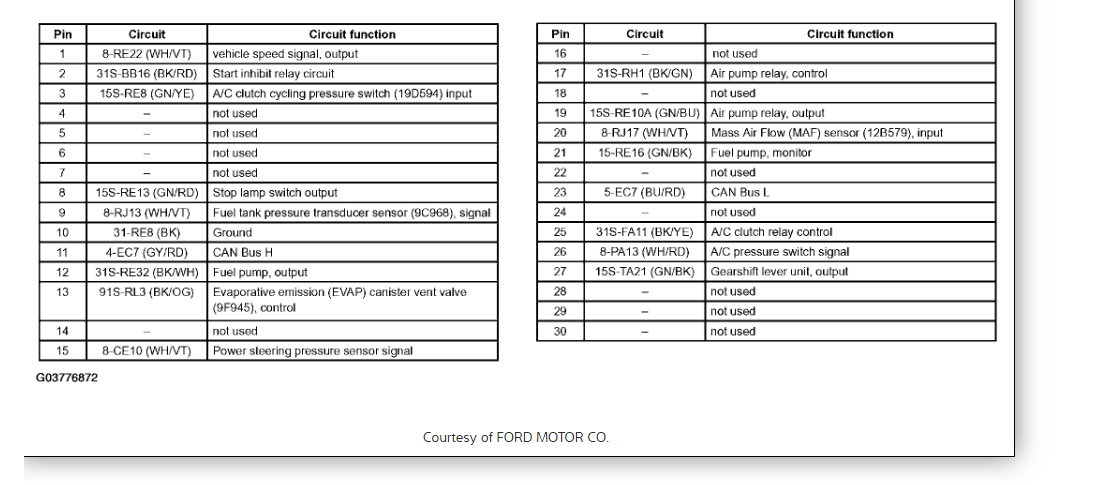

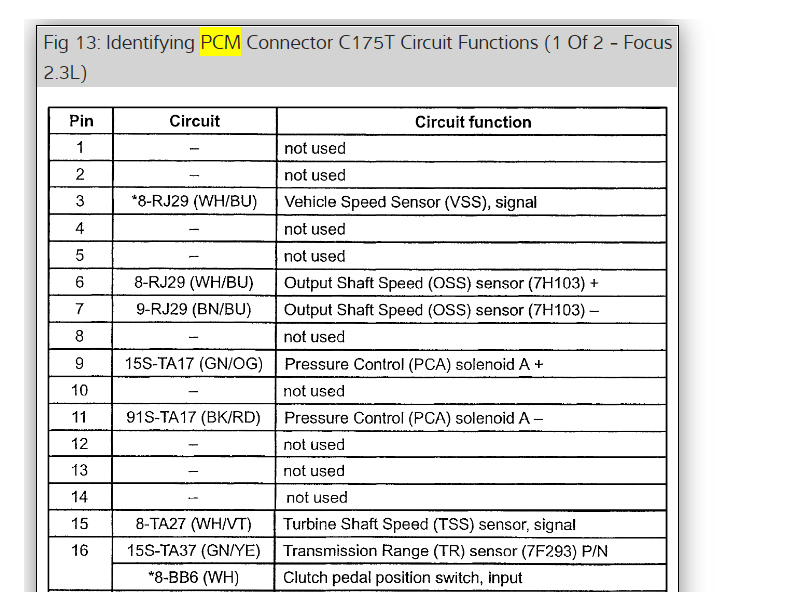

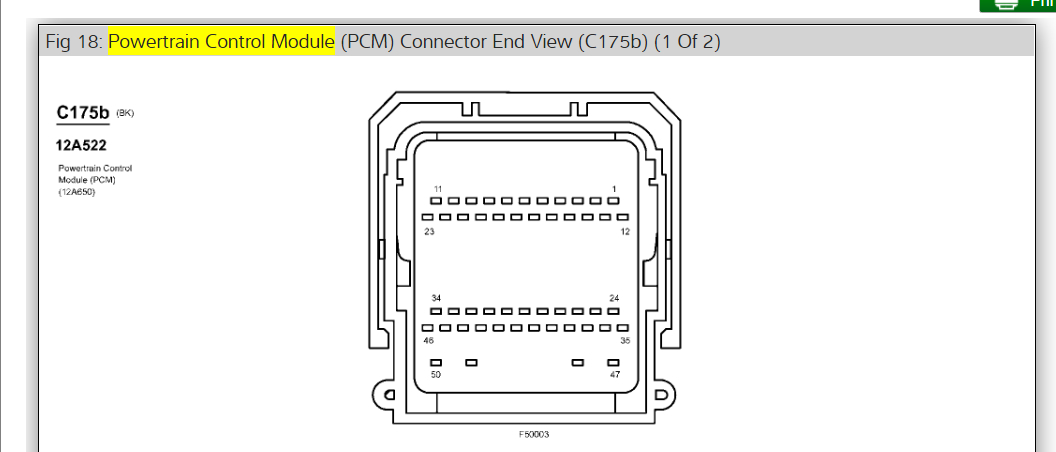

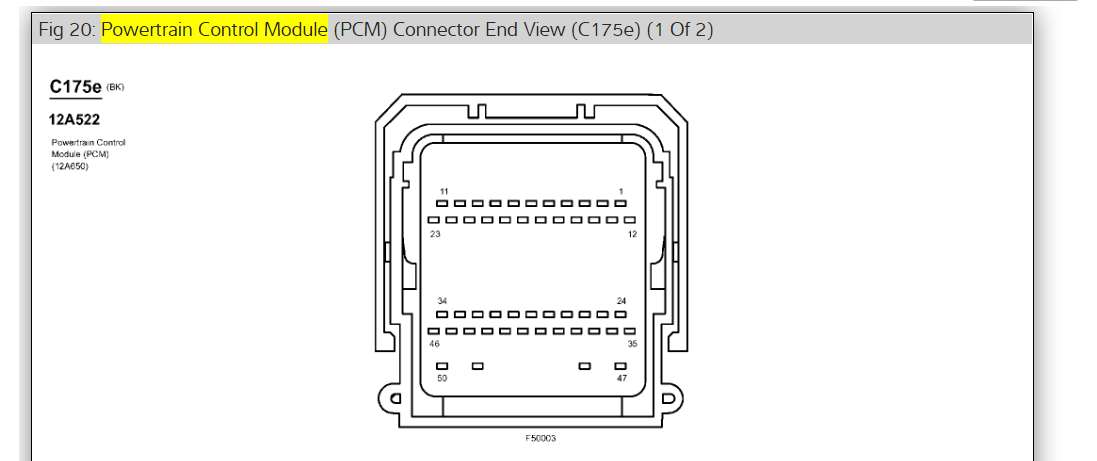

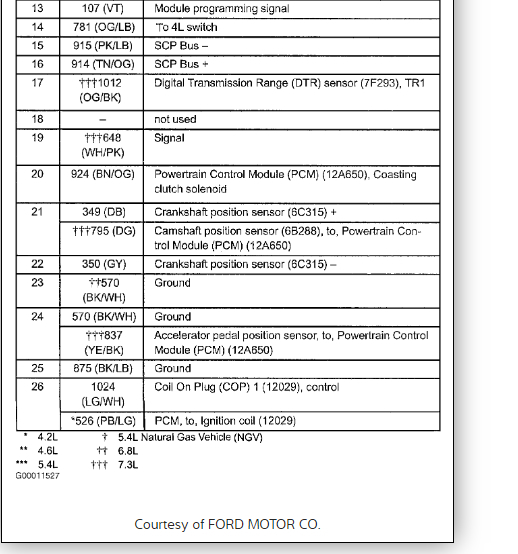

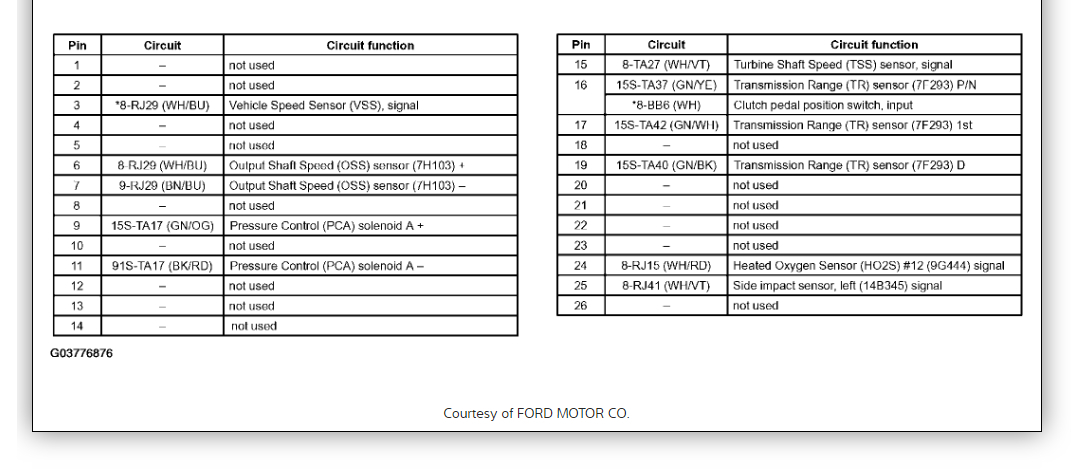

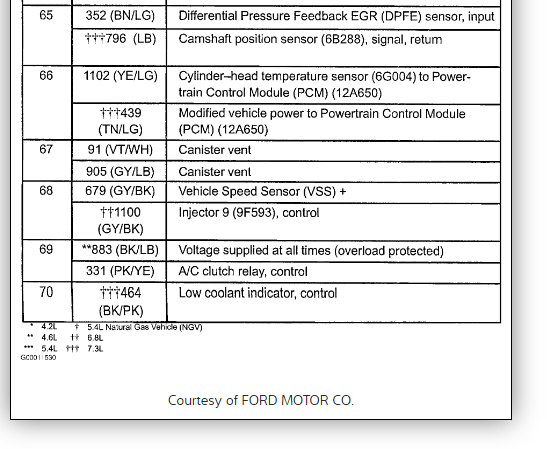

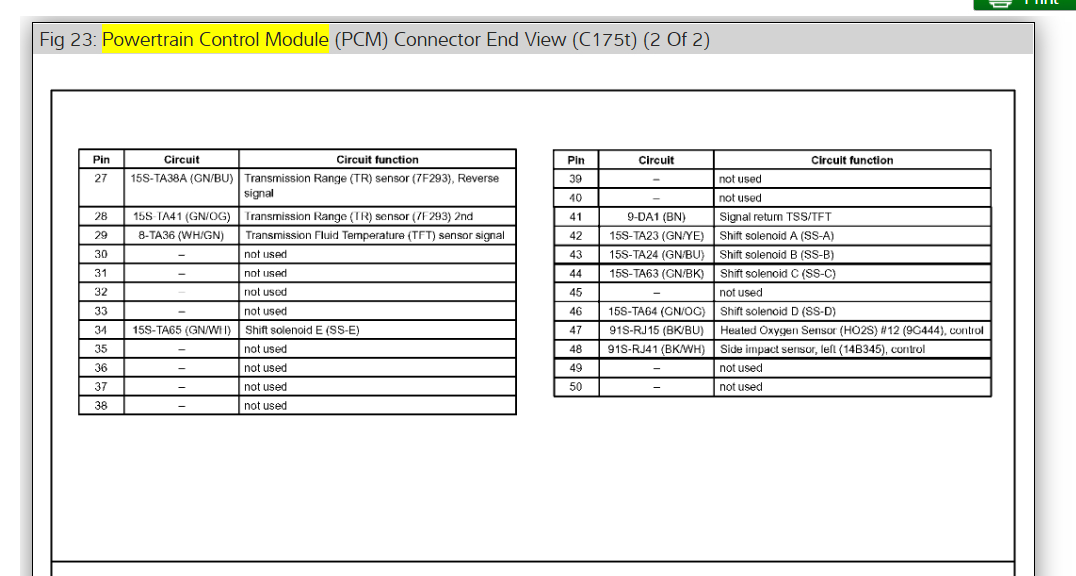

Okay, in the diagrams down below I have included all of the PCM Pinout diagrams for the Ford Focus. Please go through these diagrams and get back to us with how everything turns out.
