2002 Mercury Sable belts

Tiny
ROGMR4
  • MEMBER
  • 2002 MERCURY SABLE
  • 6 CYL
  • FWD
  • AUTOMATIC
  • 47,000 MILES
I need a diagram of the motor, the outside, trying to get belts on plus the small belt for the cam shaft and water pump.
Monday, April 13th, 2009 AT 3:42 PM

3 Replies

Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS
What size engine in liters please, it's on the white(V.E.C.I.) Lable under the hood.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, April 13th, 2009 AT 3:48 PM
Tiny
ROGMR4
  • MEMBER
  • 2 POSTS
3.0 Liter
Was this
answer
helpful?
Yes
No
Monday, April 13th, 2009 AT 4:42 PM
Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS

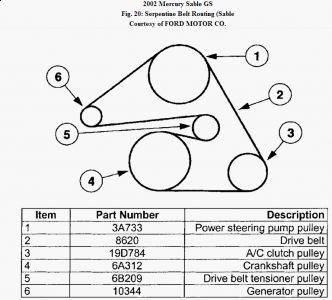

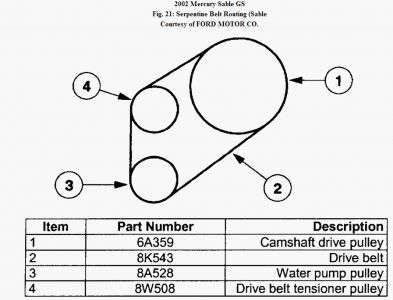

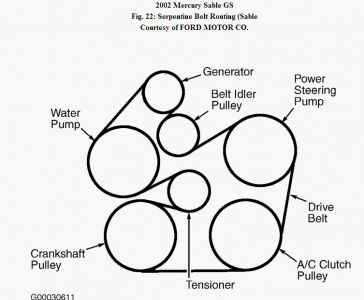

The first two pictures are for 3.0 with 8th letter of VIN is "S" the last is VIN "U" I think you have the S...


https://www.2carpros.com/forum/automotive_pictures/62217_30Sa_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_30Sb_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_30U_1.jpg

Was this
answer
helpful?
Yes
No
Monday, April 13th, 2009 AT 5:07 PM
