2000 Mercedes Benz E430 Belt Routing

Tiny
SEKHON1
  • MEMBER
  • 2000 MERCEDES BENZ E430
  • V8
  • AWD
  • AUTOMATIC
  • 157,000 MILES
Hi I need serpentine belt routing
Sunday, February 1st, 2009 AT 11:01 AM

1 Reply

Tiny
GFIMOTORCARS
  • MECHANIC
  • 673 POSTS


https://www.2carpros.com/forum/automotive_pictures/294900_113_belt_routing_1.jpg

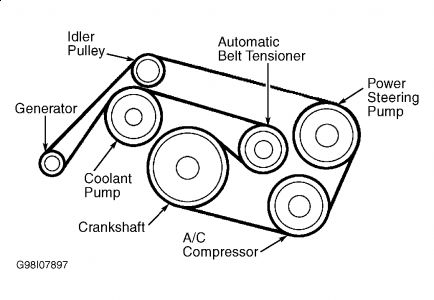

The proceeding image is the belt routing diagram for your vehicle.
