Where is the map sensor located?
Do you
have the same problem?
Yes
No
Friday, November 30th, 2018 AT 11:08 AM

1 Reply

Tiny
ASEMASTER6371
  • EXPERT
Good evening,

It is located on the back of the motor by the firewall. I attached the procedure and some pictures for you to view.

Roy

Removal Procedure

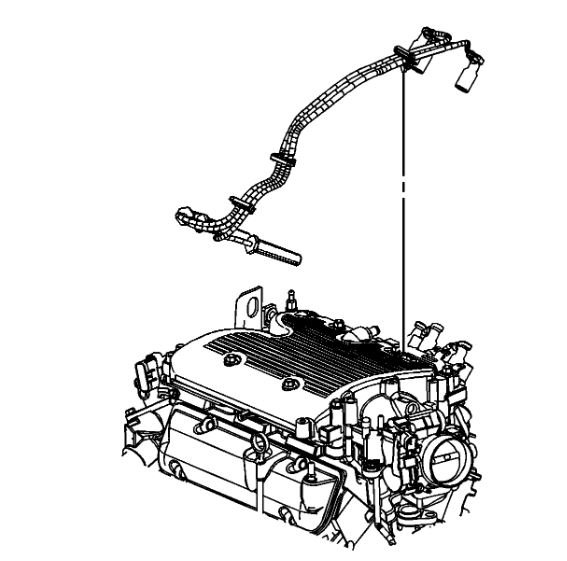

imageOpen In New TabZoom/Print

1. Remove the intake manifold cover.

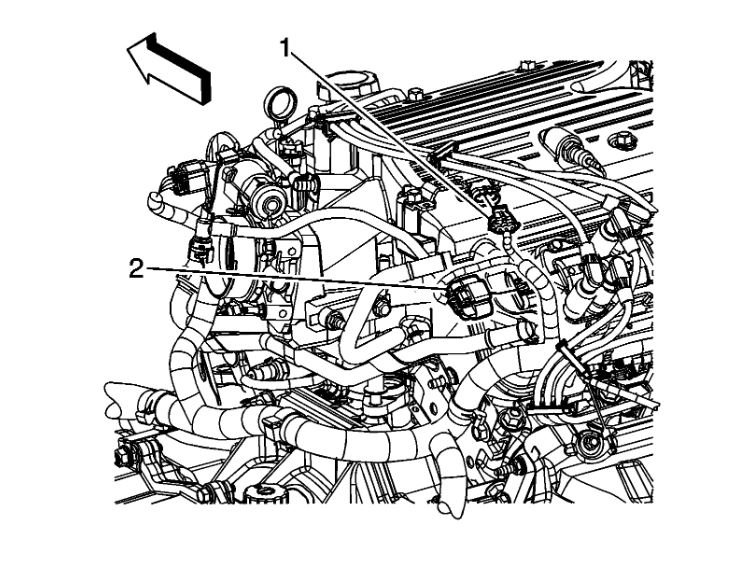

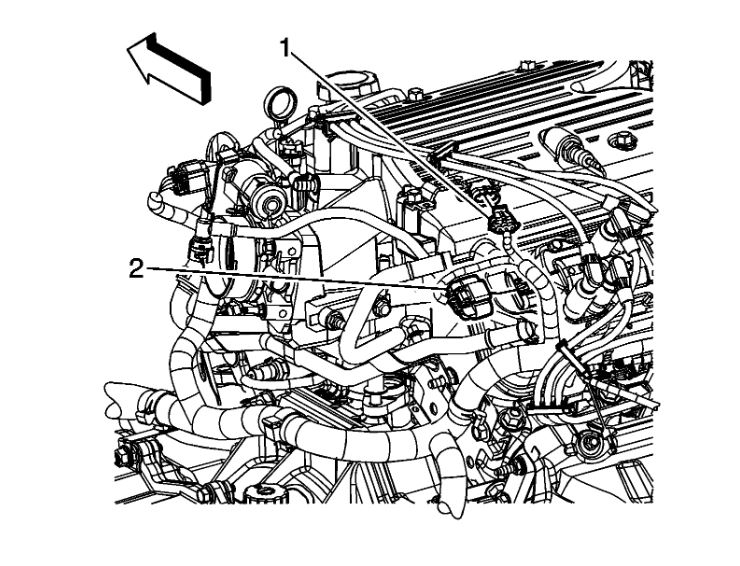

2. Disconnect the engine wiring harness electrical connector (1) from the manifold absolute pressure (MAP) sensor.

ImageOpen In New TabZoom/Print

3. Remove the spark plug wire clip from the MAP sensor bracket, if necessary.

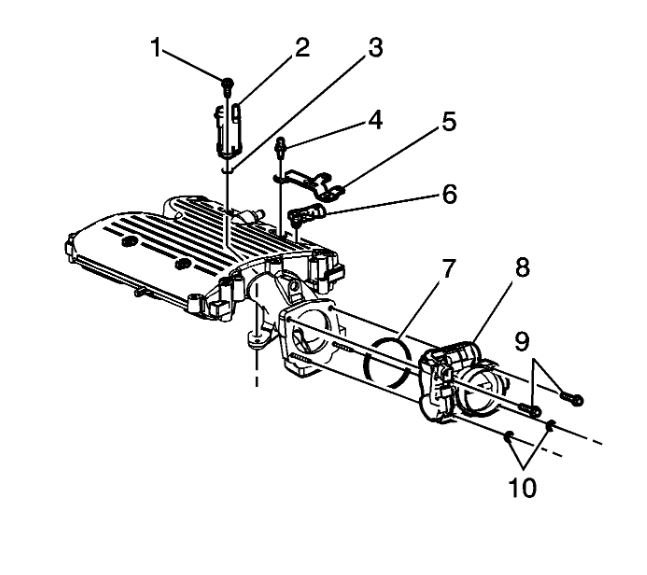

ImageOpen In New TabZoom/Print

4. Remove the upper intake manifold bolt.
5. Remove the MAP sensor bracket (5).
6. Remove the MAP sensor (6) and seal from the upper intake manifold. Discard the seal.
