Headlights wiring diagrams needed

DAN ROZETT

MEMBER
2015 HONDA CIVIC
25,000 MILES

I scratched a new low beam halogen bulb on my car listed above SE, while installing it. Should I replace it? I think it might have messed up because the headlight stopped working I need to wiring diagrams so I can see how the system works?

Saturday, August 29th, 2020 AT 11:04 AM

5 Replies

DANNY L

MECHANIC
5,648 POSTS

Hello, I'm Danny.

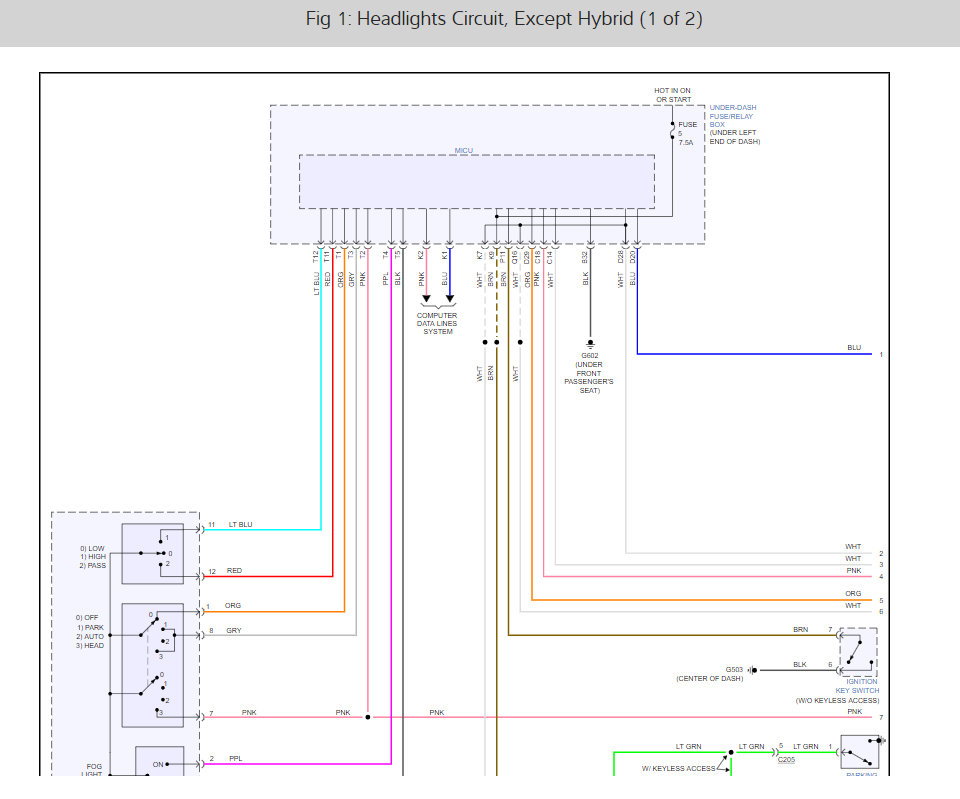

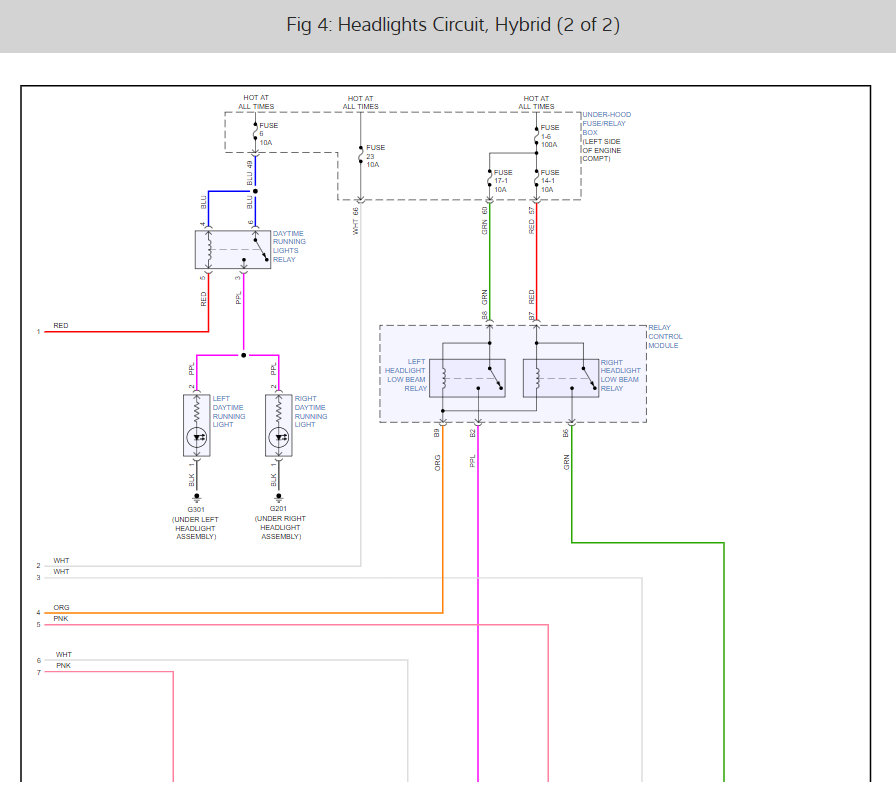

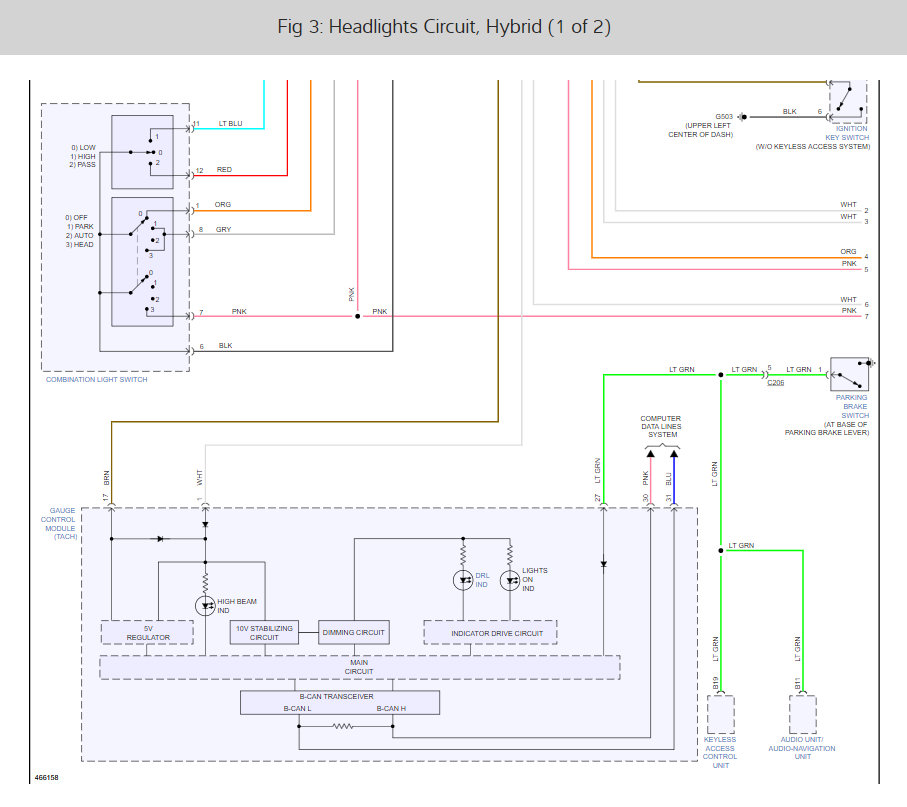

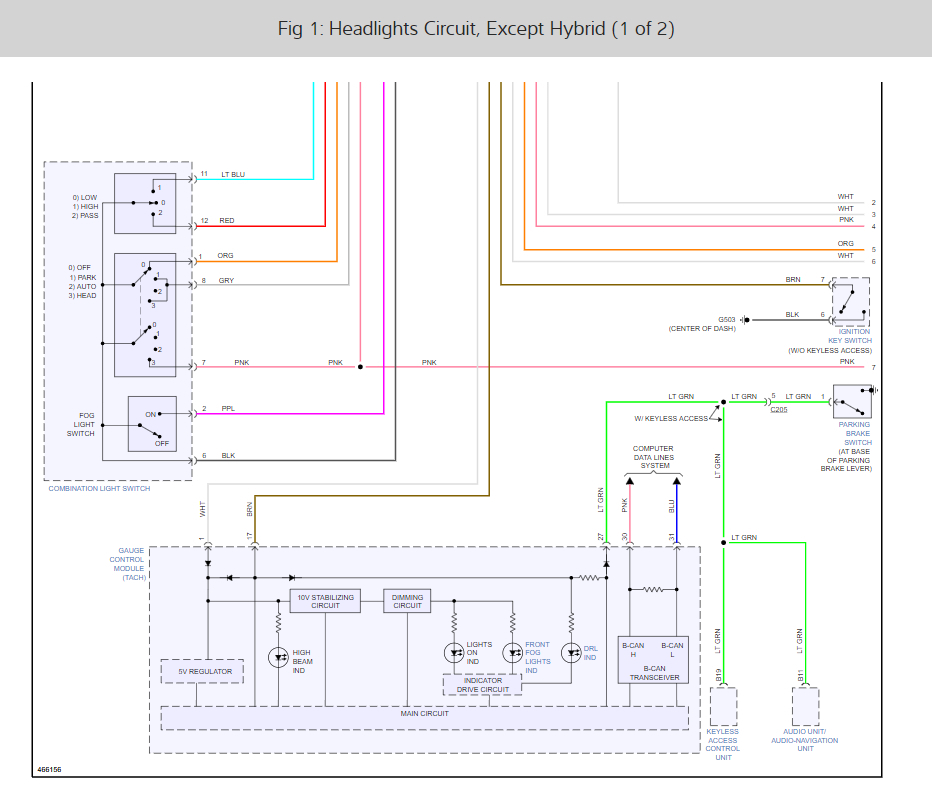

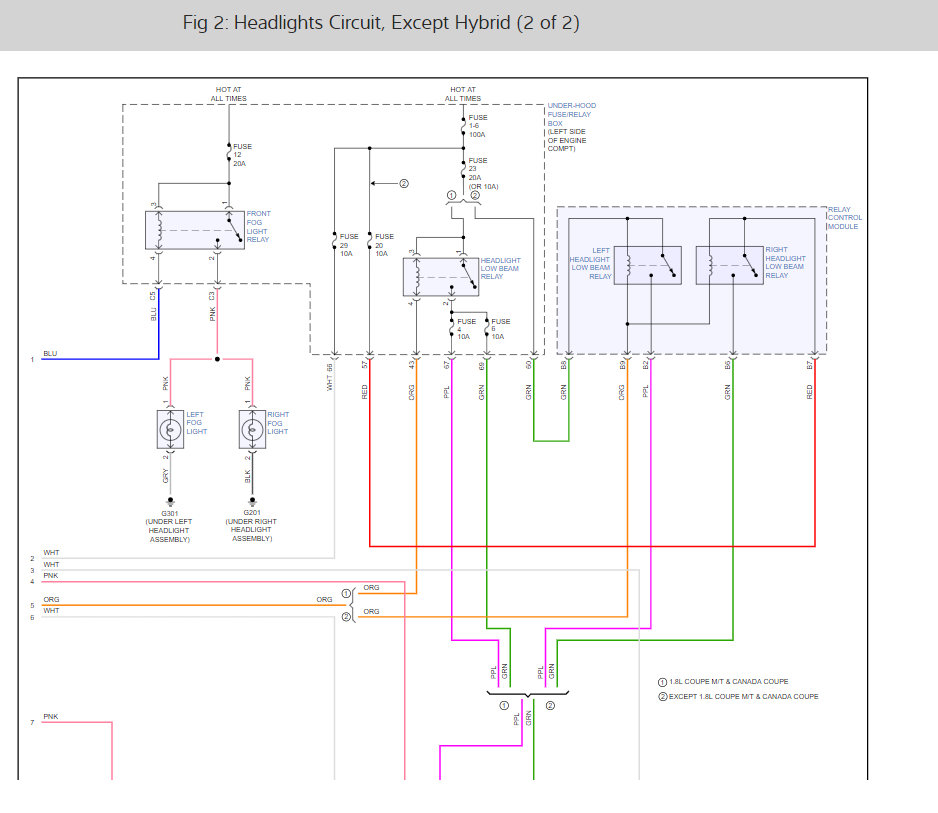

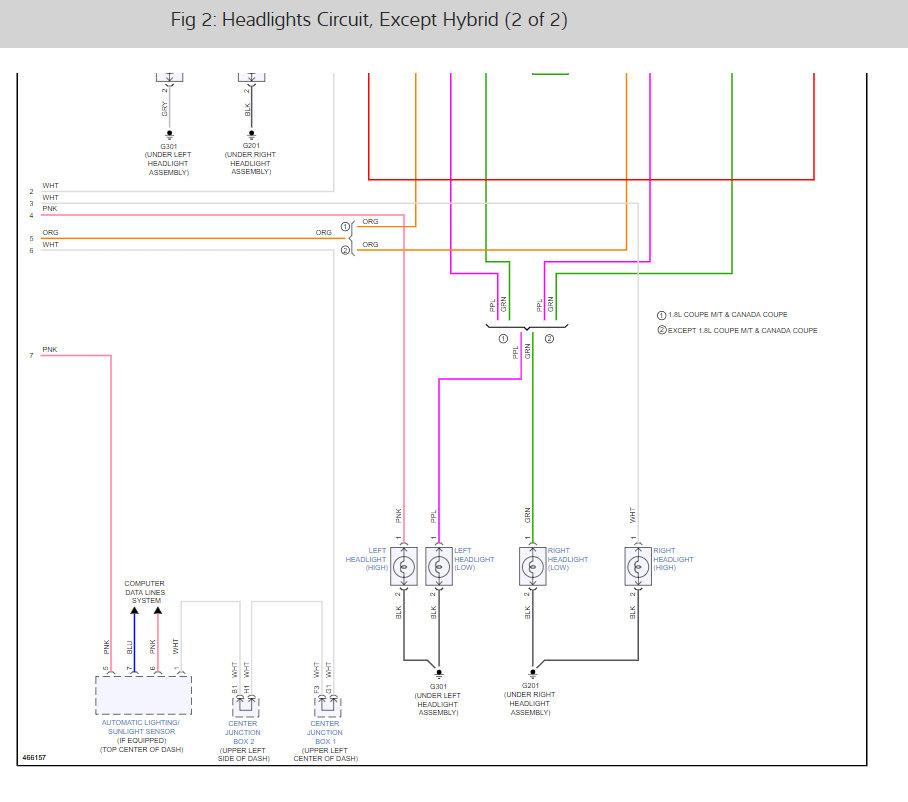

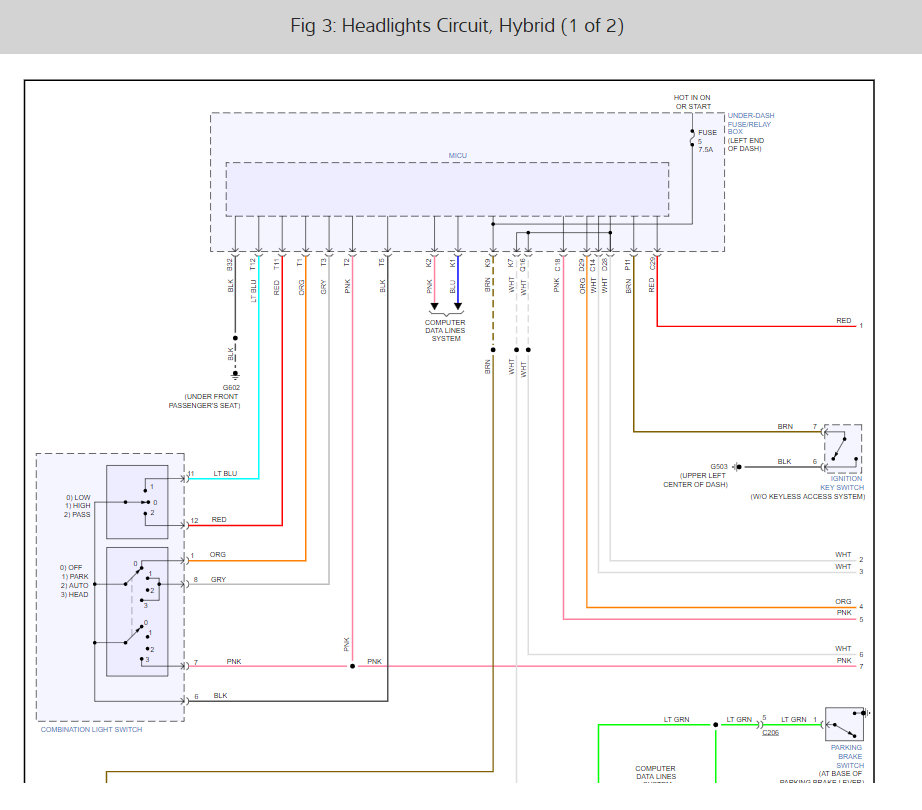

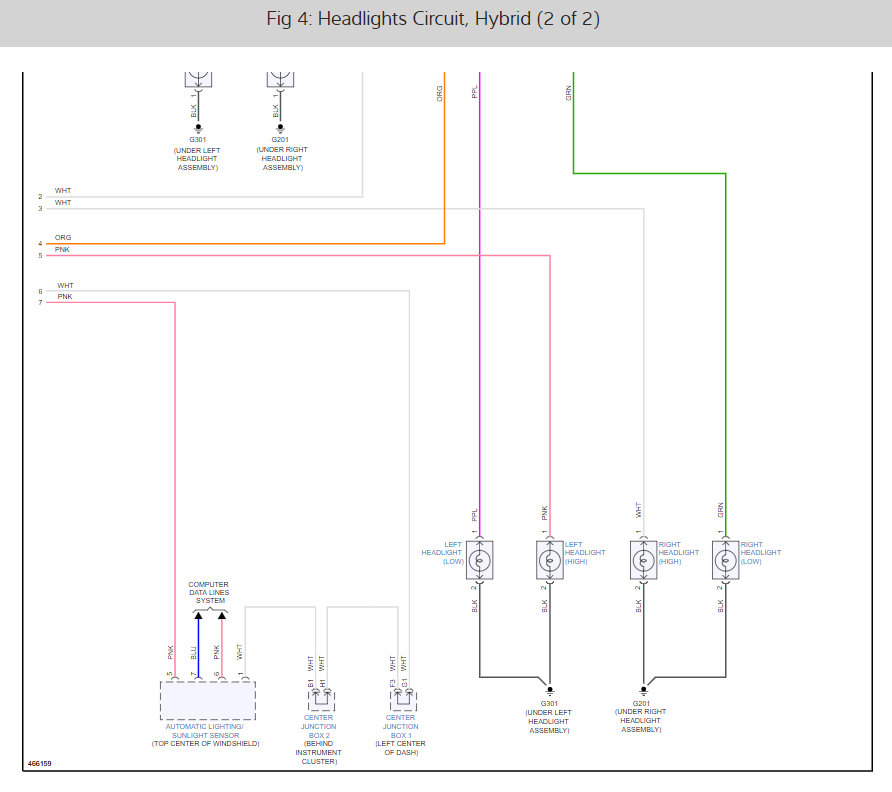

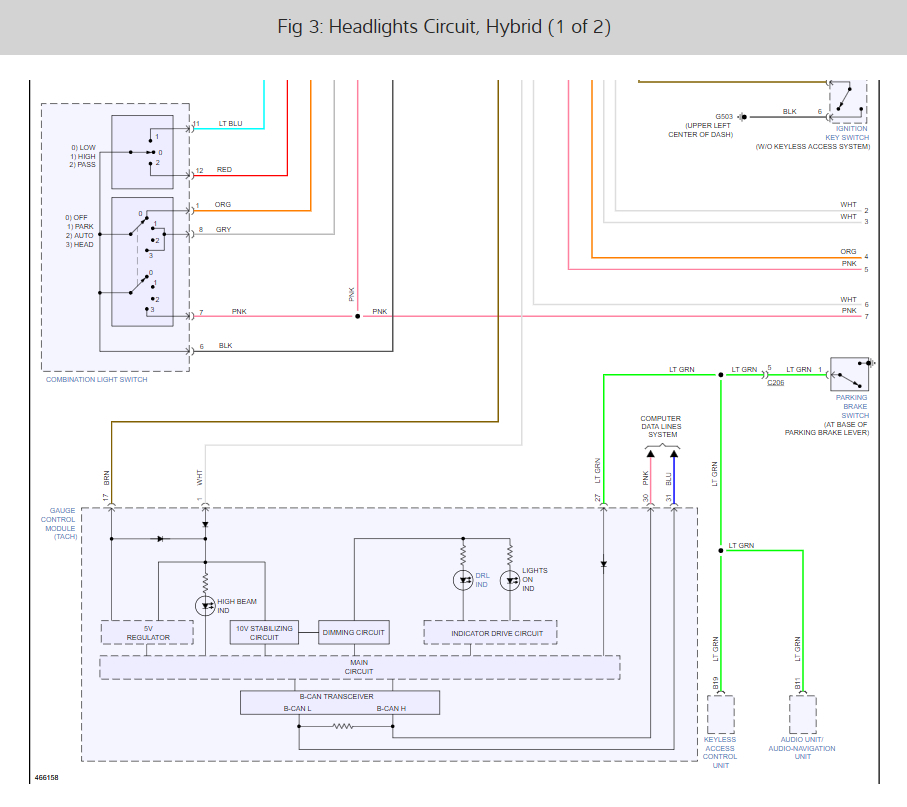

Here is a guide to help check the wiring connections with the headlight wiring diagrams for both hybrid and non hybrid models below.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (Below). Please let us know what happens.

Images (Click to make bigger)

SPONSORED LINKS

Was this

answer

helpful?

Yes

No

Saturday, August 29th, 2020 AT 12:01 PM

DAN ROZETT

MEMBER
3 POSTS

Hi Danny. Here is a picture of one headlight not working Thanks for the reply. Tried uploading again. Hope it works.

Image (Click to make bigger)

Was this

answer

helpful?

Yes

No

Saturday, August 29th, 2020 AT 12:02 PM

DANNY L

MECHANIC
5,648 POSTS

Hello again.

Yes, I got it. Remember when installing bulbs to wear latex or nitrile gloves due to the bulbs being touched by your hand will blow the bulb from the oil in our skin. Hope this helps and thanks again for using 2CarPros.

Danny-

Was this

answer

helpful?

Yes

No

Saturday, August 29th, 2020 AT 1:14 PM

DAN ROZETT

MEMBER
3 POSTS

Yup, dropped it when installing. Survived the drop but got scratched. Installing on driver’s side of this car is annoying. Access is anything but ideal.
Thanks for your advice.
Dan

Was this

answer

helpful?

Yes

No

Saturday, August 29th, 2020 AT 1:42 PM
