Crank angle sensor location

2009 SUZUKI GRAND VITARA
147,874 MILES • 3.2L • 6 CYL • AUTOMATIC
Avatar
NB MECHANICAL
  • MEMBER
  • 1 POST
Location of crank angle sensor.
Nov 11, 2019 at 8:24 PM
Advertisement
Avatar
SCGRANTURISMO
  • CAR REPAIR CONTRIBUTOR
  • 4,897 POSTS
Hello,

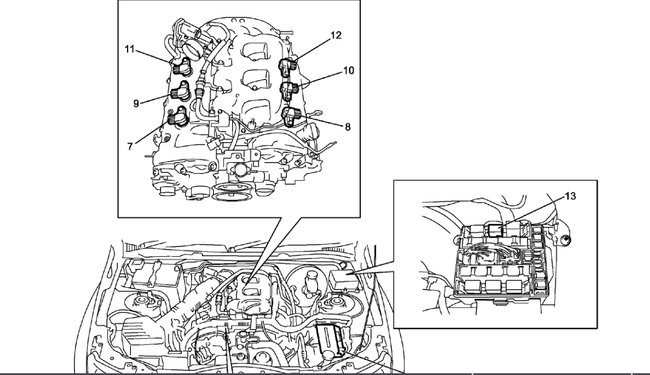

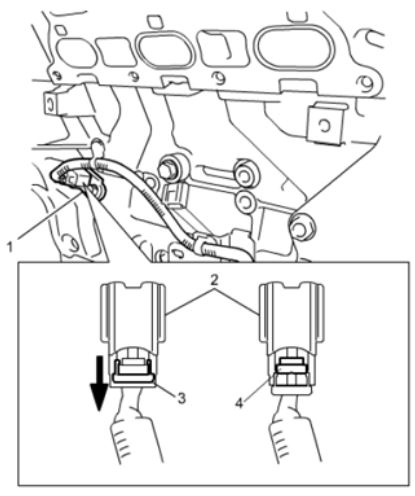

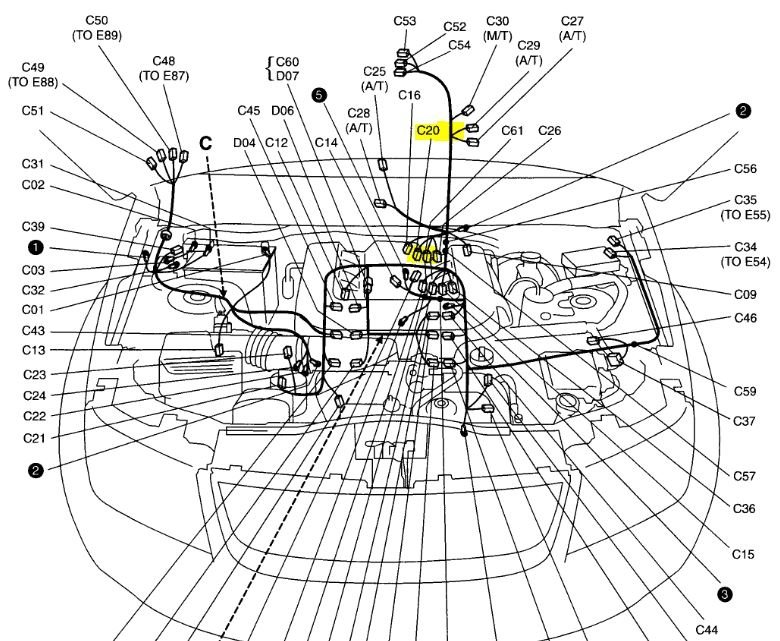

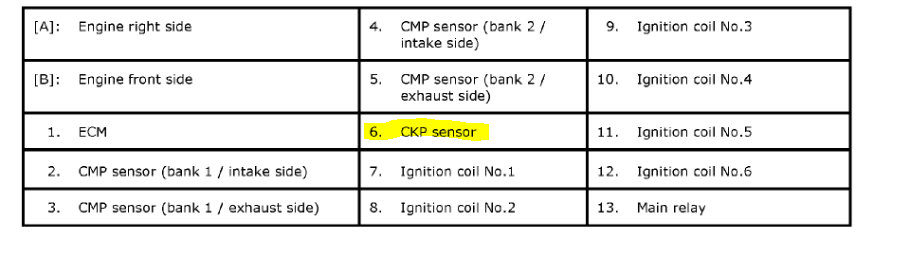

I have included the information that you requested in the diagrams down below. Please go through this information and get back to us with how everything turns out. I hope this helps.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Nov 11, 2019 at 9:21 PM
Avatar
MASTERWRENCH
  • CAR REPAIR CONTRIBUTOR
  • 258 POSTS

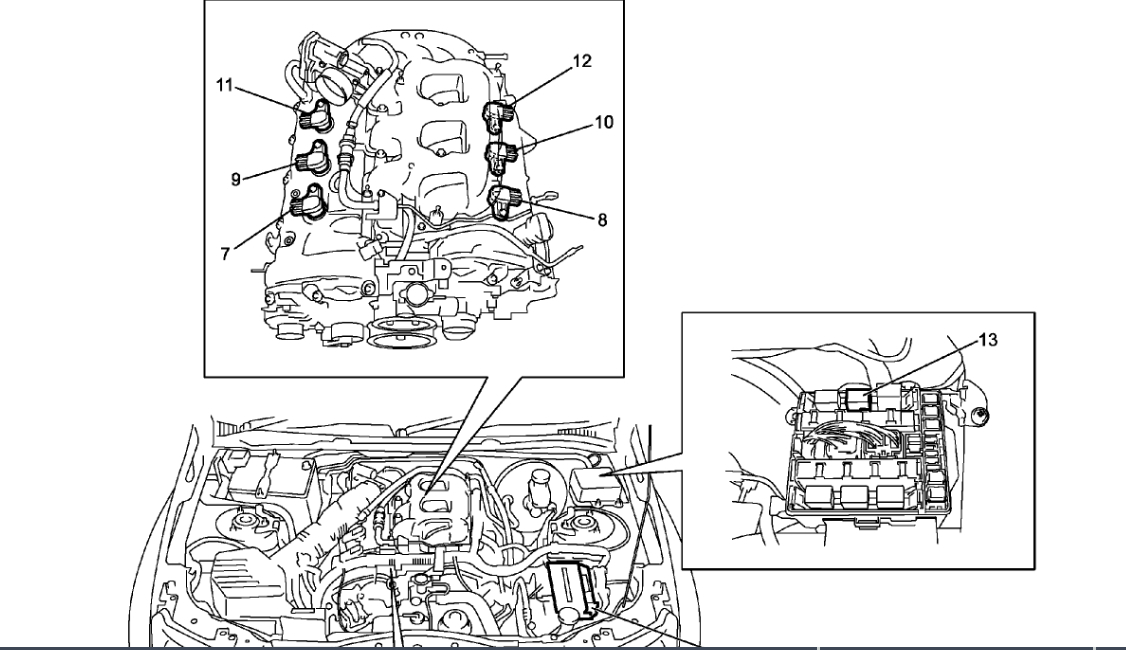

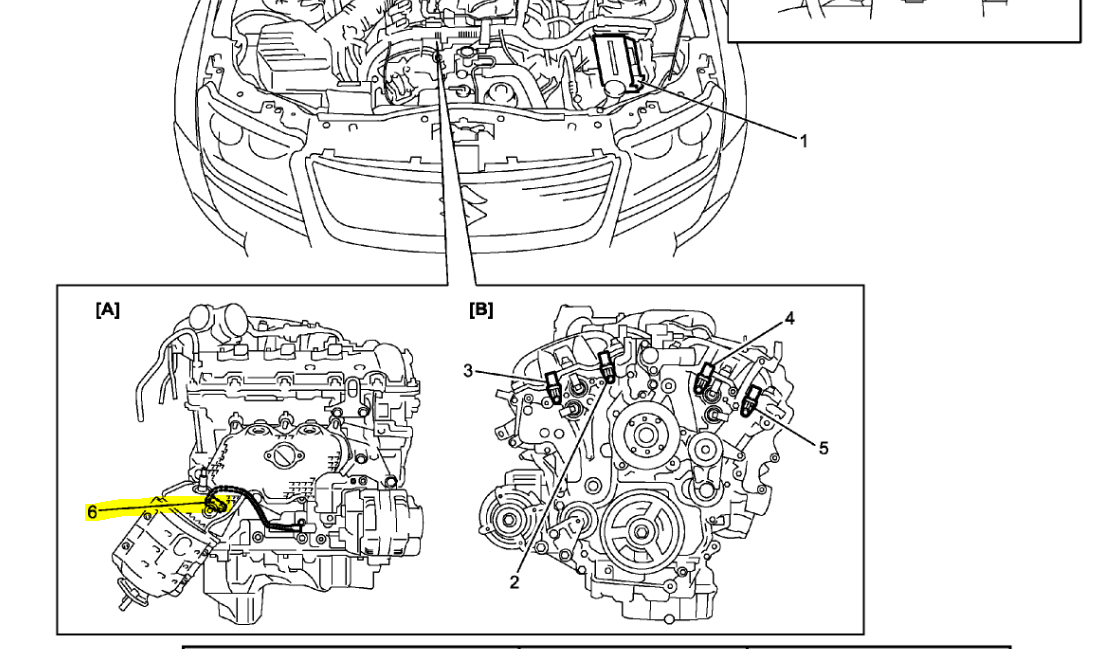

The crank sensor on this vehicle is located on the right rear side of the engine. See the attached diagrams for more detail.
