Instrument Cluster Pinout?

2006 TOYOTA CAMRY

200,000 MILES • 3.5L • 6 CYL • 2WD • AUTOMATIC

PAROXYSM

MEMBER
2 POSTS
FOLLOW

Hi guys,

I am in Australia and own a Toyota Aurion 2006. I am looking for a Pinout for the instrument cluster used. I selected Camry as there is no option for an Aurion vehicle. I ultimately want to find the Positive, Negative and Canbus High and Low to extract the canbus data to utilize in a racing simulator using the cluster as a standalone device.
Any help you could provide would be awesome!

Thanks in advance.

Mick

Mar 22, 2025 at 7:23 PM

STRAILER

✓ASE Certified Mechanic
54,503 POSTS

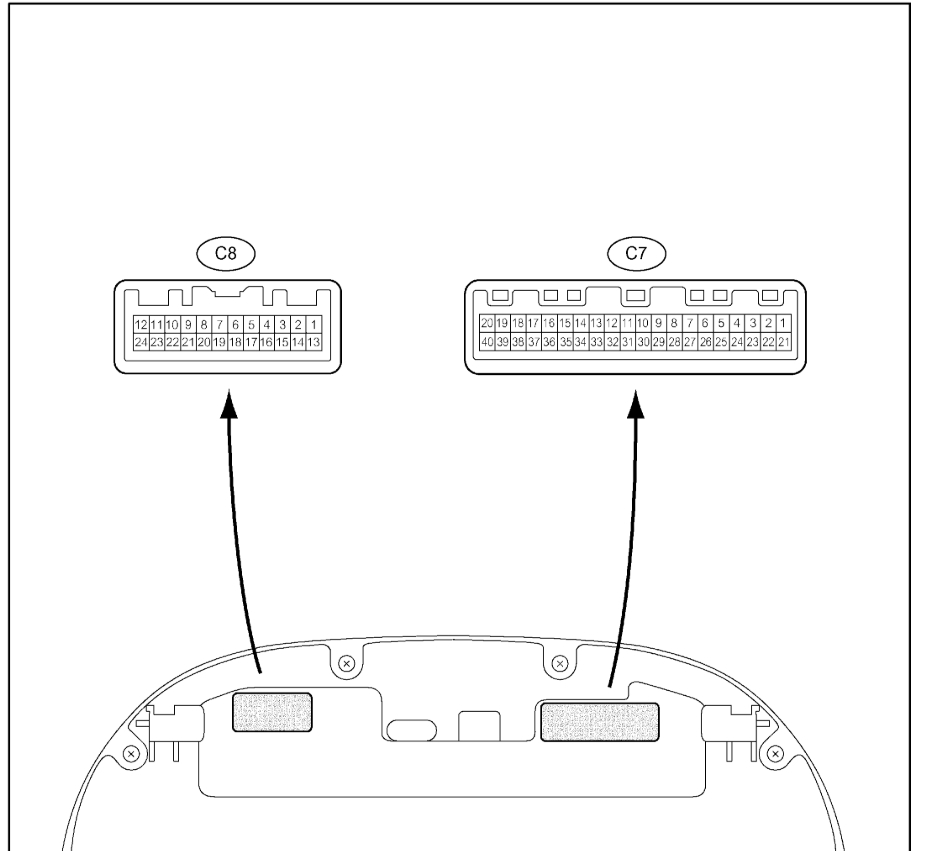

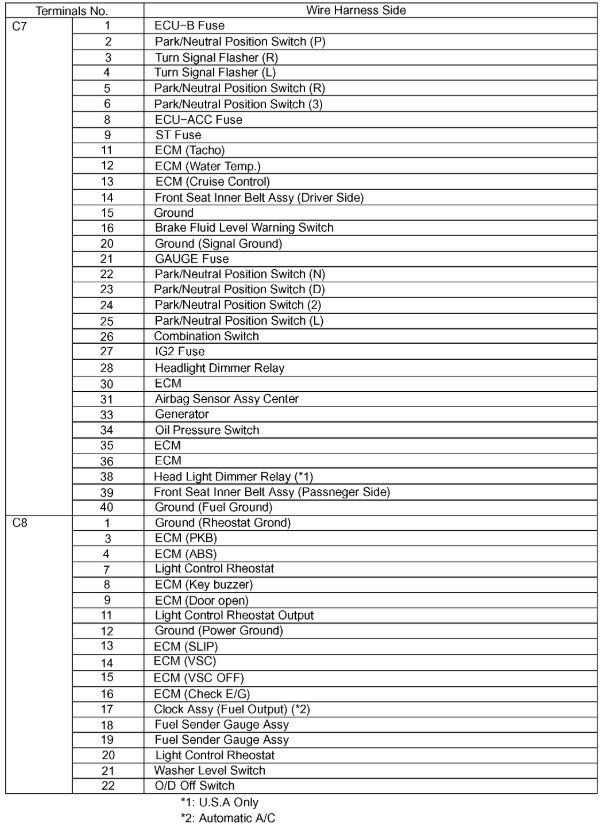

Yo Mick! How are things down under? The Aurion is a Camry so no worries there m8. Here is the pinout for the instrument cluster. Check out the images (below). Let us know if you need anything else.

Images (Click to enlarge)

Professional Diagram for 2CarPros Members
Click here to log in and view diagram.

Mar 23, 2025 at 10:33 AM

PAROXYSM

MEMBER
2 POSTS

G'day Ken you legend.

Thanks for your expedient reply. Unfortunately, that is not the cluster I have. The cluster I have has a 24-pin connector and a 16-pin connector.

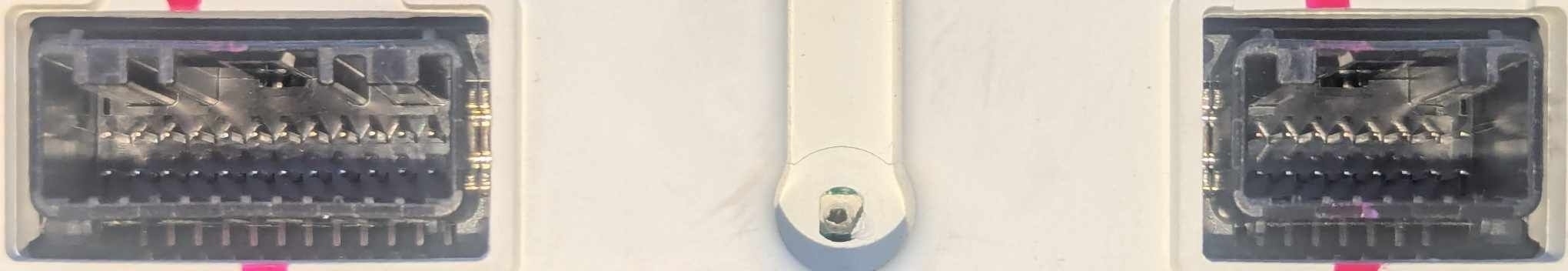

I have attached a pic of the rear connectors.

Cheers bloke!

Image (Click to enlarge)

Mar 23, 2025 at 11:22 PM

STRAILER

✓ASE Certified Mechanic
54,503 POSTS

Hmm, that is the only one they show, there must be a difference with the Aurion model. sorry m8.

Mar 25, 2025 at 10:44 AM
