In car dash Fuse box diagram

Tiny
NASH6160
  • MEMBER
  • 1999 ISUZU RODEO
  • 2.3L
  • 6 CYL
  • 4WD
  • AUTOMATIC
  • 203,000 MILES
I need fuse box diagram for drivers side dash
Tuesday, May 30th, 2023 AT 12:52 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 50,675 POSTS
Sure, here is a guide to help test the fuses and the fuse labels and location in the diagrams below:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

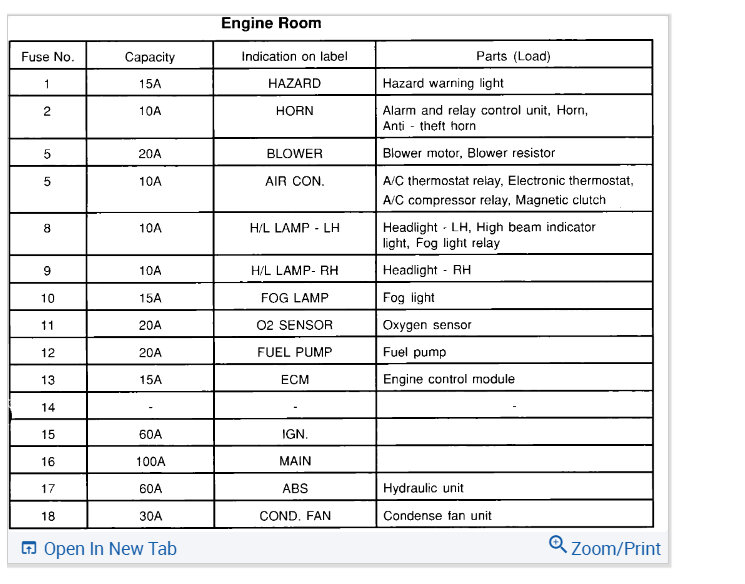

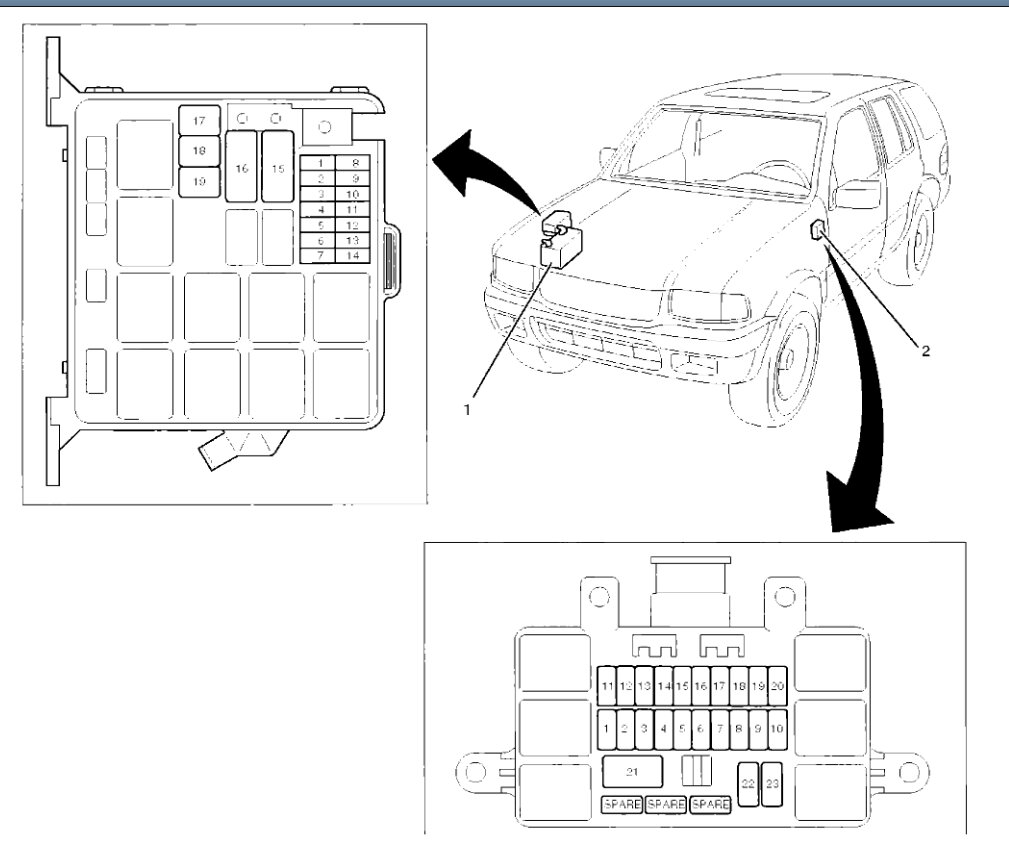

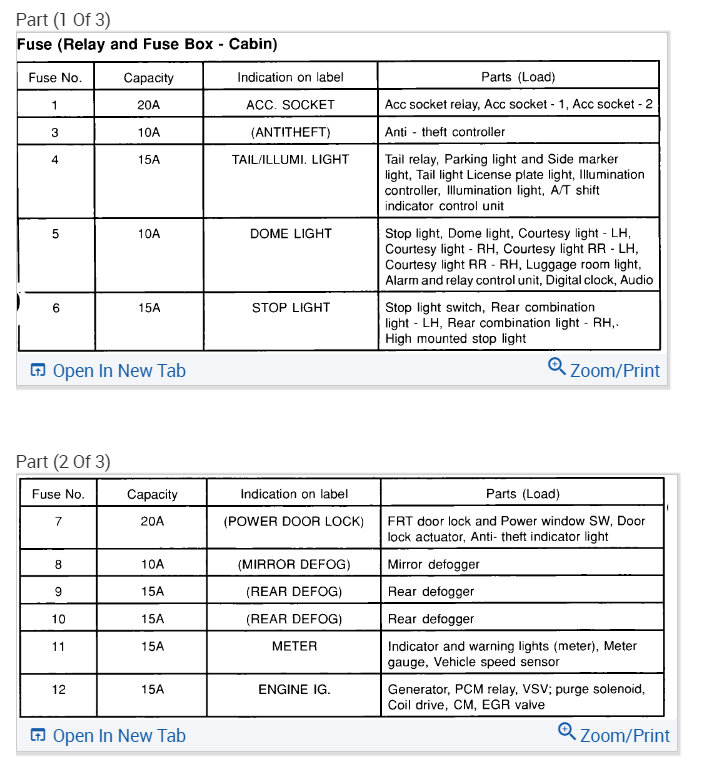

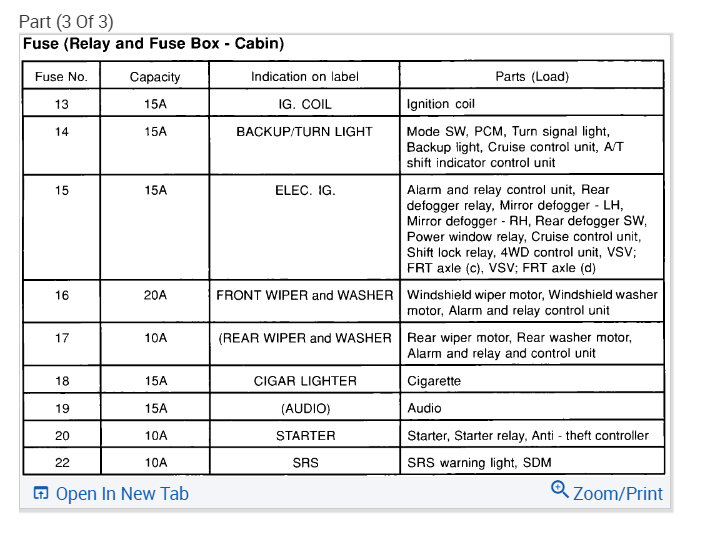

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+1
Wednesday, May 31st, 2023 AT 7:50 AM
