Ignition relay wiring diagram needed?

Tiny
POSSUM0459
  • MEMBER
  • 2008 DODGE CALIBER
  • 2.0L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 190,000 MILES
The relay box was smashed, and I had to rewire the relays. Replaced the relay after this and got car started but did not connect all wires as do not know where they go. Need a wire diagram as I cannot find one online.
SPONSORED LINKS
Do you
have the same problem?
Yes
No
Sunday, September 17th, 2023 AT 6:27 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC

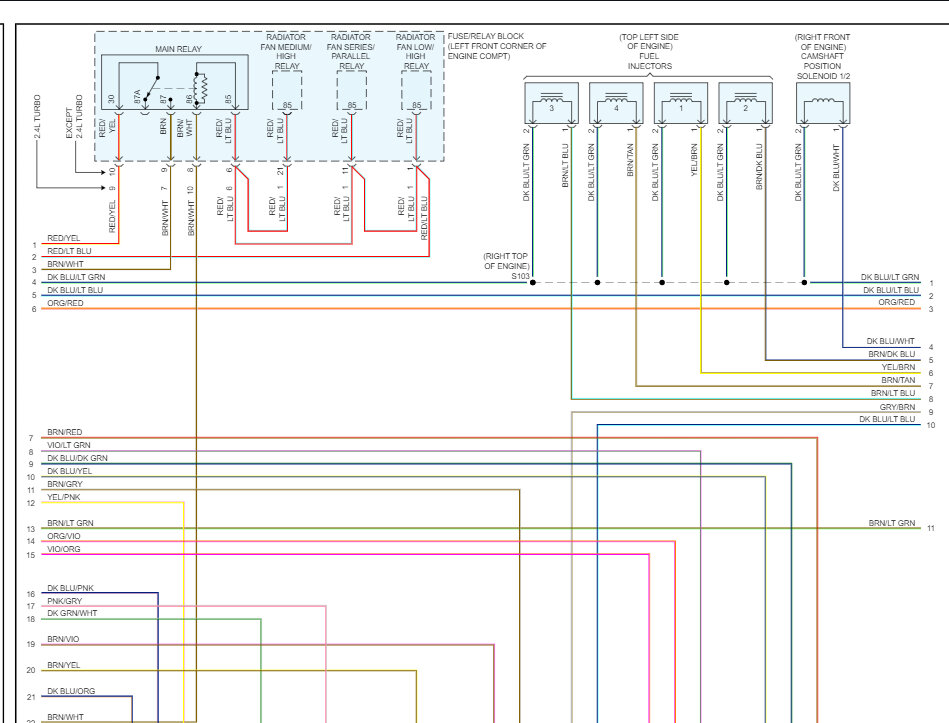

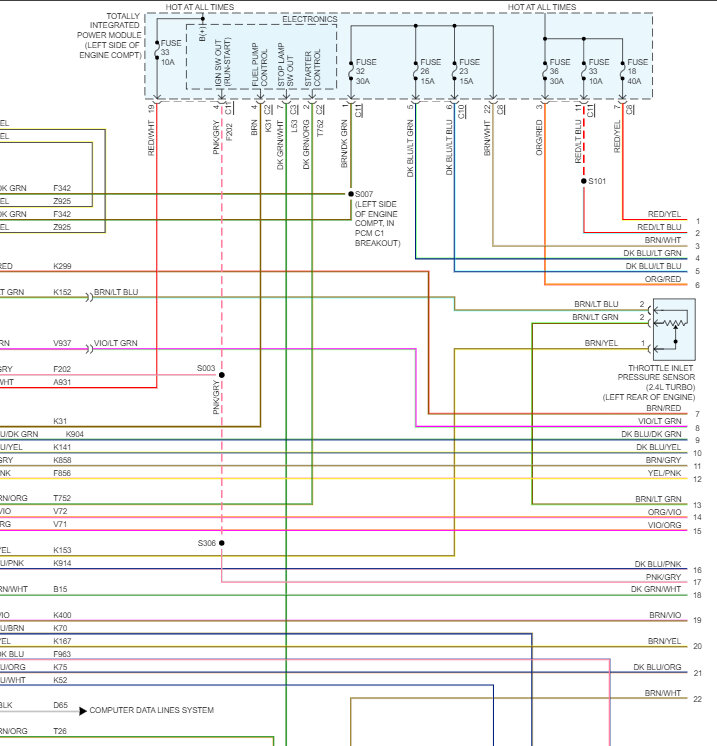

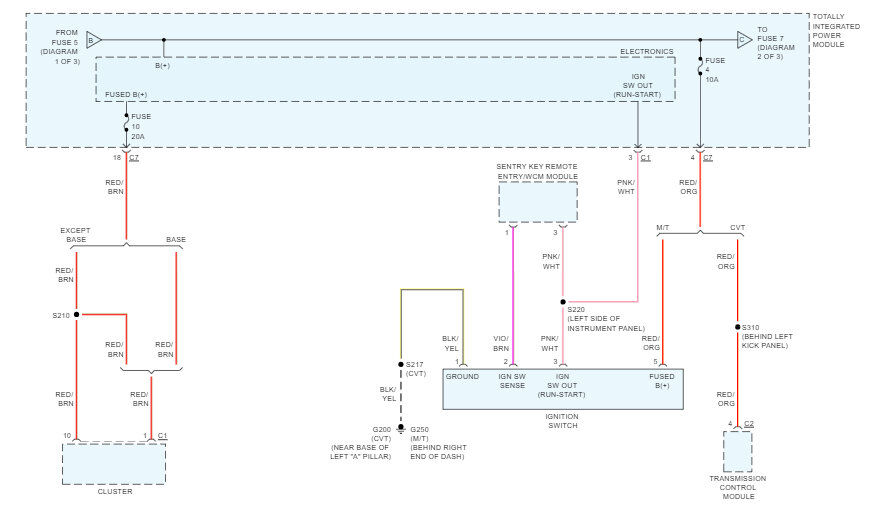

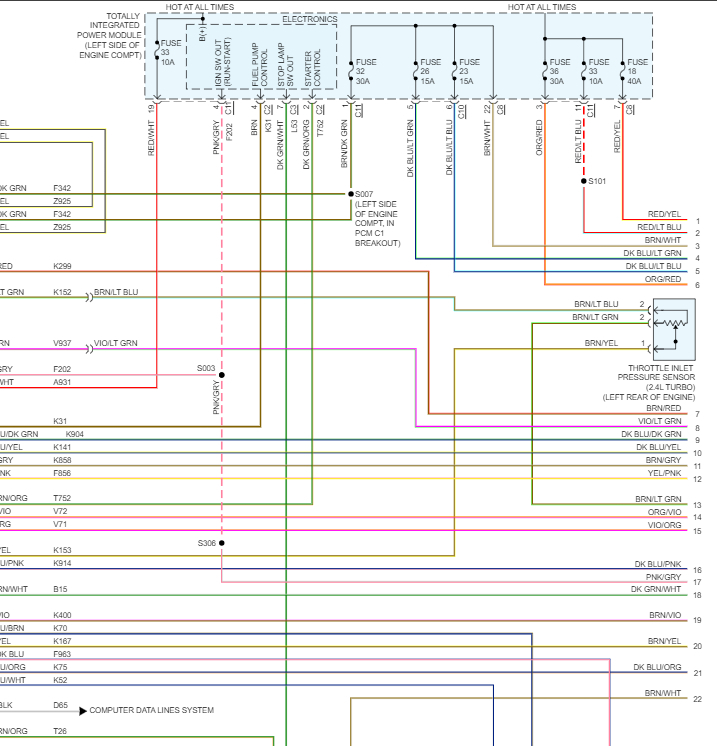

I don't not see an "Ignition relay" so I am not sure what you are talking about, here are the relays that run the system. Check out the images (below). Let us know what happens and please upload pictures or videos of the problem so we can see what's going on.
