I need a diagram for the carburetor hoses in the engine bay to properly hook/route it all back together?

1983 MAZDA 626
250,000 MILES • 2.0L • 4 CYL • 2WD • MANUAL
Avatar
BOUNDFORTRESS
Need a diagram for the carburetor hoses on the vehicle listed above LX hatchback 4d fwd.
Feb 10, 2025 at 3:16 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,503 POSTS
  • ASE Certified Mechanic

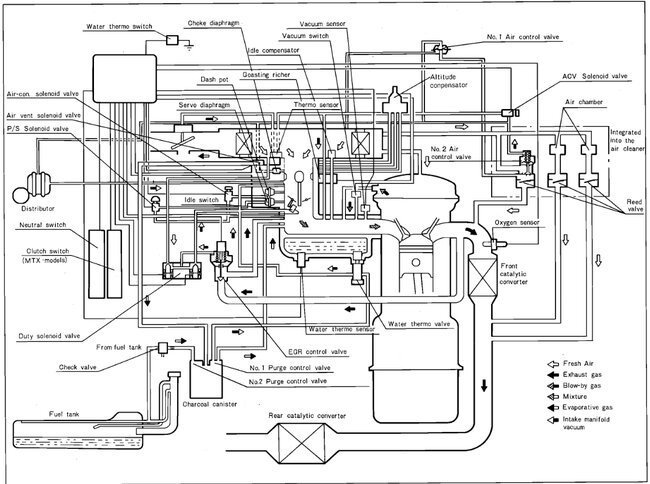

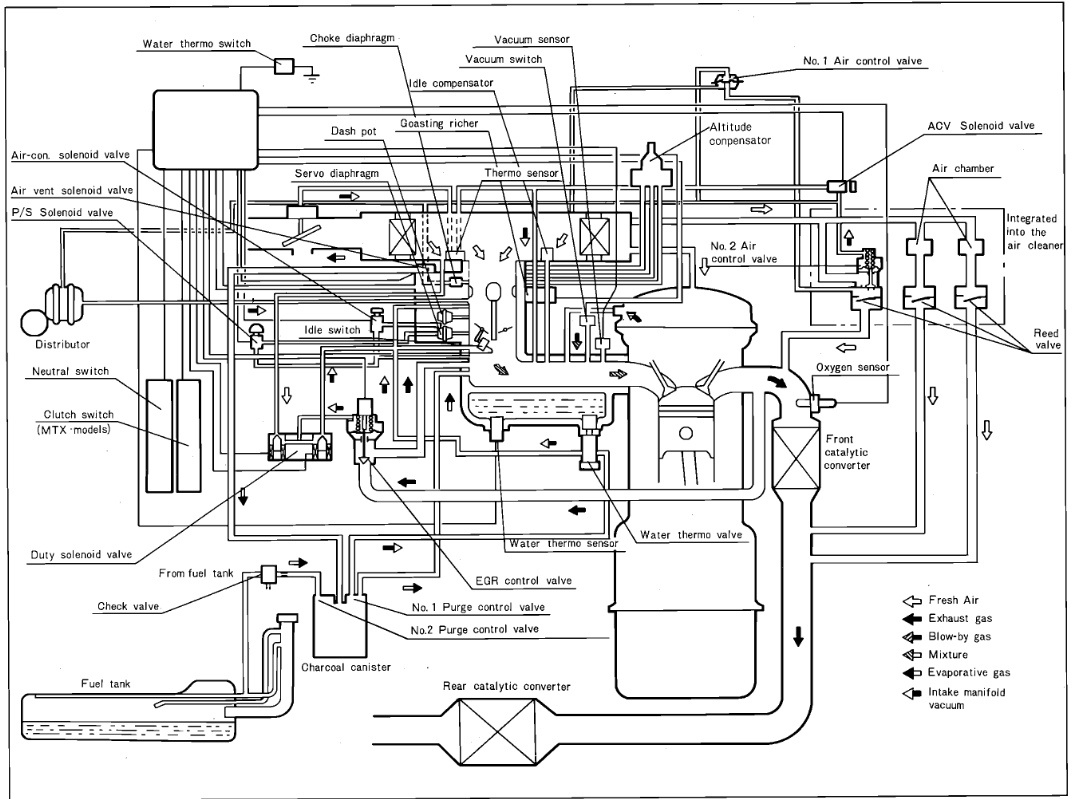

Yep, there are many, here are the diagrams for the vacuum lines I found. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
