How to connect vacuum lines?

Tiny
SUICIBOOTHBNDR
  • MEMBER
  • 1991 CHEVROLET CAVALIER
  • 2.2L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 180,000 MILES
I bought the car listed above recently and I'm in the process of putting it back together, but I can't figure out how to properly connect the vacuum lines and can't find anything online on how. Please help.
Tuesday, May 13th, 2025 AT 5:10 AM

6 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,610 POSTS

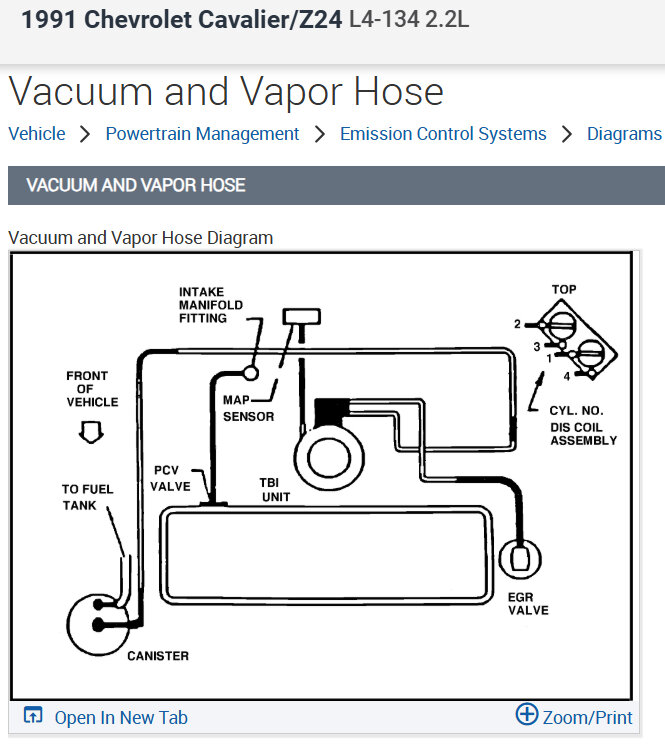

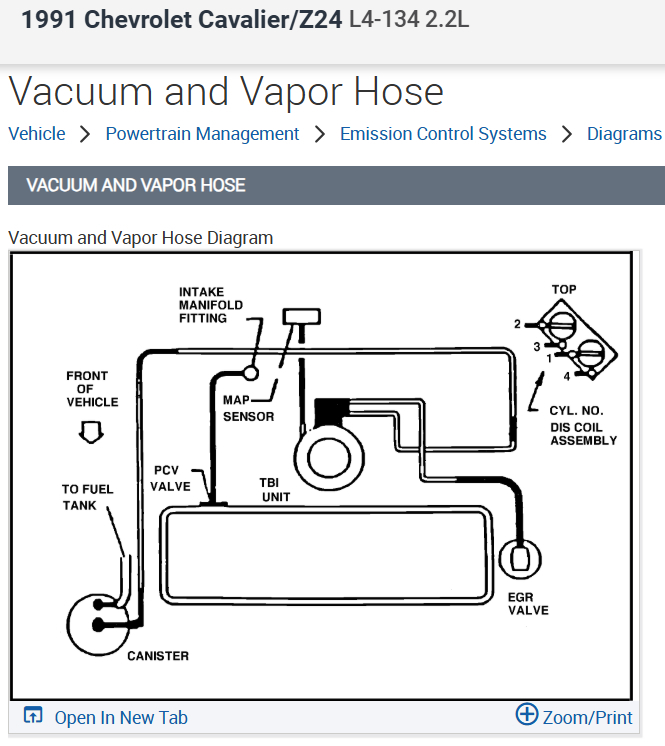

This is the only vacuum line diagrams I can find but if you upload images I can tell you where any other lines you cant figure out go. Check out the images (below). Let us know if you need anything else.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+1
Wednesday, May 14th, 2025 AT 11:35 AM
Tiny
SUICIBOOTHBNDR
  • MEMBER
  • 5 POSTS
What you sent a picture of is not what I need, I don't Have a z24 morel, mine is a 1991 cavalier RS 2.2.
Was this
answer
helpful?
Yes
No
Monday, May 19th, 2025 AT 2:35 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,610 POSTS
This is all they show, I don't think it would be much different since they are both 2.2 liters.
Was this
answer
helpful?
Yes
No
Tuesday, May 20th, 2025 AT 8:42 AM
Tiny
SUICIBOOTHBNDR
  • MEMBER
  • 5 POSTS

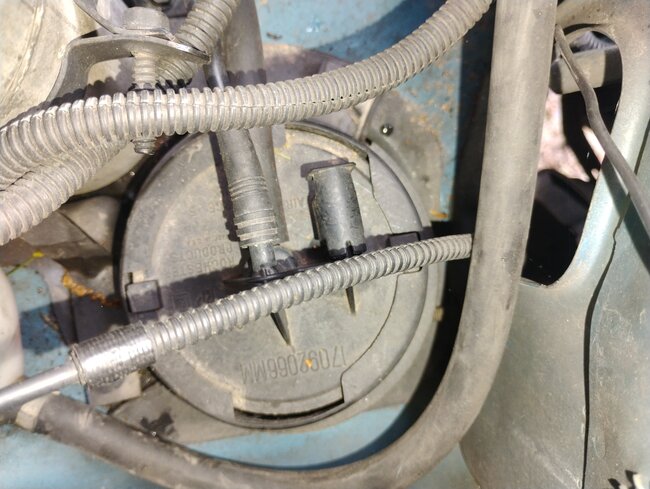

There's a big difference, but can you tell me starting here, where does this vacuum line go to?
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Tuesday, May 20th, 2025 AT 8:46 AM
Tiny
SUICIBOOTHBNDR
  • MEMBER
  • 5 POSTS

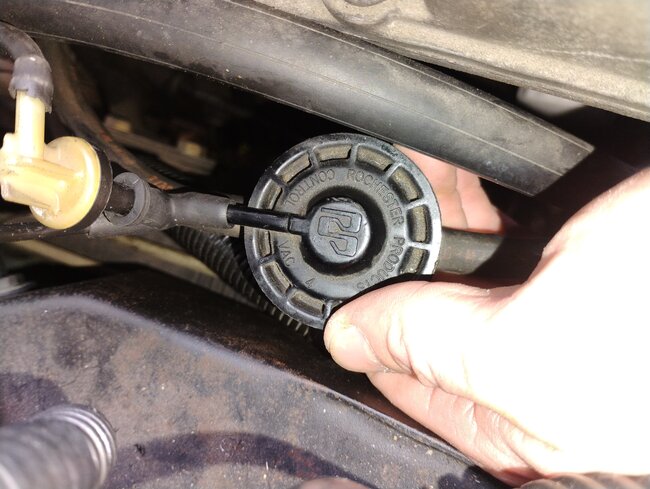

Then there this.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Tuesday, May 20th, 2025 AT 8:49 AM
Tiny
SUICIBOOTHBNDR
  • MEMBER
  • 5 POSTS

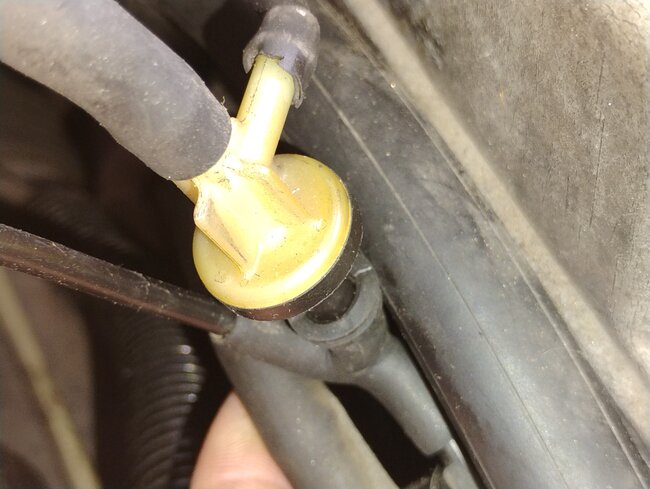

And this.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Tuesday, May 20th, 2025 AT 8:51 AM
