Where are the headlights located?

Tiny
ARTHUR MILLER JR
  • MEMBER
  • 2004 OLDSMOBILE BRAVADA
  • 4.2L
  • V6
  • 4WD
  • AUTOMATIC
  • 122,000 MILES
It's not really a problem but I'm trying to find where all the lights for my vehicle listed above. I would like to know where all my headlights are on, can anyone help? I haven't found any.
SPONSORED LINKS
Do you
have the same problem?
Yes
No
Sunday, May 14th, 2023 AT 2:58 PM

1 Reply

Tiny
JACOBANDNICKOLAS
  • CERTIFIED MECHANIC
Hi,

I'm not sure what you are looking for. The headlamps are at the front of the vehicle. Do you mean you are looking for the wiring schematics related to the headlamps?

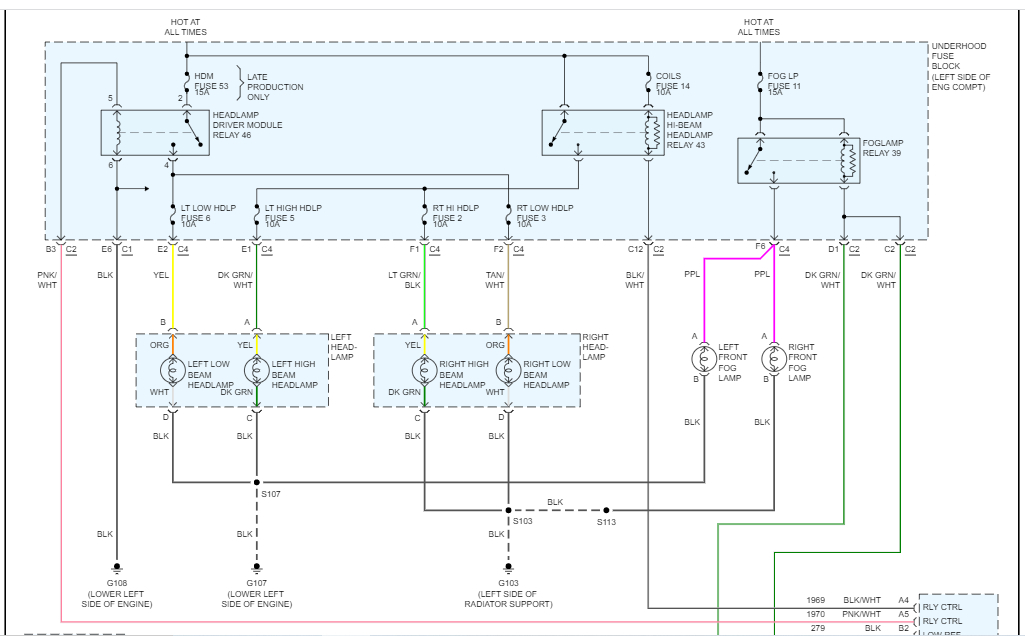

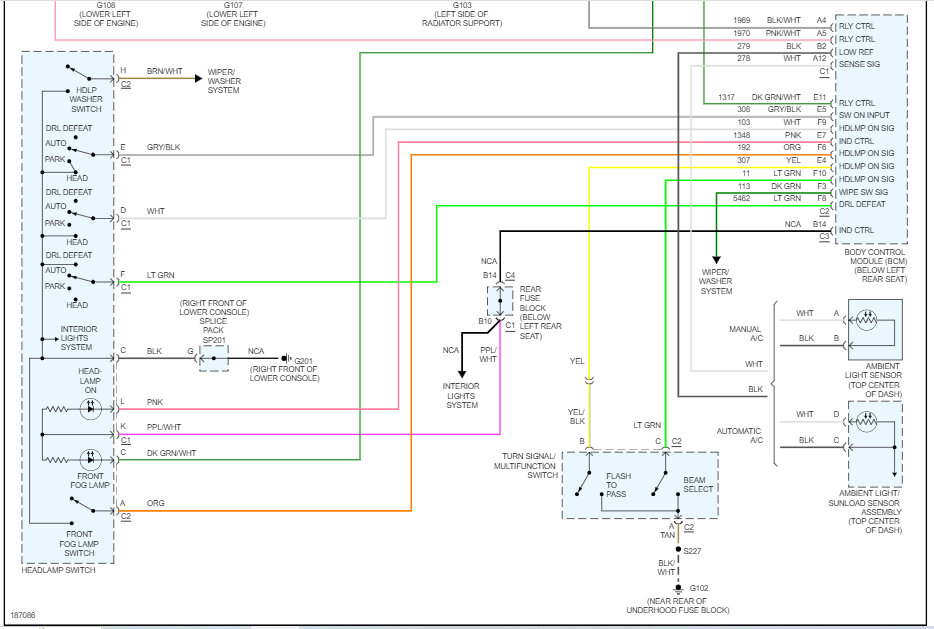

I attached the schematic below. Let me know if that is what you needed.

Take care,

Joe

See pics below.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Sunday, May 14th, 2023 AT 9:38 PM
