Had to replace belt on alternator?

Tiny
BRANDYBMB78
  • MEMBER
  • 2004 NISSAN MAXIMA
  • 3.5L
  • V6
  • 2WD
  • AUTOMATIC
  • 177,000 MILES
Can someone please give me the exact wiring diagram for the alternator starter and battery?
Tuesday, April 30th, 2024 AT 2:17 PM

3 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,407 POSTS
Hi,

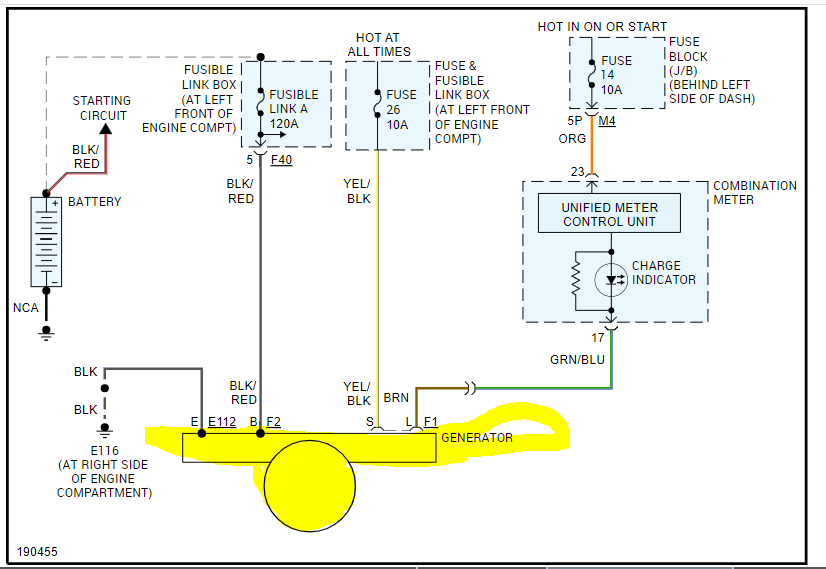

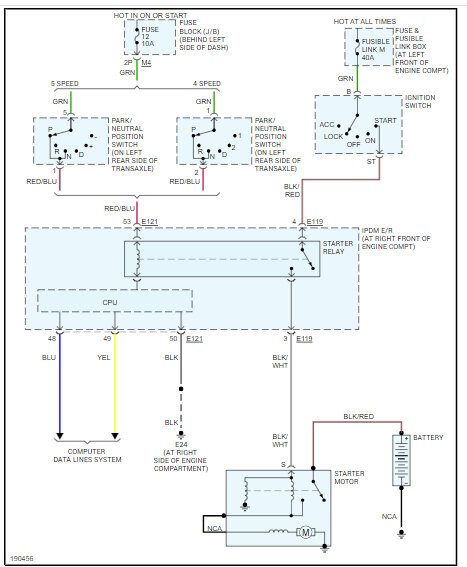

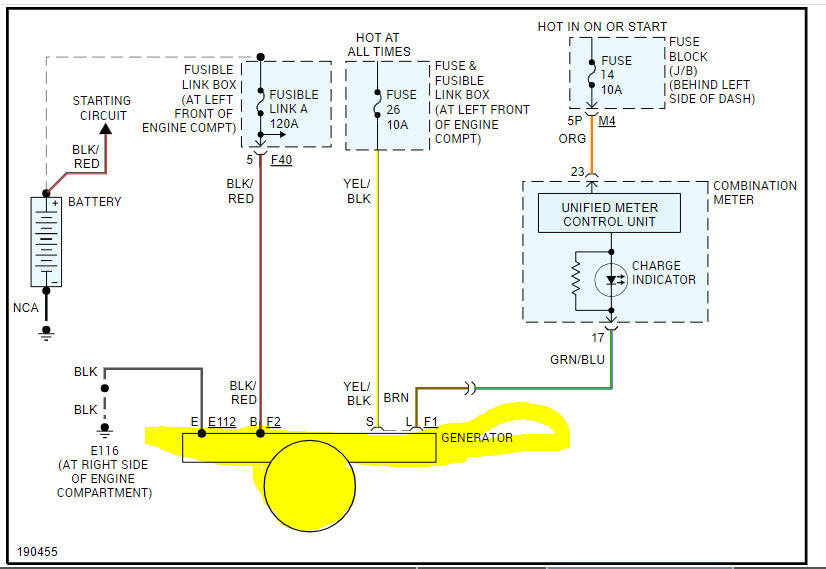

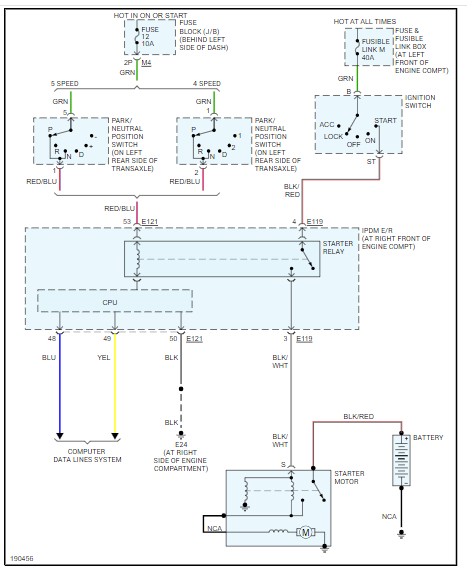

If you look below, there are two wiring schematic pictures. The first one is for the charging system and the second one is the starter (automatic transmission). Take a look at them and let me know if they help.

Also, let me know what is happening. I should be able to help.

Take care,

Joe

See pics below.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Tuesday, April 30th, 2024 AT 7:08 PM
Tiny
BRANDYBMB78
  • MEMBER
  • 3 POSTS
Recently had to put belt back on the alternator and now car acting crazy lights flicker hardly no power when put in gear and mash gas.
Was this
answer
helpful?
Yes
No
Wednesday, May 1st, 2024 AT 5:42 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,407 POSTS
Hi:

When you say the lights are flickering, do you mean things like the headlamps or are you referring to the cluster warning lights?

Do me a favor. I want to know what the alternator is doing. Here is a link that explains how to test one. It is very easy and only requires a voltmeter or multimeter.

https://www.2carpros.com/articles/how-to-check-a-car-alternator

Check that and let me know the results.

Take care,

Joe
