Gas and EVAP line map from tank

Tiny
GLASSHOPPER
  • MEMBER
  • 1999 BUICK CENTURY
  • 6 CYL
  • 2WD
  • 81,000 MILES

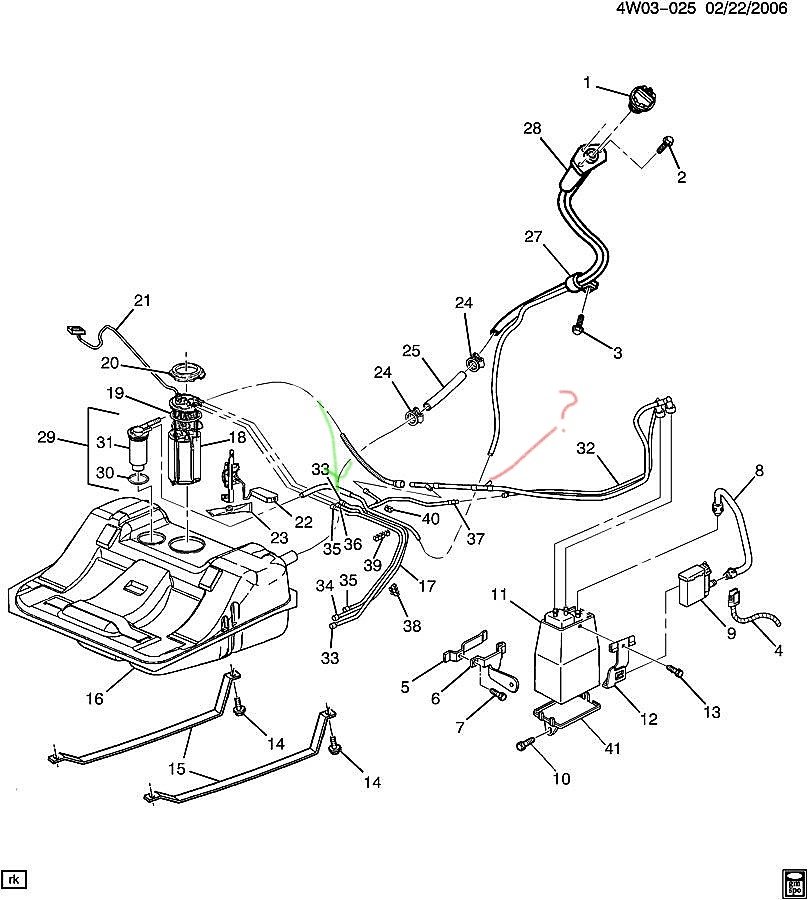

Hi, I need the gas and EVAP lines map to the fuel pump. Dad cleaned the tank, does not remember where they all go. I found a parts map at an online store but, they did not have all the parts. Also, not the best map. Like the yellow flex hose? I marked the connection in red near the EVAP canister. Also in green, I wanted to know where the center line from the fuel pump goes?
Thanks in advance!
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Friday, February 23rd, 2018 AT 6:00 PM

2 Replies

Tiny
MIKE H R
  • MECHANIC
  • 3,094 POSTS
It is probably gone now, but they put the diagram on some cars by the front under the hood. There are online diagrams if you put the information about the vehicle in.
Was this
answer
helpful?
Yes
No
Monday, February 26th, 2018 AT 8:21 AM
Tiny
GLASSHOPPER
  • MEMBER
  • 2 POSTS
I went to the wrecking yard and answered my question. My map was very wrong.
