I need to know what wires goes where on the fuse box under the hood.
Tuesday, October 20th, 2020 AT 8:33 PM

3 Replies

Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS

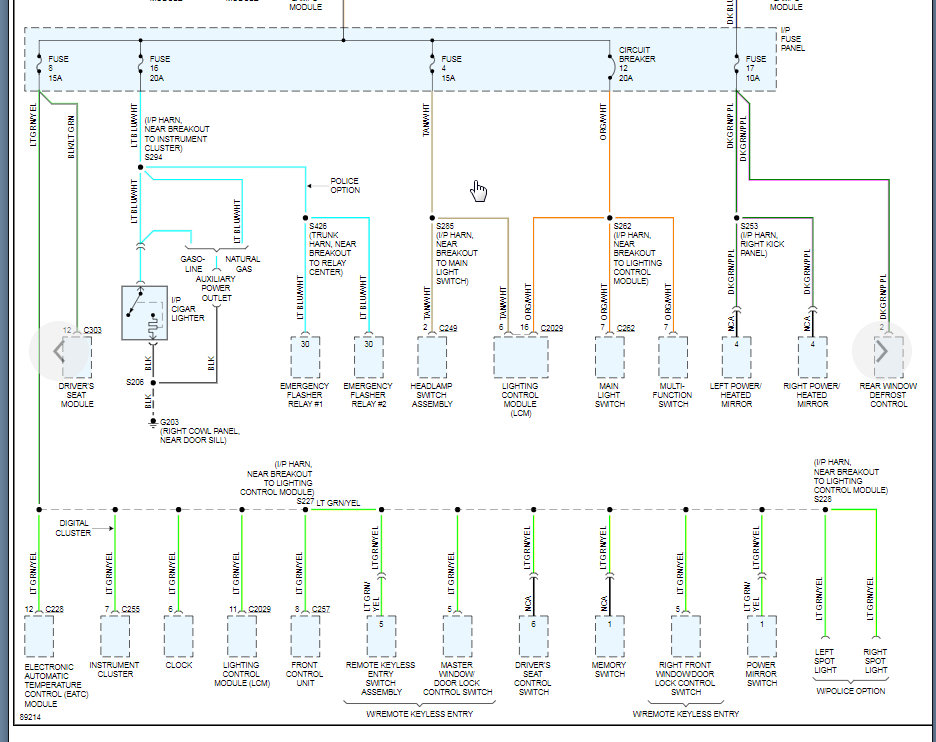

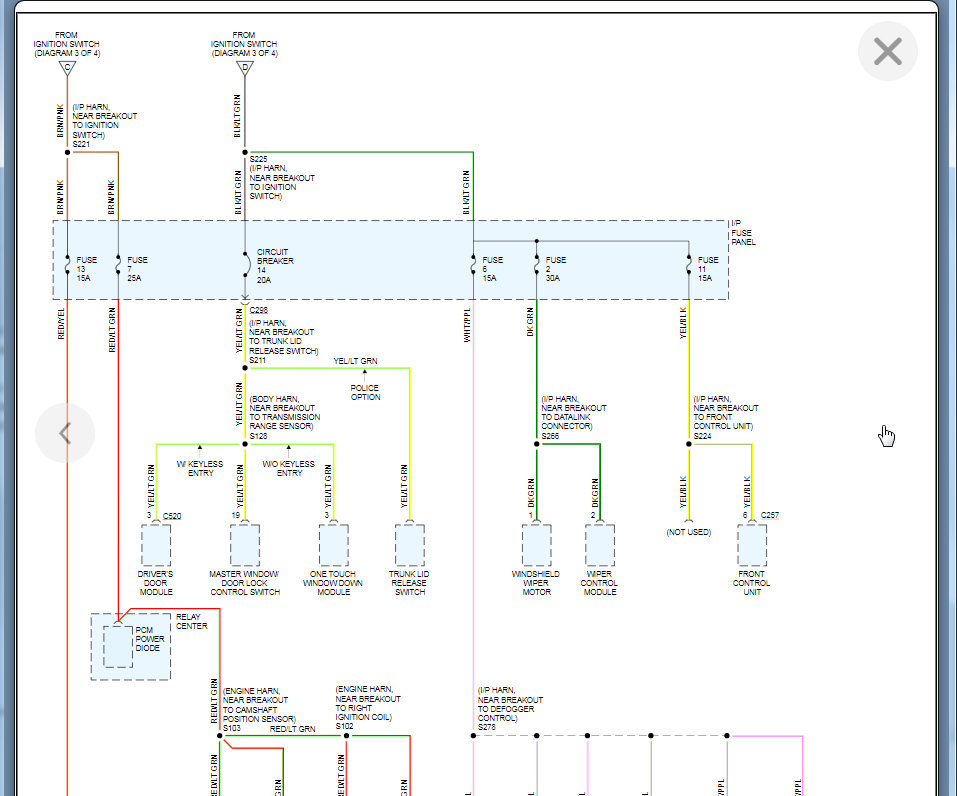

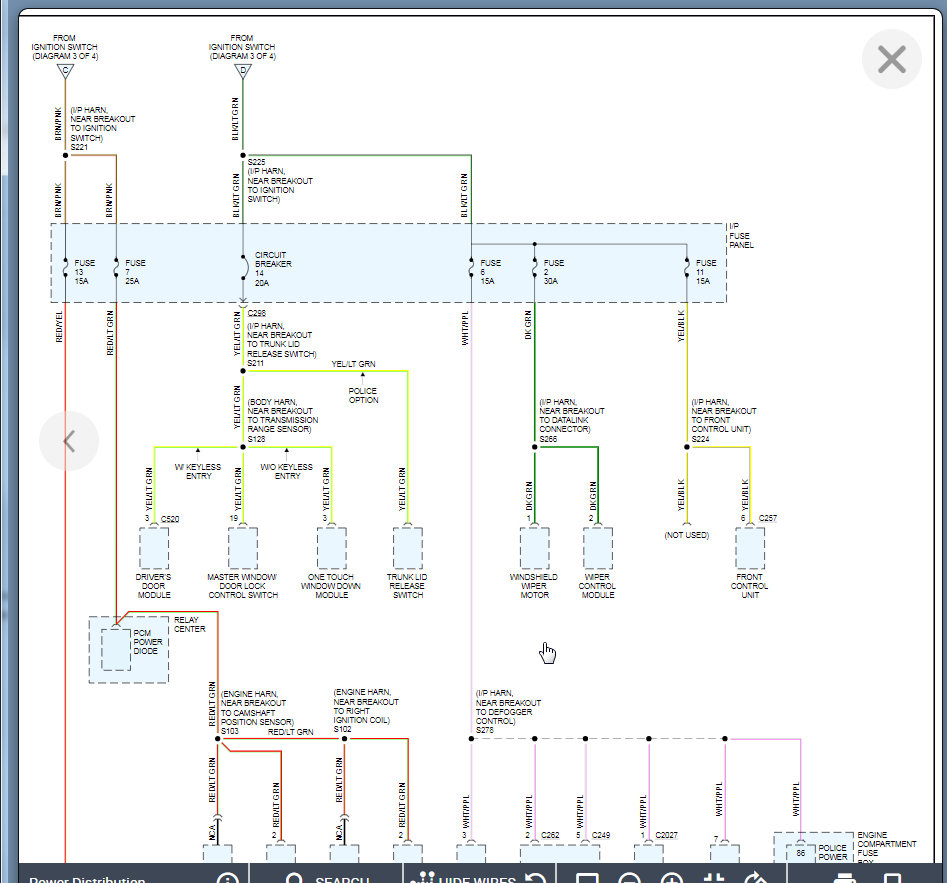

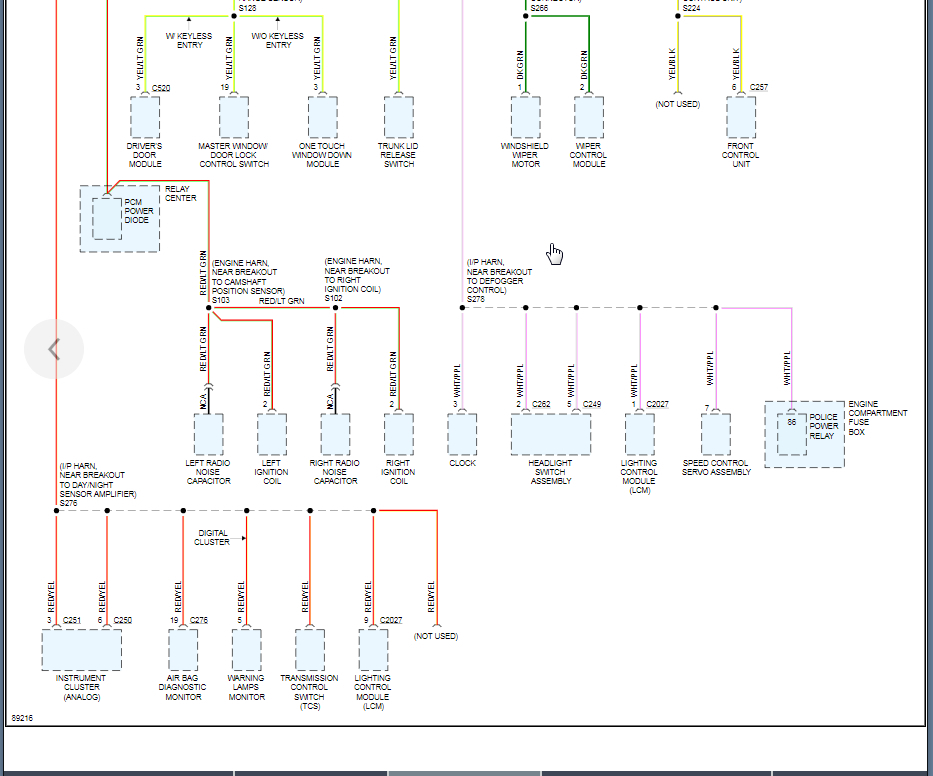

We can provide that but I just want to make sure what you are looking for because if you are looking for the wiring diagrams for each of these fuses, that is going to be a lot of diagrams. They don't have one diagram that shows all the circuity for all the fuses. However, they have what is called a power distribution diagram that shows the power flow from the fuses. I attached those for the IP fuse box.

Let us know if you need something different. Thanks
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, October 21st, 2020 AT 7:18 AM
Tiny
SHAGGY DAB
  • MEMBER
  • 2 POSTS

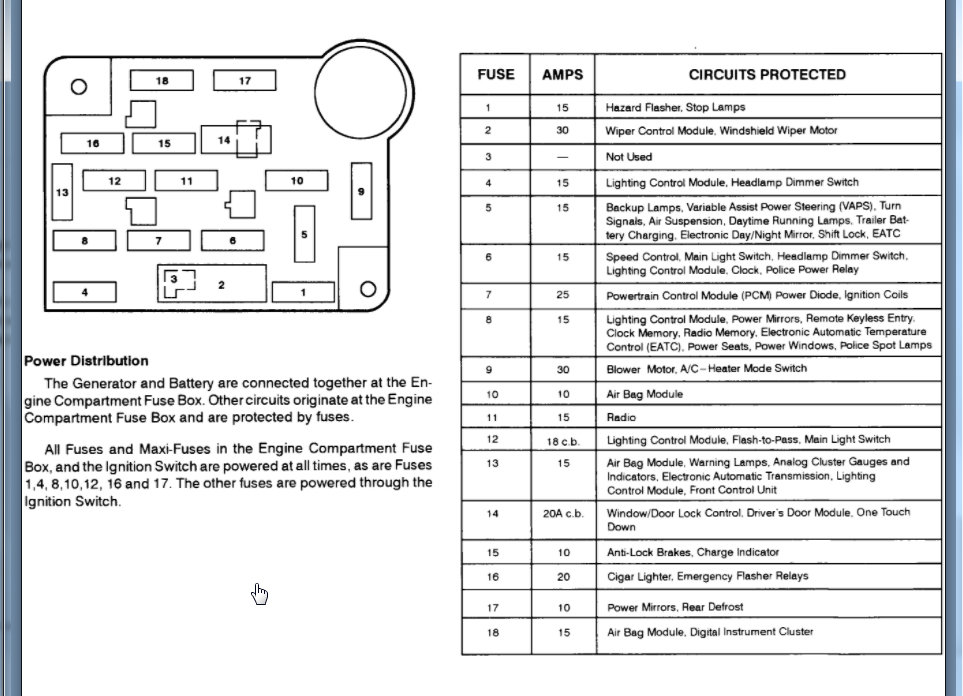

That's the fuse box inside the car. I need those under the hood.
Was this
answer
helpful?
Yes
No
Wednesday, October 21st, 2020 AT 5:37 PM
Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS

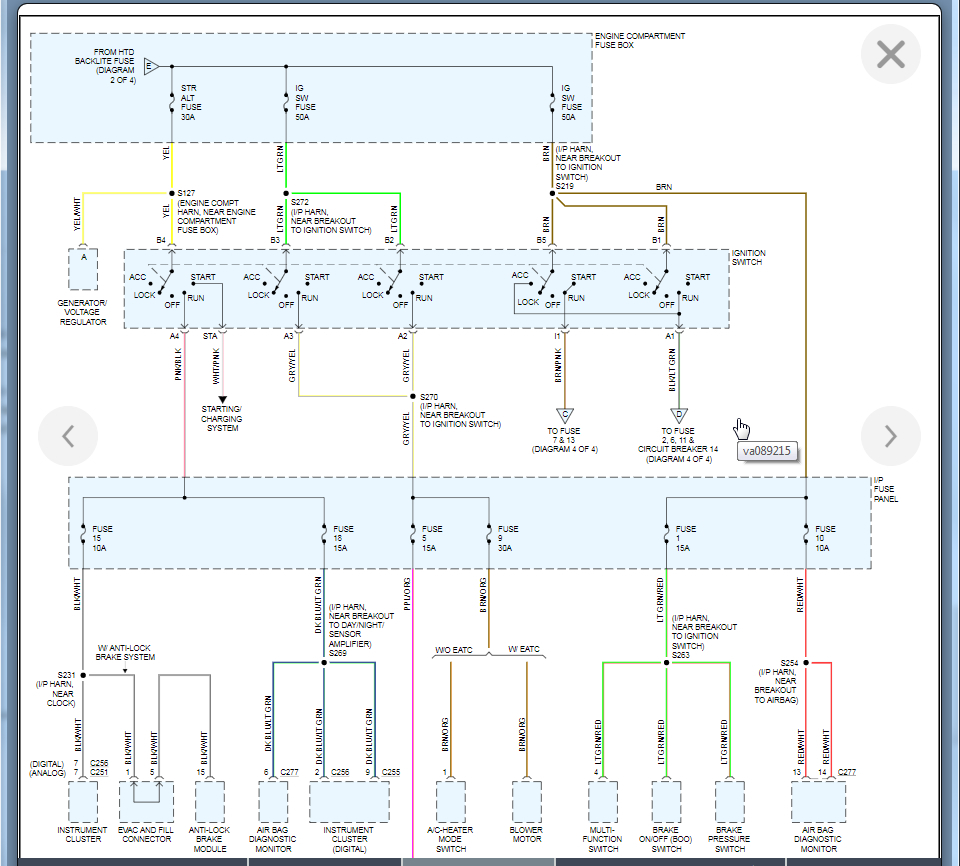

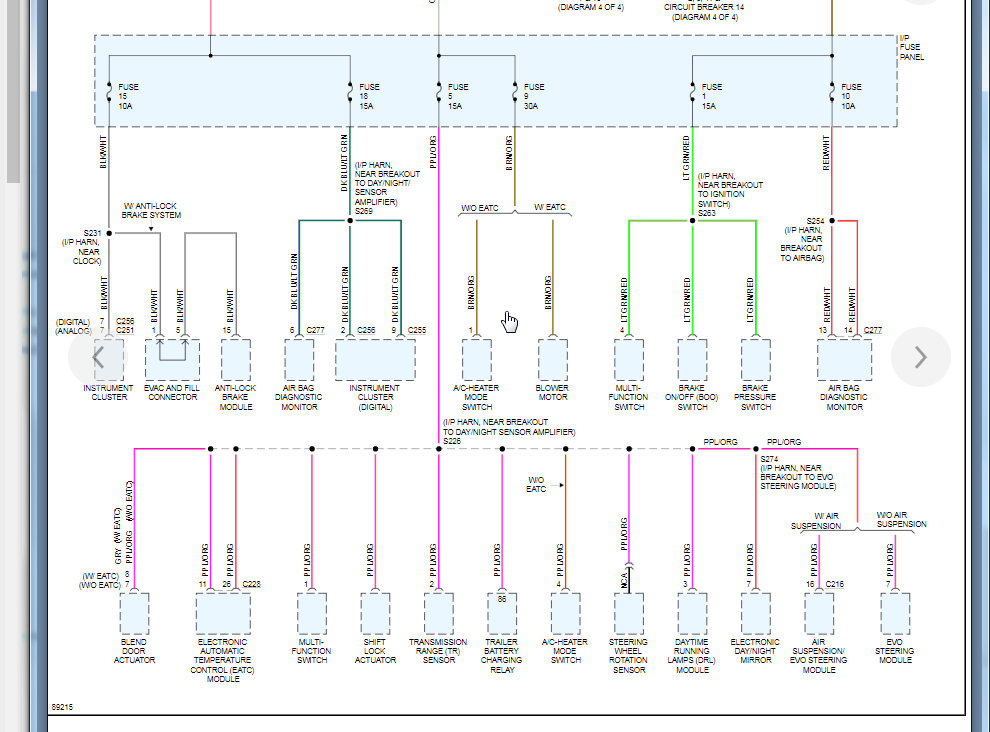

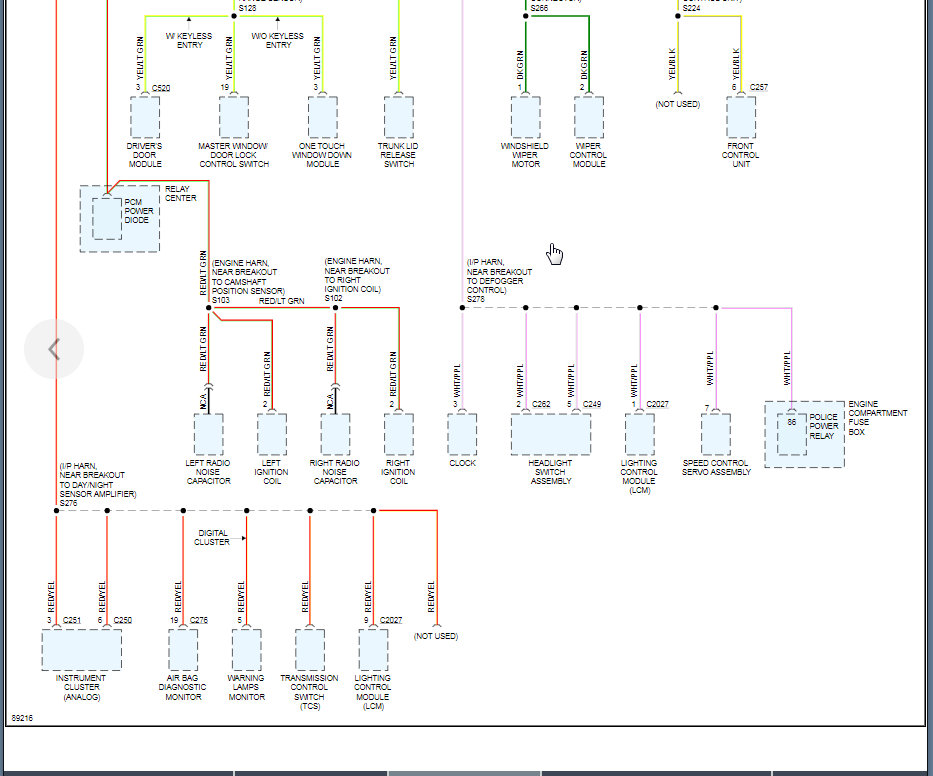

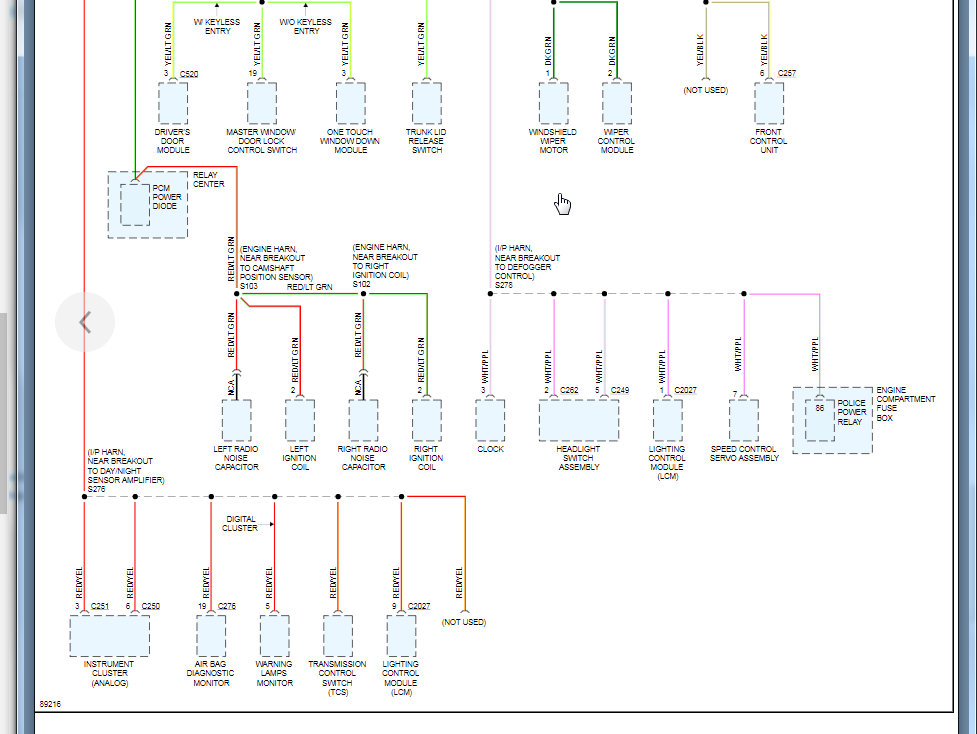

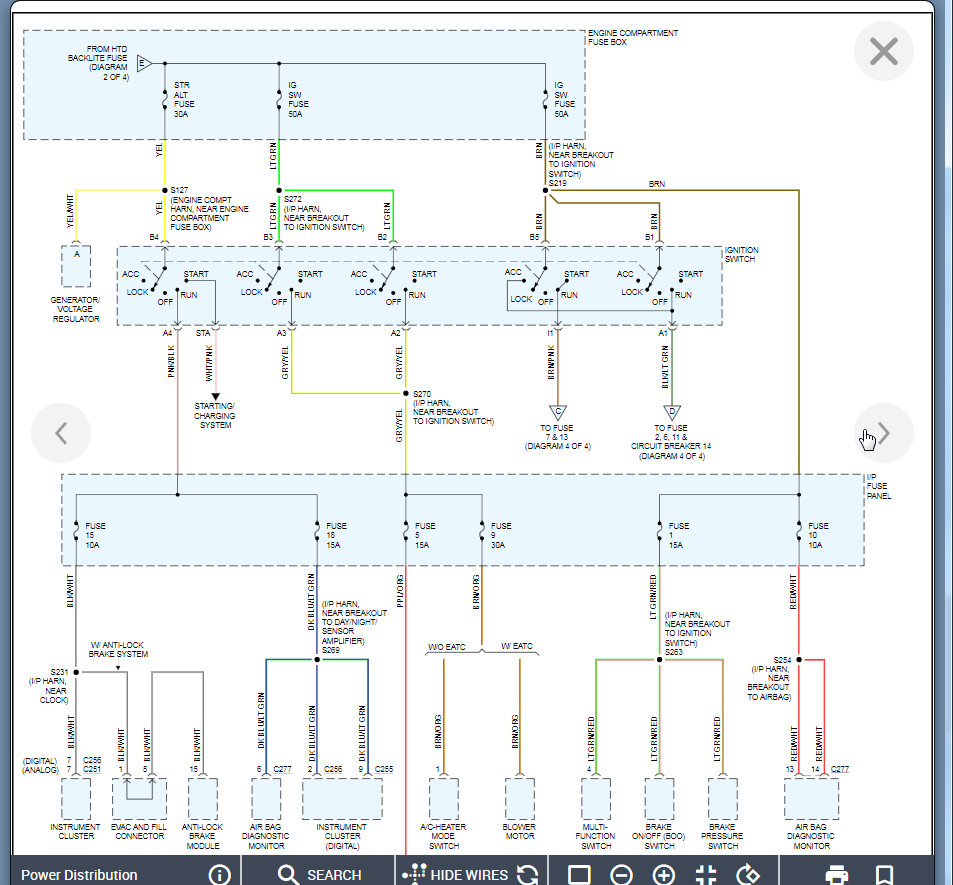

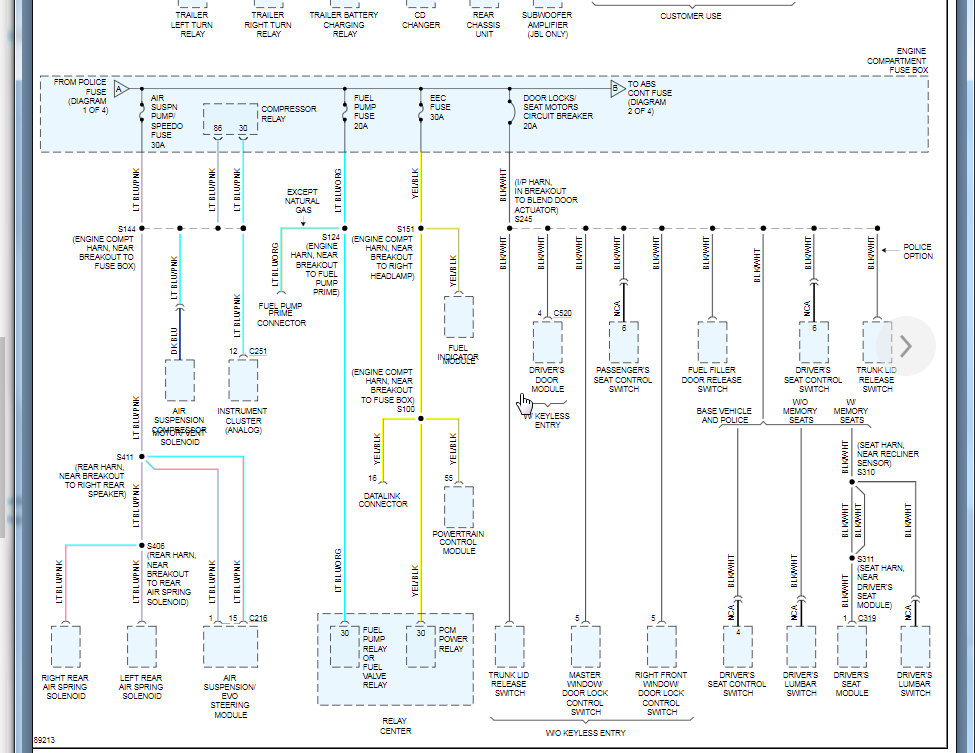

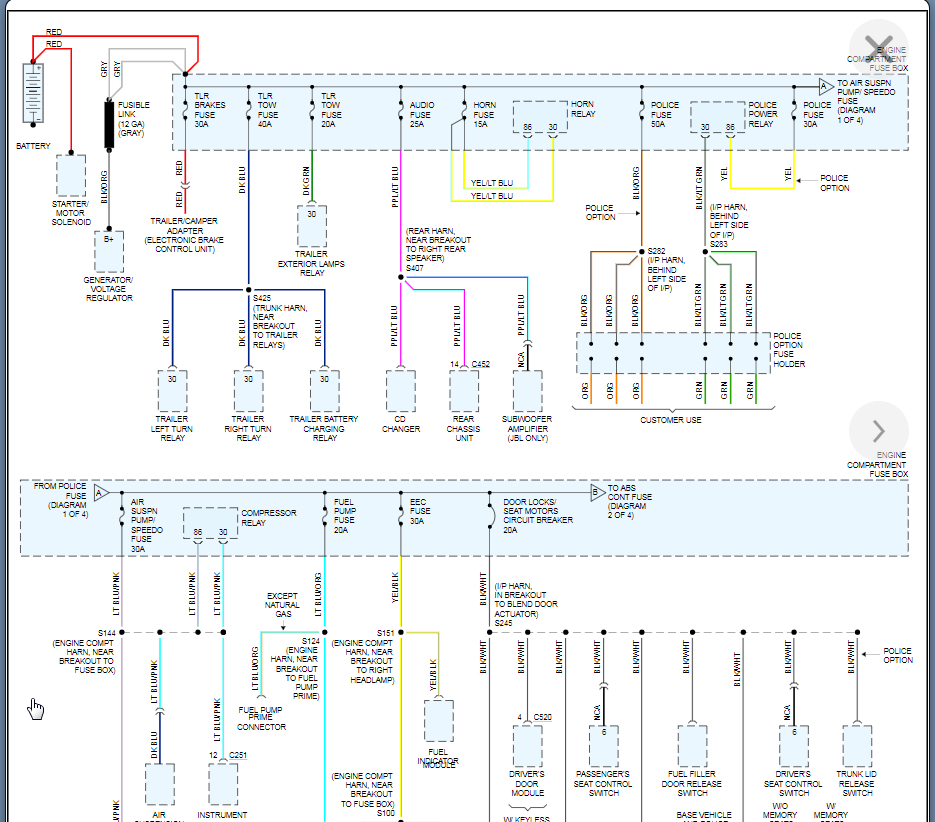

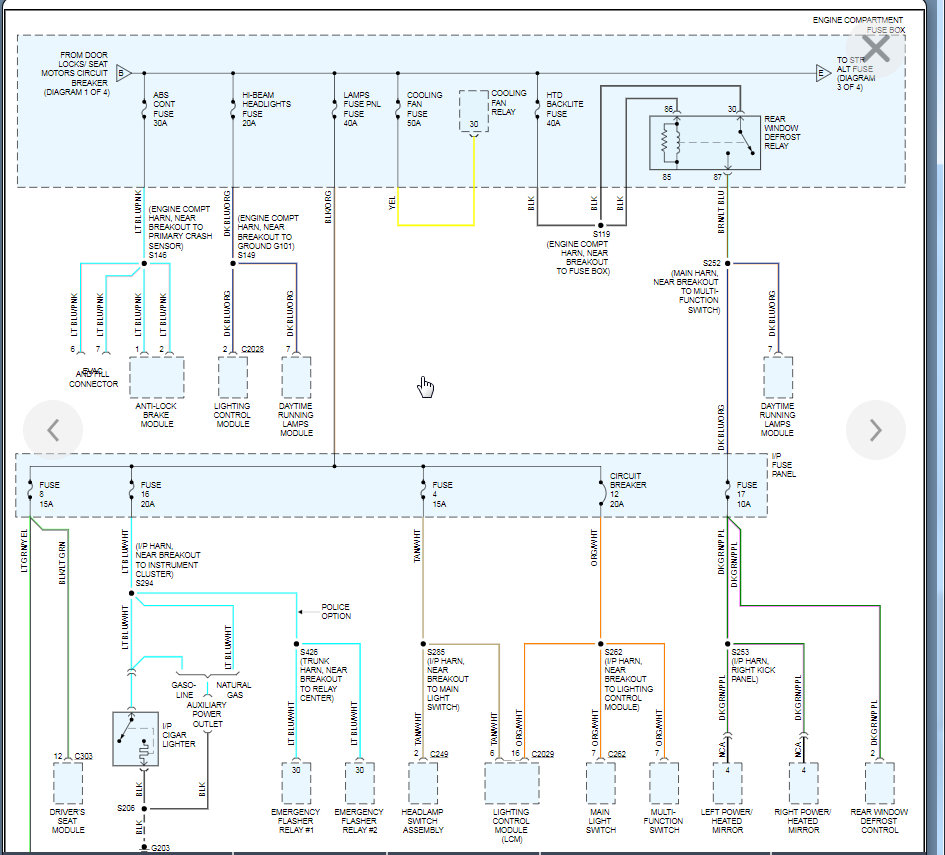

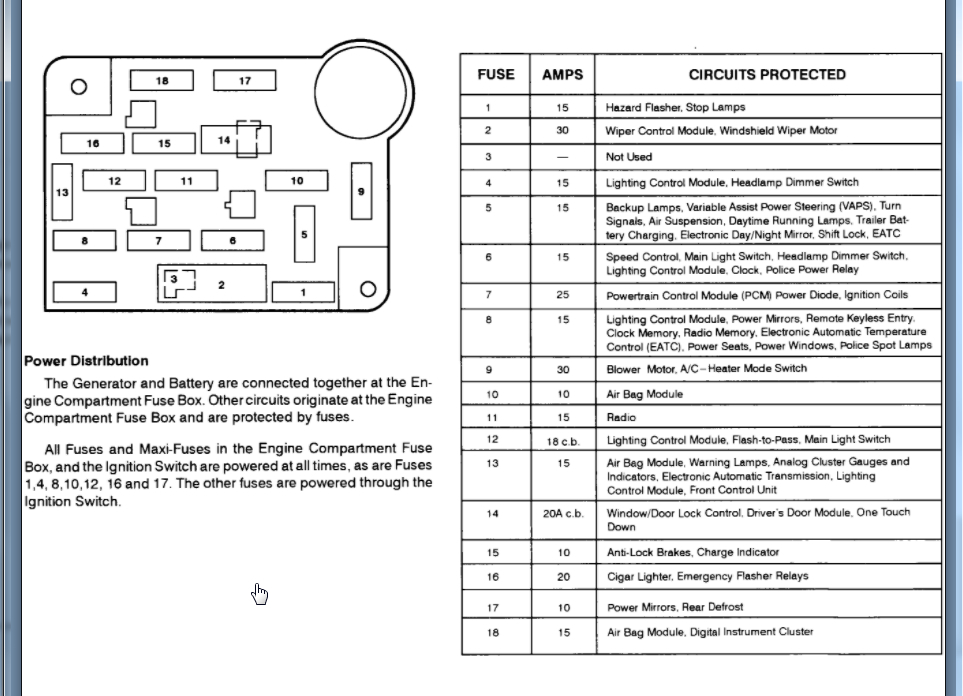

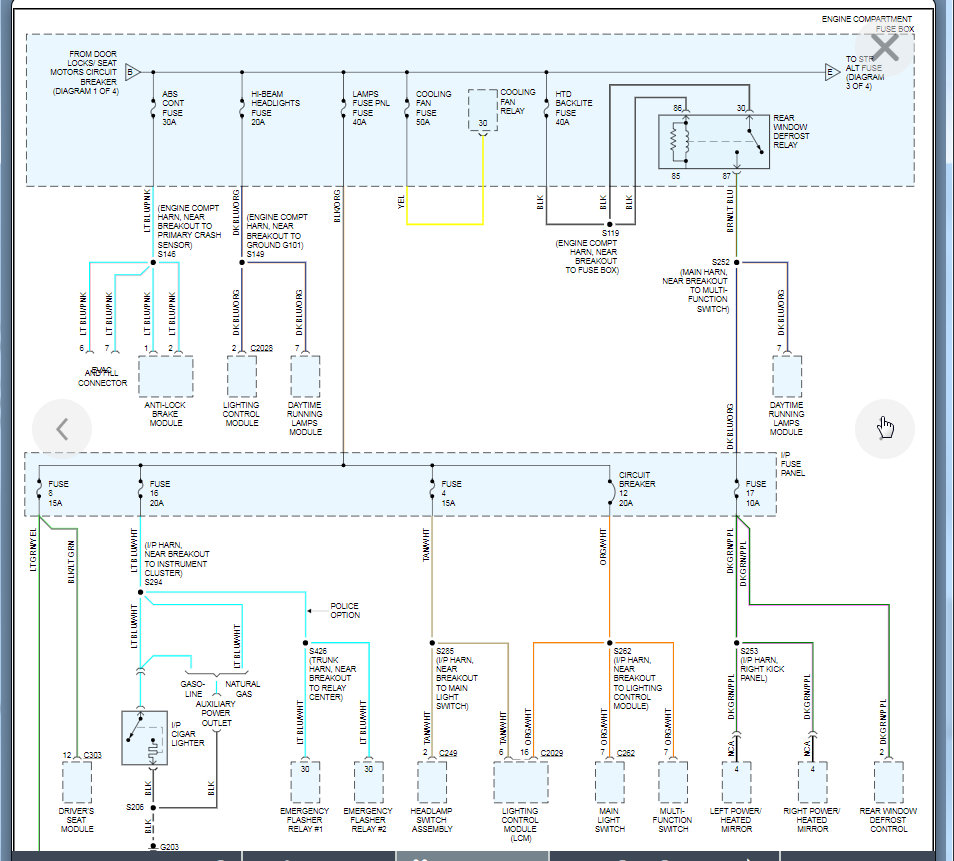

Unbelievable. You said that from the beginning. I don't know how I got that mixed up. Sorry. Here is the other one:
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Wednesday, October 21st, 2020 AT 8:12 PM
