Fuse box diagram inside the truck

Tiny
SMCGHEE01
  • MEMBER
  • 1997 GMC SONOMA
  • 4.2L
  • 6 CYL
  • 2WD
  • MANUAL
  • 200,212 MILES
Can you help me with the fuse box diagram inside the truck and under the hood if any?The truck didn't have a manual for it when I got it. Can you tell me what number goes to what and what amp of fuses? Thank you
Wednesday, January 1st, 2020 AT 10:03 AM

2 Replies

Tiny
SCGRANTURISMO
  • MECHANIC
  • 4,897 POSTS
Hello,

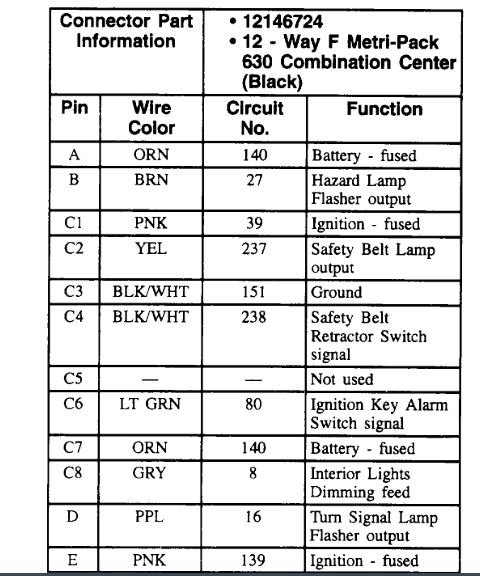

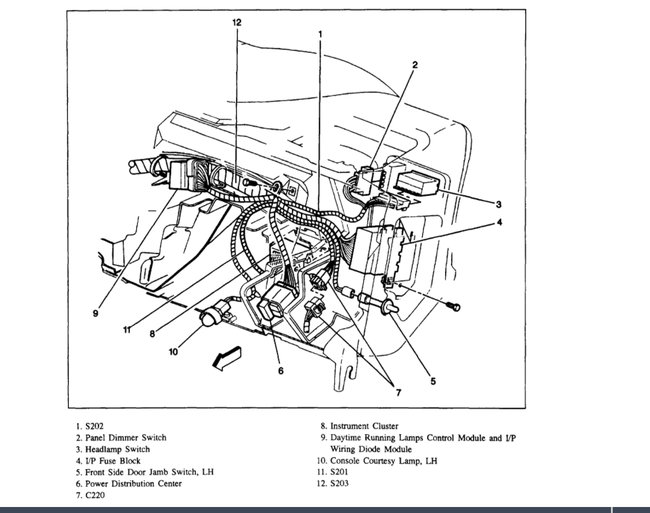

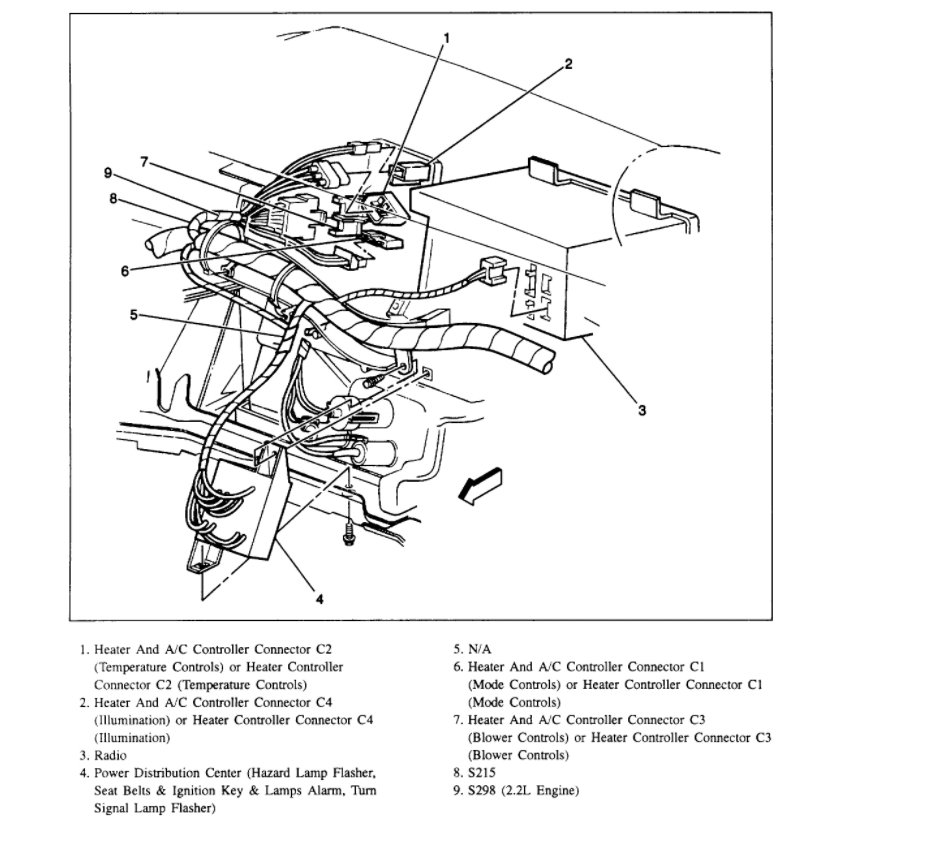

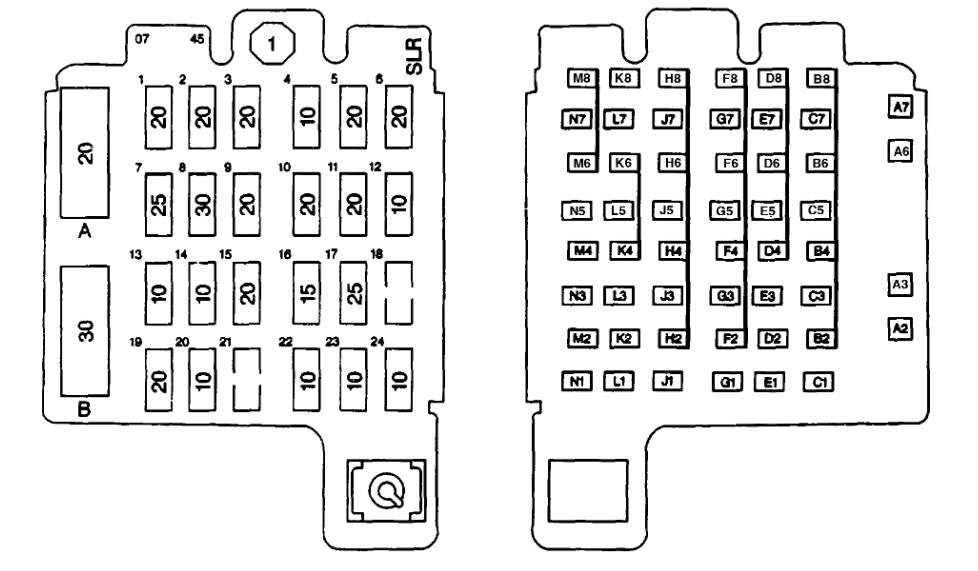

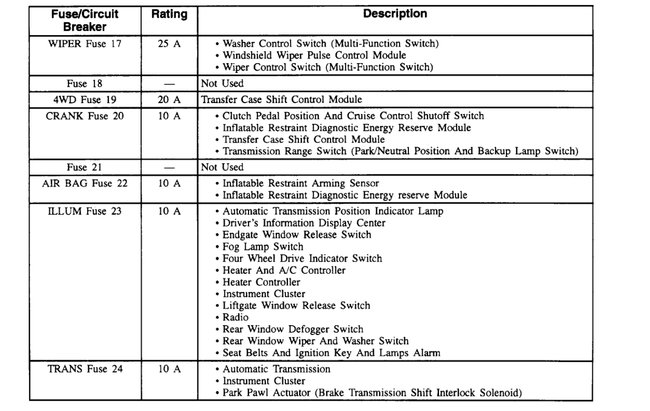

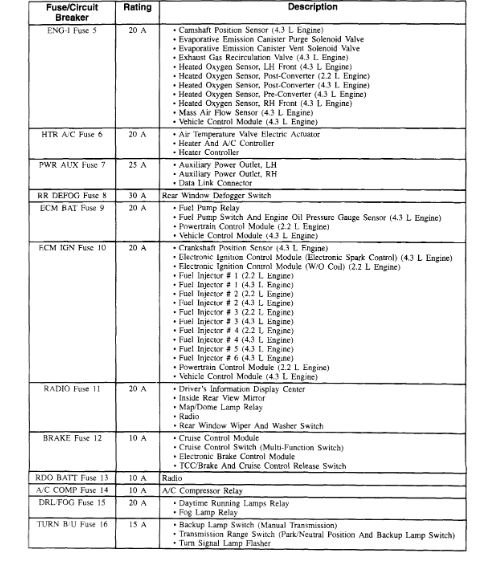

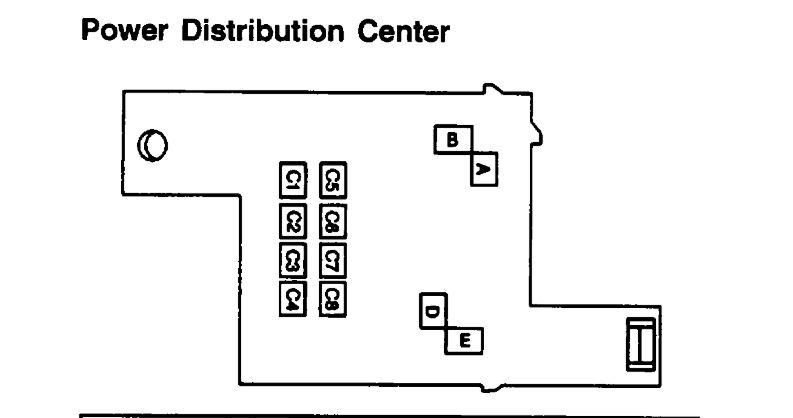

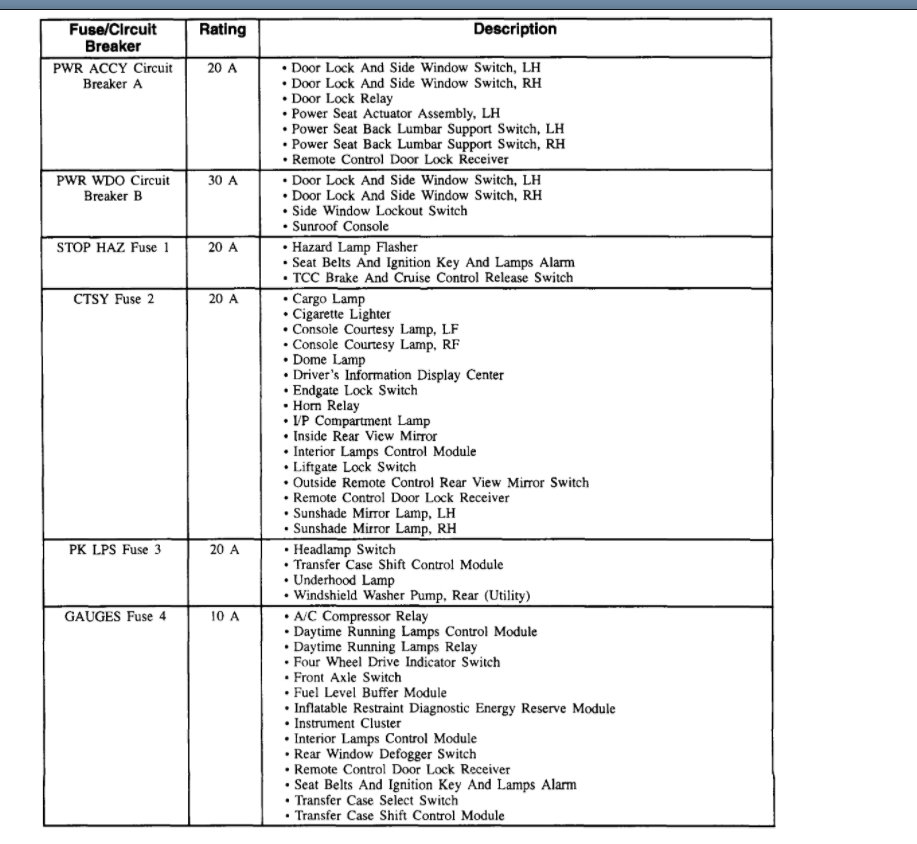

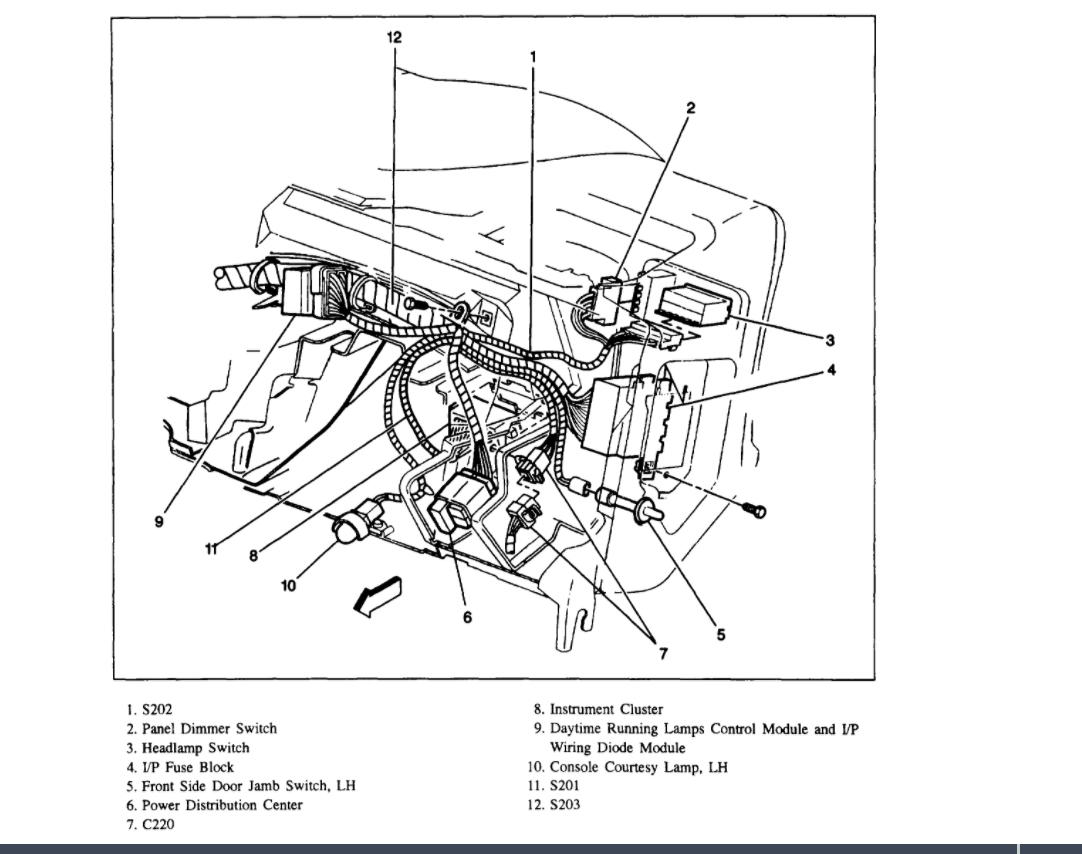

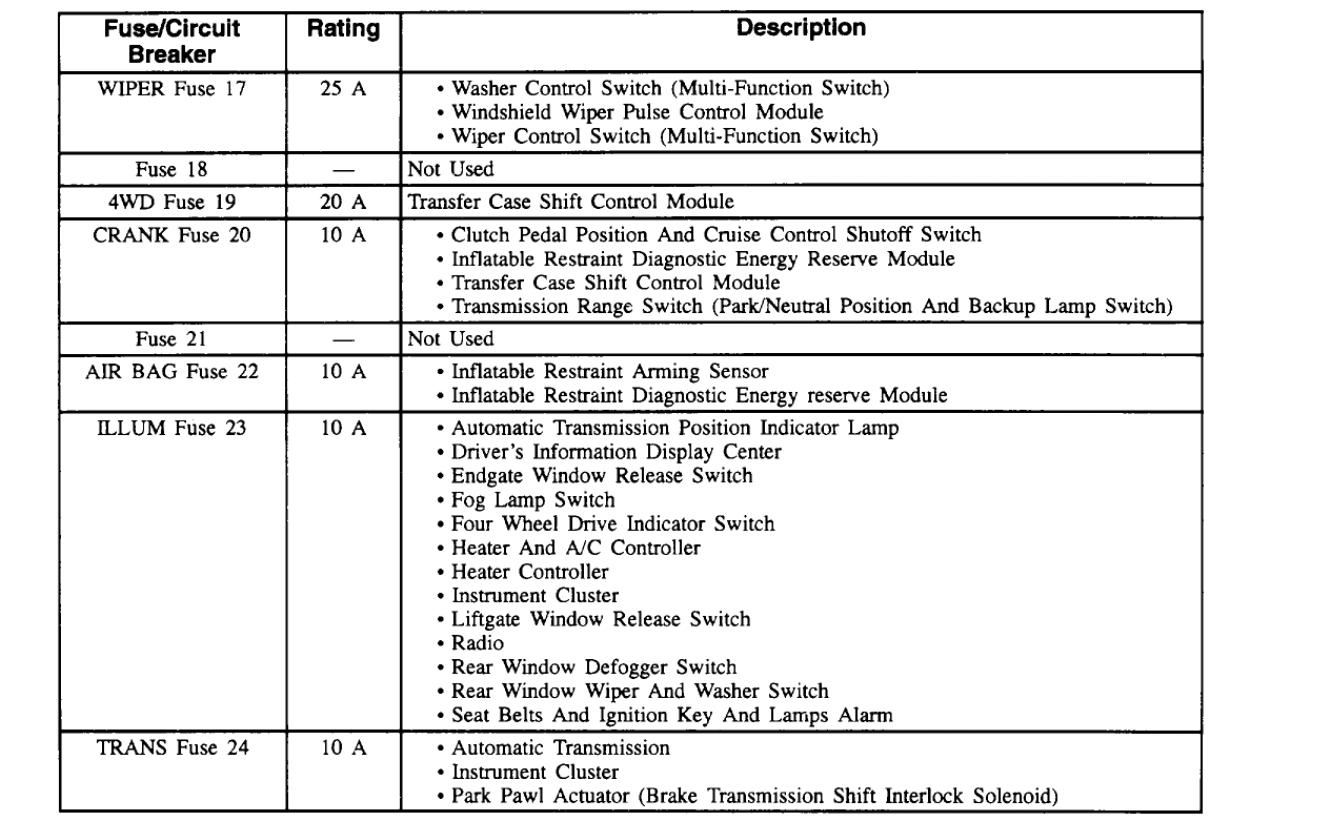

I have included the information that you requested in the diagrams down below. I hope that this helps and have a Happy New Year.

Thanks,
Alex
2CarPros
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, January 1st, 2020 AT 10:48 AM
Tiny
ASEMASTER6371
  • MECHANIC
  • 52,797 POSTS
Good afternoon,

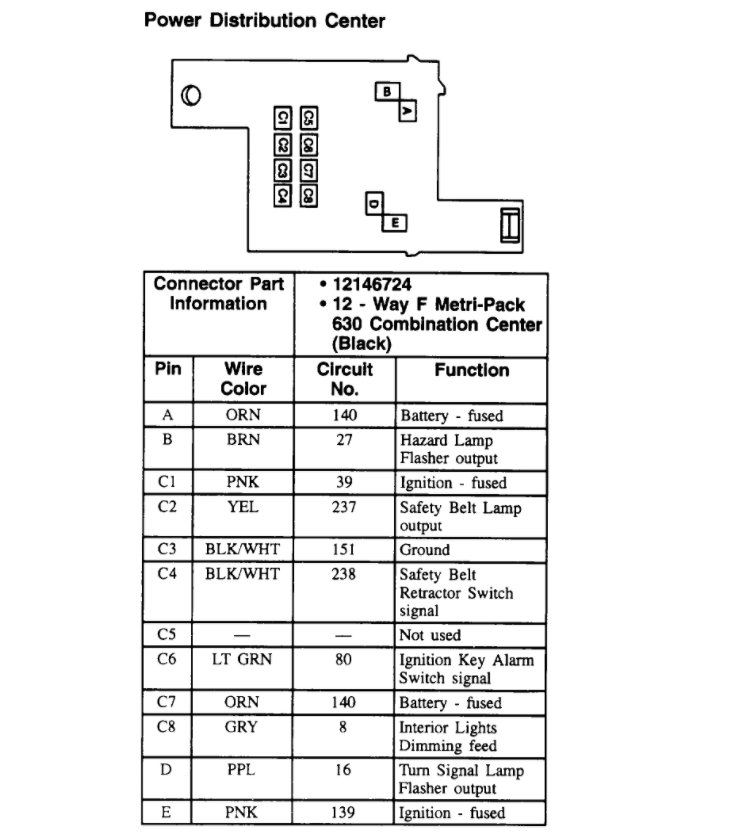

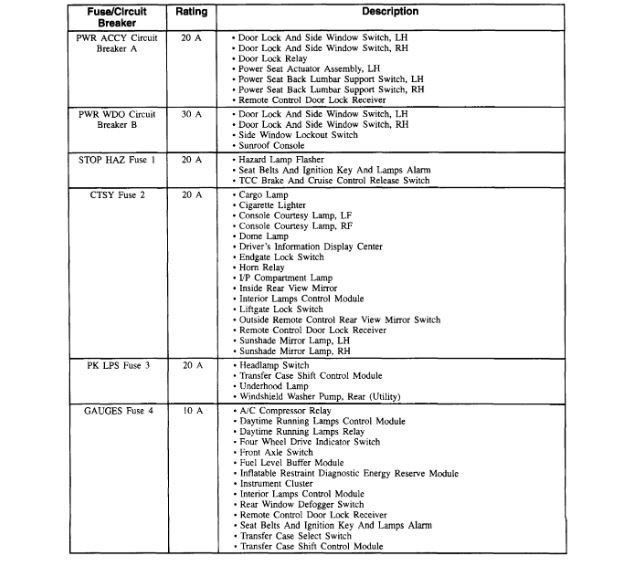

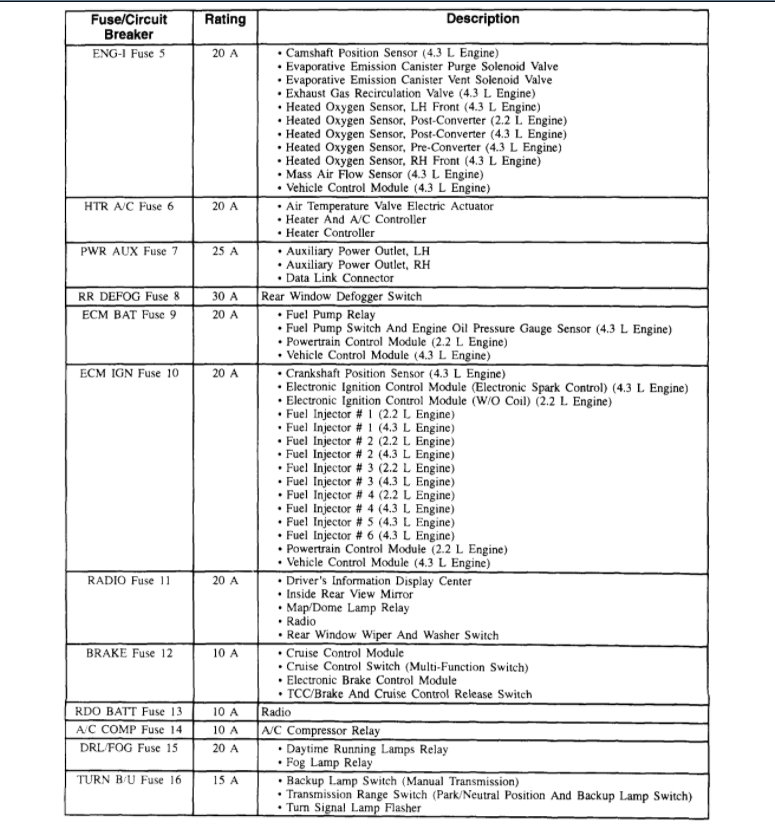

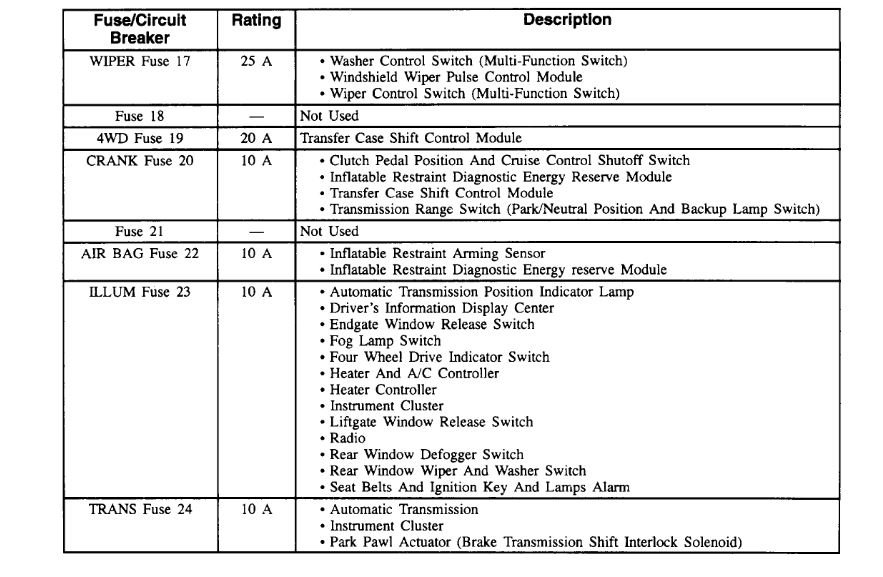

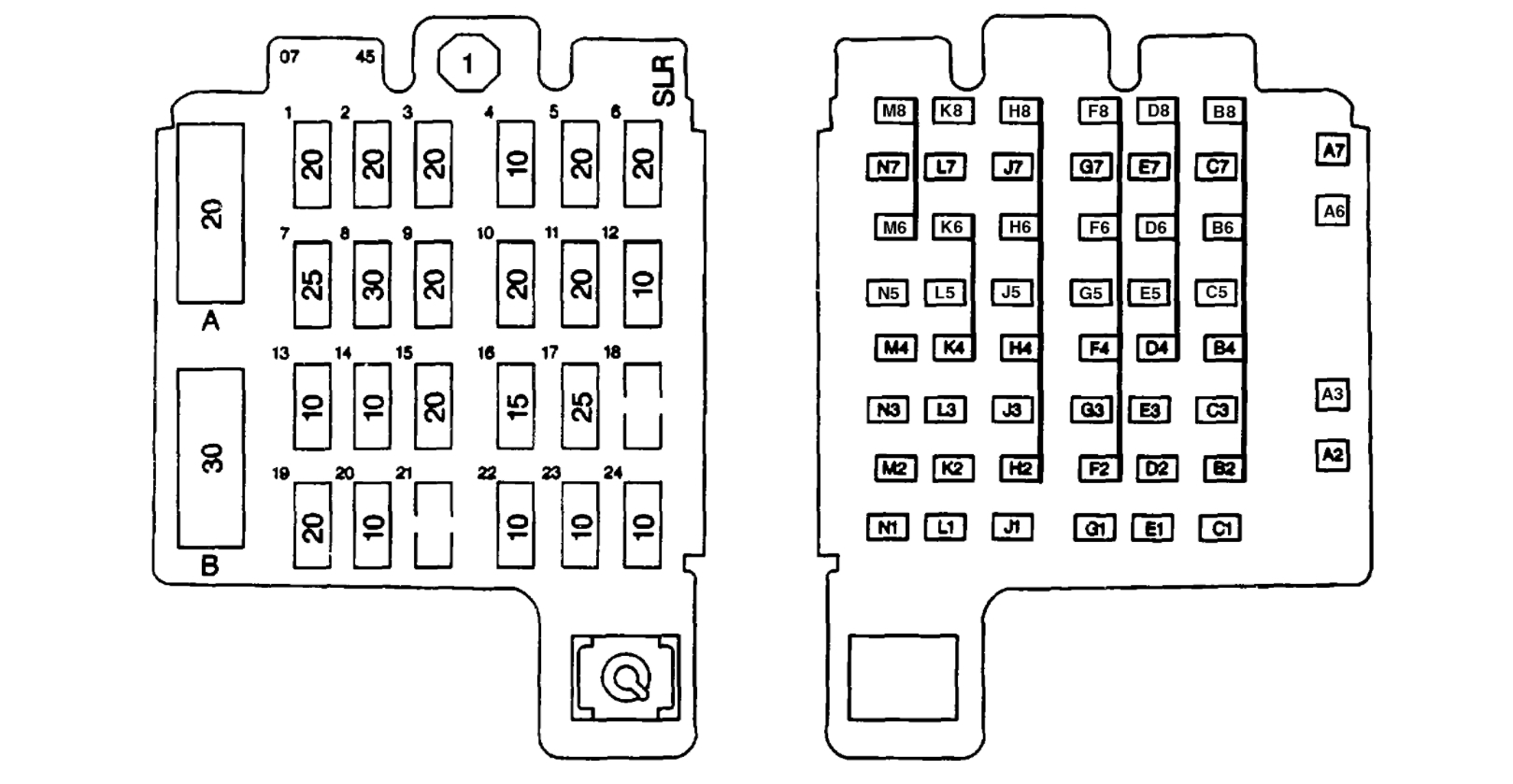

I attached the diagrams for the fuse box as requested.

Roy
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Wednesday, January 1st, 2020 AT 10:55 AM
