Engine wiring diagrams please?

Tiny
JAZZYTURBO
  • MEMBER
  • 1998 CHEVROLET 2500
  • 5.7L
  • V8
  • 2WD
  • AUTOMATIC
  • 123,000 MILES
I am in need engine system diagrams that includes all circuits involved cranking and running.
Wednesday, July 4th, 2018 AT 11:27 PM

1 Reply

Tiny
DANNY L
  • MECHANIC
  • 5,648 POSTS
Hello, I am Danny.

Hope these help! Let me know if you need any further schematics/diagrams.

https://www.2carpros.com/articles/how-to-check-wiring

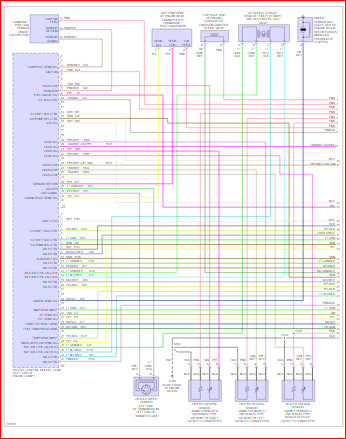

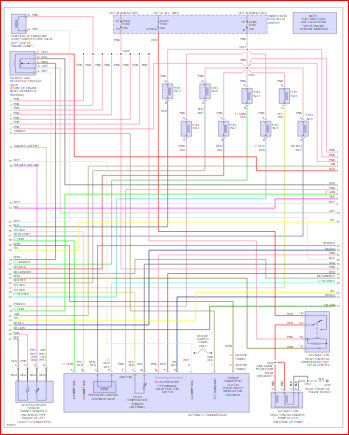

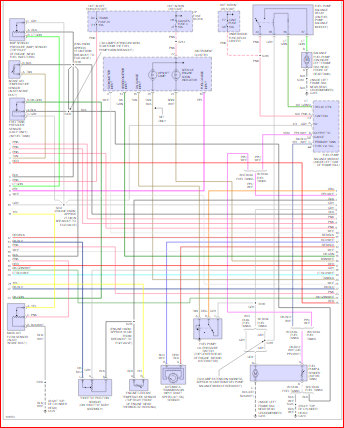

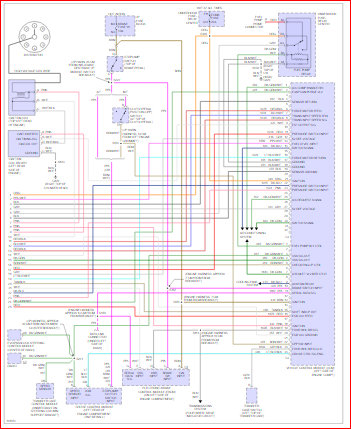

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Thanks for using 2CarPros. Danny-
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
