Engine wiring diagrams?

2004 JEEP GRAND CHEROKEE
170,000 MILES • 4.0L • 6 CYL • 2WD • AUTOMATIC
Avatar
NITSUJ84
I can't find a fuel injector wiring diagram for the vehicle listed above Laredo anywhere. Or a PCM wiring diagram. it would be amazing if I could find them with the wire color listed as well. Any help would be appreciated.
Jul 14, 2020 at 4:20 PM
Advertisement
Avatar
KASEKENNY
  • ✓ASE Certified Mechanic
  • 18,907 POSTS
  • ASE Certified Mechanic

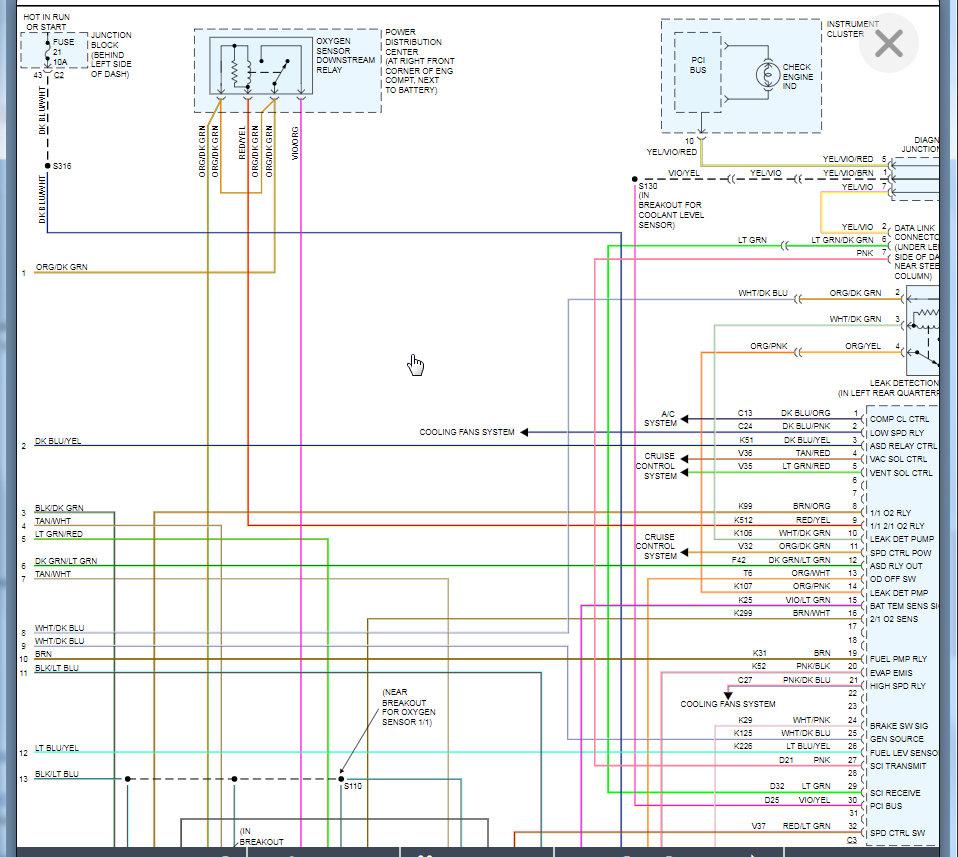

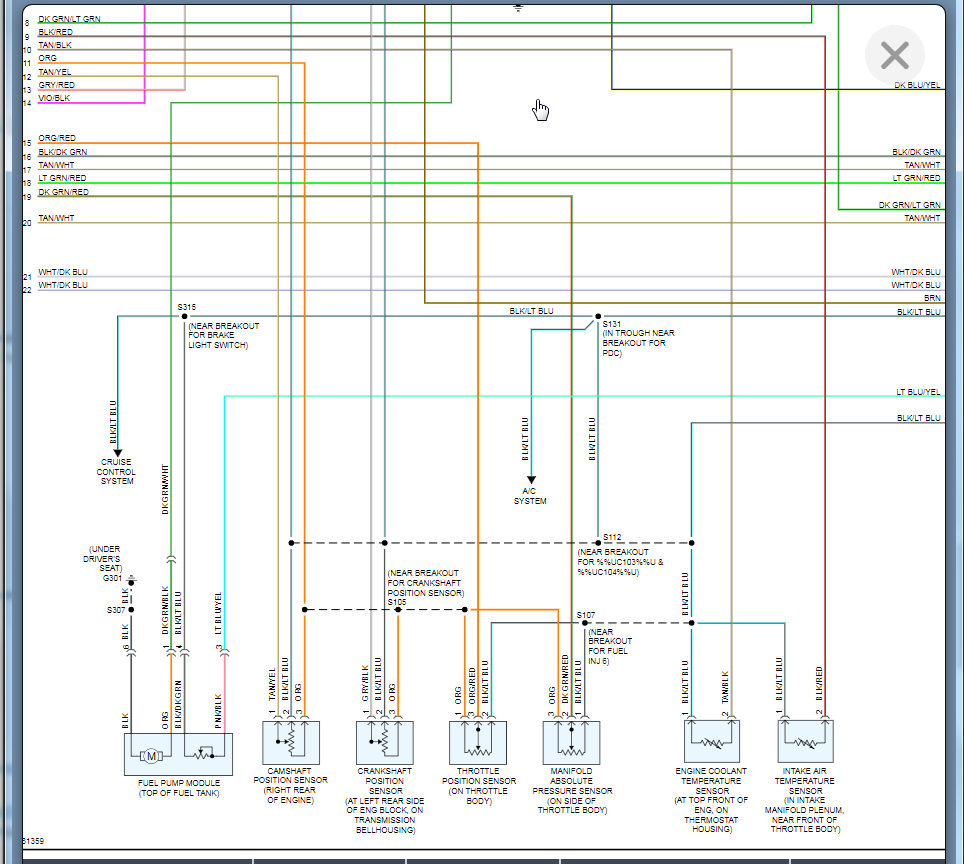

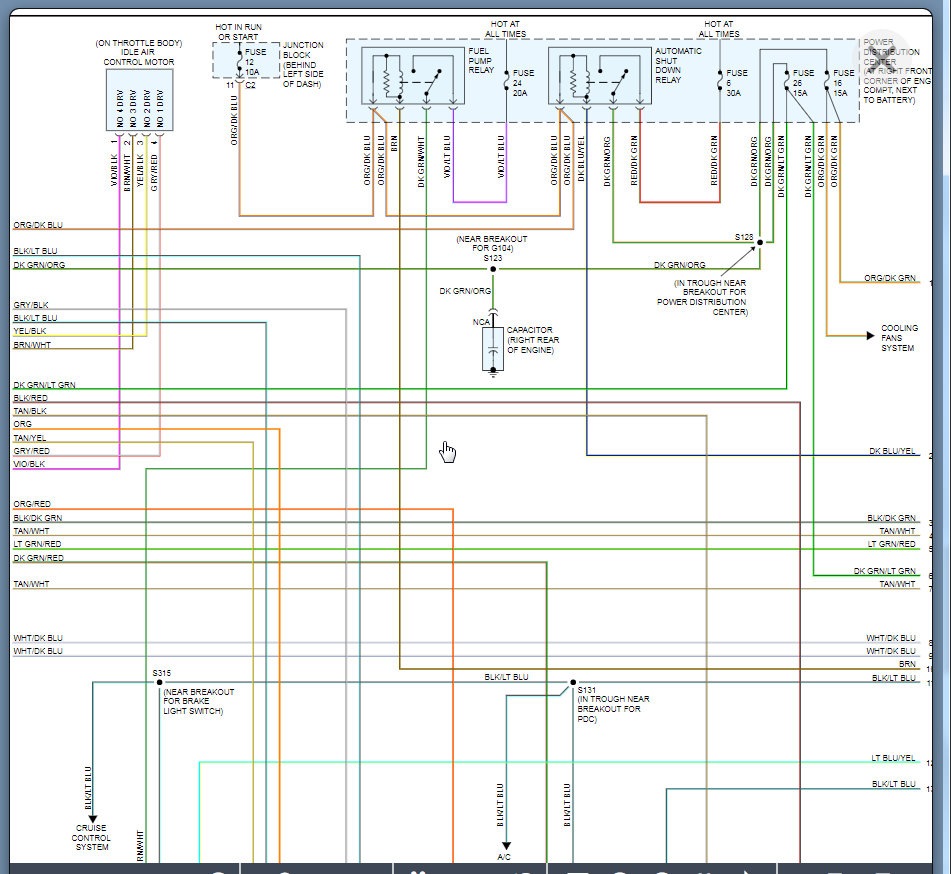

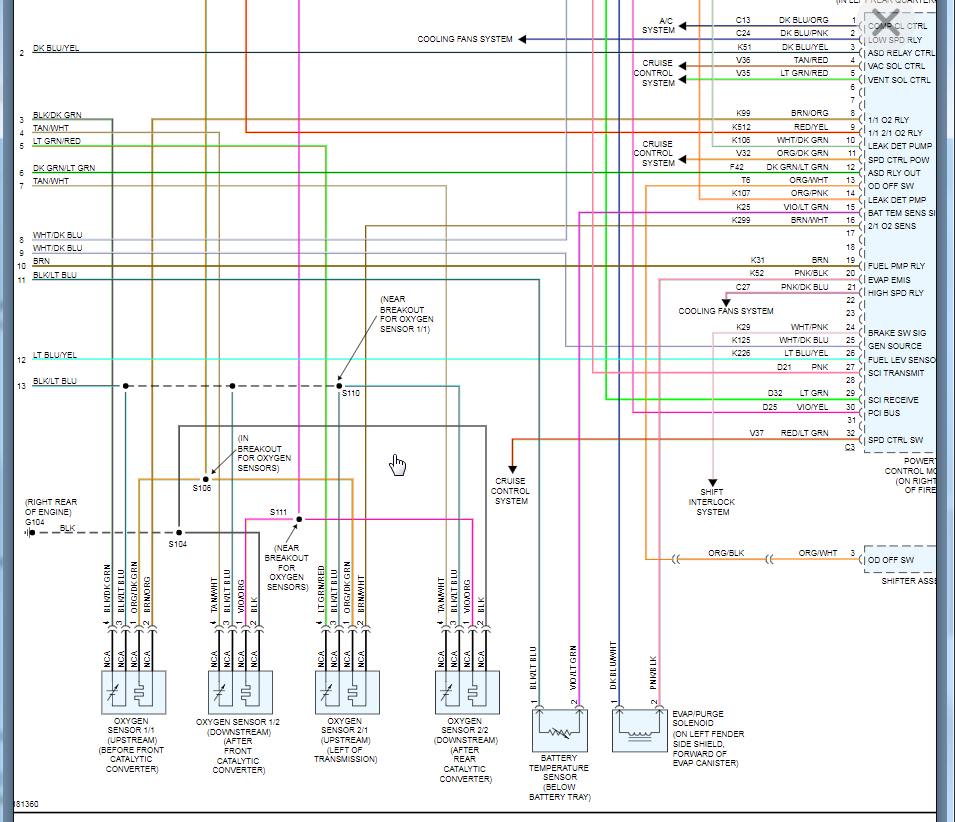

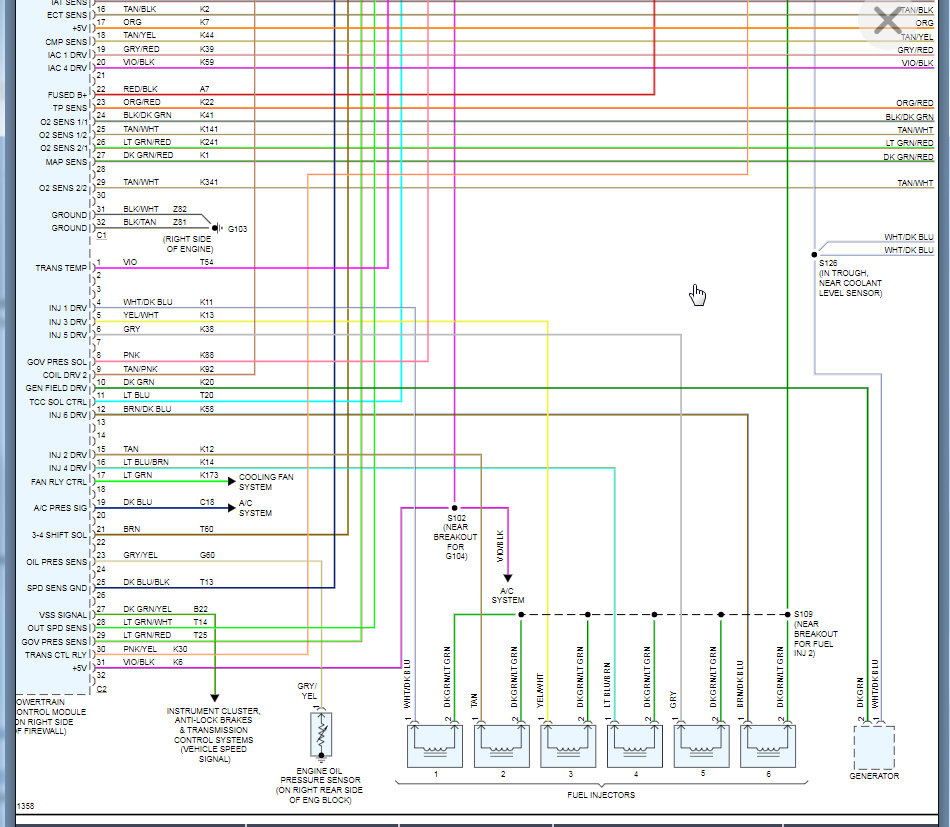

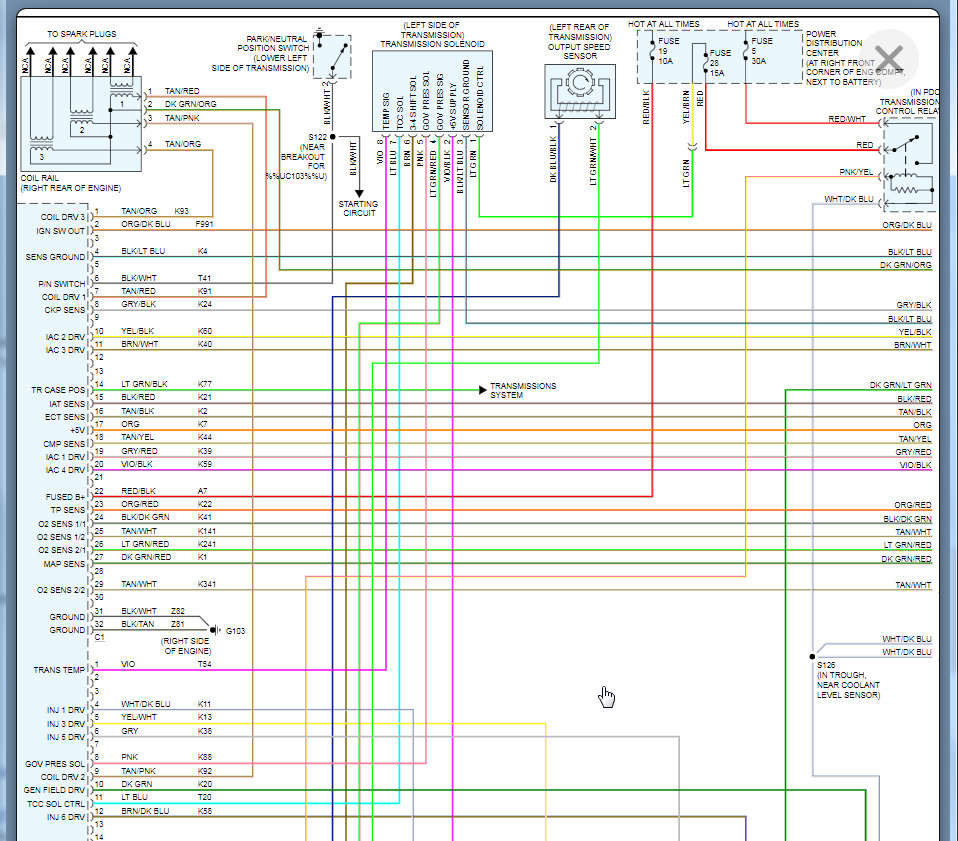

I attached the complete wiring diagram for the power-train control system. Let us know if you need more info and we will be happy to provide it. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Thanks
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
