Exhaust cam sensor pinout needed?

2021 HONDA CIVIC
125,348 MILES • 1.5L • 4 CYL • TURBO • 2WD • AUTOMATIC
Avatar
HONDAH8R
I can't find where the red, white and green wires coming out of the exhaust cam sensor go so I can continuity test them. I'm assuming it's power ground and signal I just don't know where the pinout is on the ECU.
Jul 23, 2025 at 6:24 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,502 POSTS
  • ASE Certified Mechanic

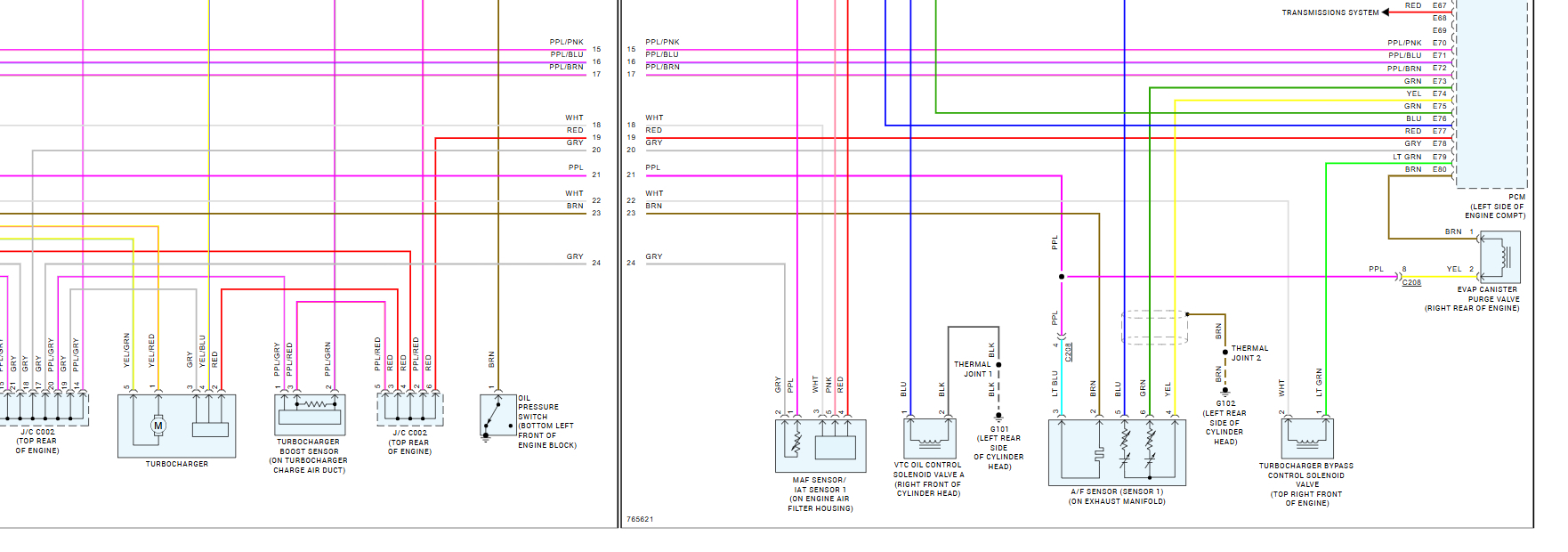

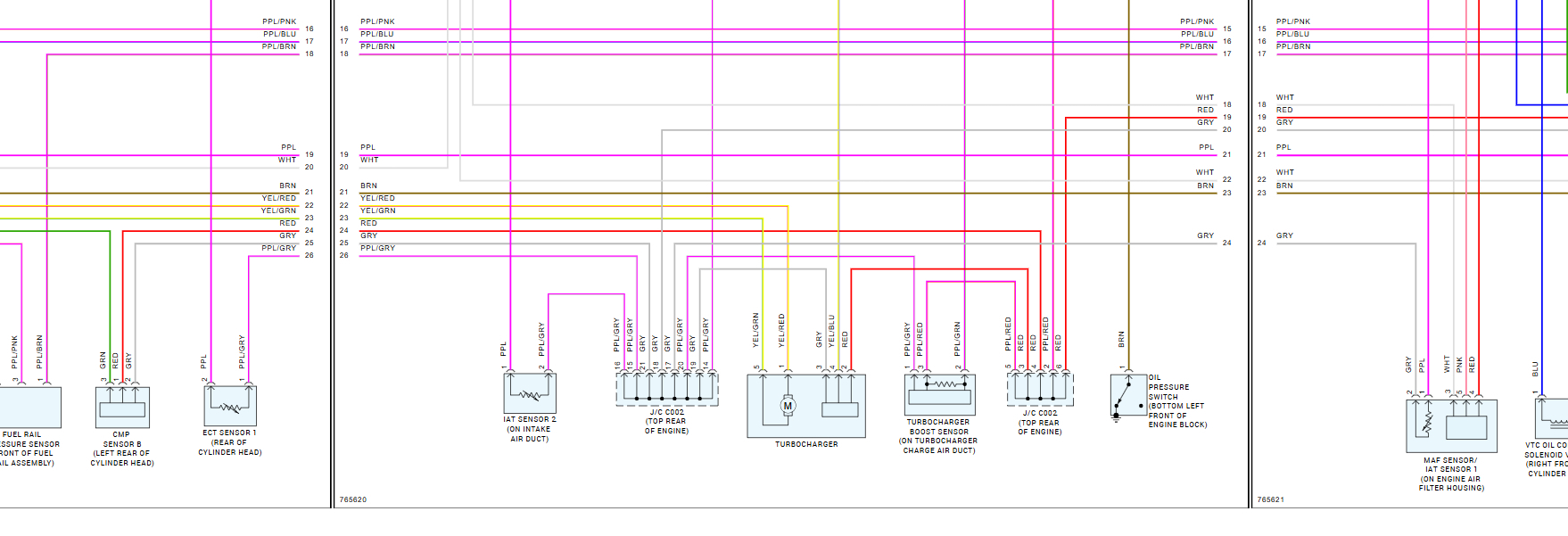

Sure, here are the wiring diagrams for the camshaft sensor B. Let me know if you need anything else. Check out the images (below).
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jul 23, 2025 at 1:10 PM
