Complete circuit diagram of the engine with transmission?

Tiny
BLESSING EWOBOR
  • MEMBER
  • 2004 LEXUS ES 300
  • V6
  • 2WD
  • AUTOMATIC
  • 426,341 MILES
The vehicle has been in a workshop and some technicians have worked on the vehicle. The vehicle is experiencing rngine misfire and most of the coil wires has been altered. Please could you help me with the complete circuit diagram of the engine with transmission to trace some of the wires.
SPONSORED LINKS
Tuesday, March 21st, 2023 AT 7:26 AM

3 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 42,969 POSTS

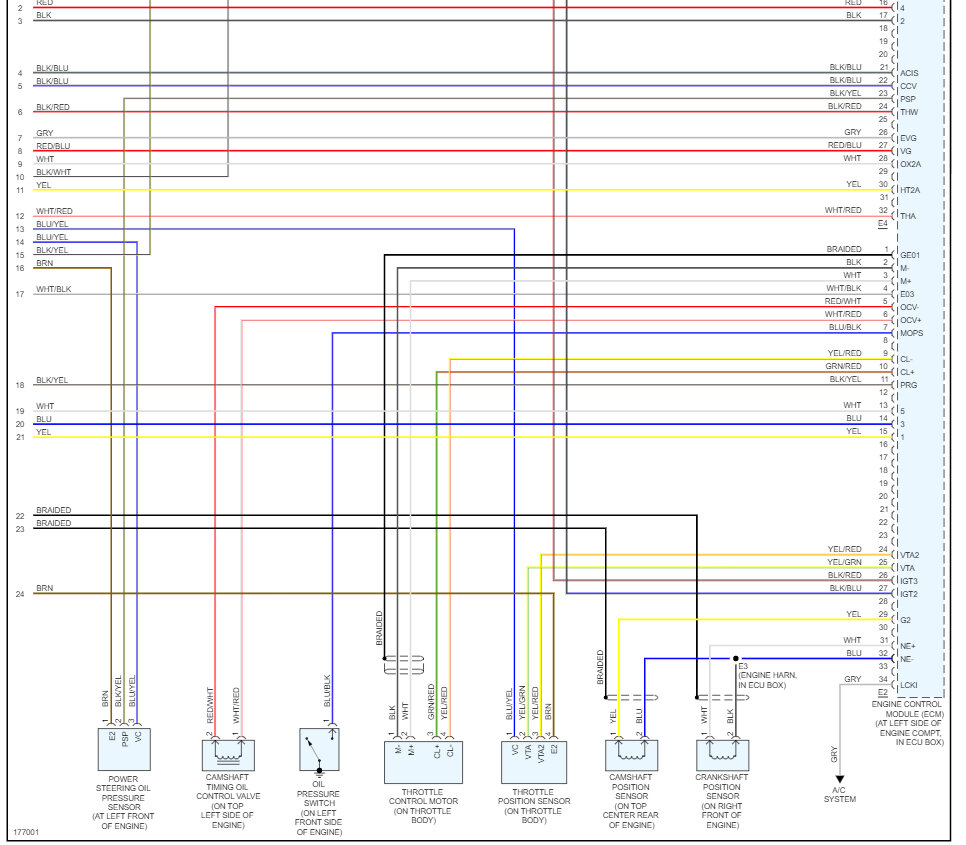

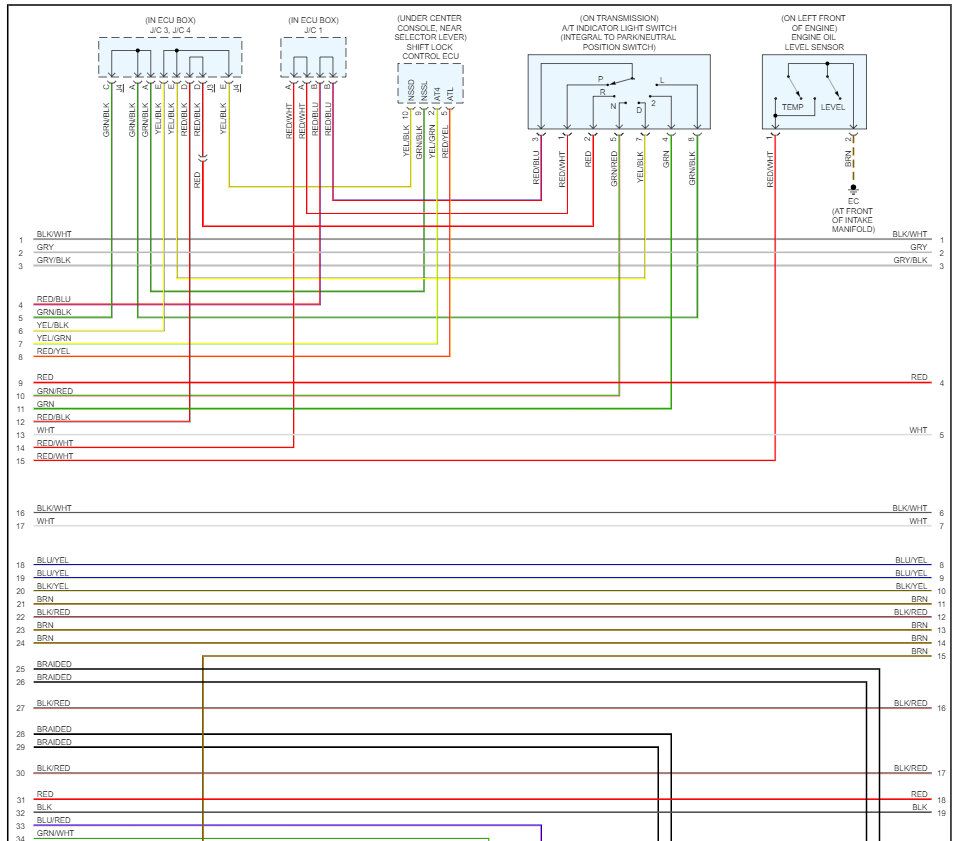

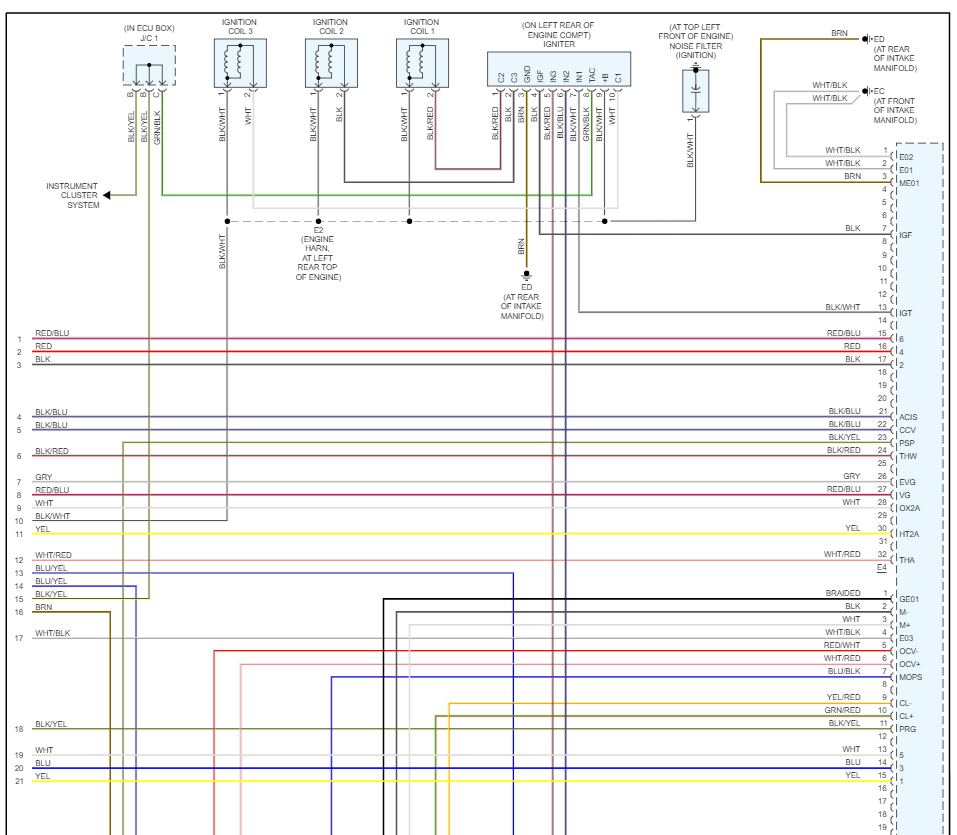

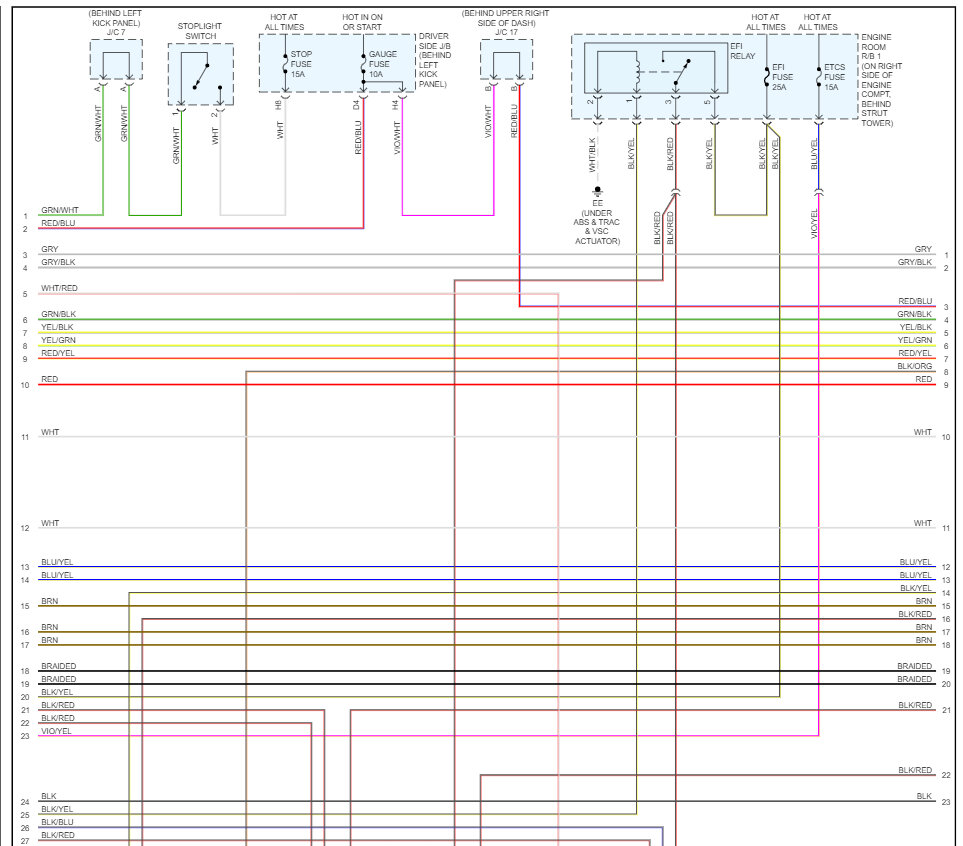

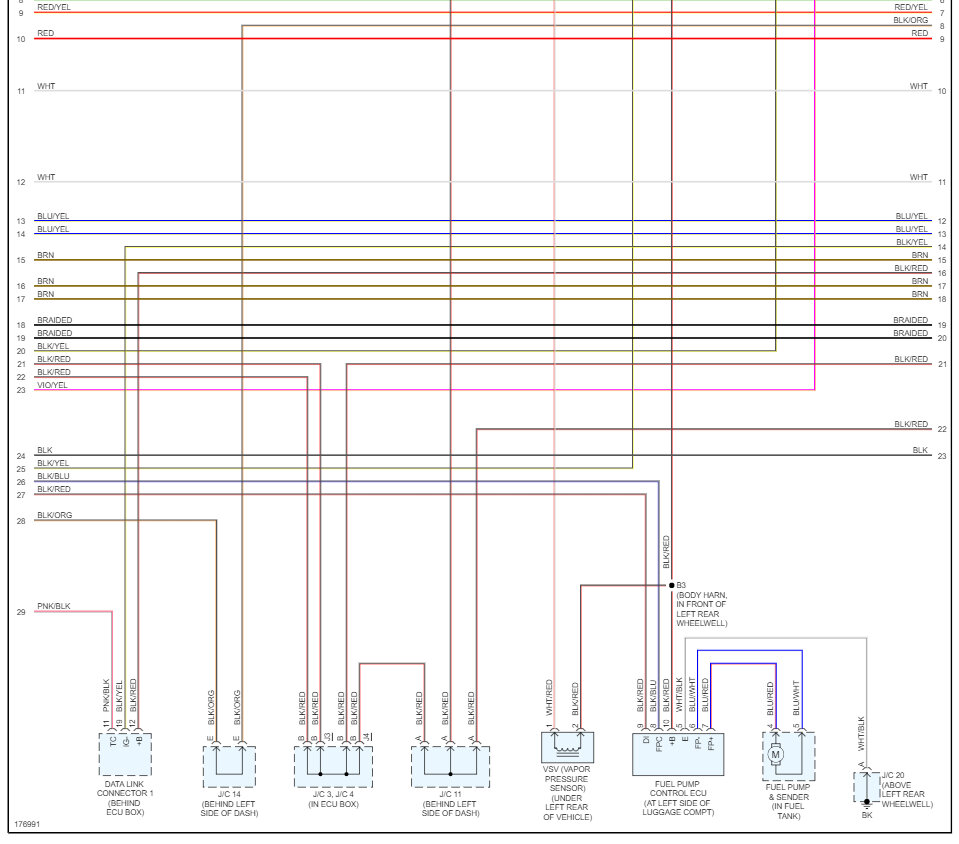

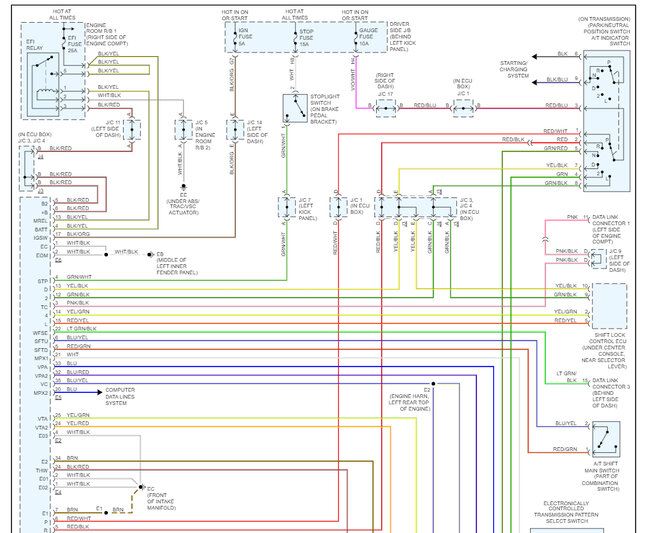

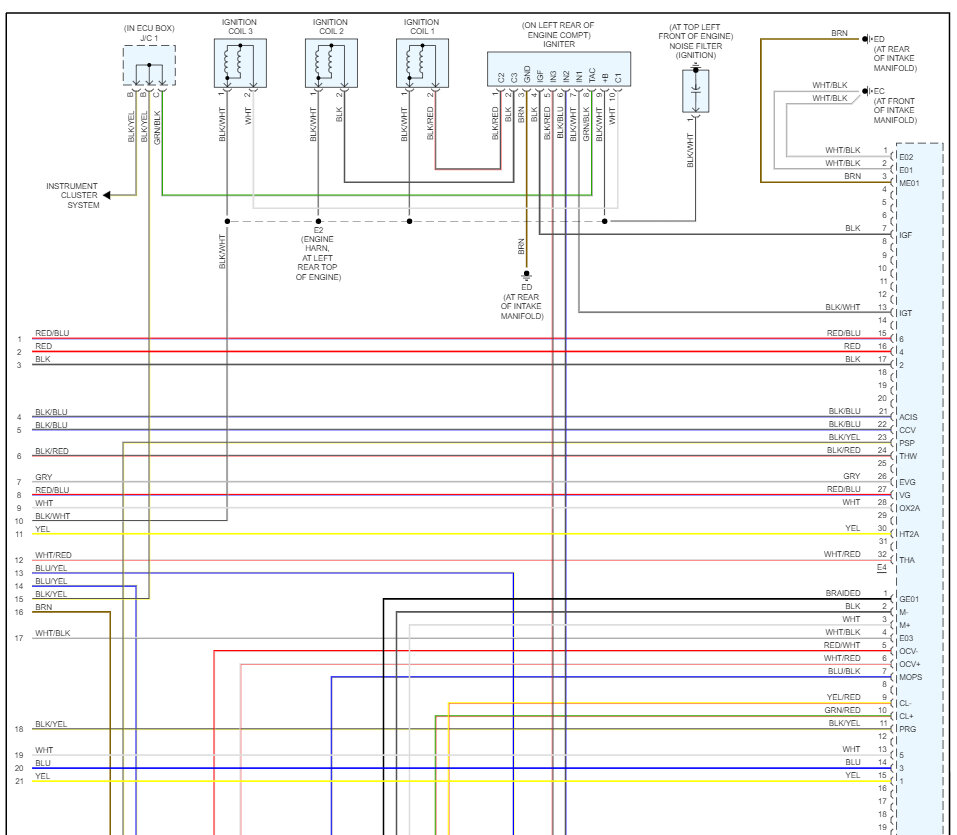

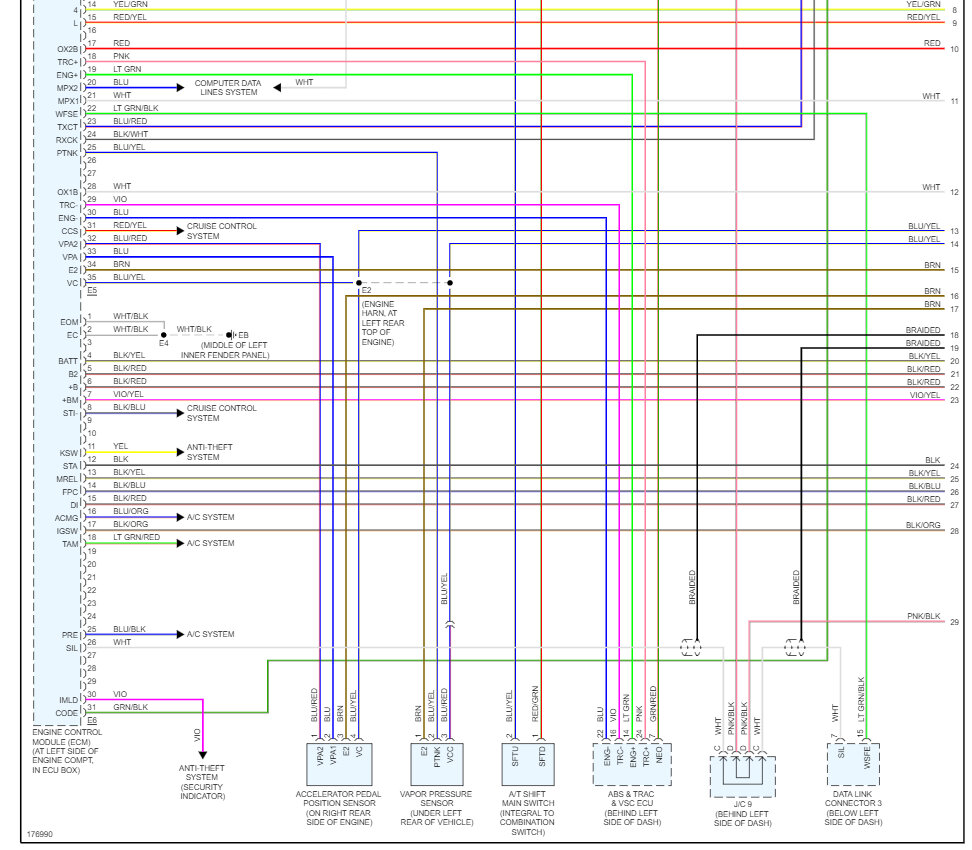

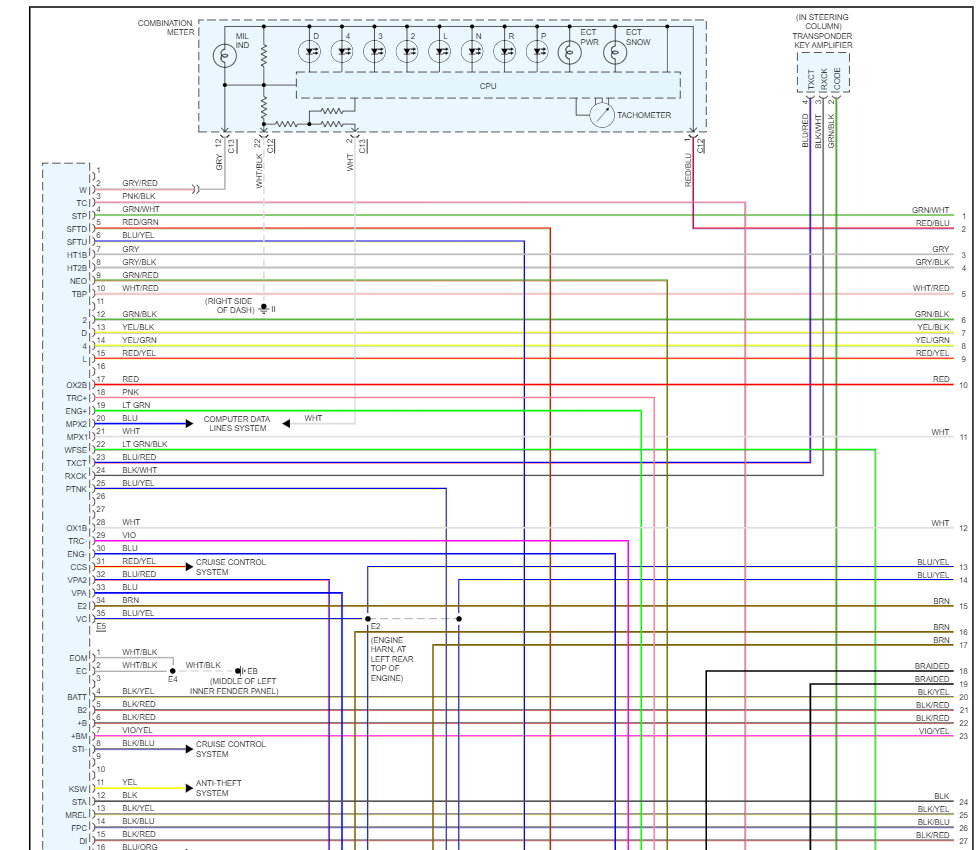

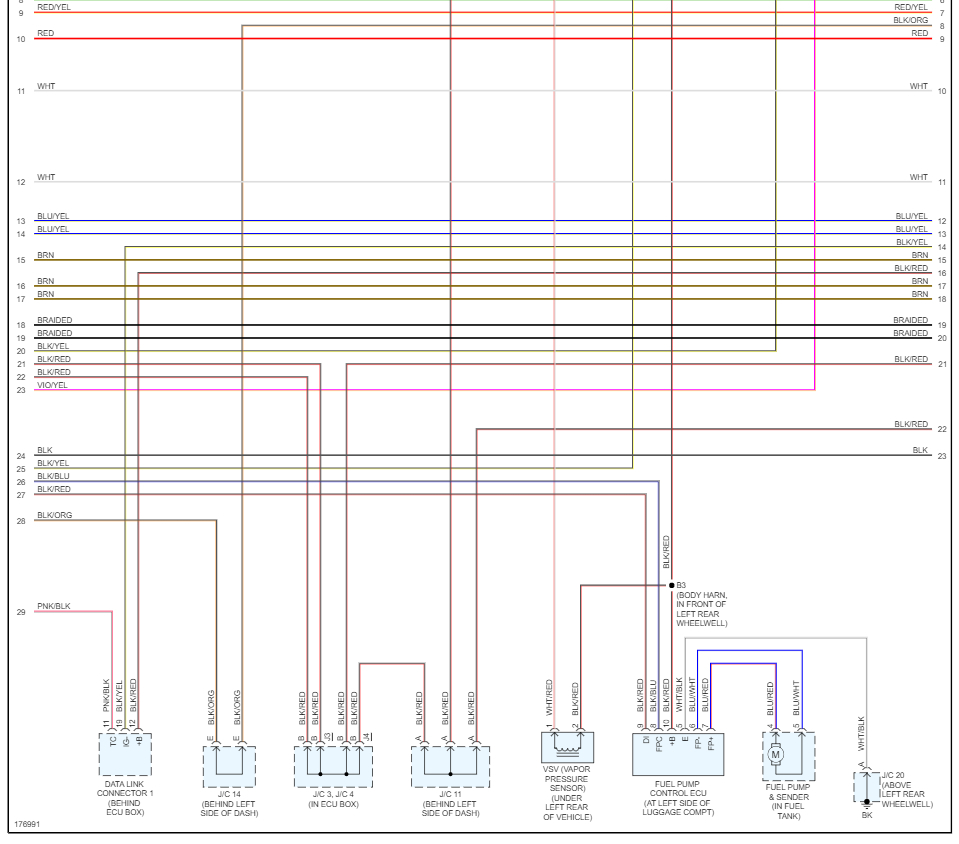

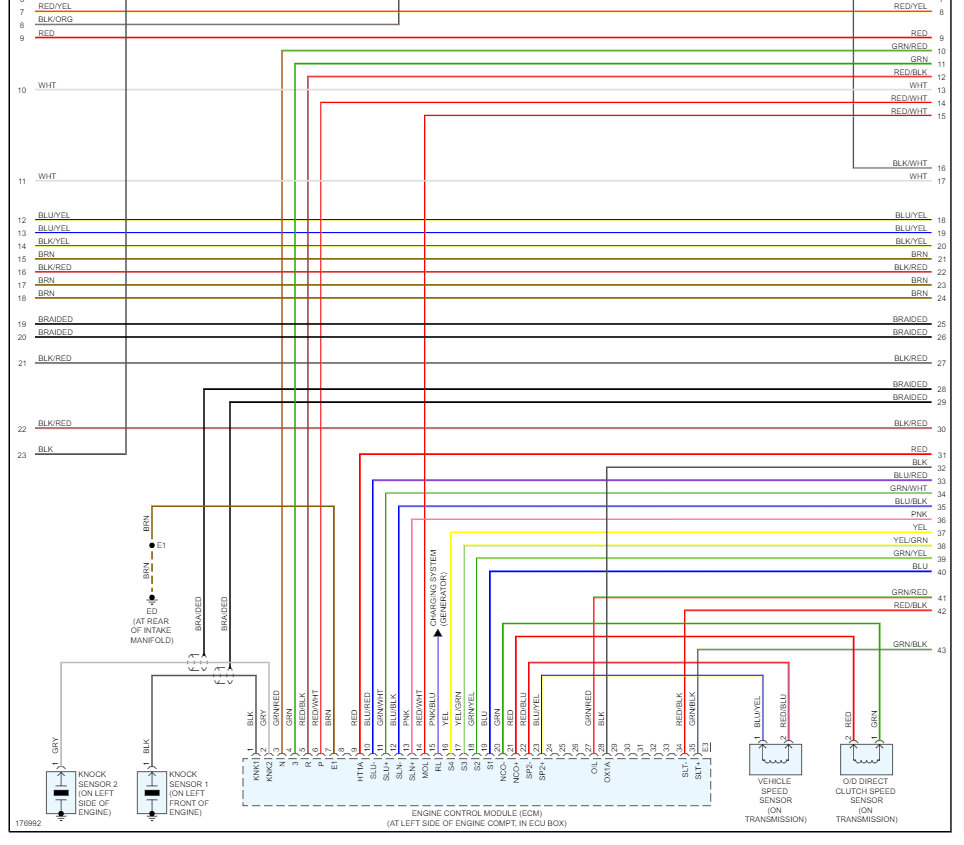

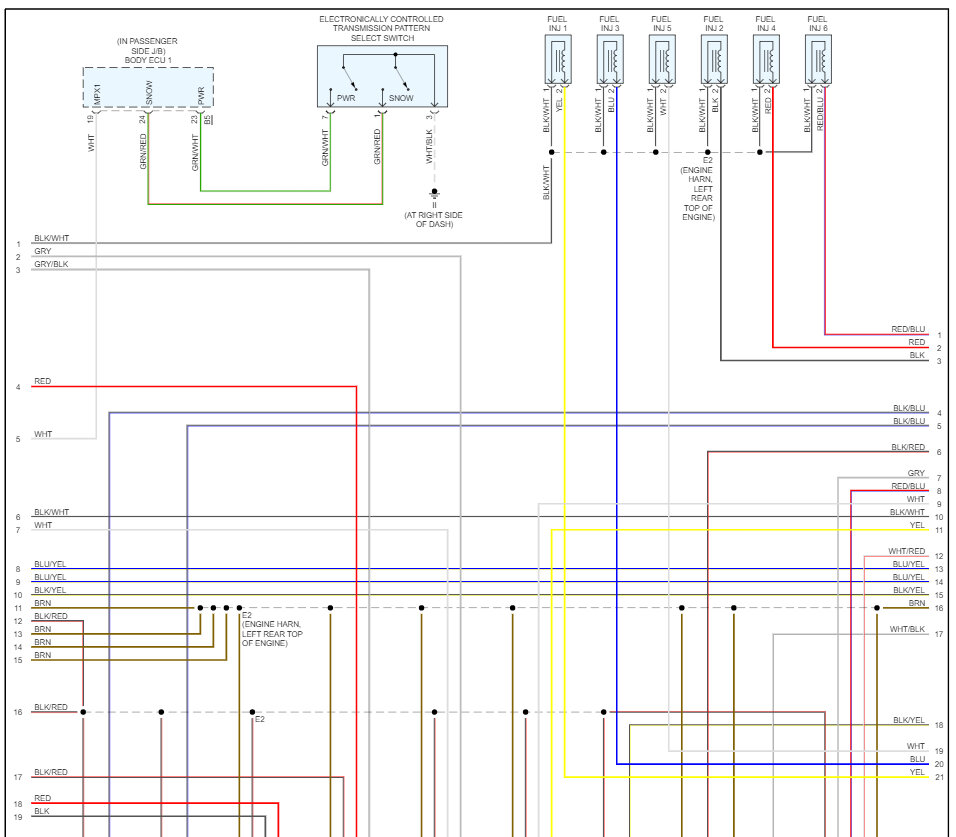

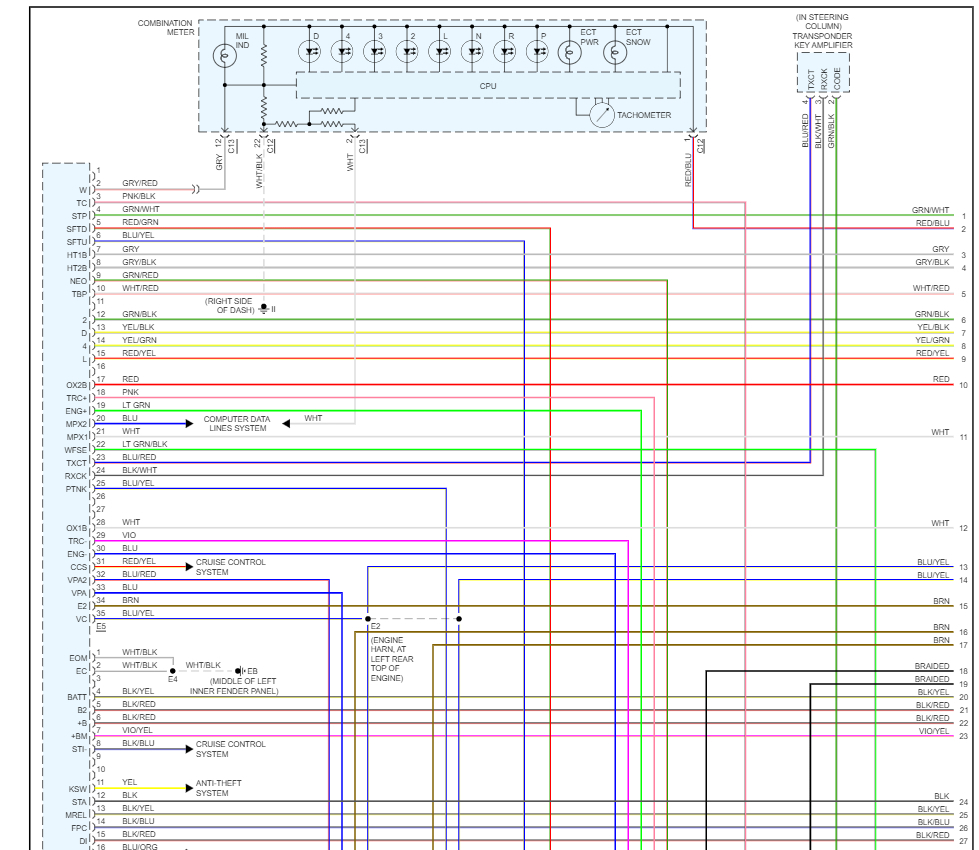

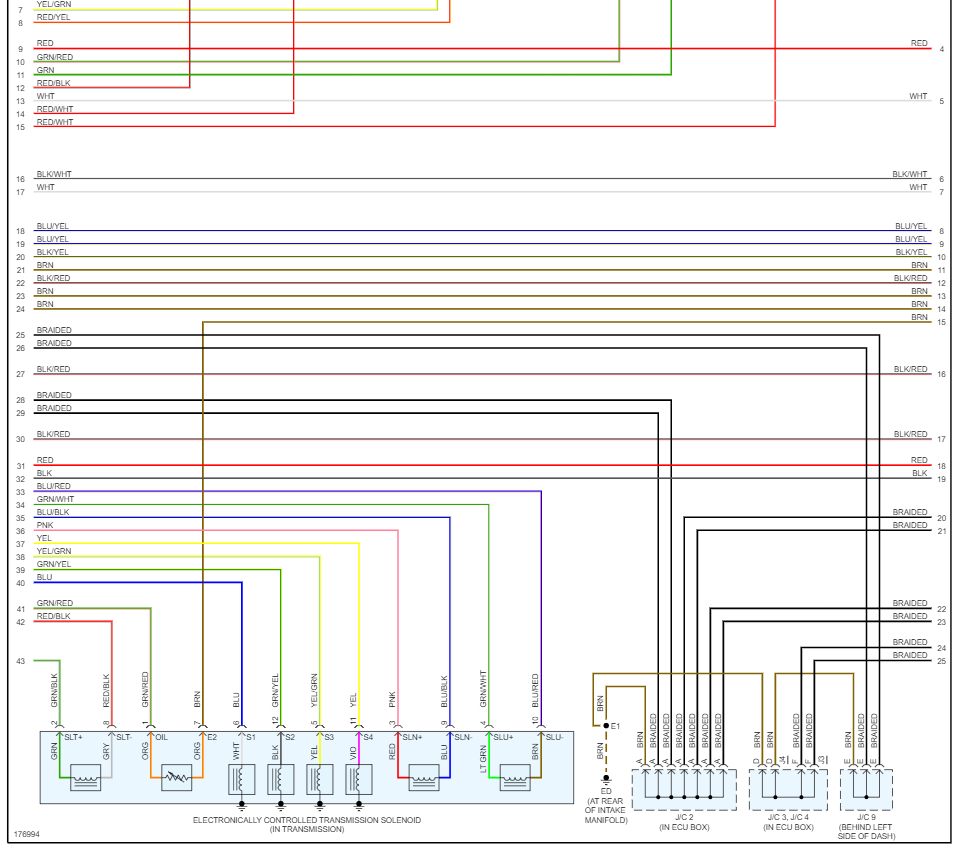

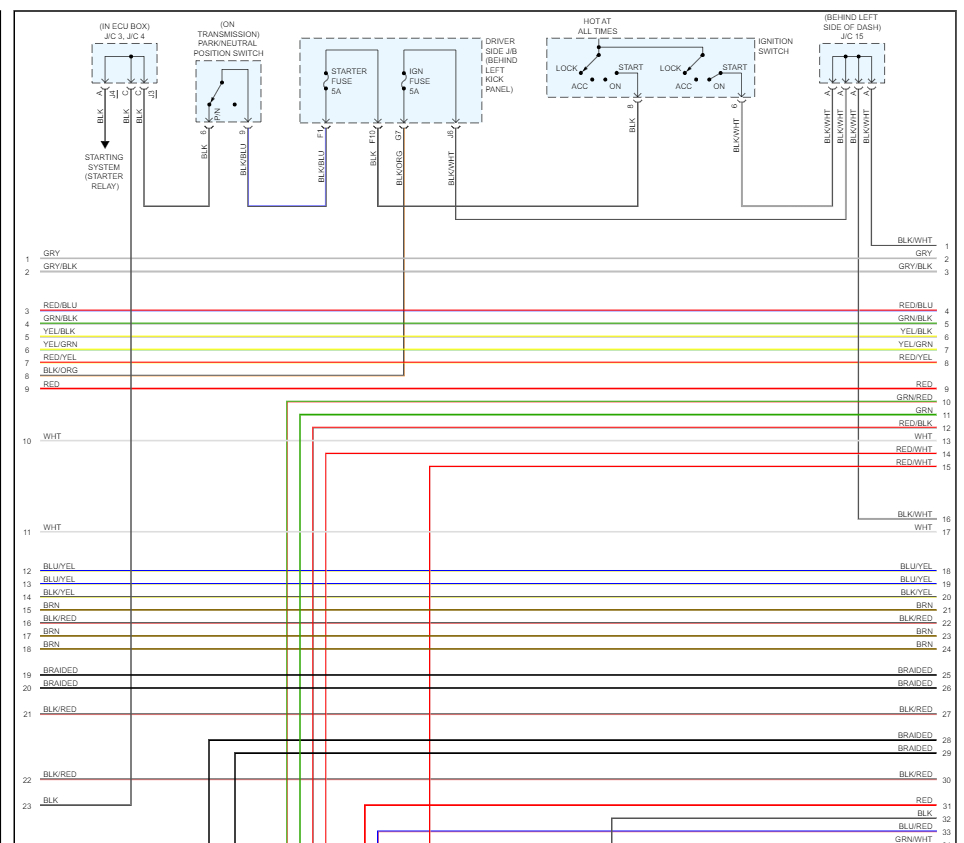

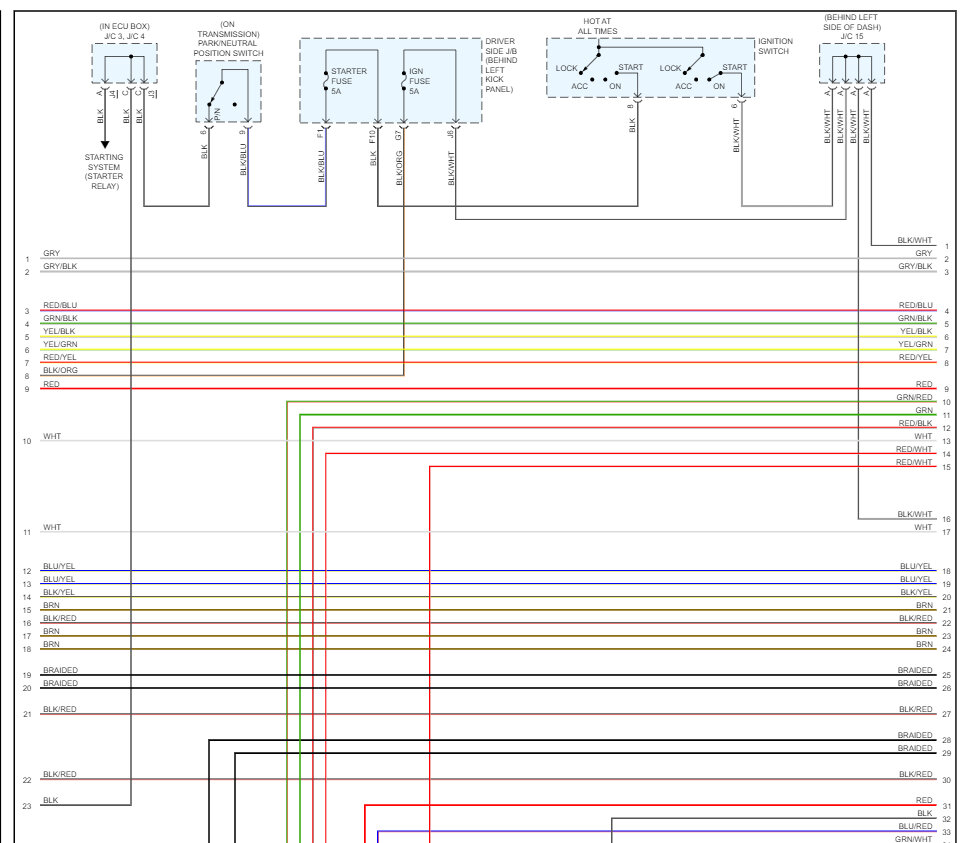

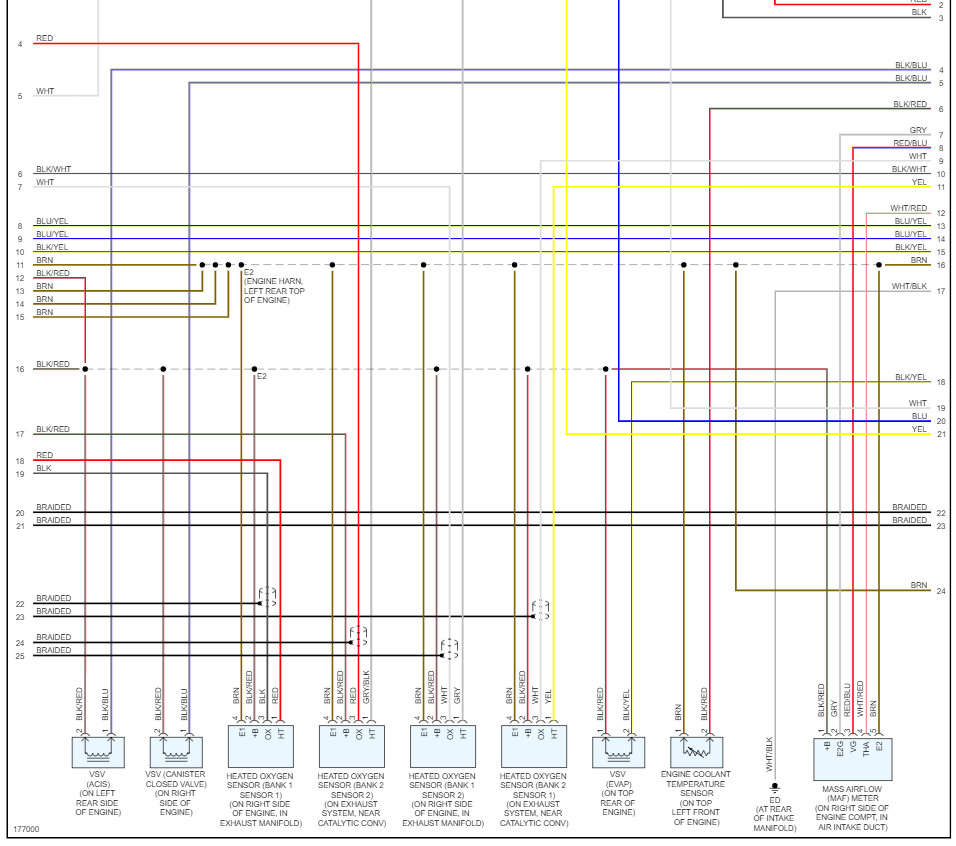

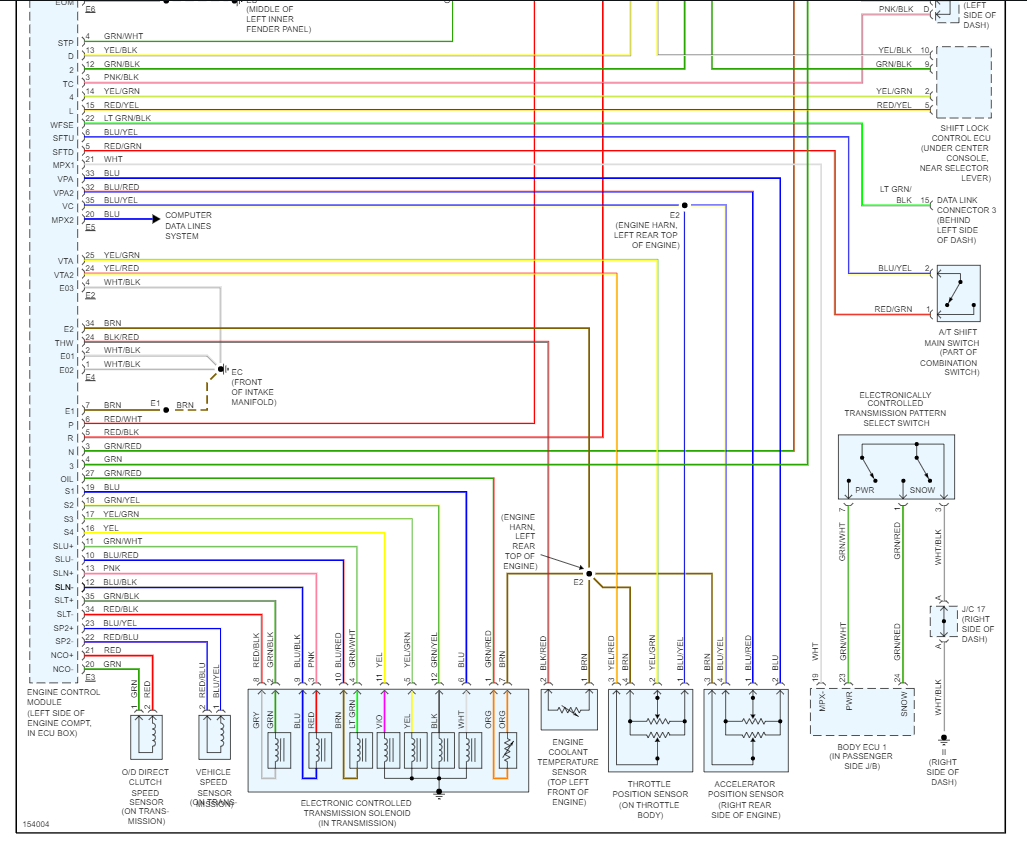

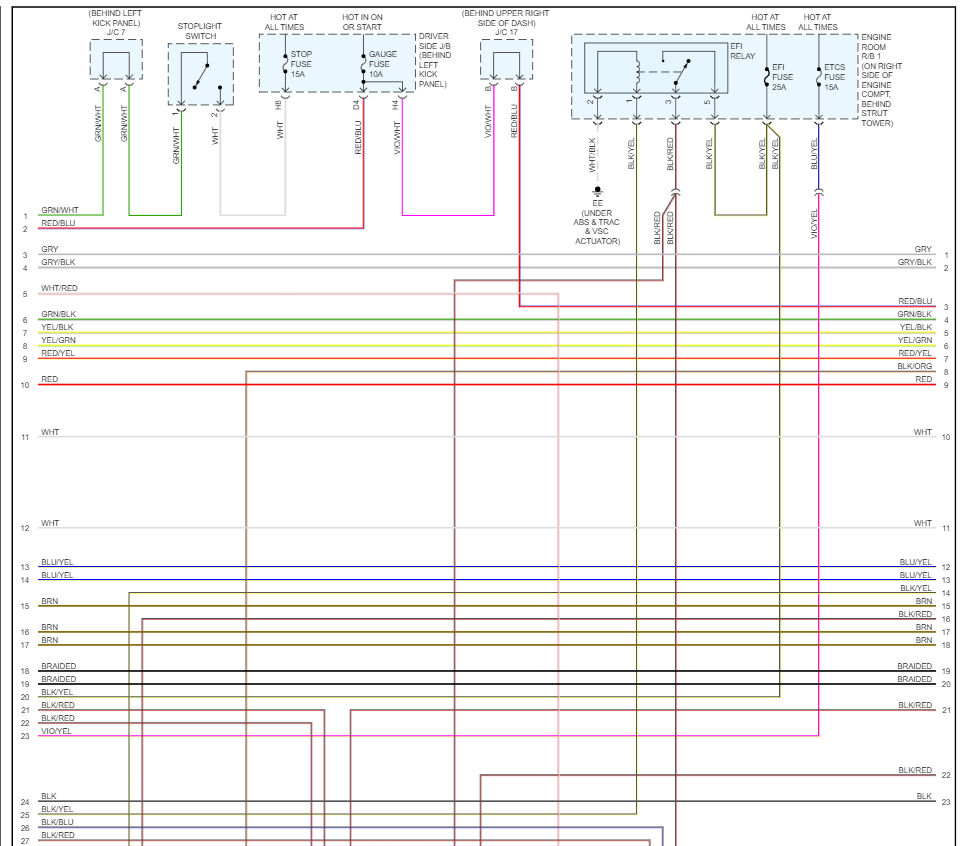

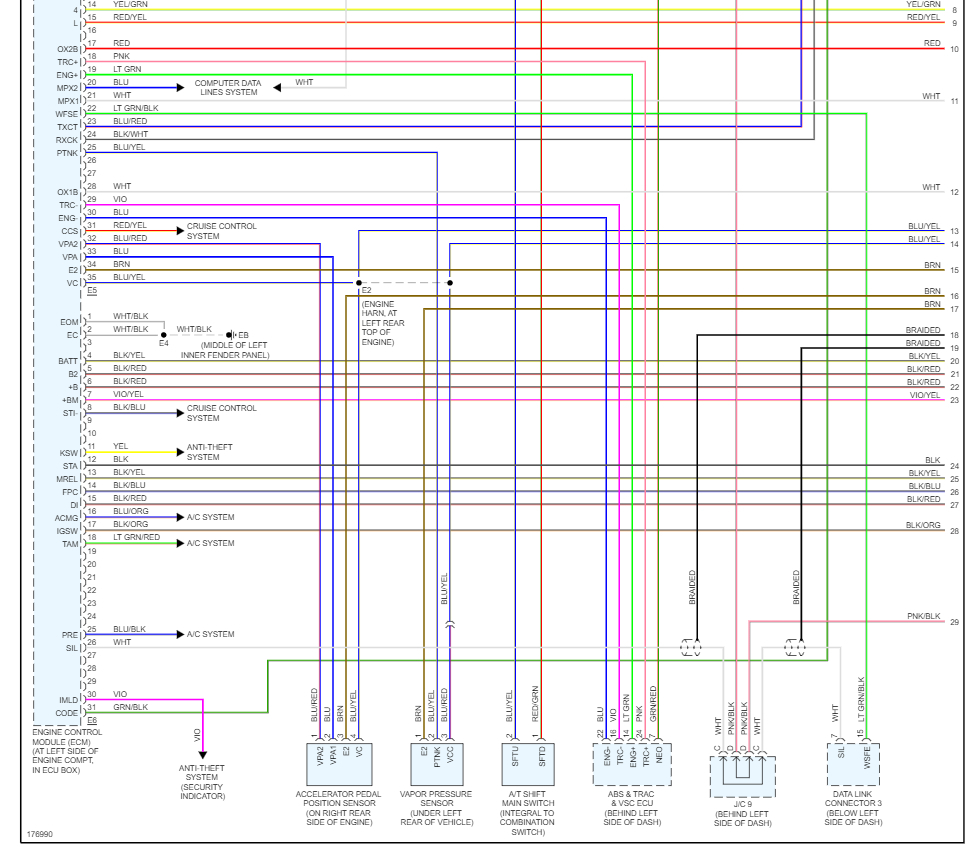

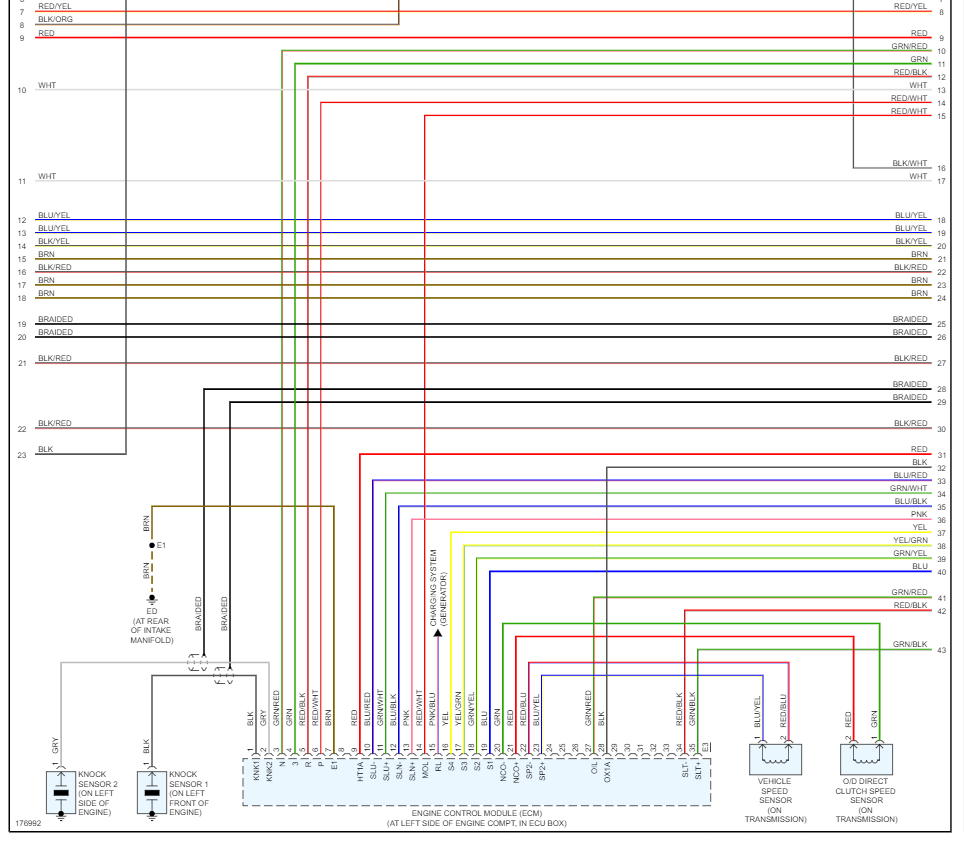

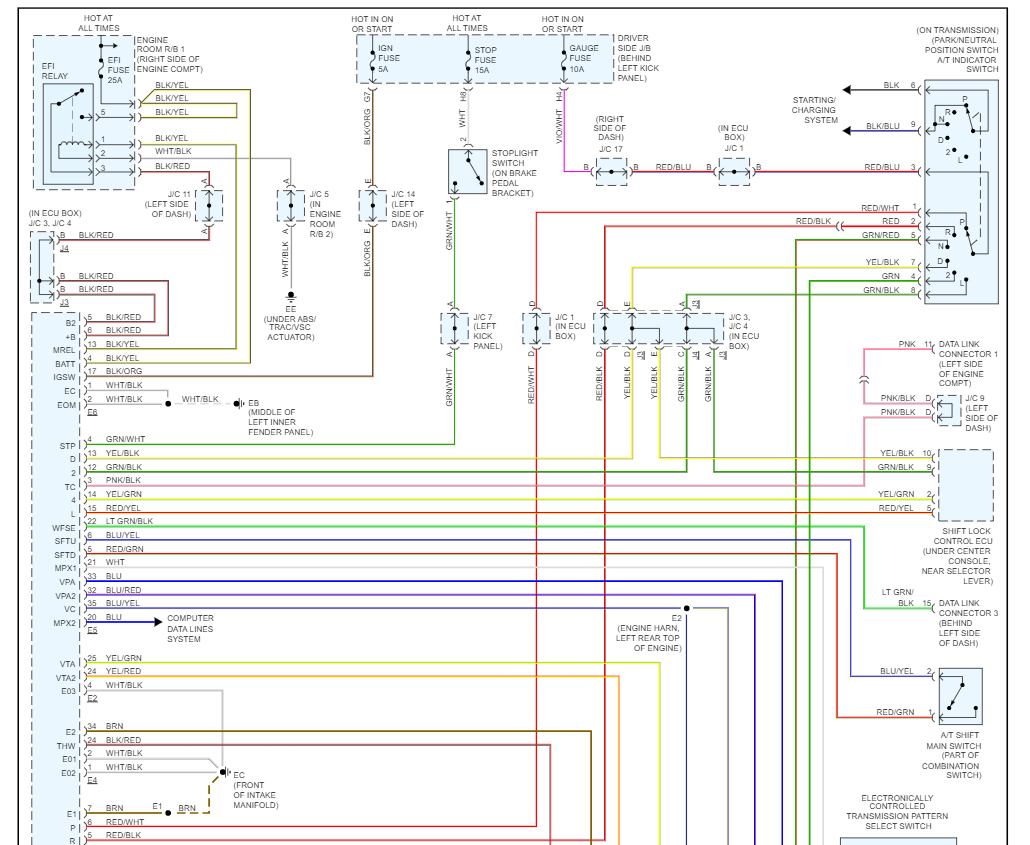

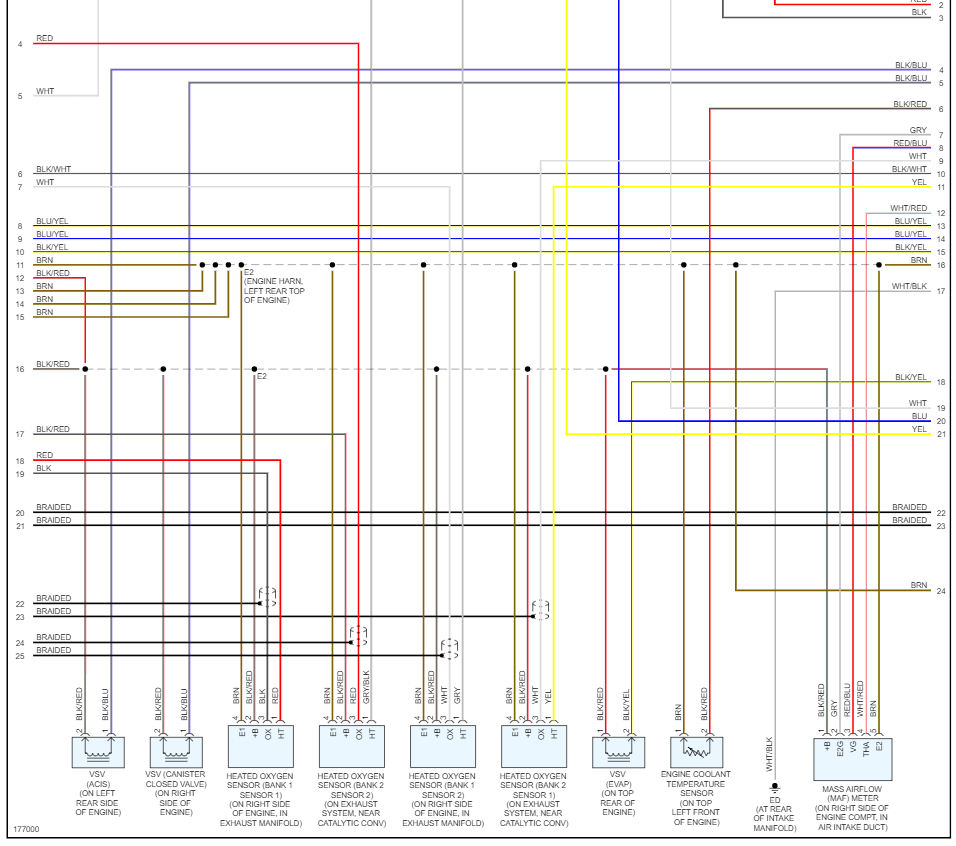

No problem, here are the engine and transmission wiring diagrams and I have included a guide to help you test the connections.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
