Can I get the engine compartment vacuum hose routing?

Tiny
FORDSLOSTBOLT81
  • MEMBER
  • 2006 FORD F-150
  • 5.4L
  • V8
  • 4WD
  • AUTOMATIC
  • 3,053,570 MILES
I need the vacuum hose/line routing diagram in detail for my truck listed above XLT model, 5.4 3v 4x4 flexible. I'm having difficulty ensuring that I have hooked up all vacuum lines correctly to Intake, booster, iwe, and evap purge solenoid.
Do you
have the same problem?
Yes
No
Saturday, November 11th, 2023 AT 5:45 PM

1 Reply

Tiny
CANNON1349
  • CERTIFIED MECHANIC
  • 560 POSTS
Hello, and thanks for your question!

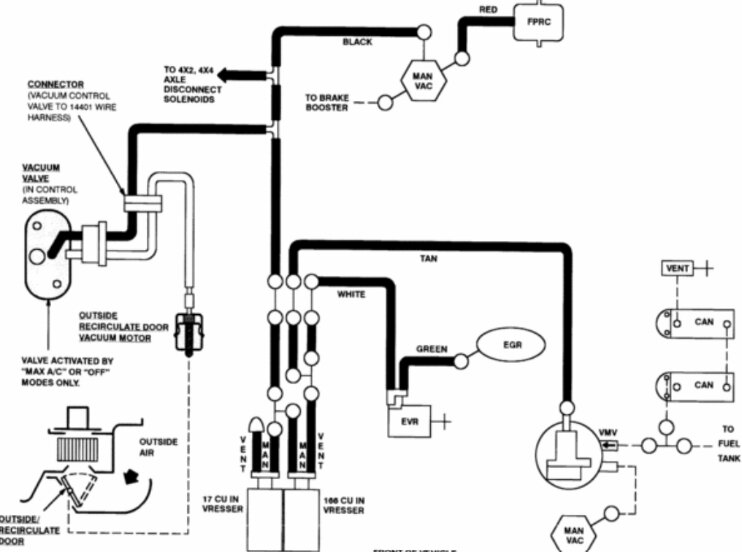

I have found a diagram and attached it below. I hope it helps, and please let us know if you need anything else!

William
Image (Click to make bigger)
Thumb
