Engine bulkhead wiring?

1997 CHEVROLET 3500
160,000 MILES • 7.4L • V8 • 4WD • AUTOMATIC
Avatar
TERRY DIETZ
I need the diagram for the wire pin out for the engine bulkhead connector from the engine bay
Sep 21, 2025 at 8:16 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic

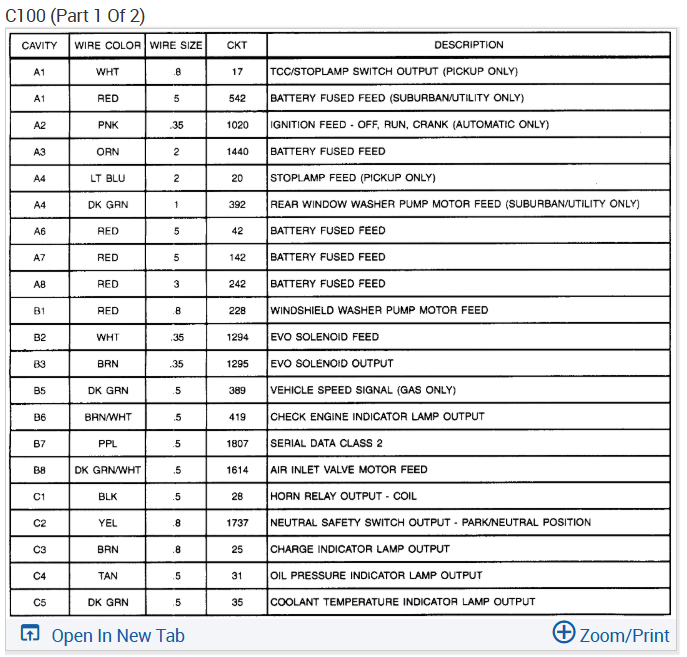

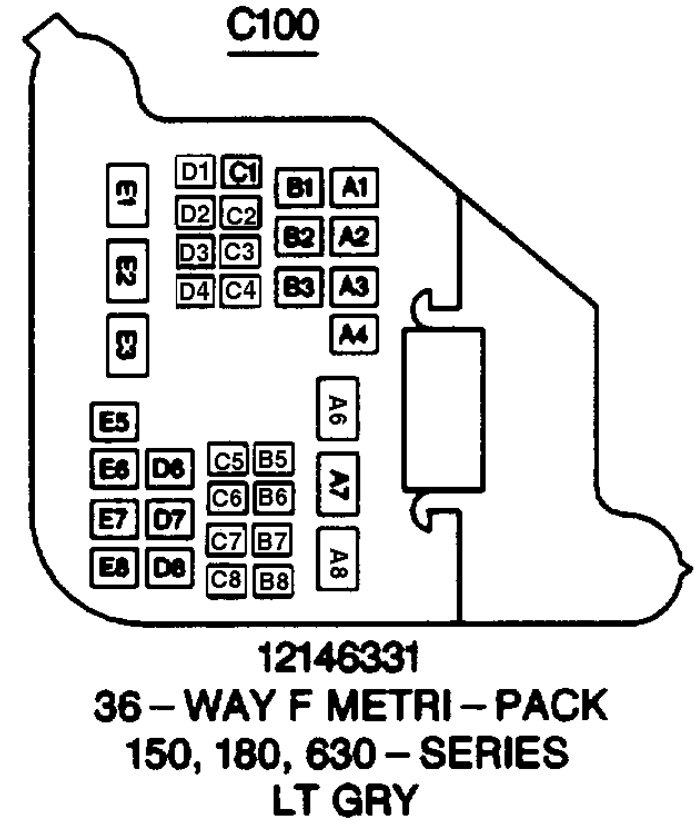

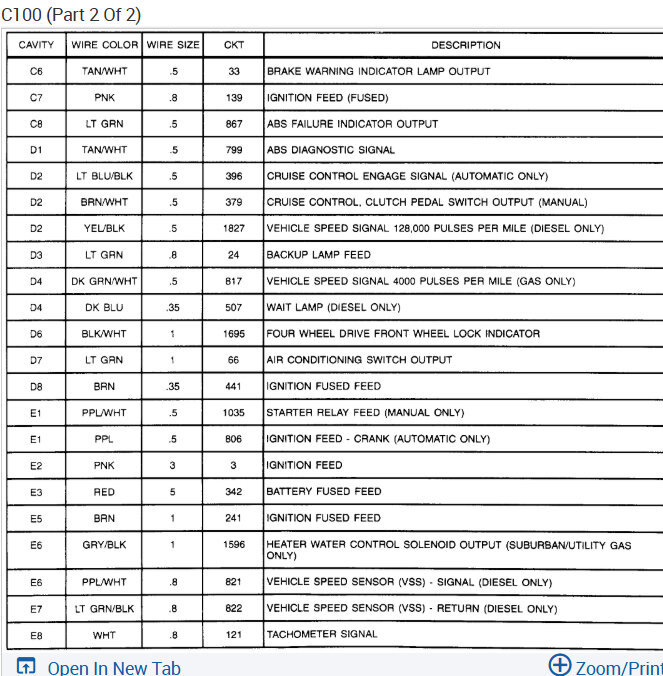

Sure, here you go! have a good Sunday. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Sep 21, 2025 at 9:29 AM
Avatar
TERRY DIETZ
  • MEMBER
  • 2 POSTS
Thank you!! I'll let you know how it turns out.
Sep 21, 2025 at 9:46 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic
you are welcome, have a great week!
