Can I get the Drive belt diagram?

Tiny
AJAYCHH
  • MEMBER
  • 2003 BMW 318I
  • 2.0L
  • 4 CYL
  • AUTOMATIC
  • 200,000 MILES
Need a diagram to install a new drive belts.
Sunday, July 13th, 2025 AT 2:48 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,138 POSTS

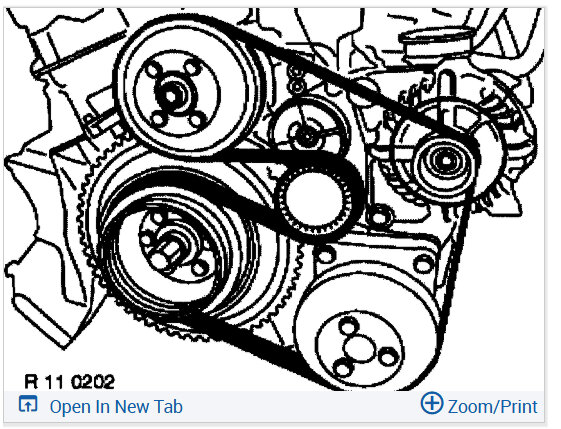

Yep, this one can be tricky, here is the serpentine drive belt routing. Check out the images (below). Let us know if you need anything else.
