Diagram for the cables to hook to the Battery Terminal Junction Box Wire Fuse diagram.
Apr 28, 2022 at 7:27 PM
Diagram for the cables to hook to the Battery Terminal needed
2013 HYUNDAI ELANTRA
AGC11003
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hi,

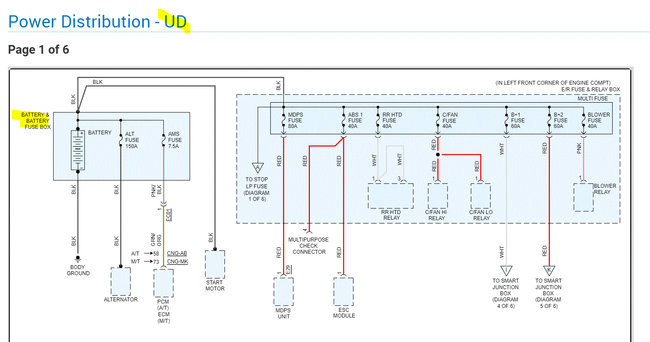

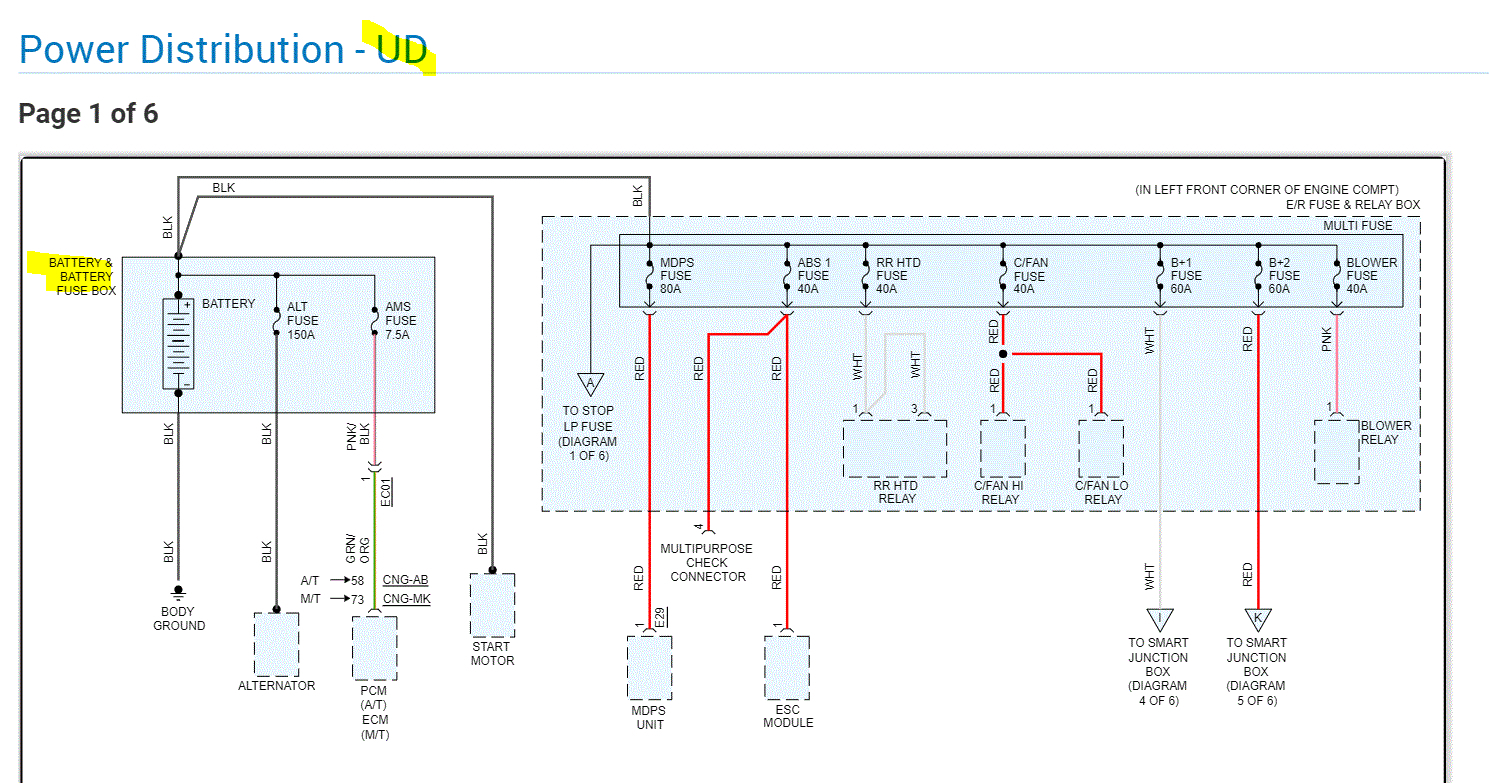

I'm not certain I completely understand what is needed. However, I attached two pics below showing the battery fuse box.

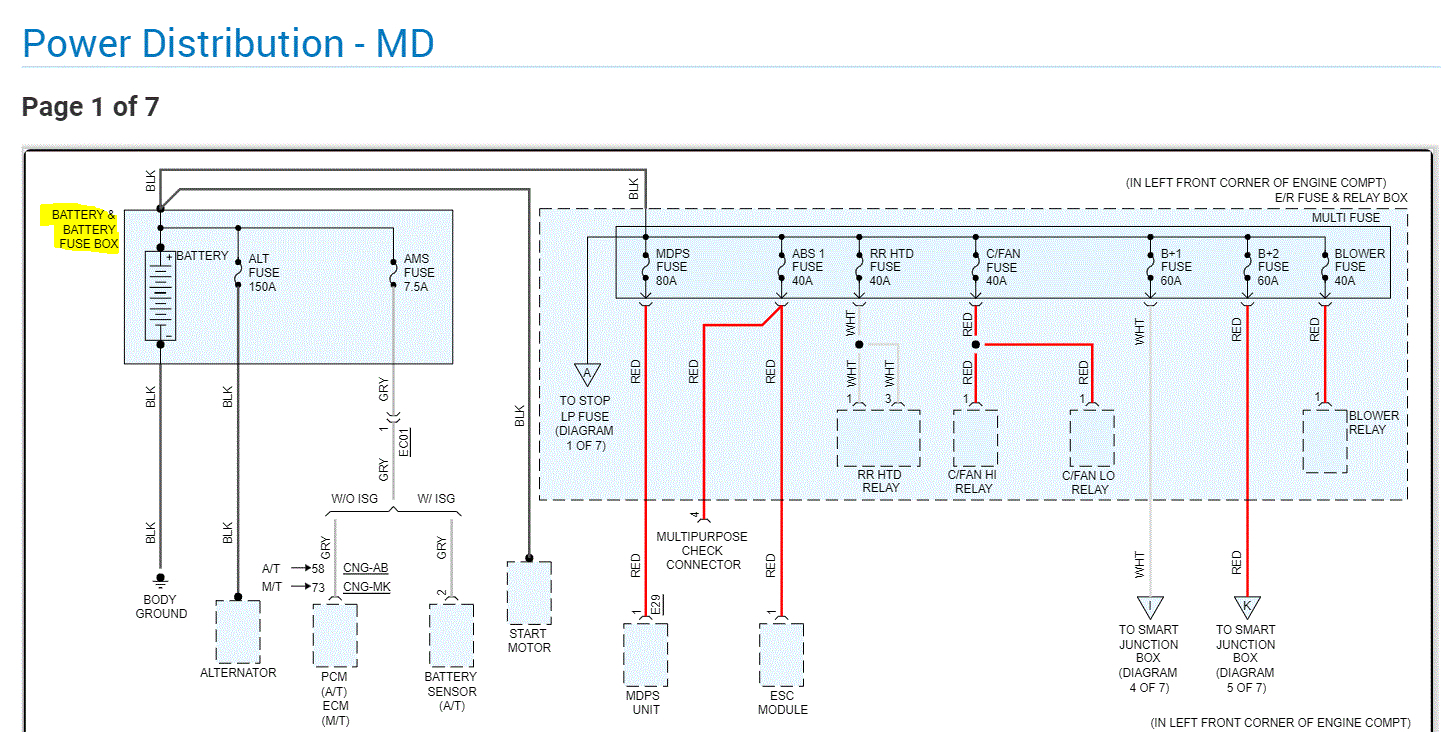

Note there are two different ones based on where the vehicle was built. They are identified as UD indicates made in America and MD indicates it was made in Korea.
Manufacturer information will be indicated under the hood on a label either on the radiator support or the underside of the hood.
Let me know if this helps or if you have other questions.
Take care,
Joe
See pics below.
I'm not certain I completely understand what is needed. However, I attached two pics below showing the battery fuse box.
Note there are two different ones based on where the vehicle was built. They are identified as UD indicates made in America and MD indicates it was made in Korea.
Manufacturer information will be indicated under the hood on a label either on the radiator support or the underside of the hood.
Let me know if this helps or if you have other questions.
Take care,
Joe
See pics below.
