Need the pin out that goes to drivers side view mirror motor

2009 MERCEDES BENZ E350

125,000 MILES • V6 • 2WD • AUTOMATIC

RANDY ALBRIGHT2

MEMBER
11 POSTS
FOLLOW

Need the pin out that goes to drivers side view mirror motor. It comes from the DCM modules 1 and 6. It is 7 wires going into an 8 pin module that plugs into mirror motor with pin #4 vacant. Please help. Thanks

Feb 17, 2020 at 10:24 AM

Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.

SCGRANTURISMO

CAR REPAIR CONTRIBUTOR
4,897 POSTS

Hello,

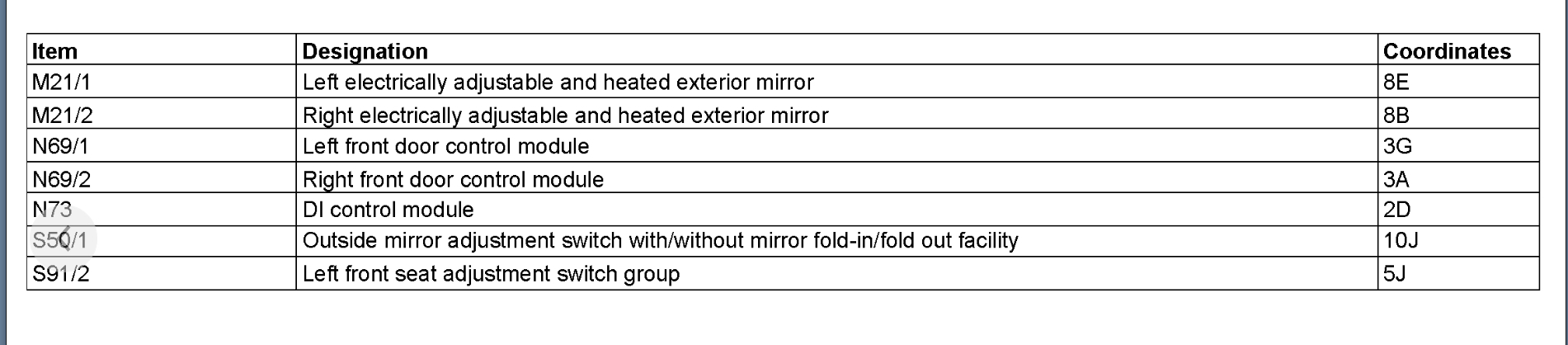

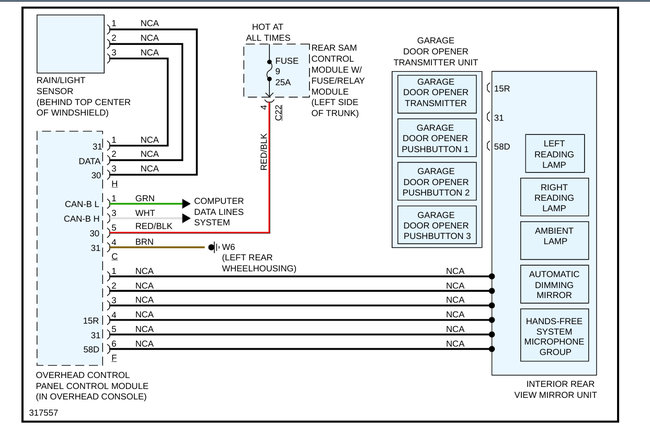

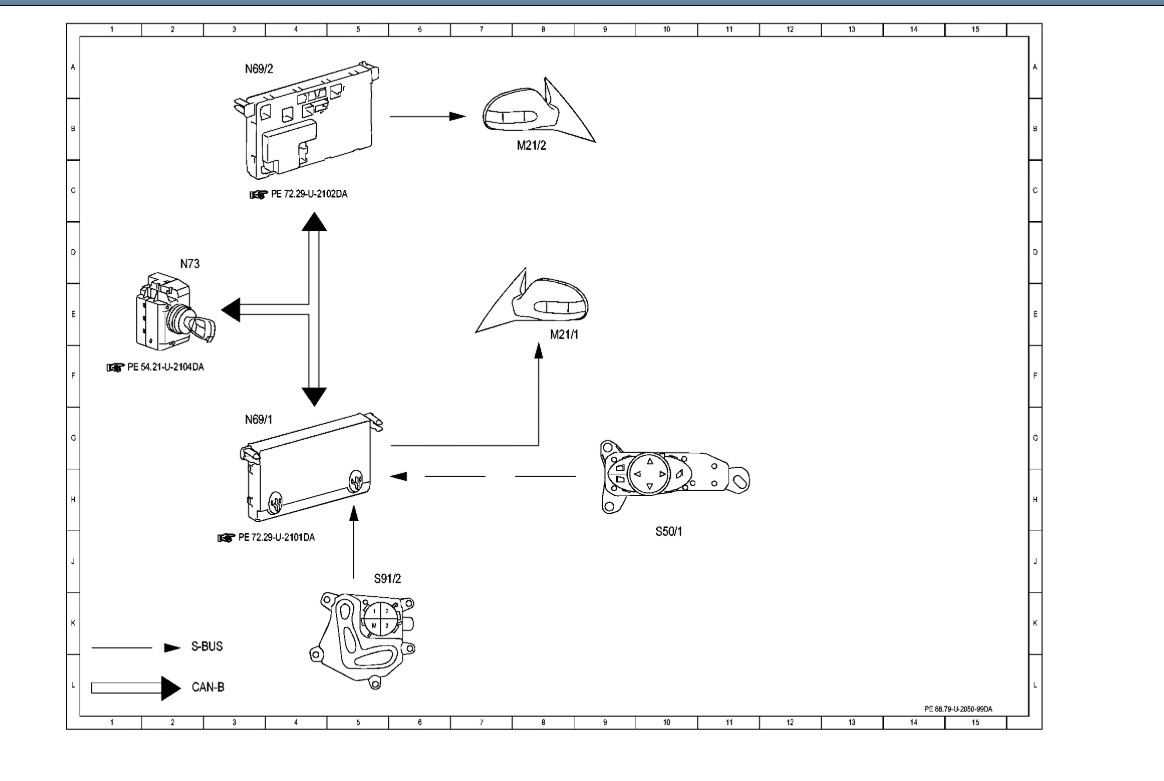

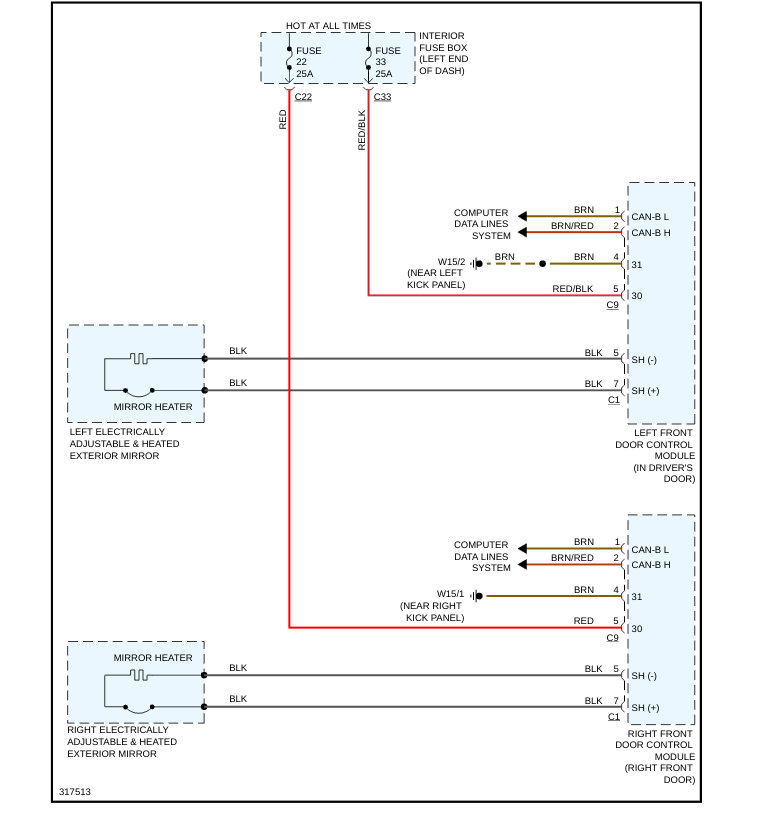

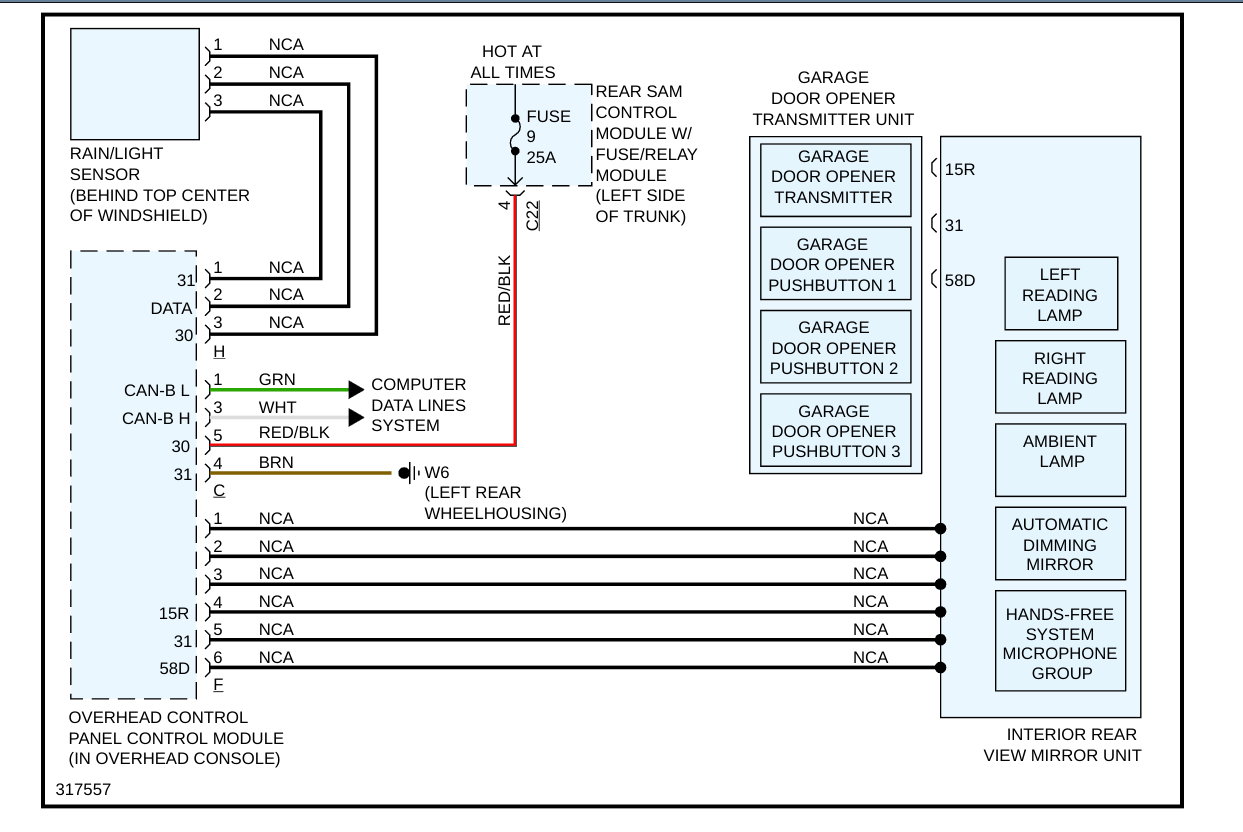

The vehicle manufacturer does not provide pinout diagrams for the mirrors but I have included all the wiring diagrams that we have for the mirrors on your vehicle in the diagrams down below. I hope that this helps.
