Component location diagram

2010 CHEVROLET COBALT
181,000 MILES • 2.2L • 4 CYL • 2WD • AUTOMATIC
Avatar
DUWHOP31
  • MEMBER
  • 151 POSTS
I need a diagram of the component locations on my car. Like where the O² sensor, TCM, cam, etc.
Jun 27, 2019 at 12:29 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
KASEKENNY
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 18,907 POSTS
Hi DUWHOP,

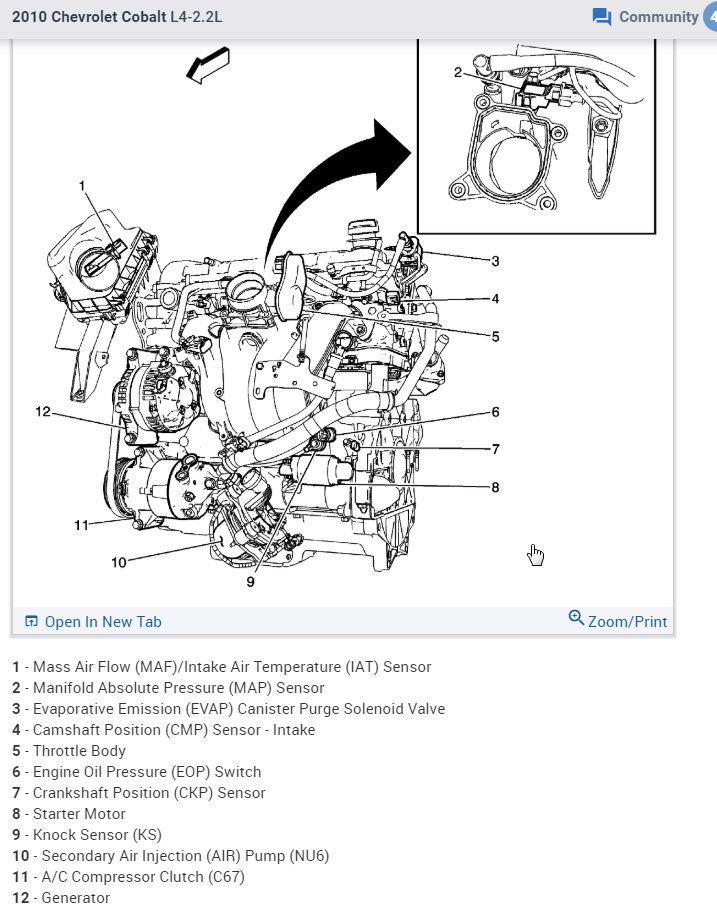

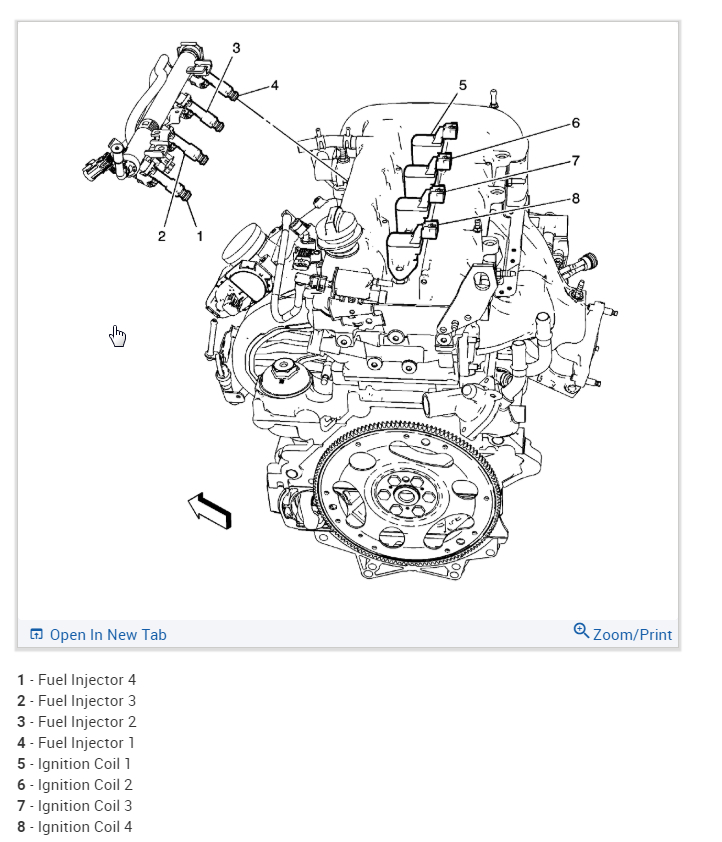

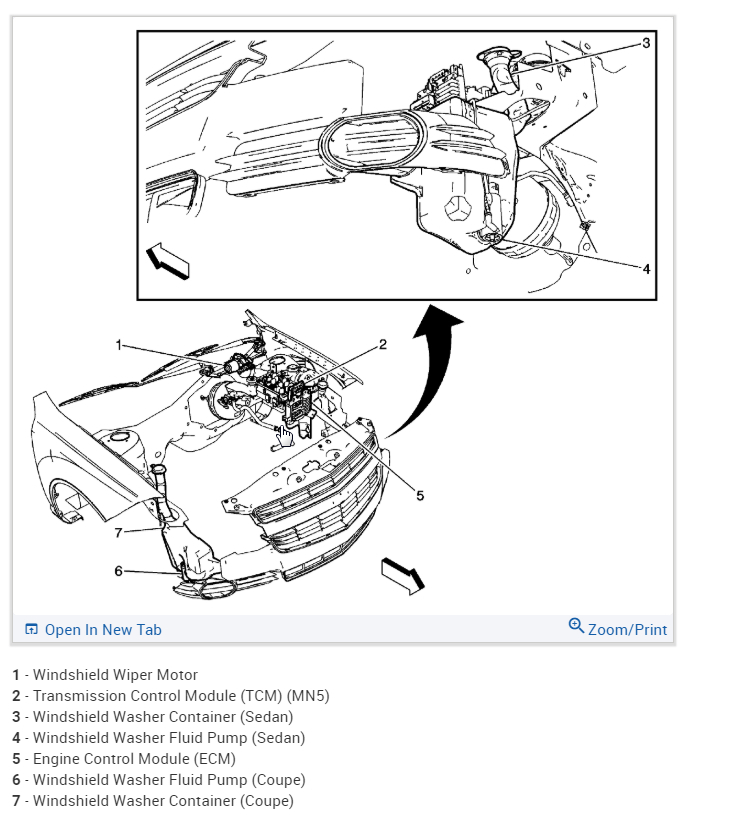

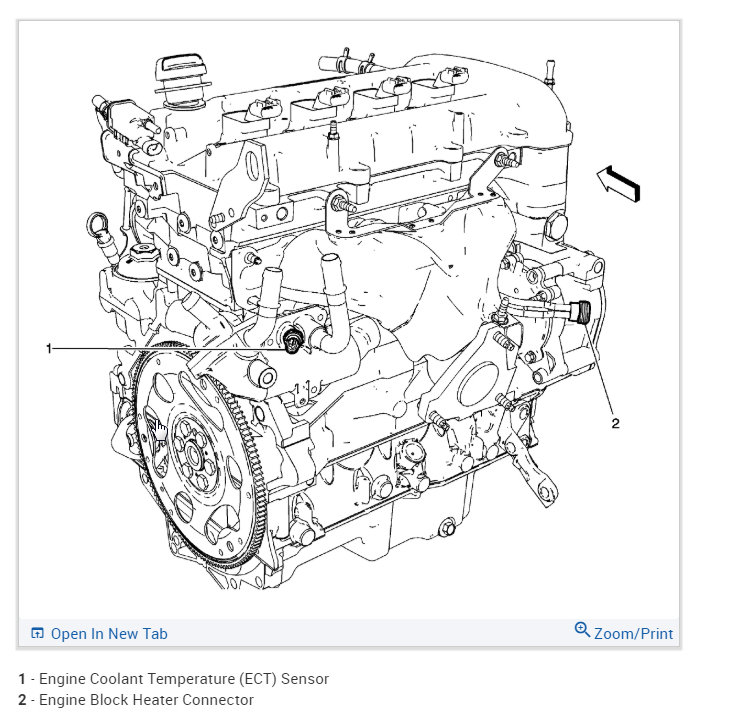

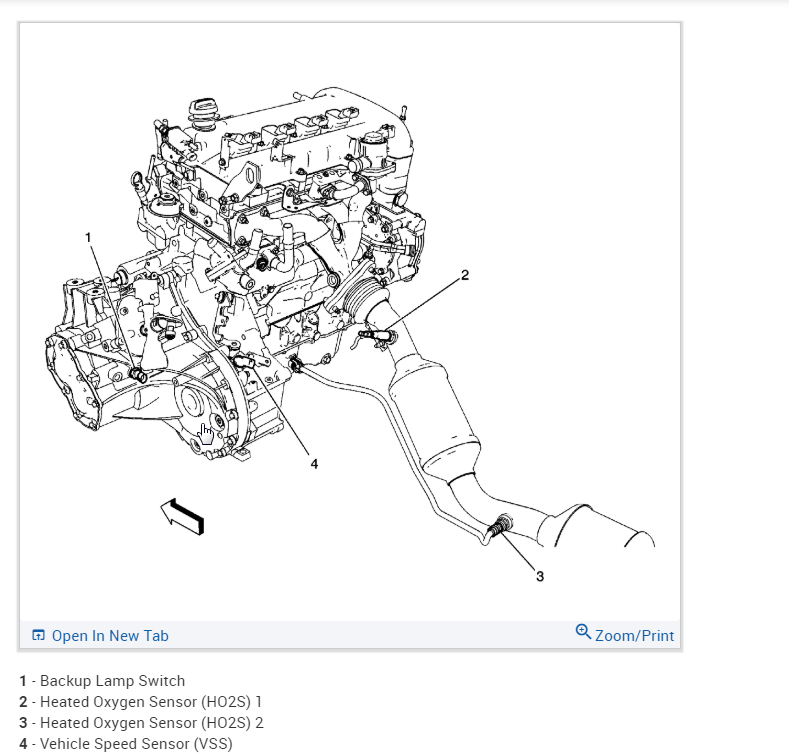

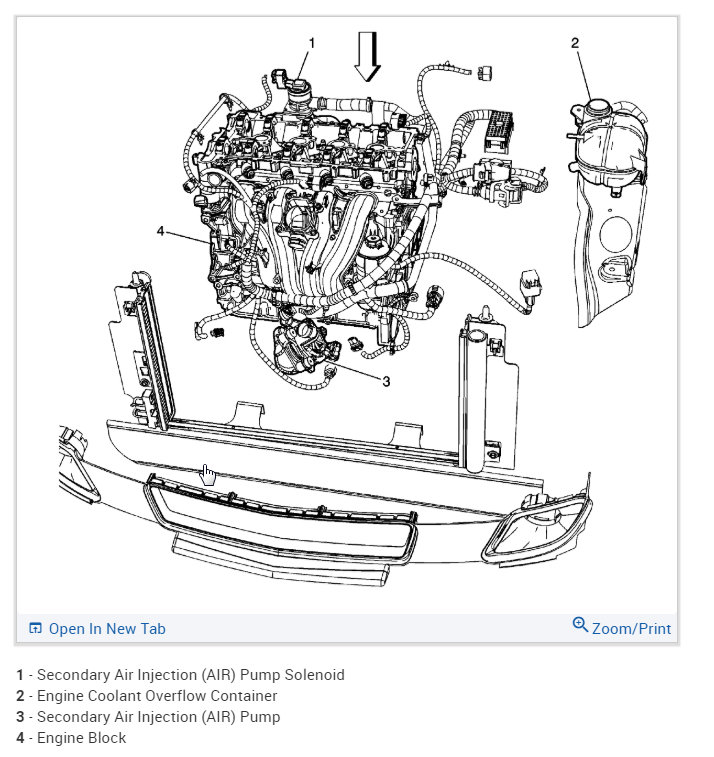

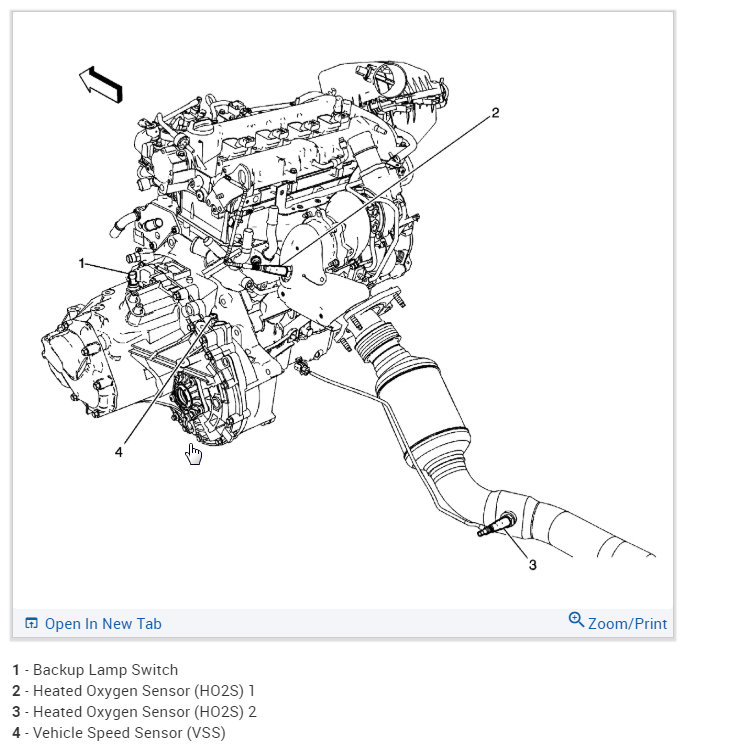

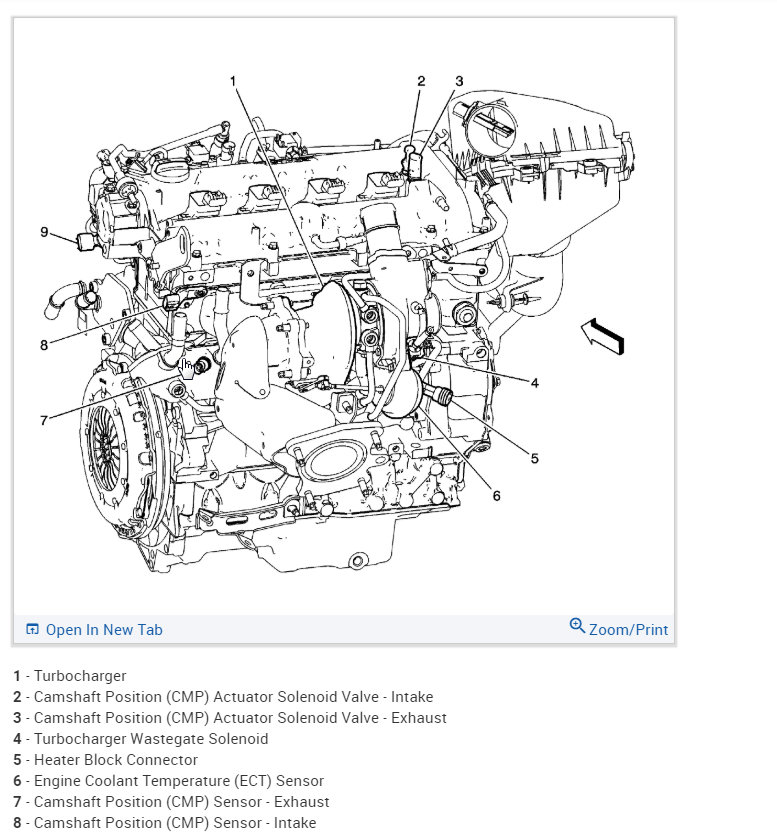

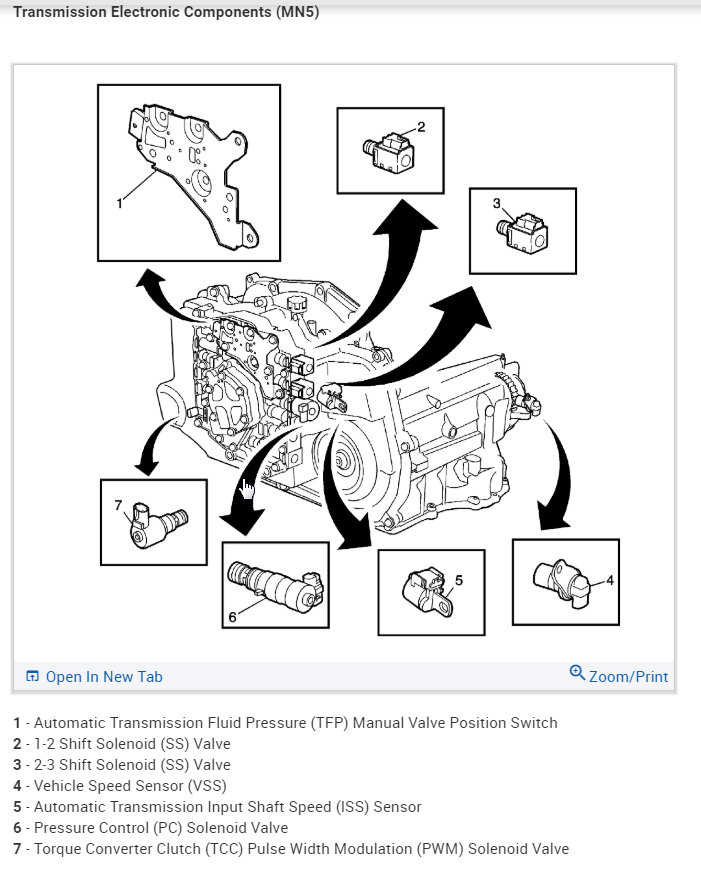

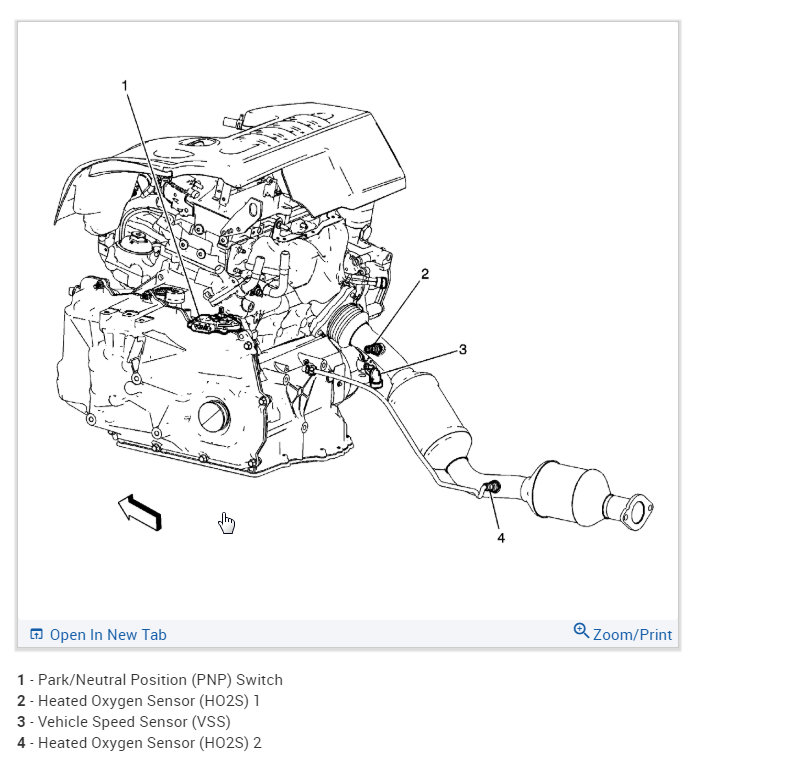

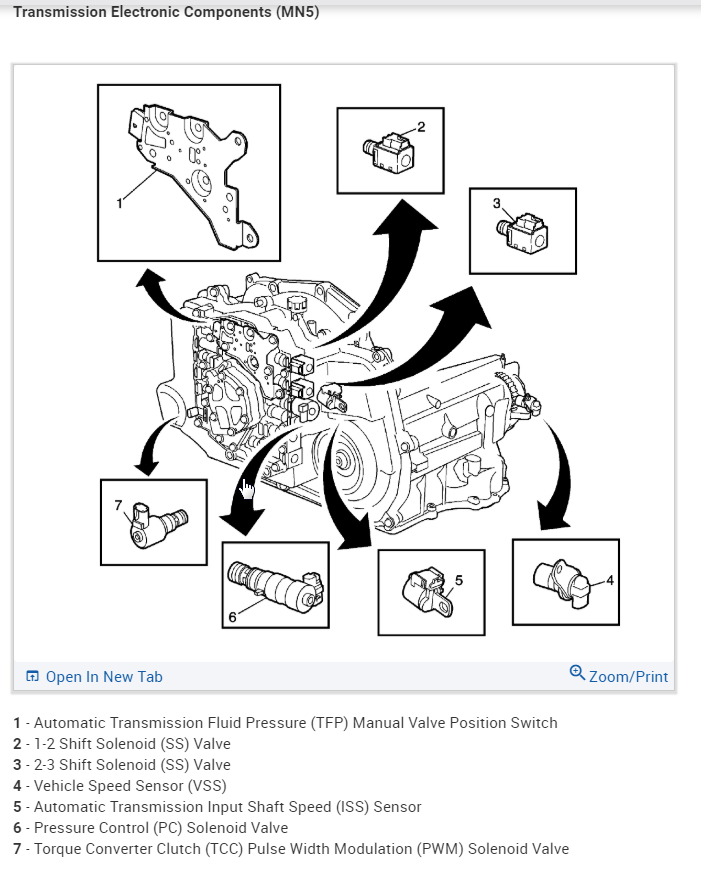

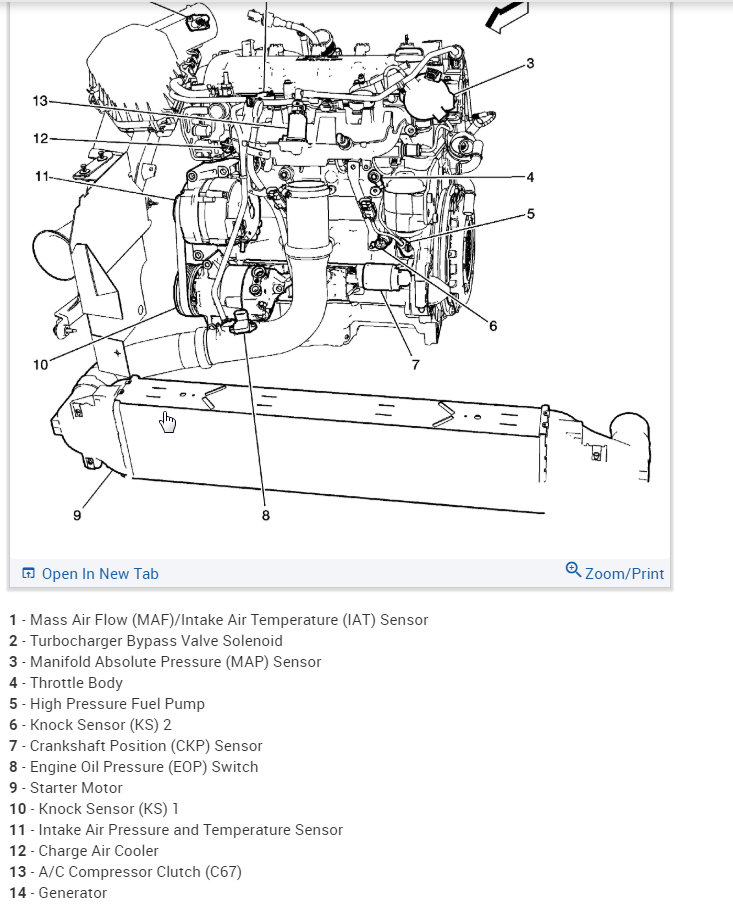

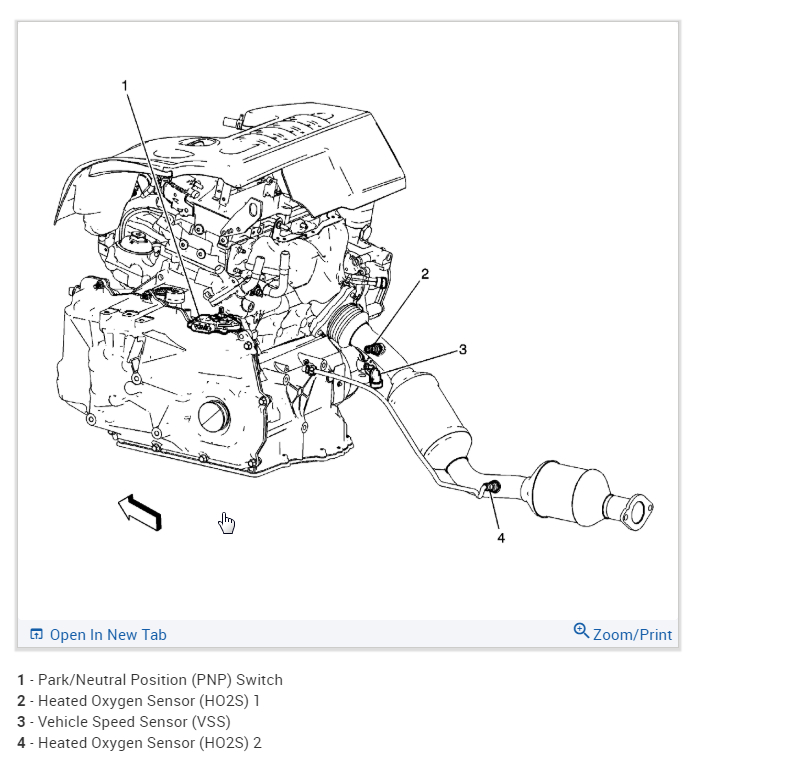

Looks like this includes everything power-train related. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Please let me know if you need other items. Thanks
