2004 Chevy Colorado fuse diagram

2004 CHEVROLET COLORADO
Avatar
DCB1975
Electrical problem
2004 Chevy Colorado Two Wheel Drive Automatic 97000 miles

i need a fuse diagram . i bought the truck used and the manual and the cover for the fuse block are gone. my park , tail .tag and some of the int lights are not coming on. this has been going on for 3 days and once today they park lights came on but now are not.
Jan 31, 2009 at 8:31 PM
Advertisement
Avatar
BLUELIGHTNIN6
  • ✓ASE Certified Mechanic
  • 16,542 POSTS
  • ASE Certified Mechanic

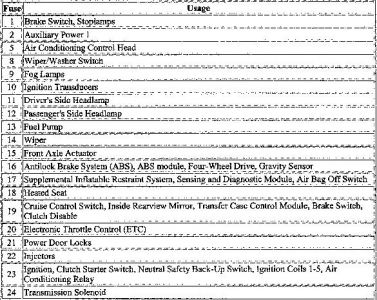

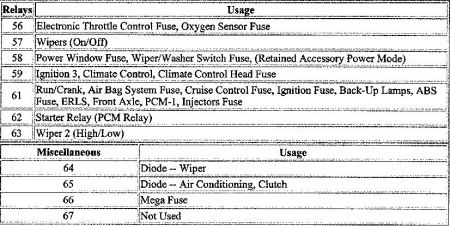

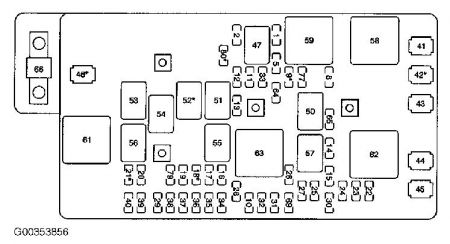

https://images.2carpros.com/forum/automotive_pictures/261618_Noname_207.jpg


https://images.2carpros.com/forum/automotive_pictures/261618_Noname2_65.jpg


https://images.2carpros.com/forum/automotive_pictures/261618_Noname3_38.jpg


https://images.2carpros.com/forum/automotive_pictures/261618_Noname4_23.jpg

If you can't read diagrams, give me e-mail address and I will email to you. Thanks for using 2CarPros.com!
