Serpentine Belt Diagrams

Tiny
ACWOLFE
  • MEMBER
  • 1996 CHEVROLET CAVALIER
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 180,000 MILES
I need to know how to route the serpitine belt?
Thursday, May 15th, 2008 AT 11:28 PM

1 Reply

Tiny
LEGITIMATE007
  • MECHANIC
  • 5,121 POSTS

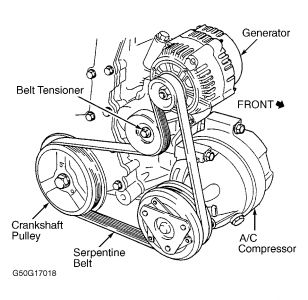

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
