fuse diagram

1996 CHEVROLET BLAZER
Avatar
GARY WIBBELS
  • MEMBER
  • 1 POST
locate fuses that operate items? I need the fuse panel diagrams please
Apr 12, 2009 at 8:55 PM
Advertisement
Avatar
ZACKMAN
  • CAR REPAIR CONTRIBUTOR
  • 4,202 POSTS
Hello, Here is a guide to help check them with the fuse panel diagrams below https://www.2carpros.com/articles/how-to-check-a-car-fuse


https://images.2carpros.com/forum/automotive_pictures/55316_96blazerfuse1_1.jpg


https://images.2carpros.com/forum/automotive_pictures/55316_96blazerfuse2_1.jpg


https://images.2carpros.com/forum/automotive_pictures/55316_96blazerfuse3_1.jpg


https://images.2carpros.com/forum/automotive_pictures/55316_96blazerfuse4_1.jpg


https://images.2carpros.com/forum/automotive_pictures/55316_96blazerfuse5_1.jpg


https://images.2carpros.com/forum/automotive_pictures/55316_96blazerfuse6_1.jpg


https://images.2carpros.com/forum/automotive_pictures/55316_96blazerfuse7_1.jpg

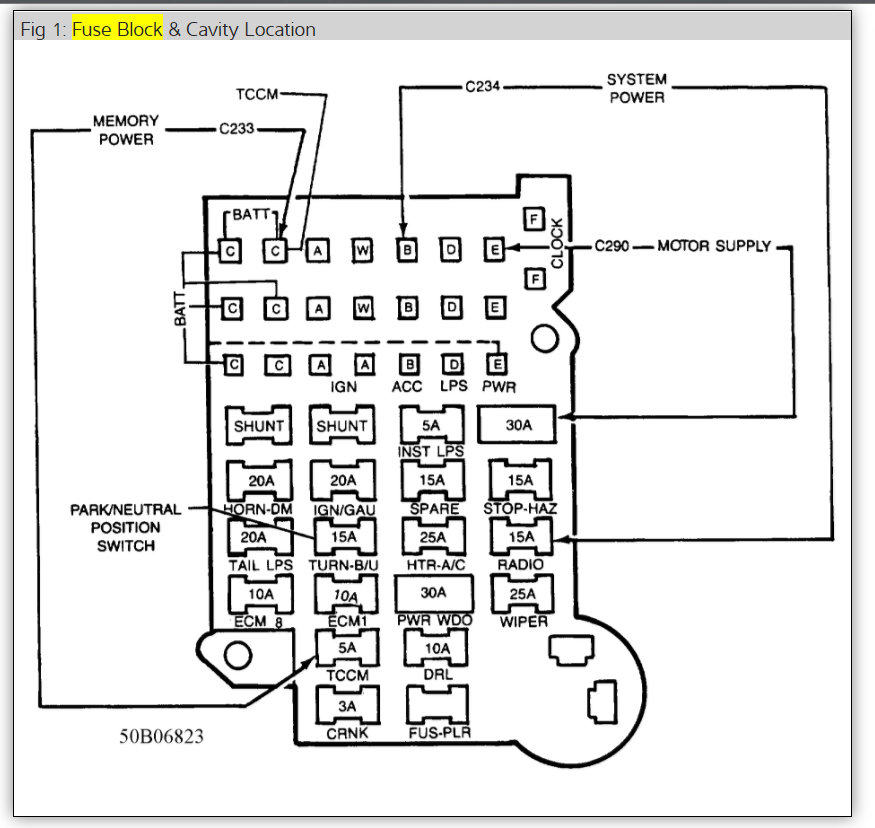

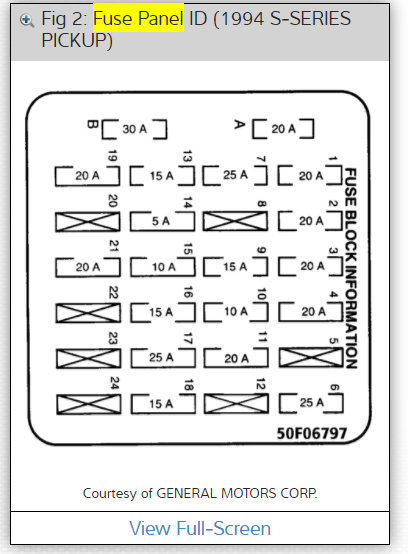

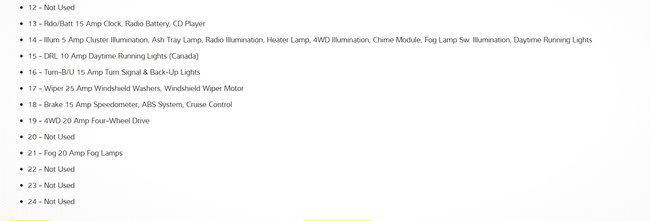

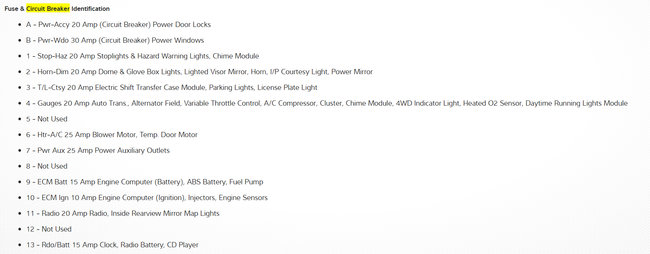

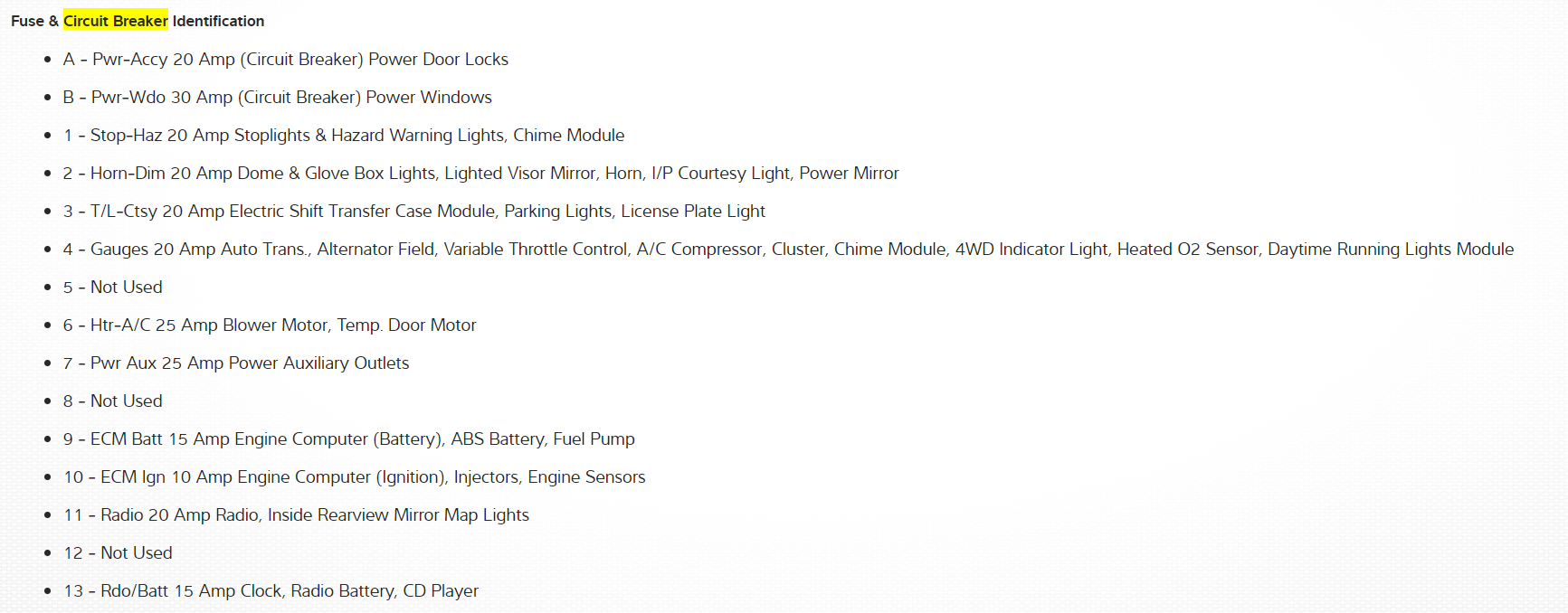

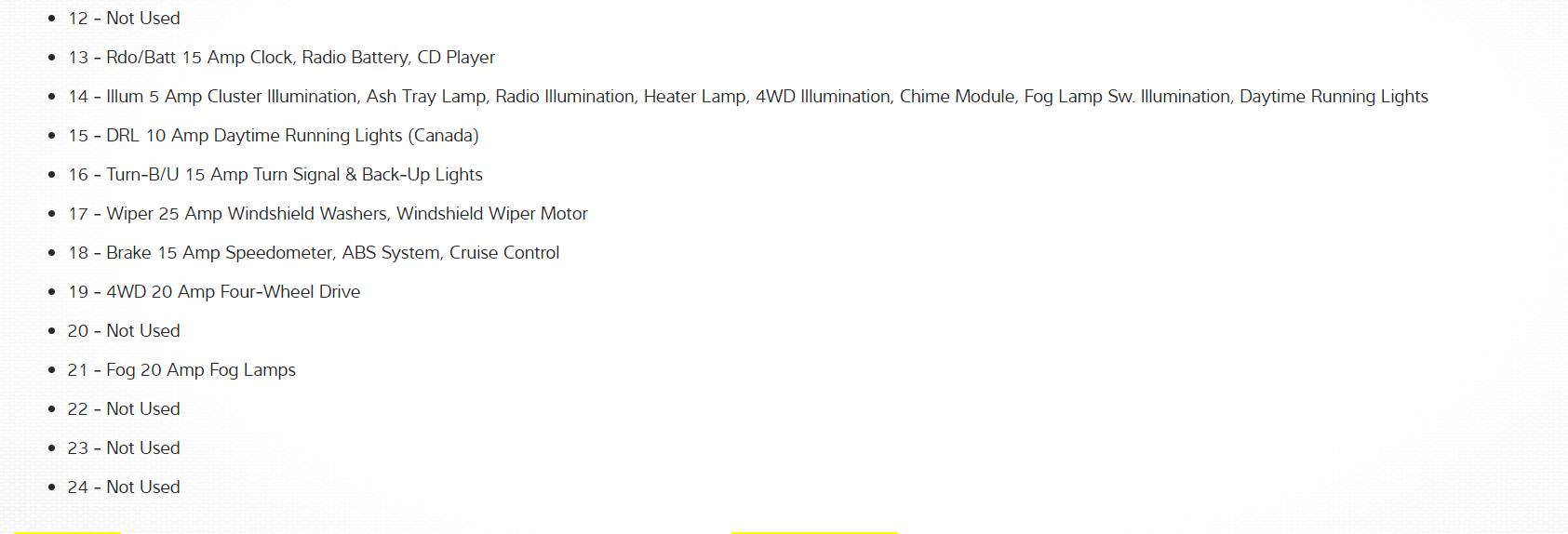

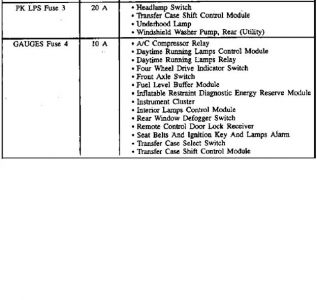

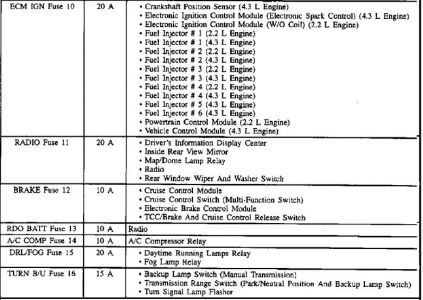

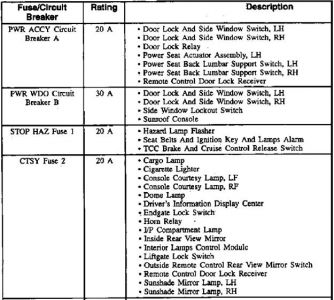

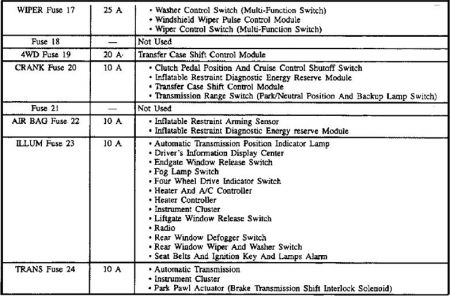

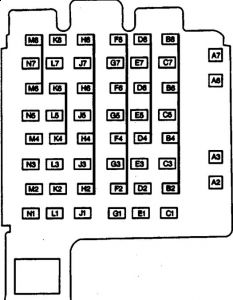

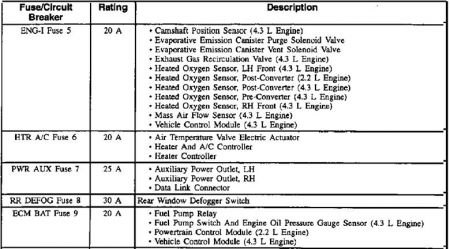

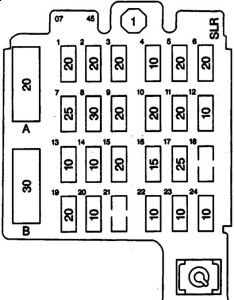

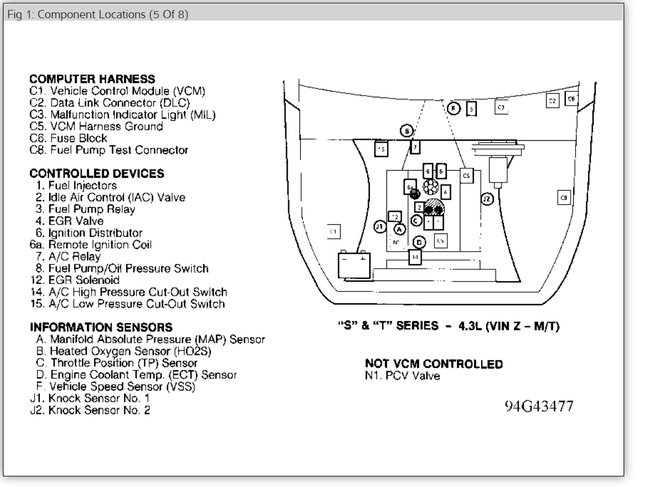

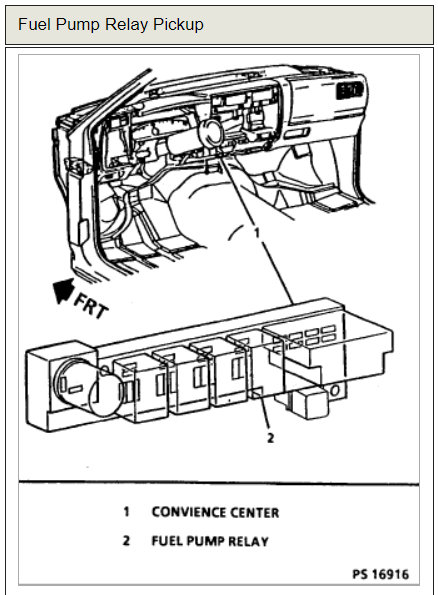

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Apr 14, 2009 at 11:25 PM
Avatar
RADICALRED
  • MEMBER
  • 3 POSTS
Need a fuse box diagram to know where to put what fuses. Thanks.
Jun 21, 2019 at 2:57 PM (Merged)
Avatar
JDL
  • CAR REPAIR CONTRIBUTOR
  • 16,098 POSTS

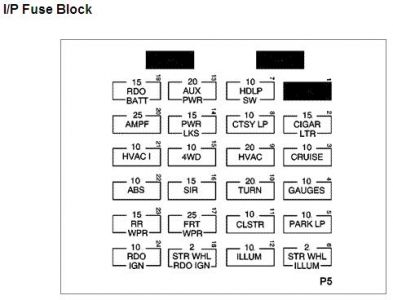

https://images.2carpros.com/forum/automotive_pictures/170934_ip_fuse_block_1.jpg

I found that in a database, you need to double-check, sometimes the databases are not correct. With a fuse removed, you can do a continuity test, from the dead leg of the fuse to whatever the fuse serves. Or you can plug and unplug the cigar fuse, whatever, see if it works.
Jun 21, 2019 at 2:57 PM (Merged)
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
