Camshaft position sensor from the sensor to the ECU I need the wire colors?

Tiny
HARPO1020
  • MEMBER
  • 2005 MAZDA 3
  • 2.3L
  • 4 CYL
  • 2WD
  • MANUAL
  • 150,000 MILES
Camshaft position sensor wires lost I don't know where to find them I need to know when they come from the ECU what color they are and then to the camshaft position sensor.
Monday, August 18th, 2025 AT 11:37 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS
Sure, here you go but can I ask if you have a camshaft code? This guide can help you with the testing:

https://www.2carpros.com/articles/how-to-check-wiring

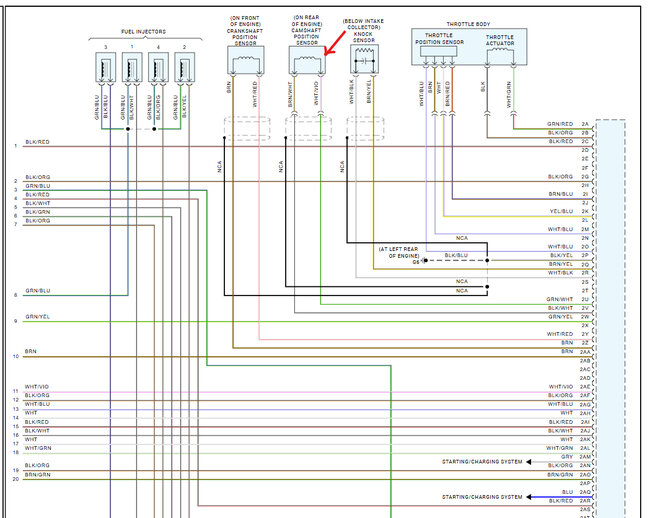

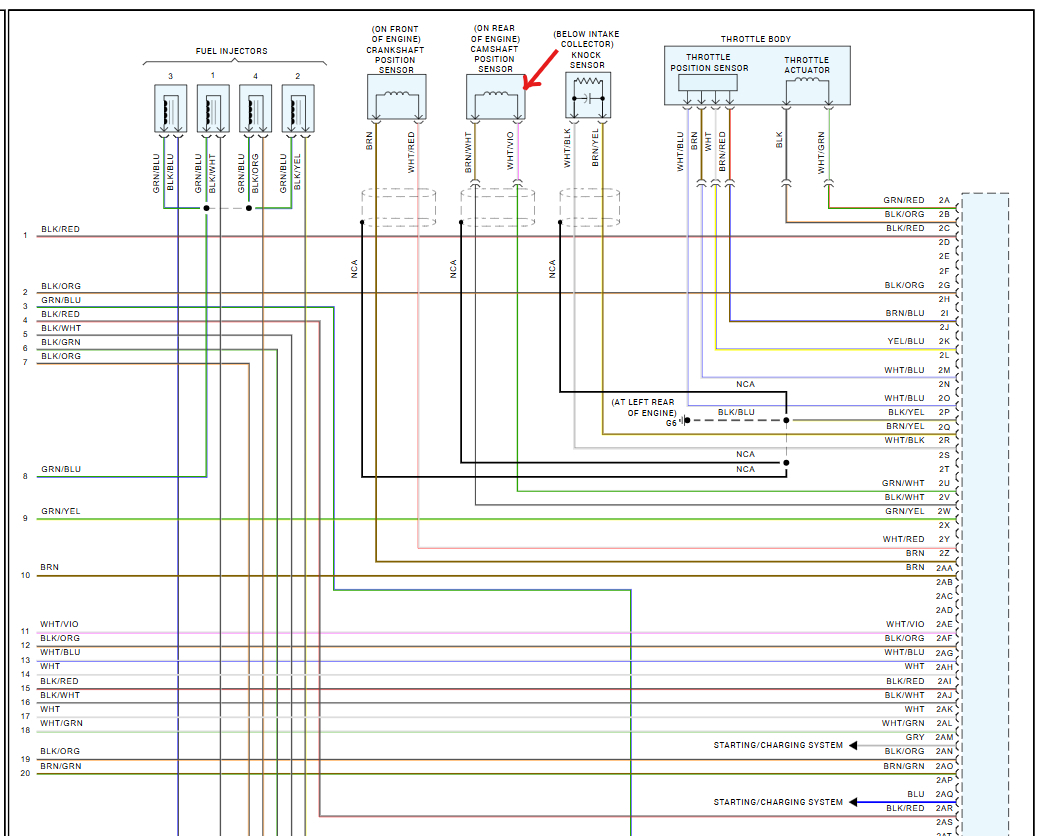

Here are the camshaft sensor wiring diagrams as requested. Check out the images (below). Let us know if you need anything else.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Monday, August 18th, 2025 AT 12:58 PM
