C101 plug pinout diagram needed?

2007 HONDA CIVIC
120,000 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
TIMEWALKER
I'm looking for the c101 plug pinout diagram for the car listed above.
May 17, 2025 at 10:55 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,503 POSTS
  • ASE Certified Mechanic

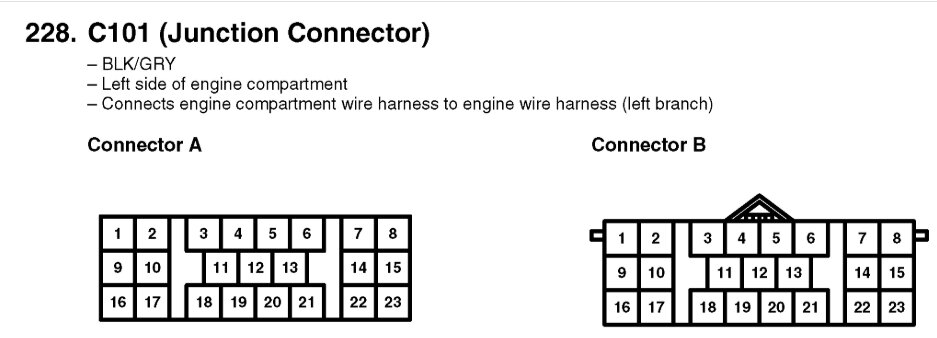

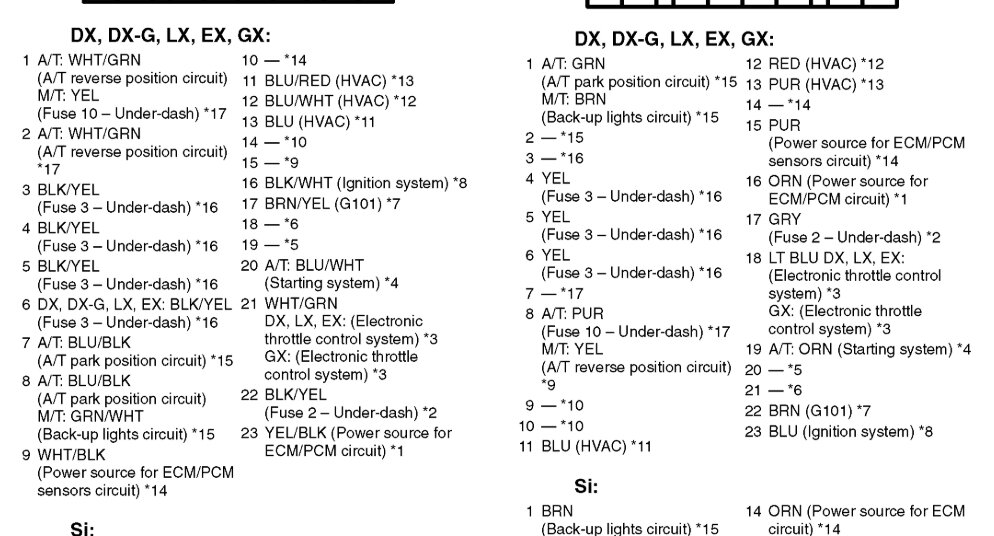

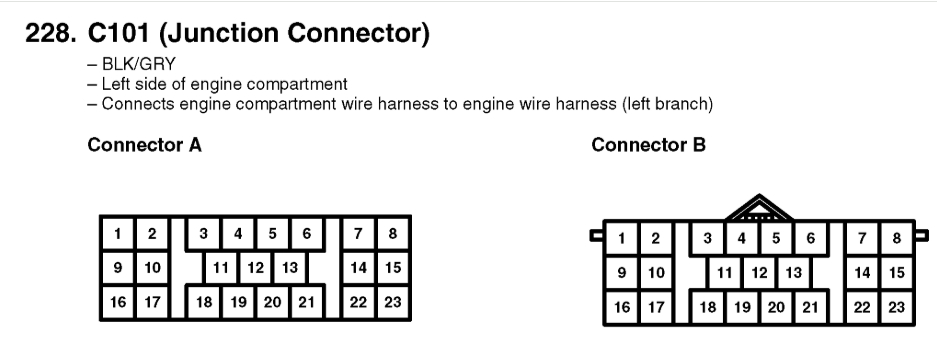

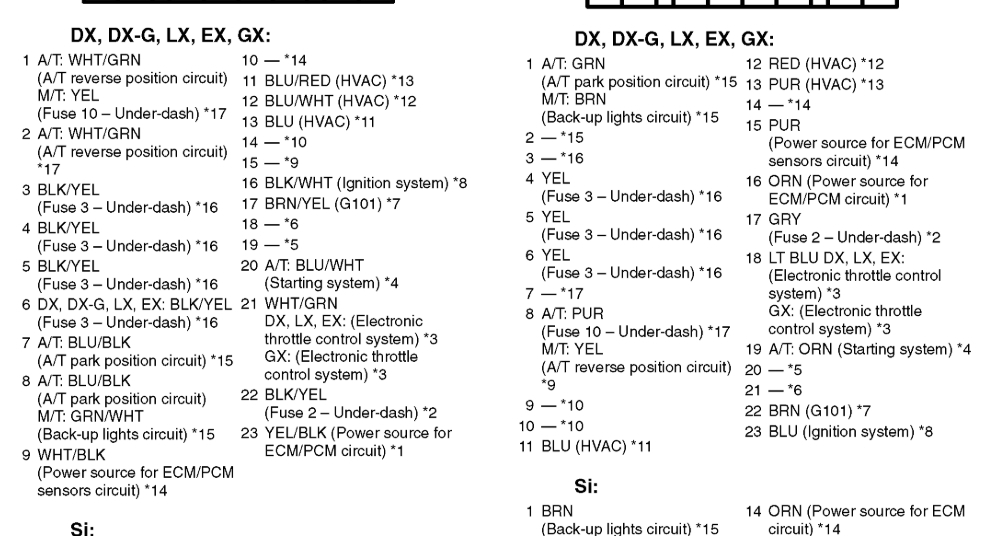

So there are some variances depending on trim level, here are the pin outs for the C101 electrical connector. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
May 18, 2025 at 6:54 PM
Avatar
TIMEWALKER
  • MEMBER
  • 3 POSTS
The one I'm looking for is the fd2 with k20a3 engine and automatic transmission. I think it's similar to the Acura CSX touring or premium models.
May 19, 2025 at 3:06 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,503 POSTS
  • ASE Certified Mechanic

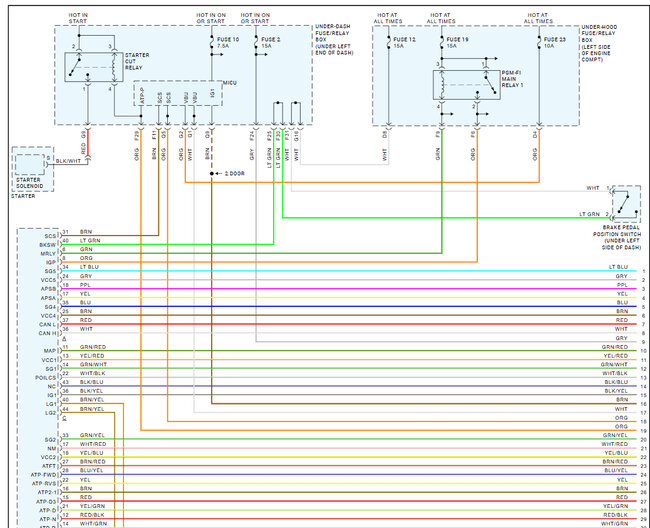

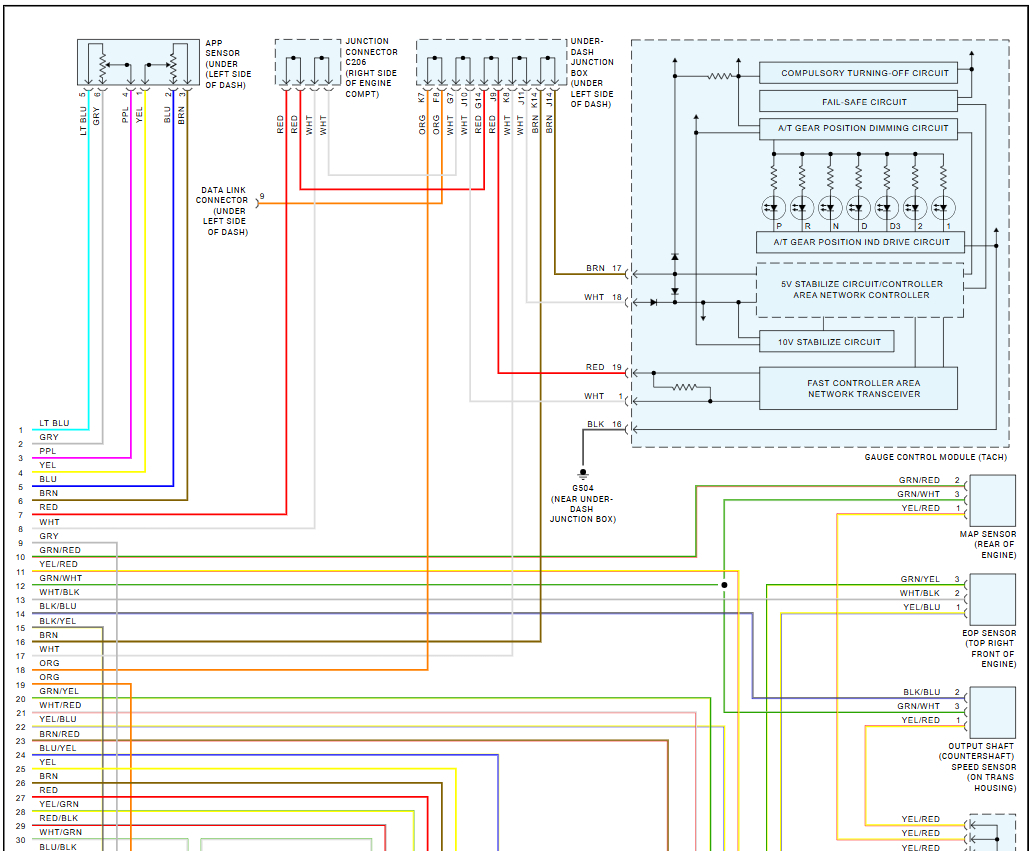

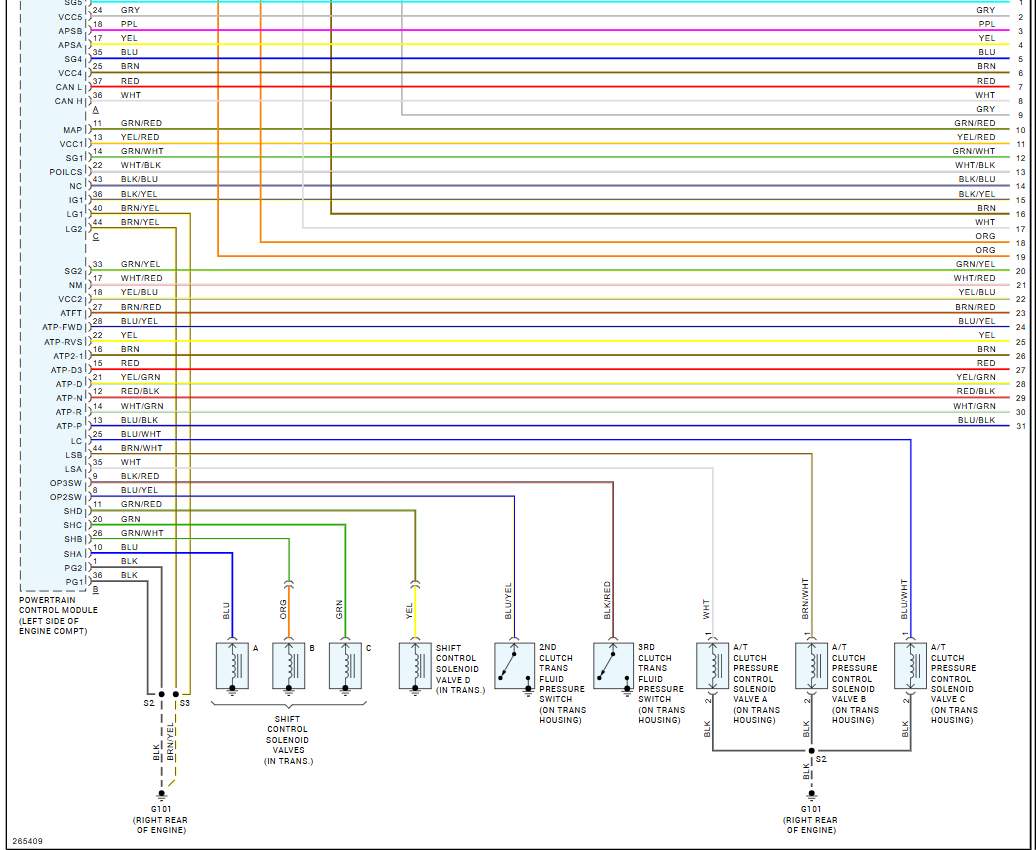

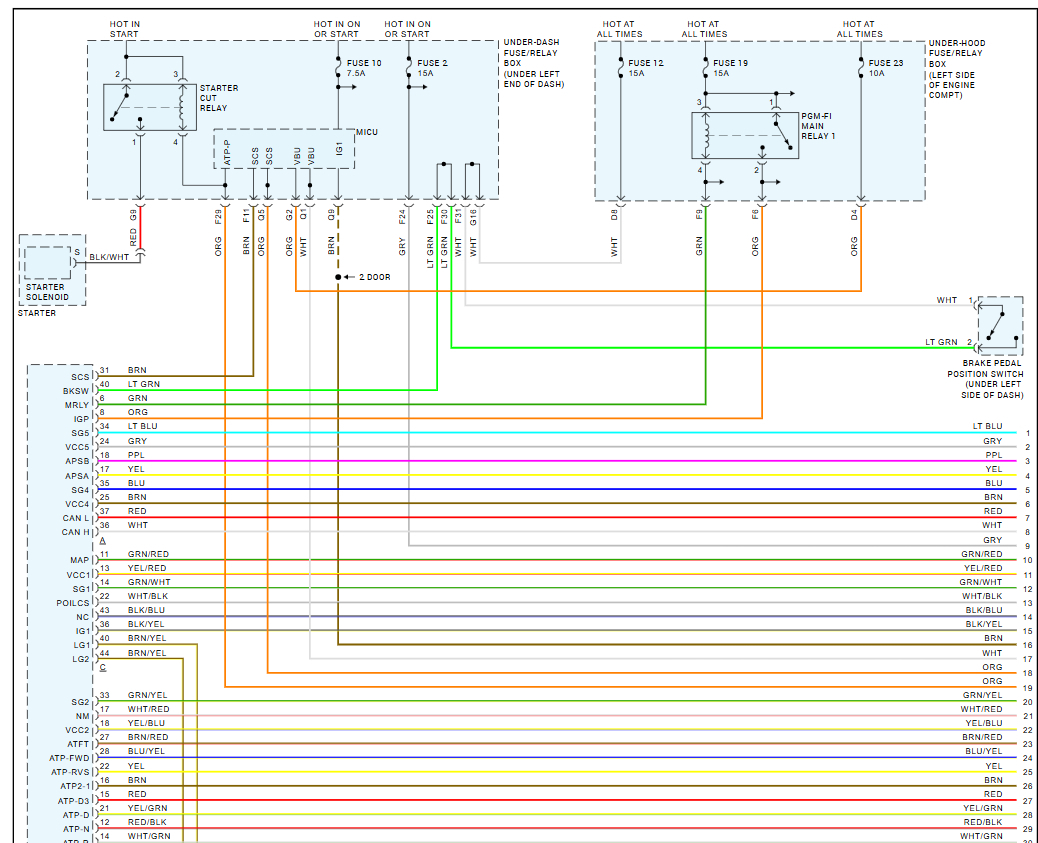

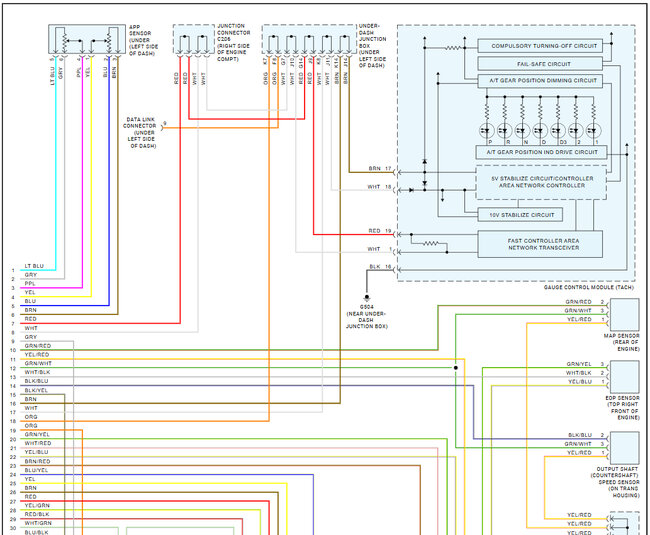

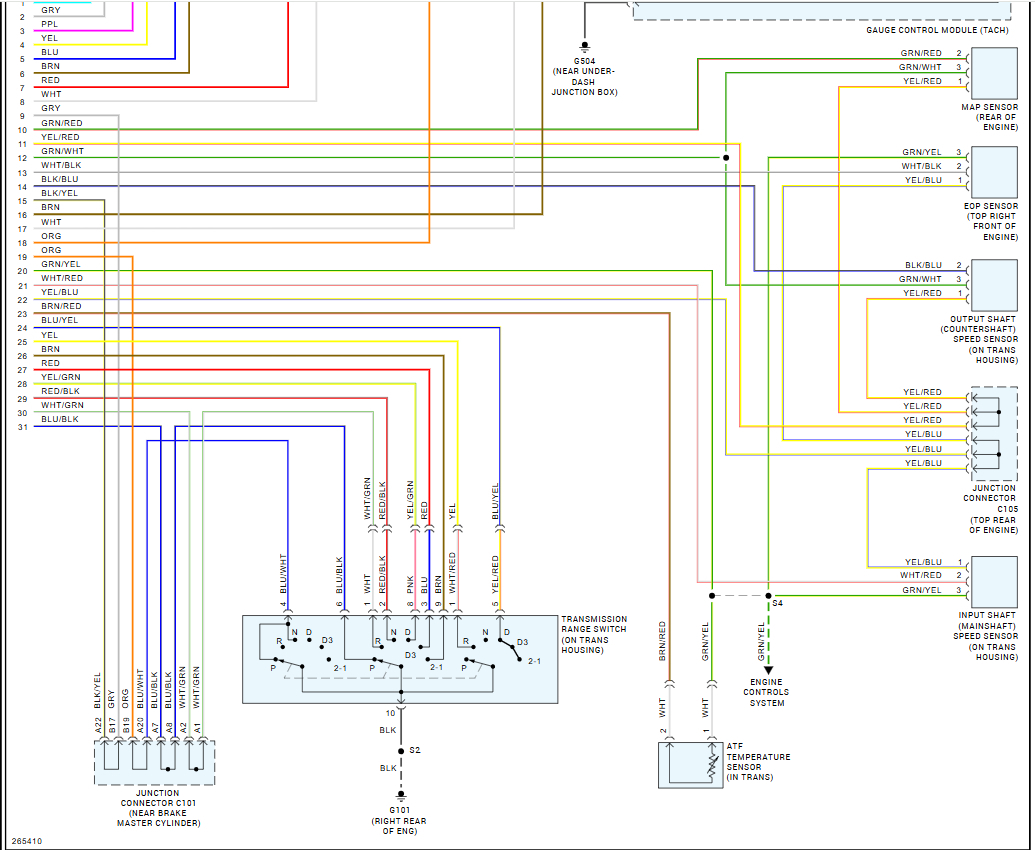

The "Acura CSX" is a Honda civic? This is what they show for the car listed above. Here are the wiring diagrams for the transmission so you can see how the system works.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
May 19, 2025 at 9:51 AM
Avatar
TIMEWALKER
  • MEMBER
  • 3 POSTS
No the Acura CSX premium/touring isn't a Civic however it is similar to the one I'm talking about the Civic I'm talking about is the 2007 Honda Civic fd2(Auto trans) not the type r what I'm looking for is c101 plug diagram so I can make an adapter for my kswap because I'm using the engine harness and ECU from that Civic.
May 19, 2025 at 9:57 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,503 POSTS
  • ASE Certified Mechanic
This is all we got. Sorry,
May 20, 2025 at 8:39 AM
