1997 Audi Cabriolet Block Diagram

Tiny
LDIKUN
  • 1997 AUDI CABRIOLET

Engine Cooling problem
1997 Audi Cabriolet 6 cyl Front Wheel Drive Automatic 125000 miles

Good morning,

Can I ask you to please send me a block diagram of the main fuse panel and the front fuse panel fo my audi.

I need to know the location positions for relays #18 & #11.

Please, I ask that you send it to me in a format that I can read as I received a schematic the other day and it was so small, I couldn't see it.

Thanks in advance for your help!

Do you
have the same problem?
Yes
No
Friday, August 14th, 2009 AT 9:00 AM

1 Reply

Tiny
DOCFIXIT
  • EXPERT
  • 18,987 POSTS

Maybe this will work

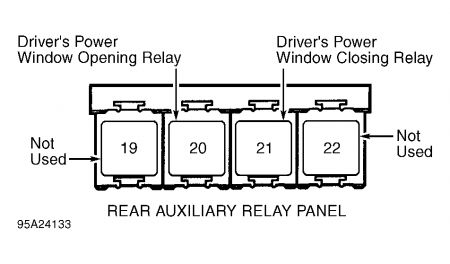

http://www.2carpros.com/forum/automotive_pictures/198357_Graphic_60.jpg


http://www.2carpros.com/forum/automotive_pictures/198357_Grafic_3_12.jpg


http://www.2carpros.com/forum/automotive_pictures/198357_Grafic_4_3.jpg

Was this
answer
helpful?
Yes
No
Friday, August 14th, 2009 AT 1:25 PM
