Active grill shutter assembly and motor?

2016 FORD MUSTANG
103,099 MILES • 2.3L • 4 CYL • TURBO • 2WD • AUTOMATIC
Avatar
THATONEGUY66
Hello good afternoon I've recently just acquired a 2016 mustang ecoboost and the active grill shutter assembly was destroyed I have the new assembly on hand but I cannot find anything online on how I am supposed to install the previous motor on the assembly if I could receive images what would be greatly appreciated (the 15mpg I'm getting without it is not fun)
Feb 23, 2026 at 12:12 AM
Advertisement
Avatar
IAM_HASEEB0
  • MEMBER
  • 3 POSTS
Hi Good Afternoon hope you are doing well

https://share.google/DFdIJ0VBrqTLmyQ1B

here the link you can watch easily
Feb 23, 2026 at 3:11 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic

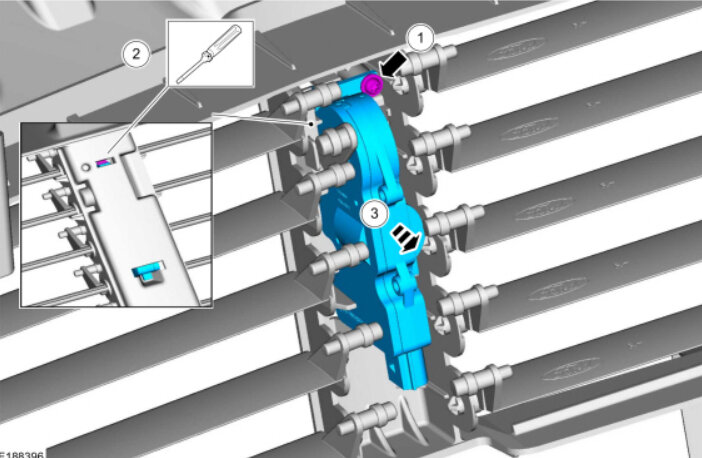

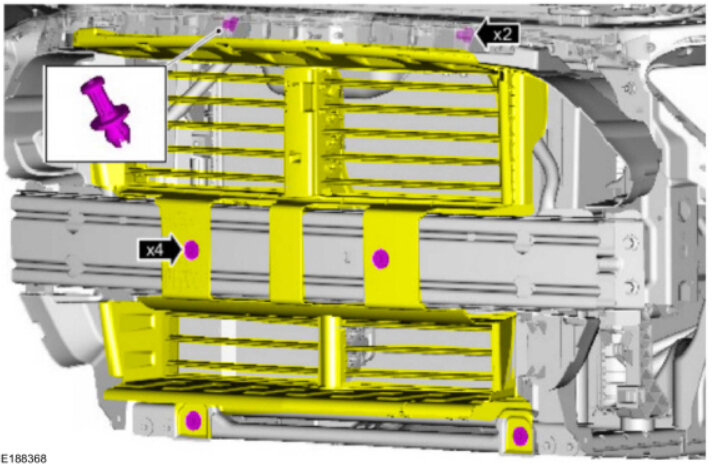

Nice work IAM_HASEEB0, here are images that can help as well. Check out the images (below). Please upload an image or a short video in your response, so I can see what's going on.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 23, 2026 at 7:41 AM
