Can I get the wiring or at least pin-out diagram for the AC amplifier assay?

Tiny
MIKI#
  • MEMBER
  • 1998 TOYOTA CARINA
  • 1.8L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 85,000 MILES
I need wiring or at least pin-out diagram for the AC amplifier assay. The part number is 88650-21070.
Monday, November 7th, 2022 AT 3:10 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 43,072 POSTS

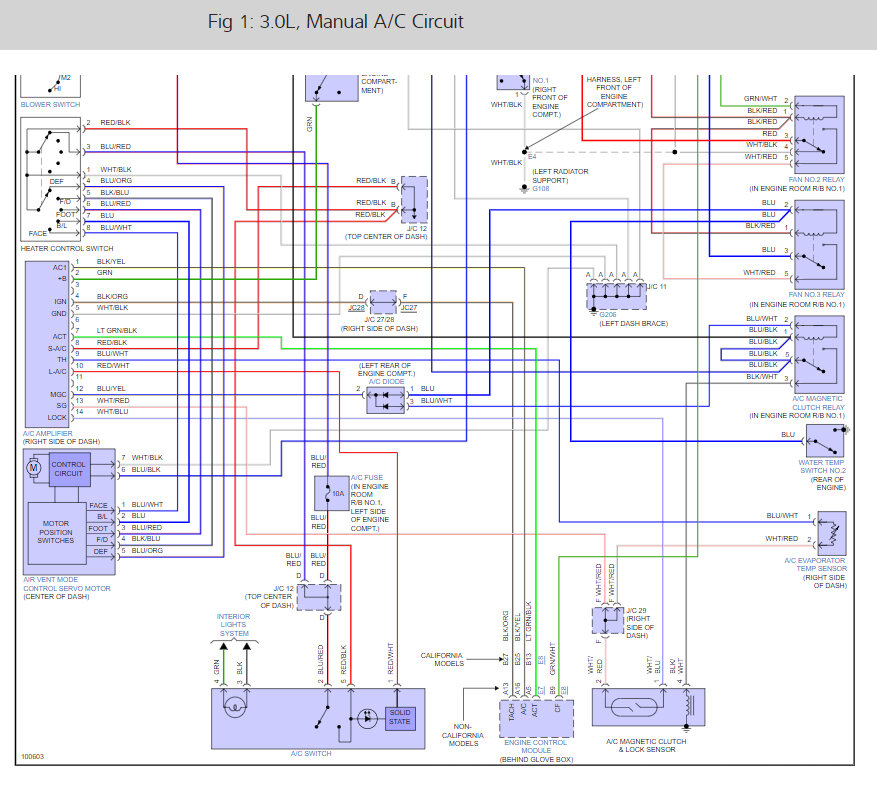

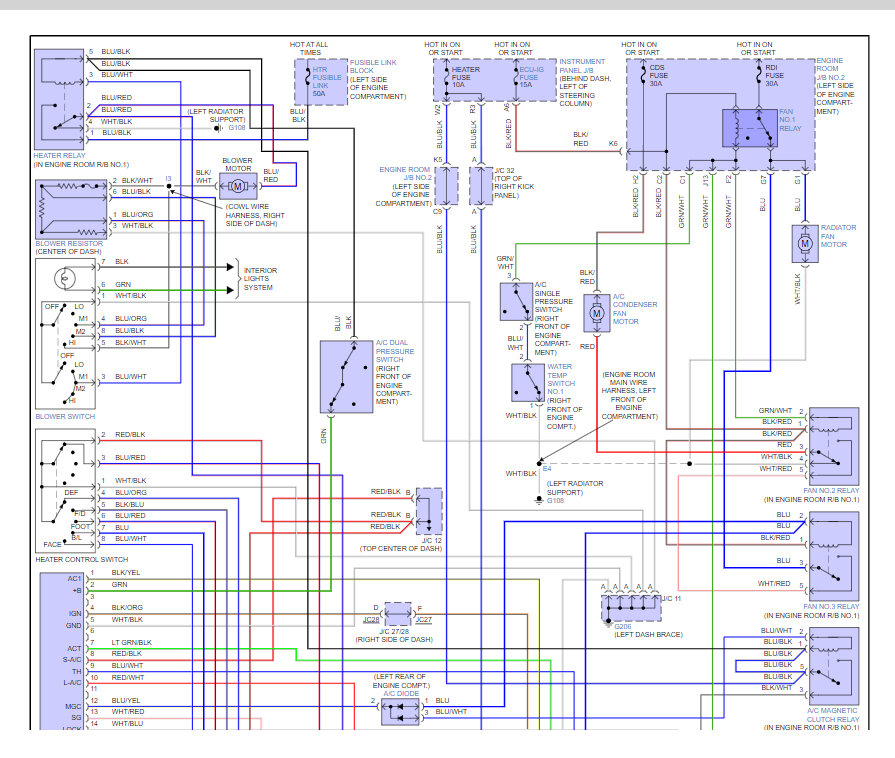

Sure, here are the AC wiring diagrams you have requested, and I have included a guide to help you run continuity tests.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
