Looking for a audio wiring diagram for the GT premium 10 speaker system with pinout and color codes for the 430n radio.
Saturday, June 5th, 2021 AT 9:02 AM
1 Reply
DANNY L
MECHANIC
5,648 POSTS
Hello, I'm Danny.
Here is the information you requested. Here is a tutorial showing how to test electrical wiring:
https://www.2carpros.com/articles/how-to-check-wiring

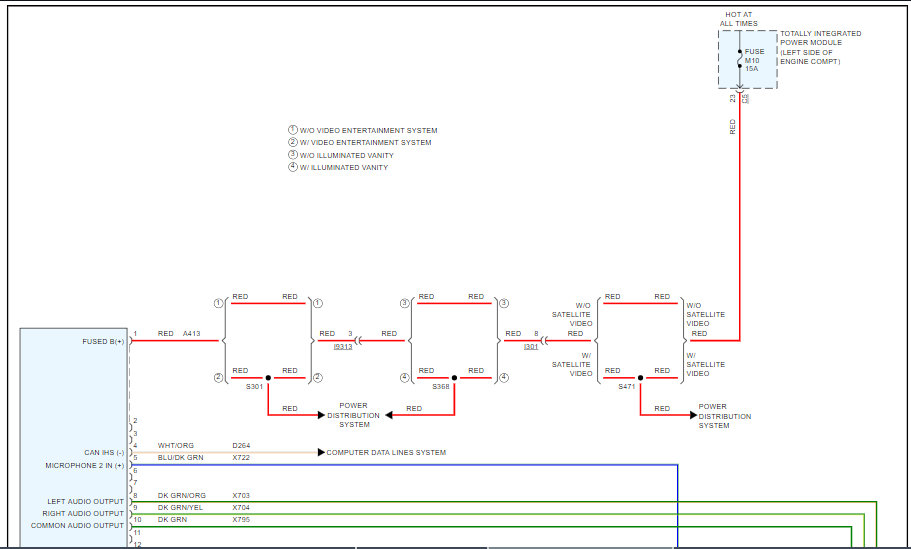

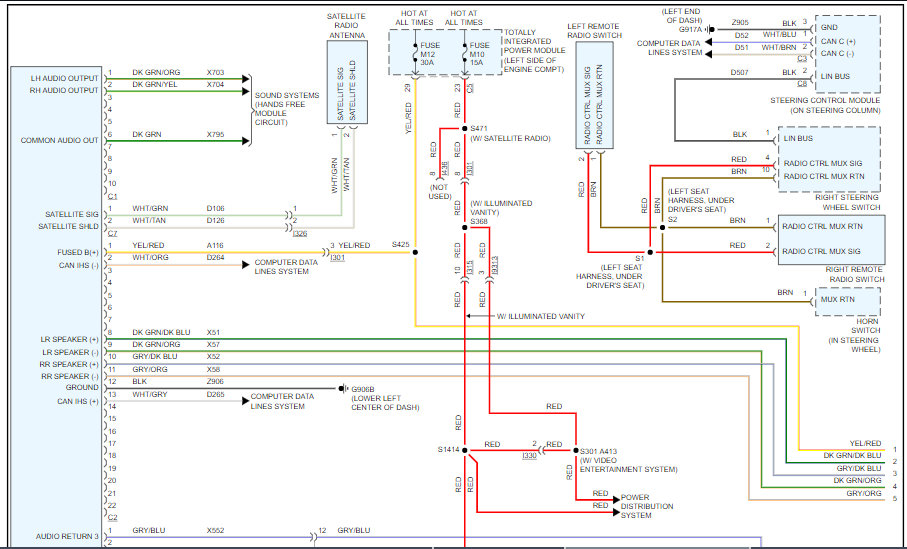

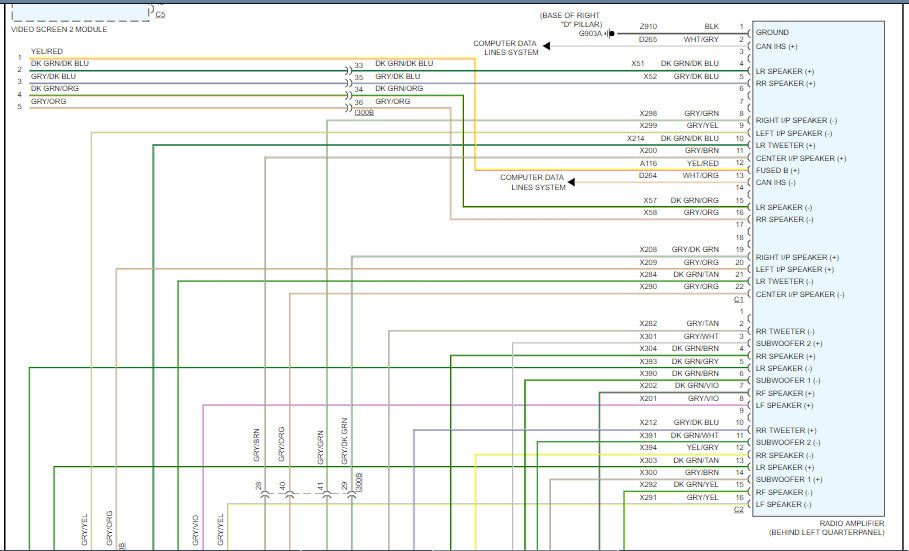

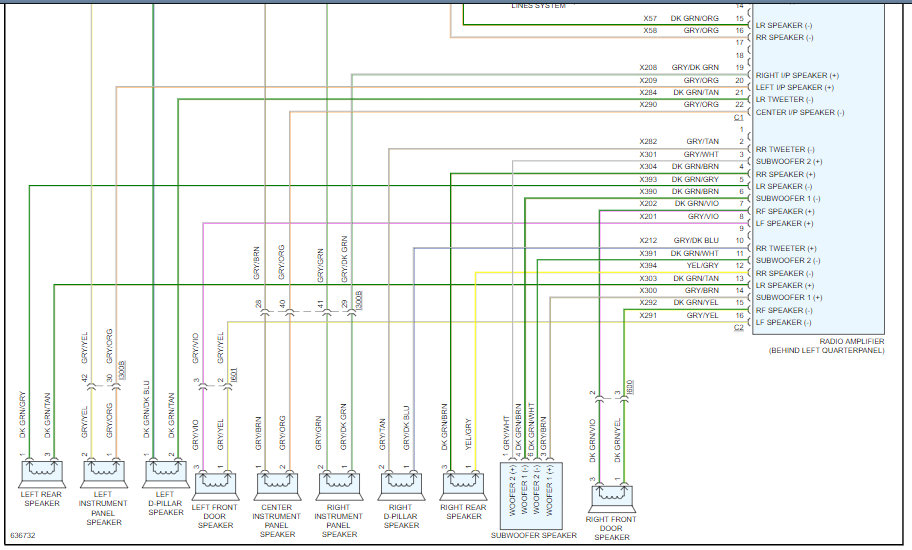

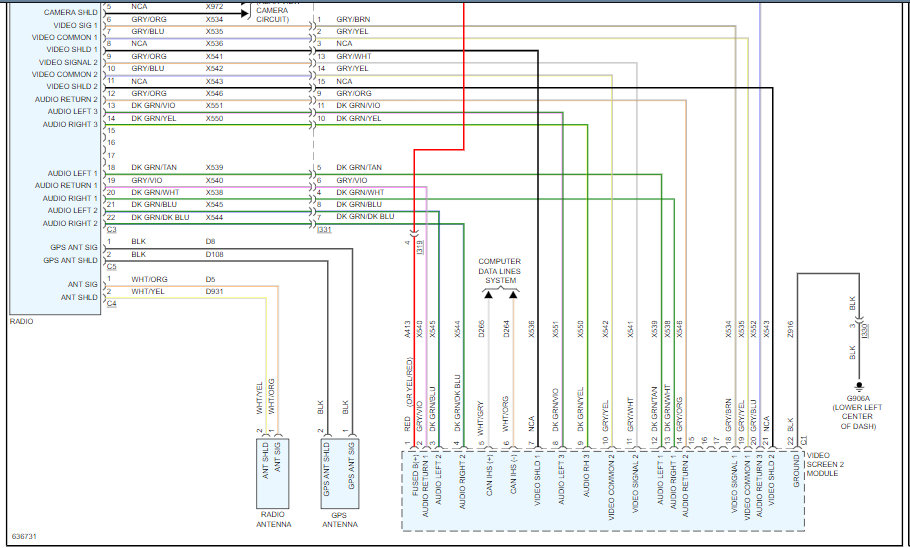

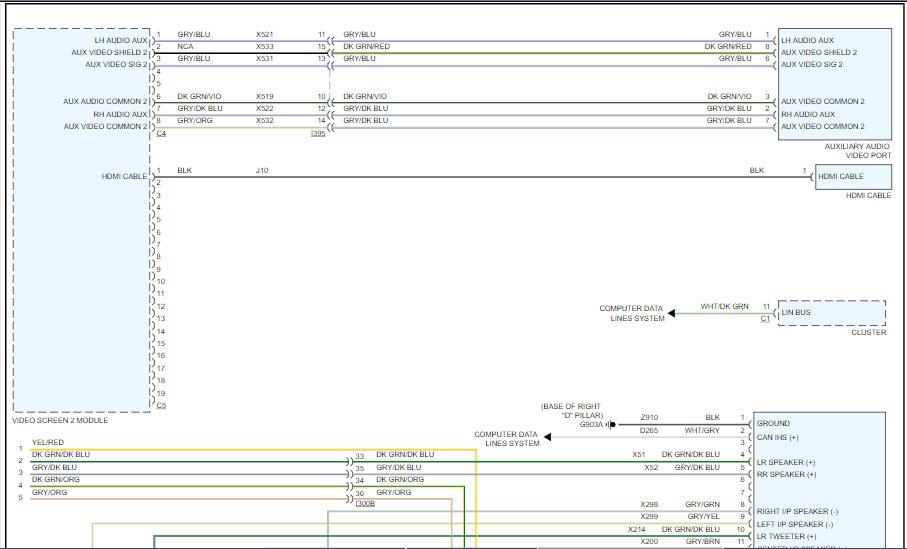

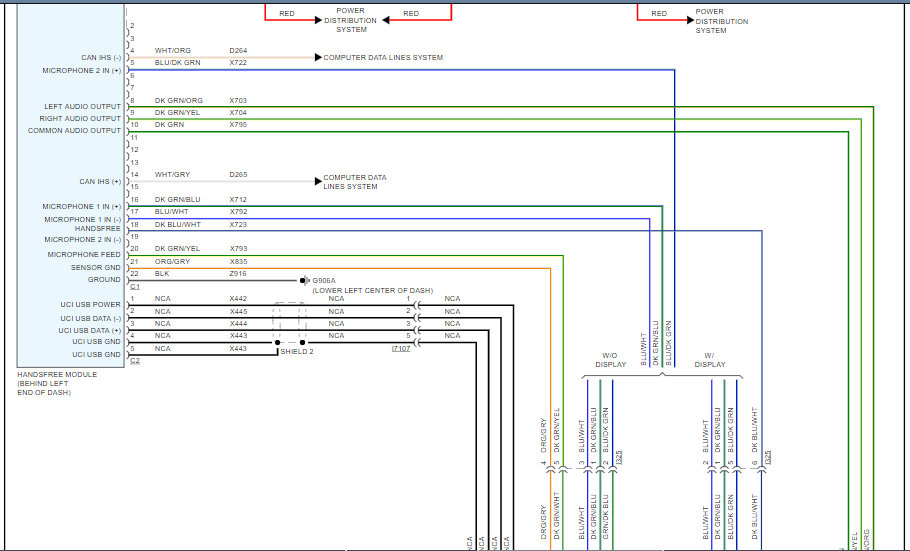

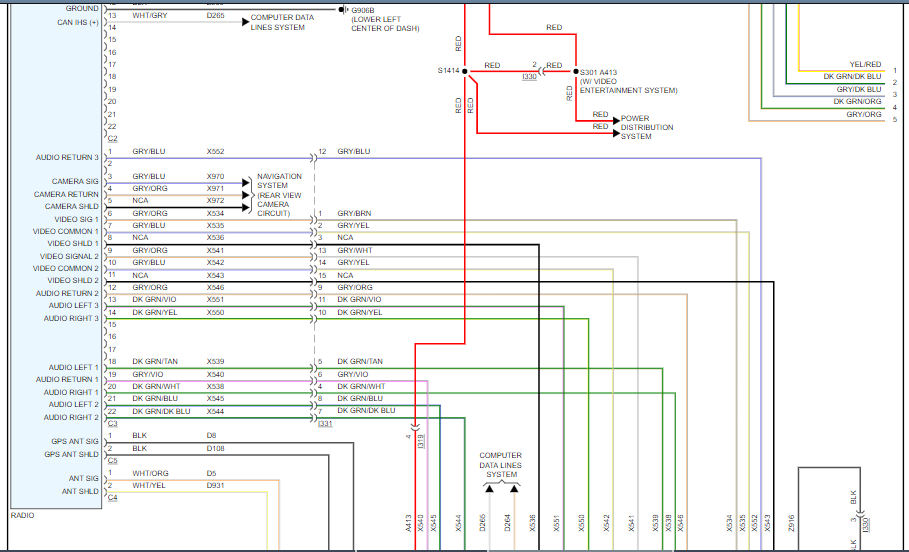

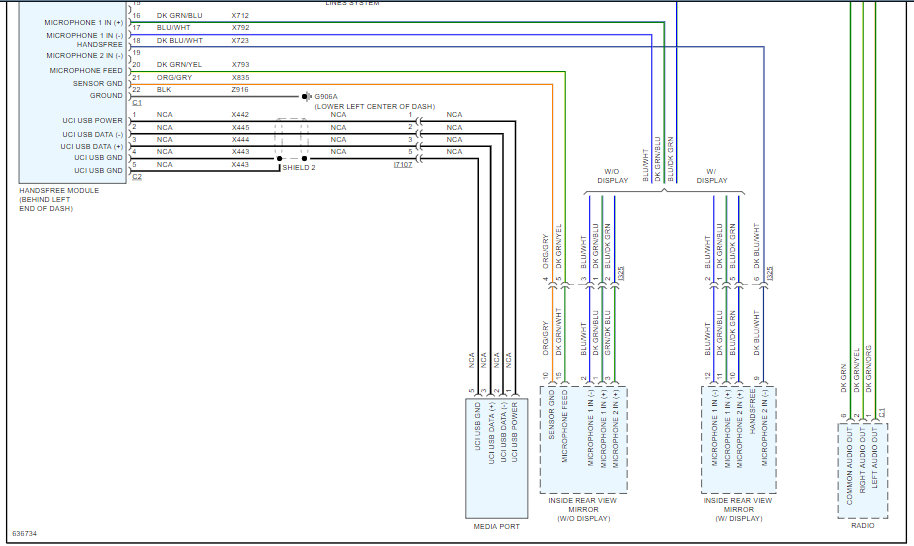

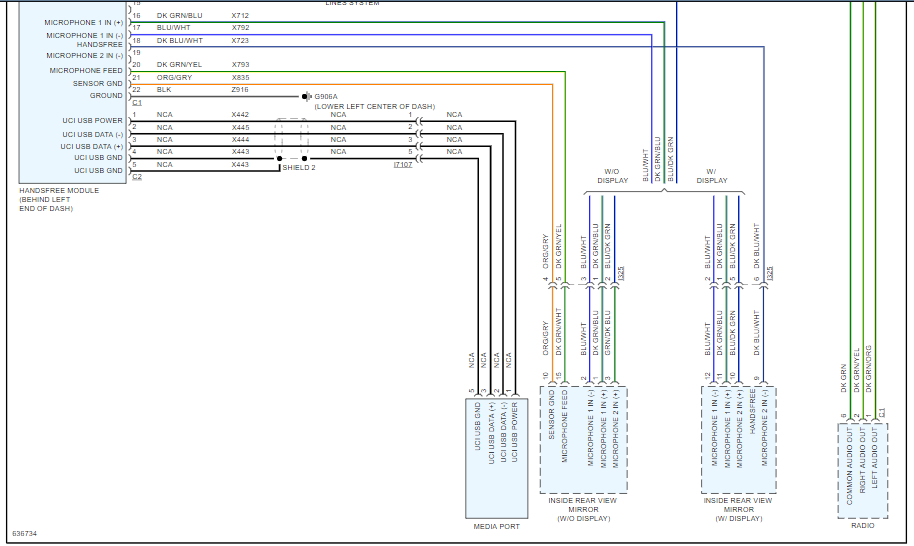

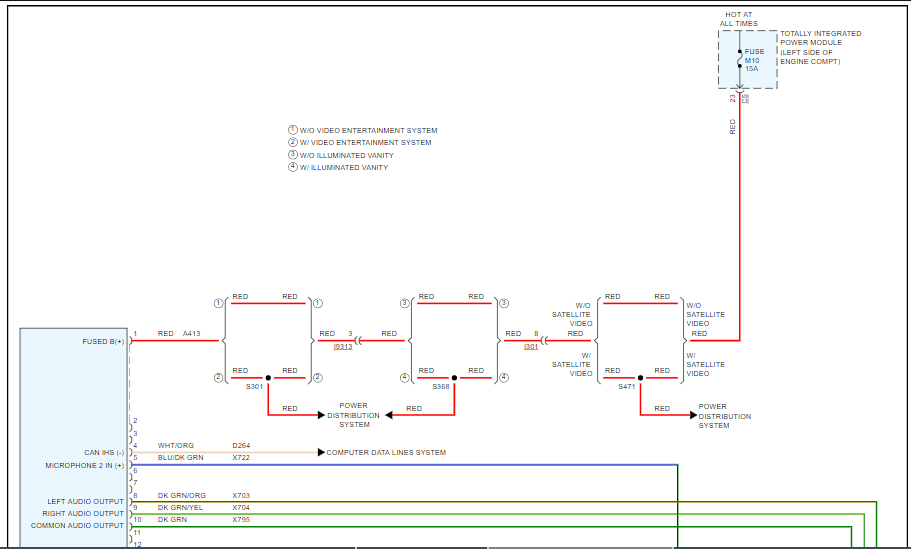

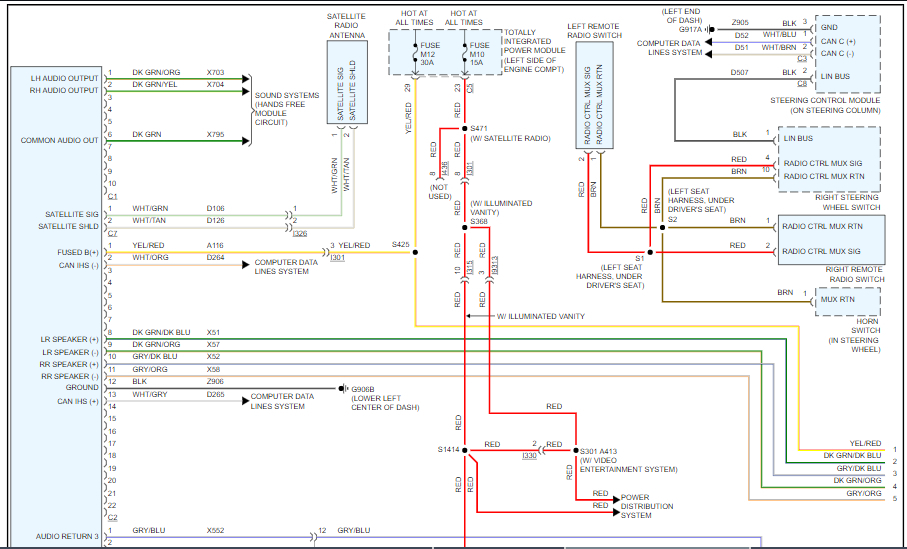

I've attached the wiring diagrams below for the 10 speaker system and hands free module. I've cut the pictures into 3 pieces each so you can view larger. Hope this helps and thanks for using 2CarPros.
