TIPM diagram

Tiny
RICHARD WHITMAN2
  • MEMBER
  • 2010 DODGE AVENGER
  • 2.4L
  • 4 CYL
  • 2WD
  • MANUAL
  • 167,000 MILES
No crank no start. Stater good. Need to trace wires from ignition to TIPM to starter for testing.
Do you
have the same problem?
Yes
No
Monday, April 22nd, 2019 AT 8:20 AM

1 Reply

Tiny
SCGRANTURISMO
  • EXPERT
Hello,

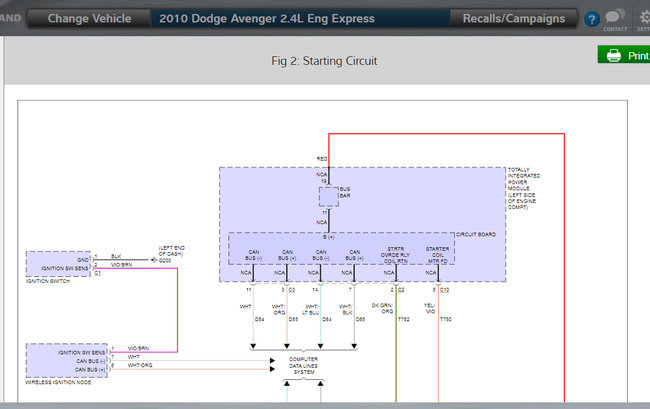

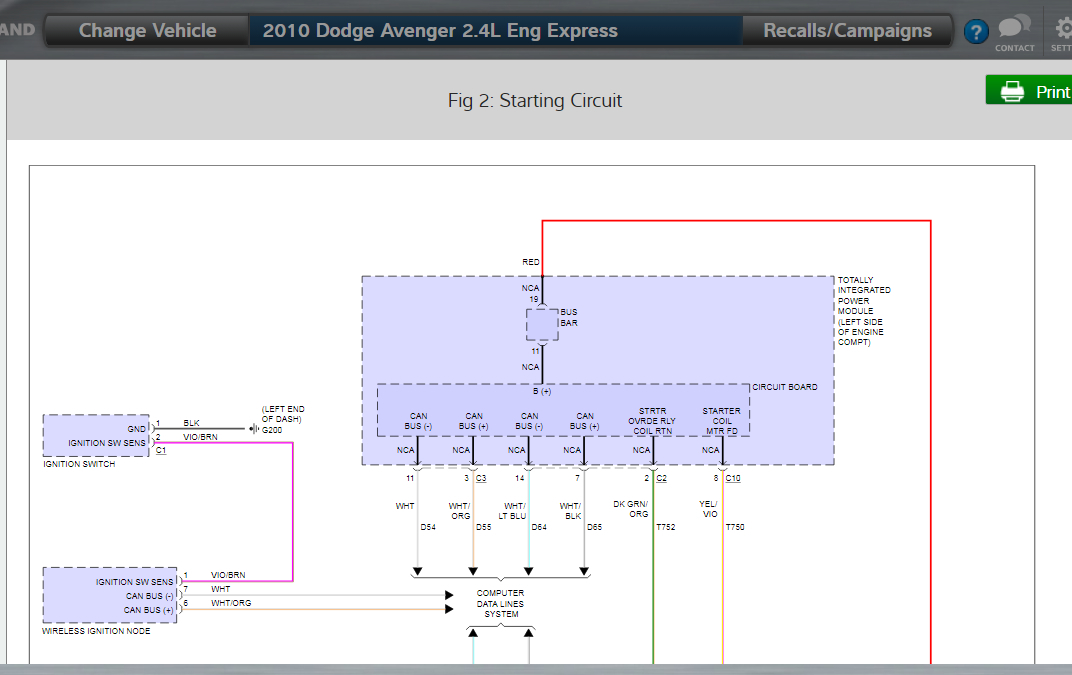

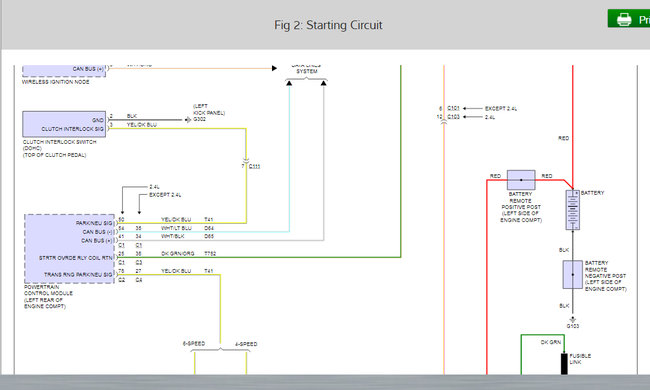

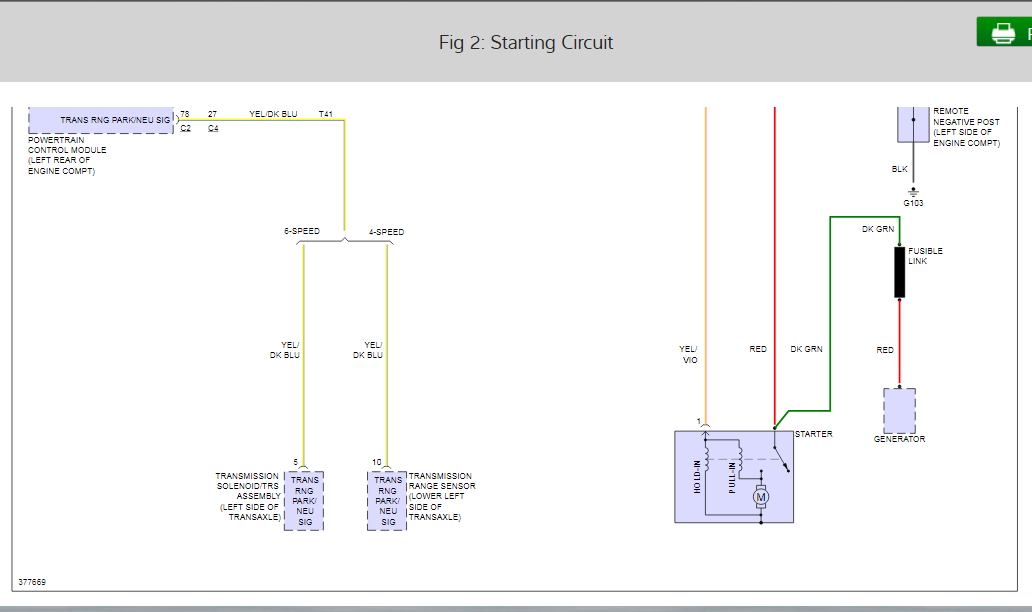

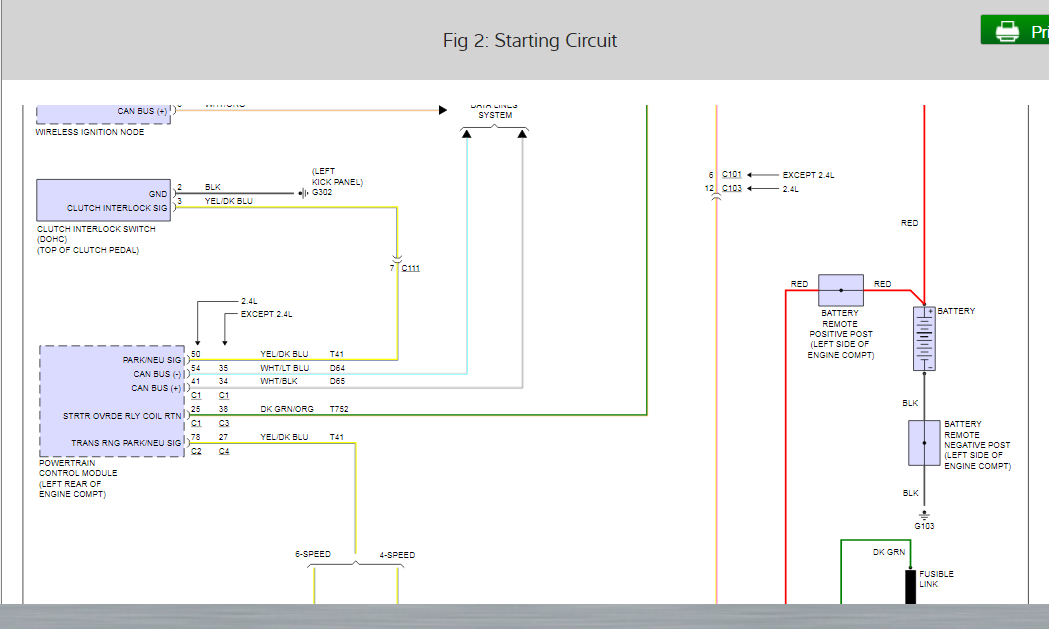

I have included the information that you requested in the diagrams down below. If you should have any other vehicle related questions, please feel free to ask. That is what we are here for.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, April 22nd, 2019 AT 8:32 AM
