Do you have a diagram for the timing indicator tab mounting?

Tiny
DAVED
  • MEMBER
  • 1986 DODGE VAN
  • 5.2L
  • V8
  • 2WD
  • AUTOMATIC
  • 58,000 MILES
It is under the vehicle and mounts below the harmonic balancer and the timing light has to be used underneath.
Tuesday, November 29th, 2022 AT 2:37 PM

5 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,170 POSTS
Hi,

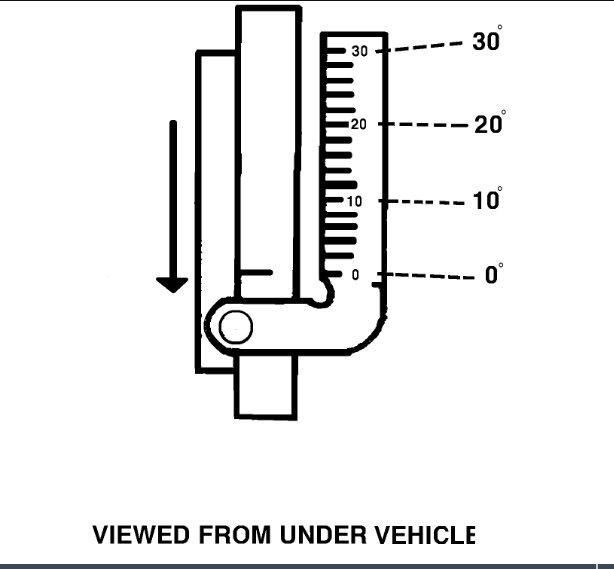

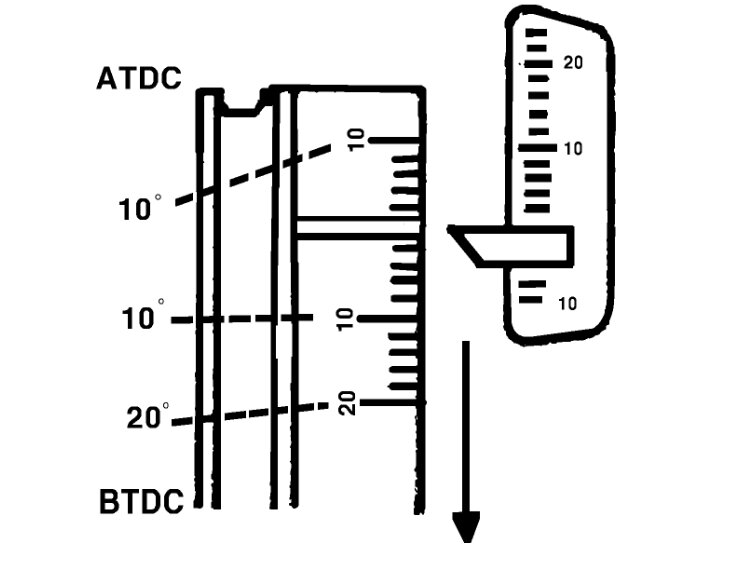

I looked up the info, and it is showing two different ones. One I suspect is from the top and the other indicates the timing from the top.

I attached both below. Take a look and let me know if that is what you need or if you have other questions.

Take care,

Joe

See pics below.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Tuesday, November 29th, 2022 AT 8:38 PM
Tiny
DAVED
  • MEMBER
  • 3 POSTS
Yes, I know how it looks but need to know where the two bolts it mounts to are. I am putting a new long block in and forgot where it mounted to. Thanks for your input so far.
Dave
Was this
answer
helpful?
Yes
No
Tuesday, November 29th, 2022 AT 8:44 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,170 POSTS
Hi Dave, that isn't something that was supplied in a repair manual. There should be only one way the two bolts can fit.

I wish I had a better answer. Without one in front of me, I'm not sure where to find that information.

I'm going to ask the site owner to see if he has any suggestions.

Joe
Was this
answer
helpful?
Yes
No
Wednesday, November 30th, 2022 AT 5:36 PM
Tiny
DAVED
  • MEMBER
  • 3 POSTS
Thanks for the effort. I am probably getting ahead of myself. There is another stamped arm that has matching holes in it and a short screw in the other end that confuses me but, will probably get figured out as I reassemble the new long block. I didn't take enough pictures of the disassembly as I should have. I am 83 years old and have never tackled an engine rebuild in my life but, like challenges. Thanks again.
Dave
Was this
answer
helpful?
Yes
No
Wednesday, November 30th, 2022 AT 6:06 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,170 POSTS
Dave,

That is excellent that you are doing it. I think you will be able to tell where it will bolt once you get to that point.

If you have any questions relating to the procedures you are about to perform, let me know.

Take care of yourself,

Joe
