Taillight circuit board replacement and wiring diagram needed

2005 DODGE SPRINTER
234,000 MILES • 2.7L • 5 CYL • AUTOMATIC
Avatar
DJUNA ROBERTS
  • MEMBER
  • 1 POST
I need to replace my circuit board on the taillights and need the wiring diagram along with tips on how to remove the old one.It looks like it has 4 different wires on separate connectors going into the circuit board.
Oct 13, 2019 at 5:52 AM
Advertisement
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Avatar
DANNY L
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 5,648 POSTS
Hello, I'm Danny.

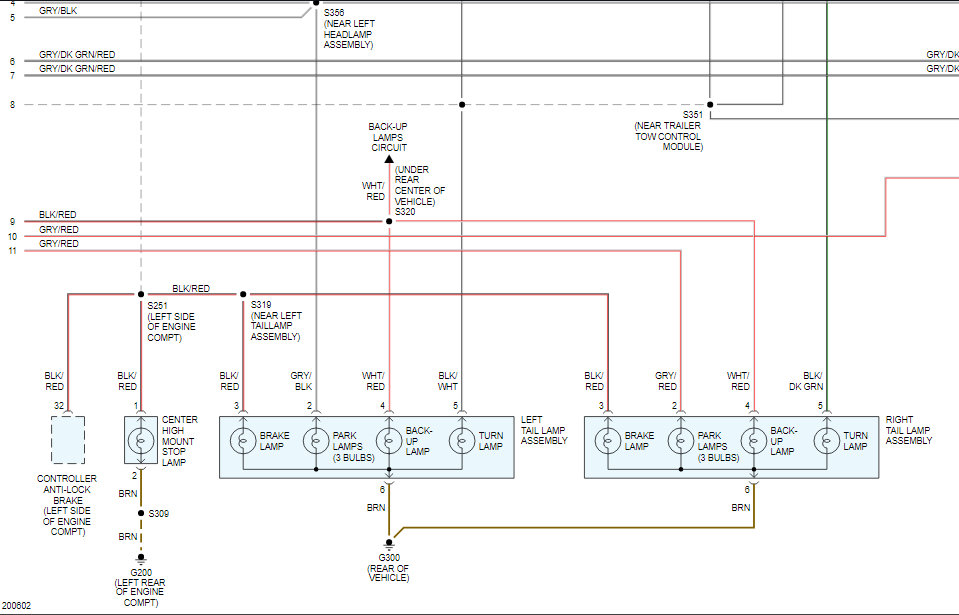

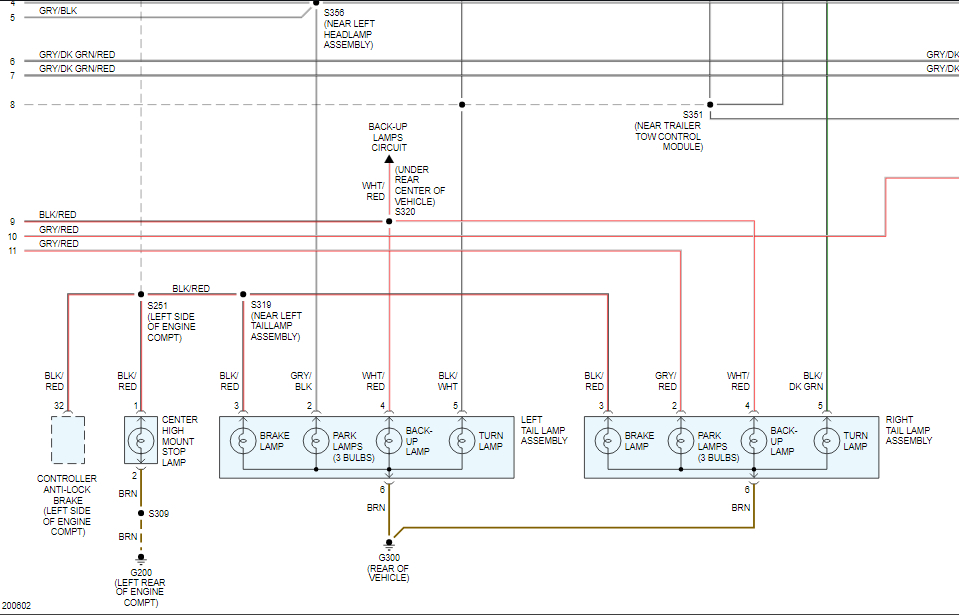

I've attached a picture below of the taillight diagram you requested. As far as wire removal, Is the circuit board soldered? If you want to release wire from a connector you can buy a tool or improvise by using an unfolded paper clip.Hope this helps and thanks for using 2CarPros.

Danny-
