Crankshaft position sensor wiring identification?

Tiny
ABAYA
  • MEMBER
  • 2009 CHEVROLET CAPTIVA
  • 2.0L
  • 4 CYL
  • TURBO
  • 4WD
  • MANUAL
  • 140,000 MILES
Hi, please show me the signal and earth pins on crankshaft position sensor.
Thank you.
Saturday, January 13th, 2024 AT 12:49 AM

8 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,205 POSTS
Hi,

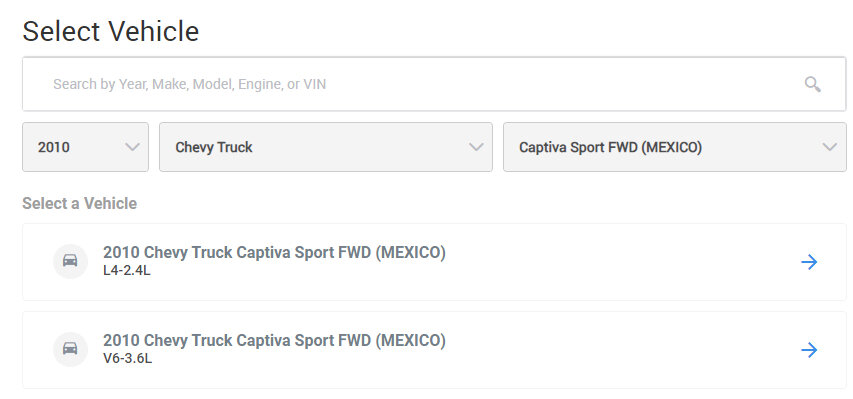

For some reason, my manual doesn't show this vehicle until 2010 and the 2.0L isn't shown. The manual indicates a 2.4L or a 3.0L. See pic below. Are you certain it is a 2.0L?

I can try looking it up by VIN if you want.

Let me know.

Joe

See pic below.
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Saturday, January 13th, 2024 AT 4:50 PM
Tiny
ABAYA
  • MEMBER
  • 36 POSTS
Thank you. Please try with VIN KL1DC53R79B301812
Was this
answer
helpful?
Yes
No
Saturday, January 13th, 2024 AT 5:15 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,205 POSTS

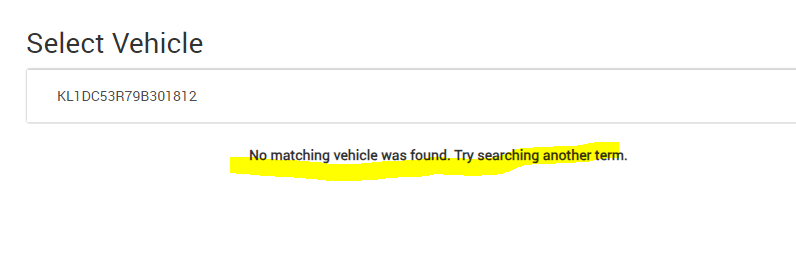

Hi,

I'm sorry, but that didn't help. Are you located in the US?

Let me know.

Joe

See pic below.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Saturday, January 13th, 2024 AT 8:42 PM
Tiny
ABAYA
  • MEMBER
  • 36 POSTS
Hi Joe,

I'm not in US. My car is GM/Daewoo brand, made in Corea. It's a Captiva c100 with GM z20s engine.
Was this
answer
helpful?
Yes
No
Saturday, January 13th, 2024 AT 10:19 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,205 POSTS
Hi,

That is why I'm not finding the engine. It wasn't offered here. They sold the 2.4L and 3.6L here. If you feel the 2.4L in a 2010 would help, let me know. However, chances are they are different.

Let me know.

Joe
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+1
Sunday, January 14th, 2024 AT 6:49 PM
Tiny
ABAYA
  • MEMBER
  • 36 POSTS
Good morning, sir,
Let's us try with 2.4 l 2010.
Thank you very much.
Was this
answer
helpful?
Yes
No
Monday, January 15th, 2024 AT 12:09 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,205 POSTS
Hi,

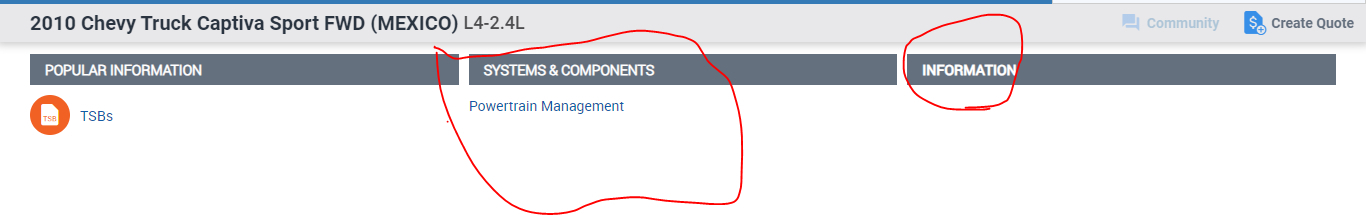

This is embarrassing. I went to get the info, and basically, the only thing the manual has for any year Captiva is a few technical service bulletins. See pic below.

I'm really sorry.

Let me know.

Joe
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Monday, January 15th, 2024 AT 6:47 PM
Tiny
ABAYA
  • MEMBER
  • 36 POSTS
Thank you, sir.
