Fuse diagram

DEBBIE CAPPS SIPES

MEMBER
1987 CADILLAC DEVILLE
V8
2WD
AUTOMATIC
87,000 MILES

Fuse diagram for car listed above.

Wednesday, March 6th, 2019 AT 2:51 PM

1 Reply

SCGRANTURISMO

MECHANIC
4,897 POSTS

Hello,

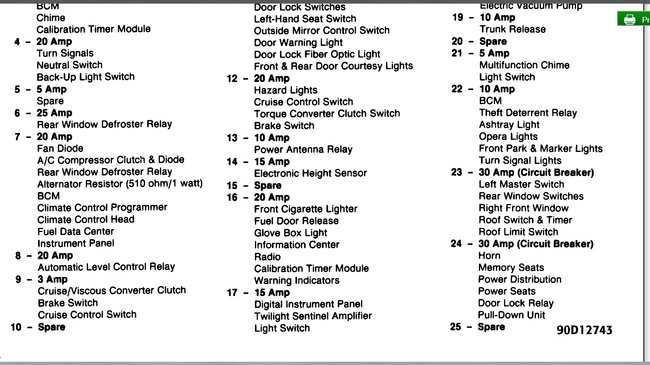

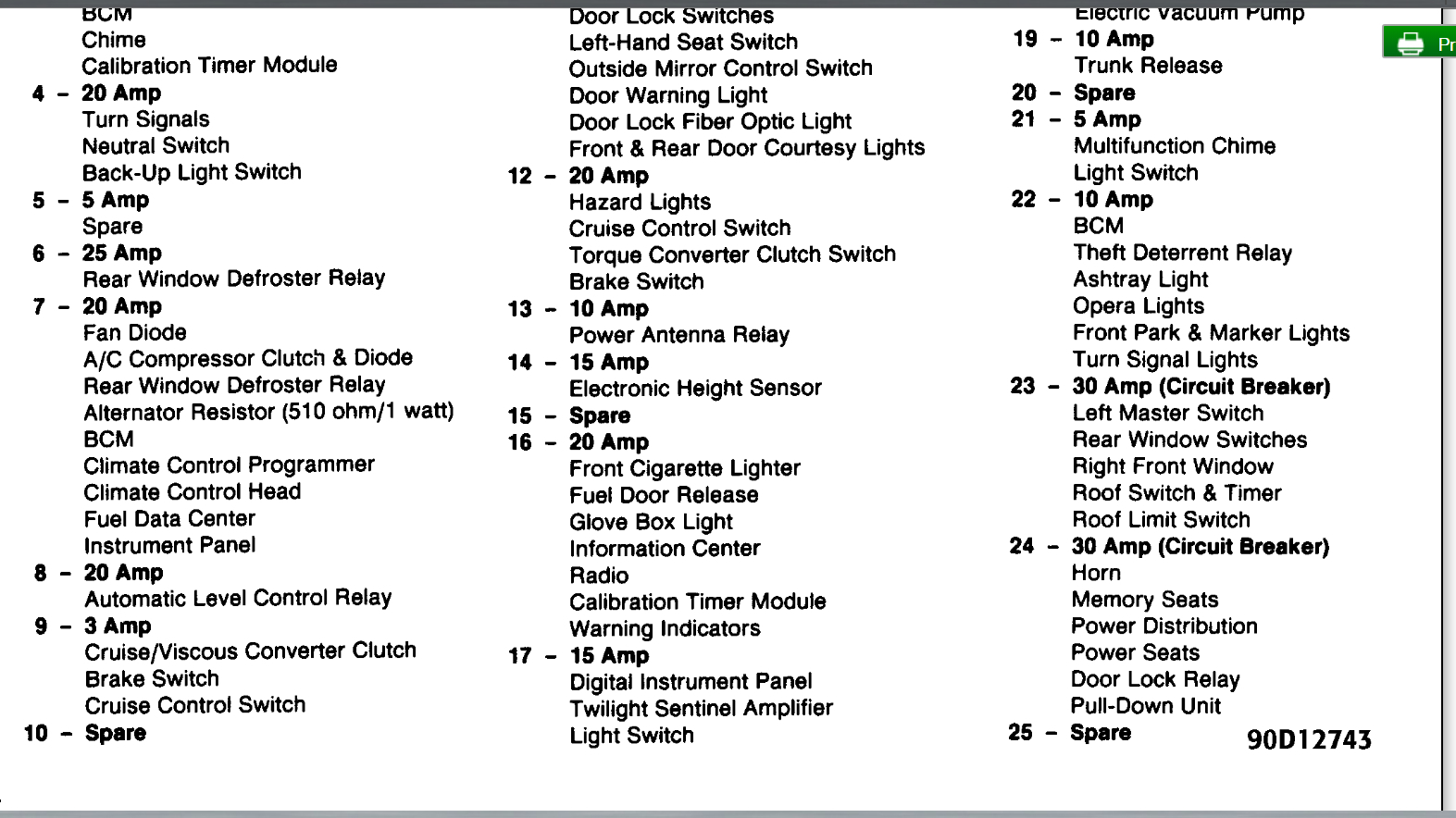

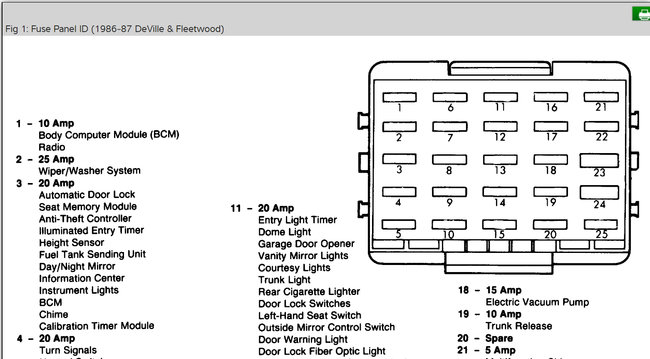

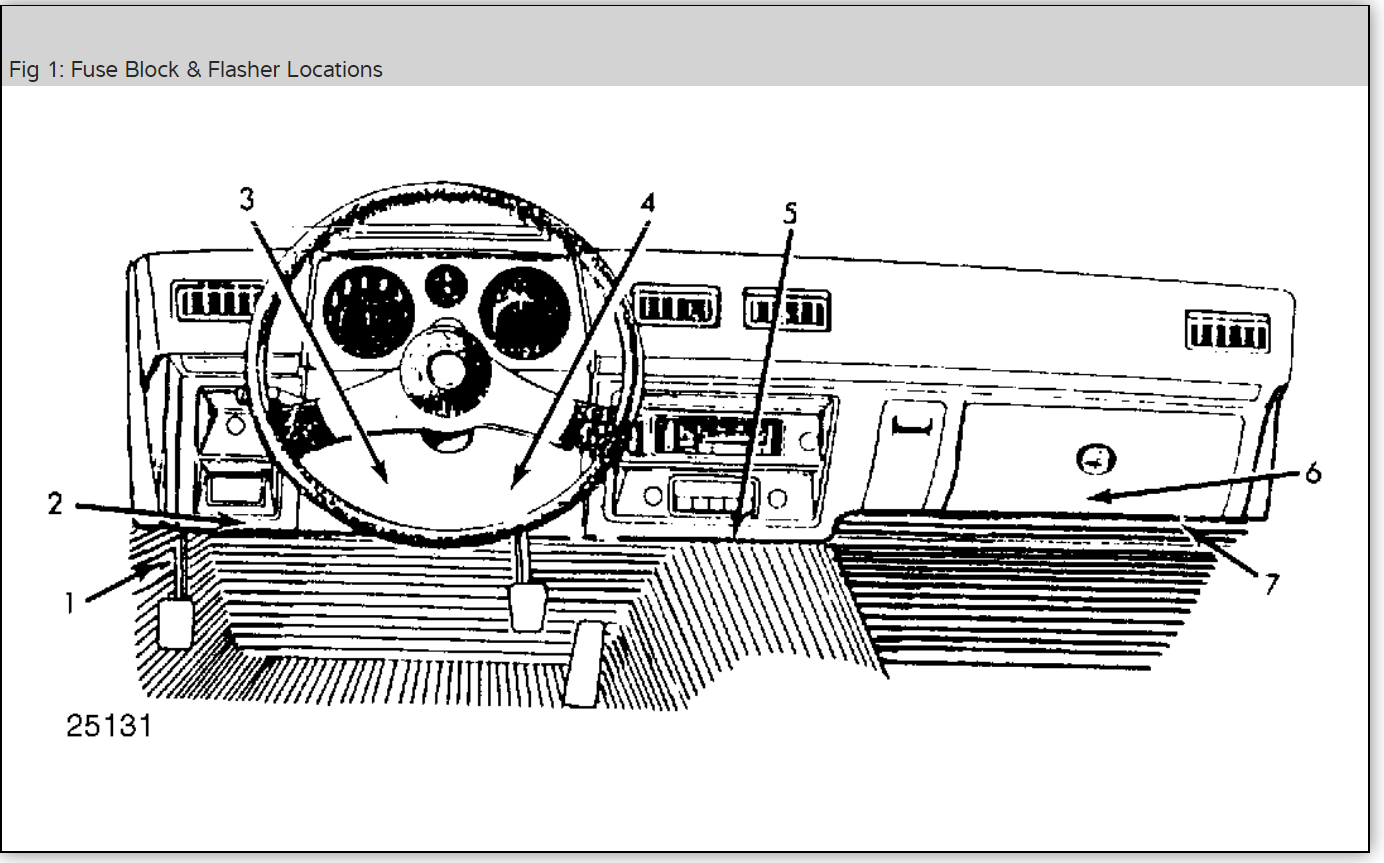

I have included the information you requested in the diagrams down below. Please feel free to let us know if there anything else that we can help you with.

Thanks,
Alex
2CarPros

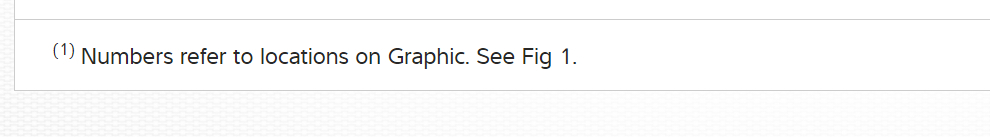

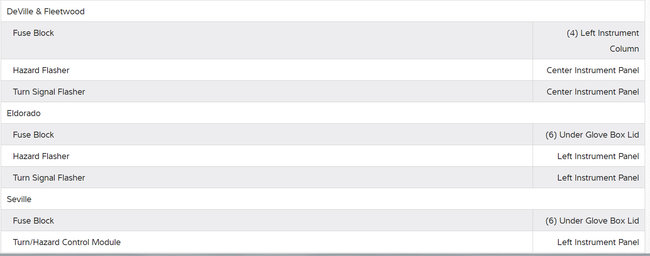

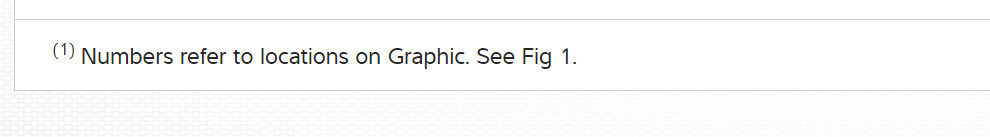

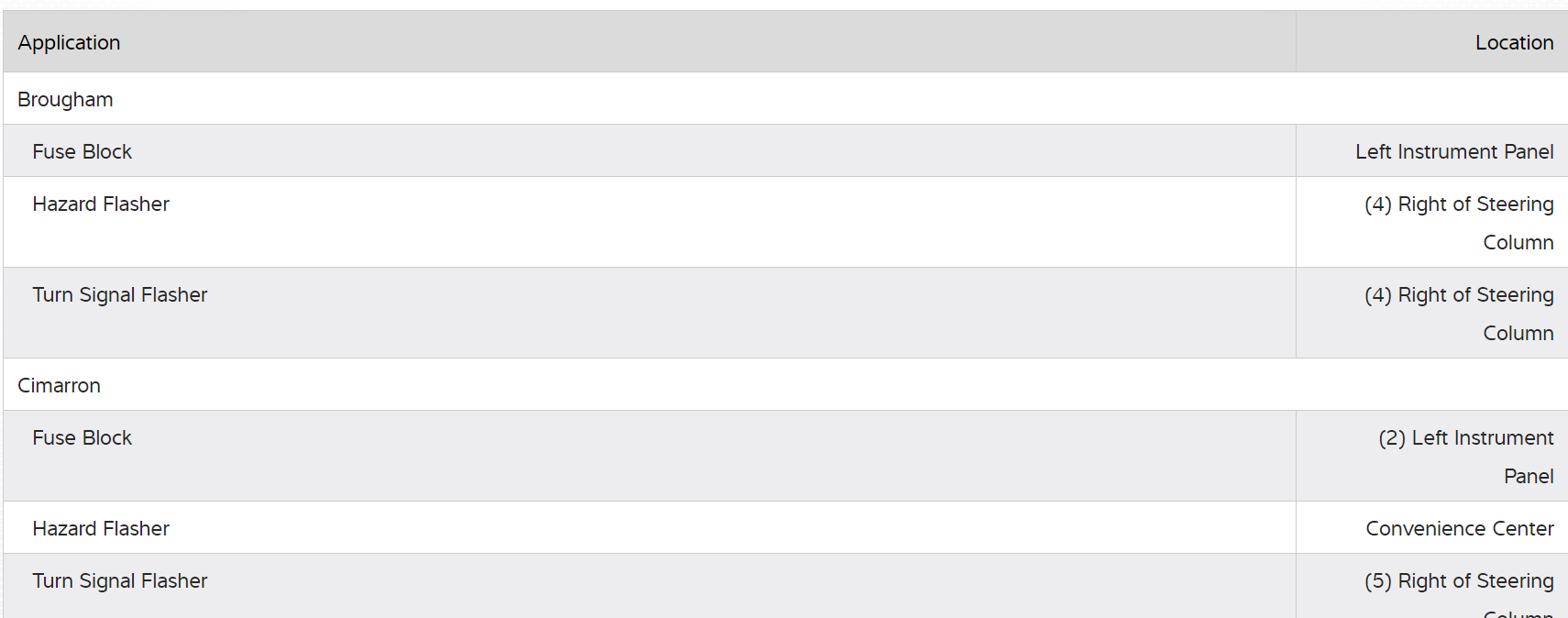

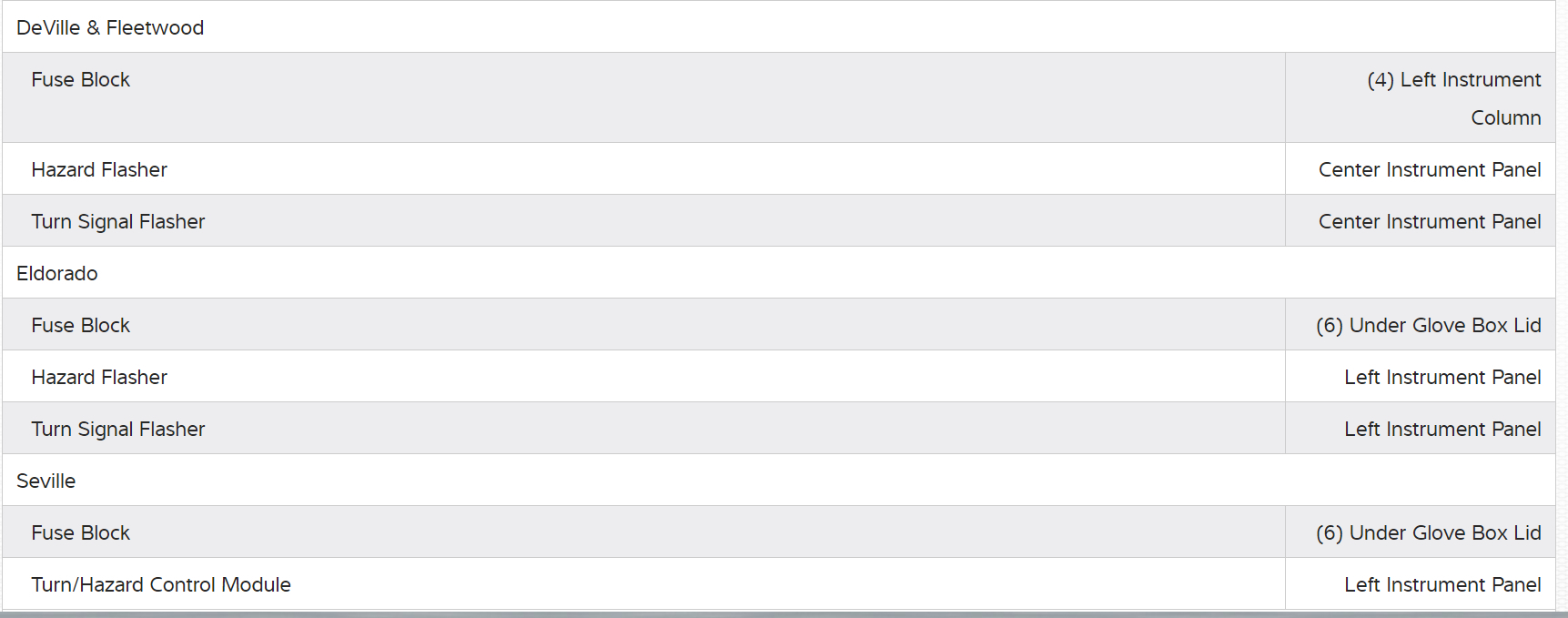

Images (Click to make bigger)
