ECU pin diagram

Tiny
KMPSULLIVAN
  • MEMBER
  • 1993 TOYOTA CAMRY
  • 2.2L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 157,000 MILES
We have a problem with it cutting off immediately after we crank it. Read we can send a jumper wire from E7 to pin 3 and bypass the wiring that is old and broken. The picture of ECU is attached.
SPONSORED LINKS
Do you
have the same problem?
Yes
No
Tuesday, October 1st, 2019 AT 12:21 PM

1 Reply

Tiny
SCGRANTURISMO
  • EXPERT
Hello,

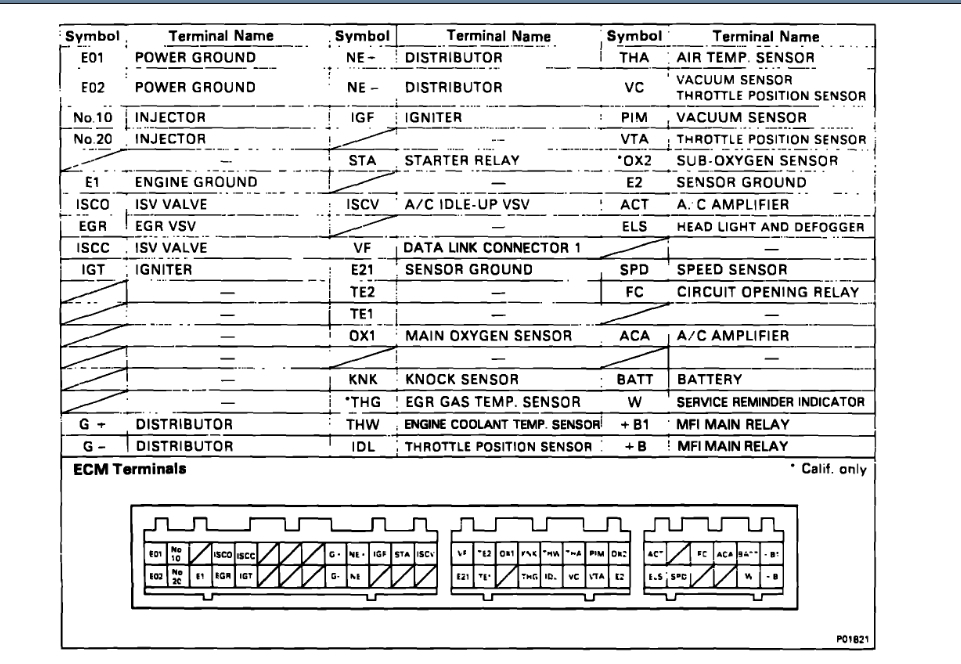

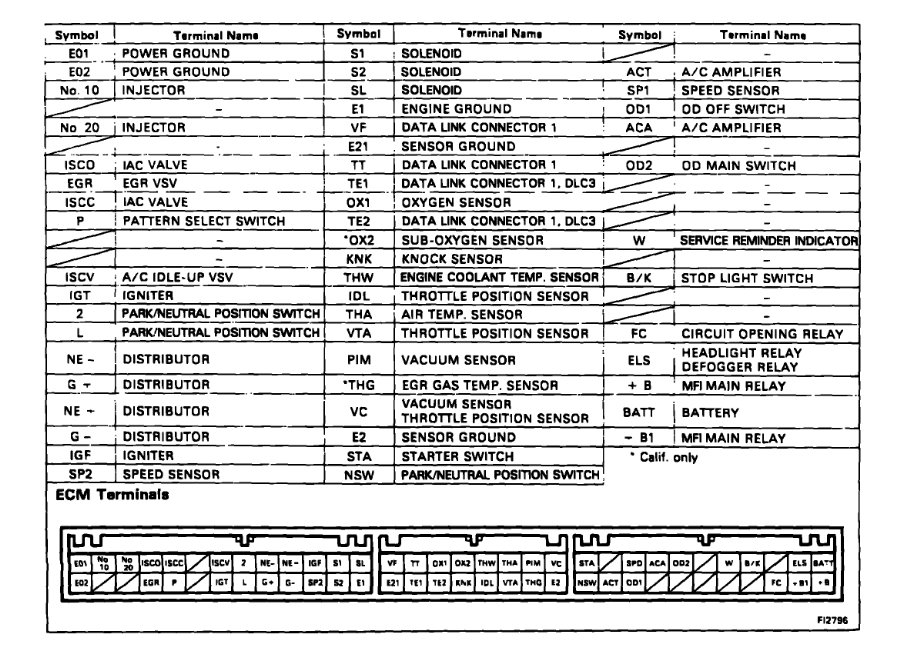

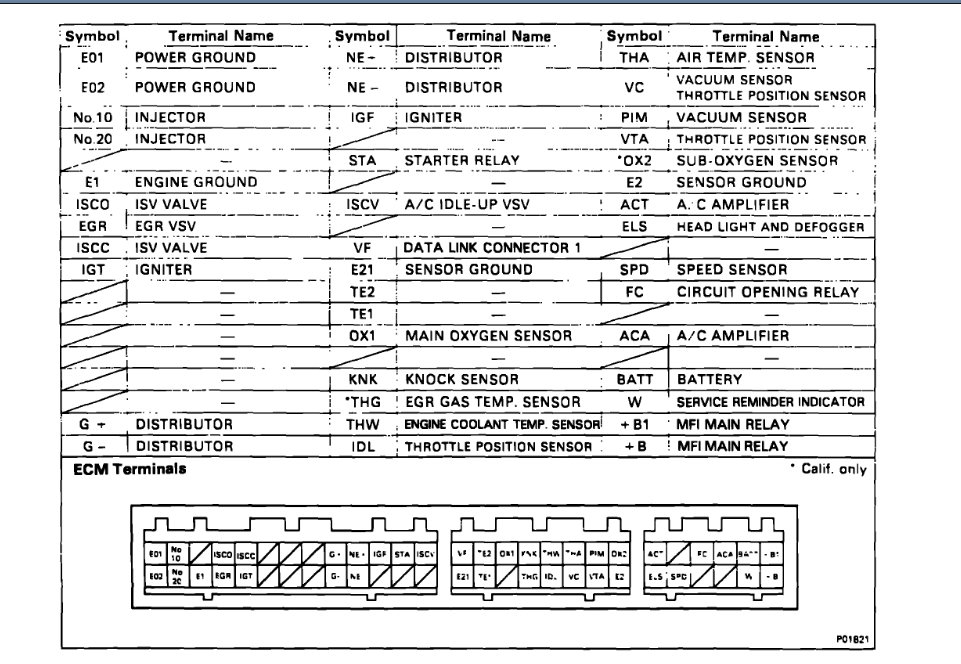

I have included the information that you requested in the diagrams down below. There are two diagrams, the first is if your vehicle has an electronically controlled transmission and the latter is for if you have a non electronically controlled transmission. I hope this helps.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+2
Tuesday, October 1st, 2019 AT 1:08 PM
