I need a complete wiring diagram?

Tiny
BRIAN CHILDRESS
  • MEMBER
  • 2003 LINCOLN LS
  • 3.9L
  • V8
  • 2WD
  • AUTOMATIC
  • 1,000,000 MILES
I need a complete wiring diagram from front to back I have discovered some wires cut and missing and I need to know how to run new replacement wires and from where they start. Also I need to know how to program a pin code to unlock an lock the door I can't get the original code because I'm 3rd owner and I don't have the owner manual
Friday, March 18th, 2022 AT 10:27 AM

3 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS
We can give you wiring diagrams, but you must tell us which system the diagrams are for? As far as the lock code you will need to call the dealer and give them your VIN# sometimes they are written inside the owner's manual. Let us know.
Was this
answer
helpful?
Yes
No
Monday, March 21st, 2022 AT 10:42 AM
Tiny
BRIAN CHILDRESS
  • MEMBER
  • 19 POSTS

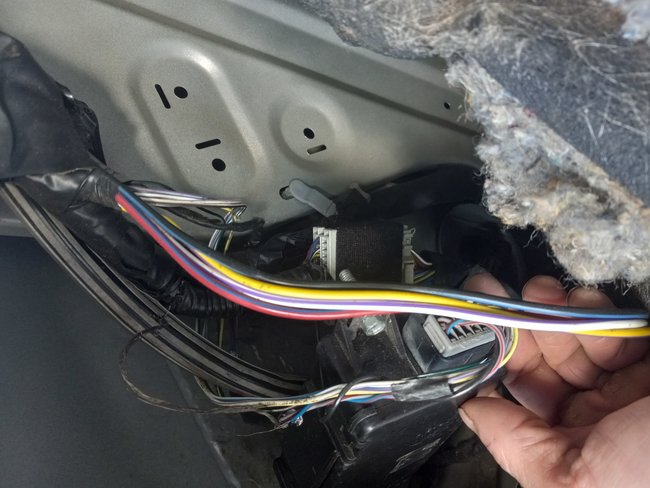

Left side of trunk wires are cut and I think some are missing.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Friday, March 25th, 2022 AT 7:33 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS

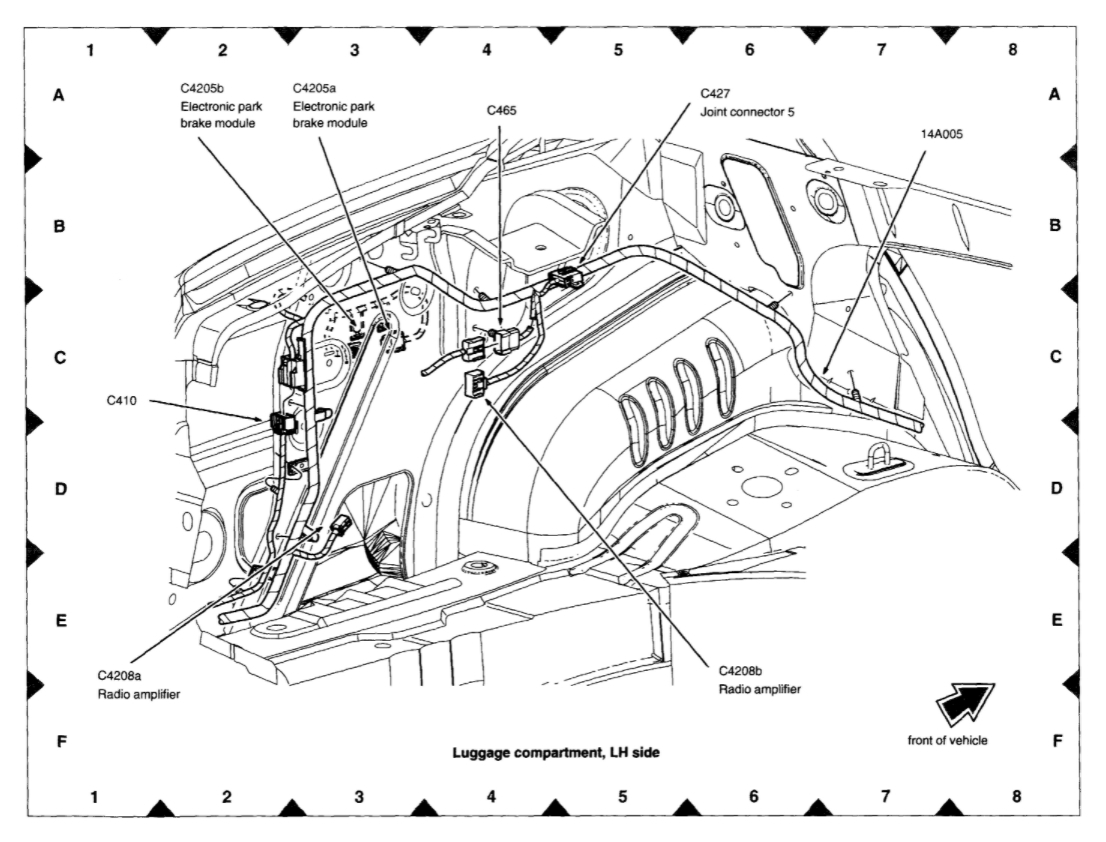

Left or right side, this is what they say is on the left side in the diagrams below, please confirm then I can give you the diagrams. Check out the diagrams (below). Please let us know what happens.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Friday, March 25th, 2022 AT 11:00 AM
