I am rebuilding a Mazda 3 with the 2.3 turbo and the drive belt was missing. There is no diagram (hood was missing) and I am about to go crazy trying to figure out how to route the belt. Thanks for any help possible!
Monday, December 29th, 2008 AT 6:58 PM

1 Reply

Tiny
RACEFAN966
  • MECHANIC
  • 5,029 POSTS
Hello, here is what I found for you.

https://www.2carpros.com/articles/replace-serpentine-belt

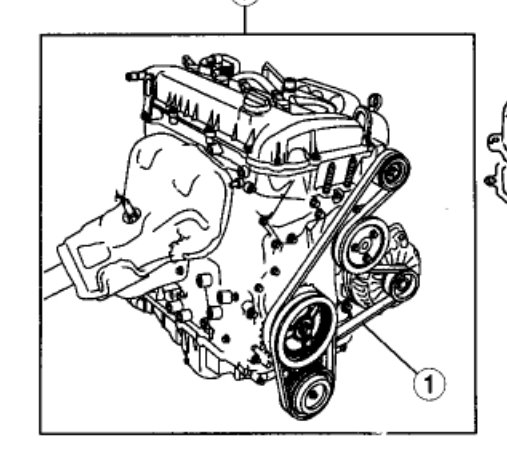

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers

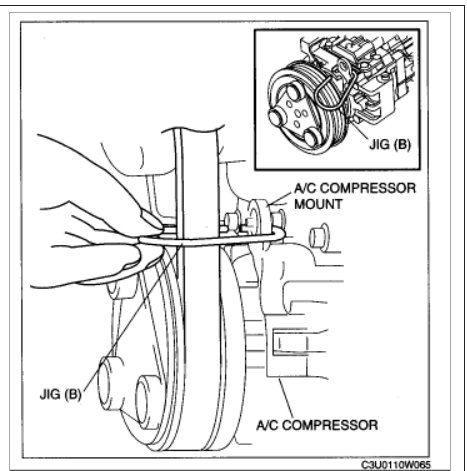

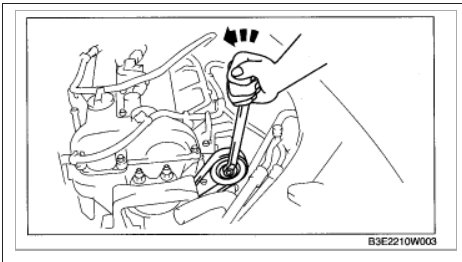

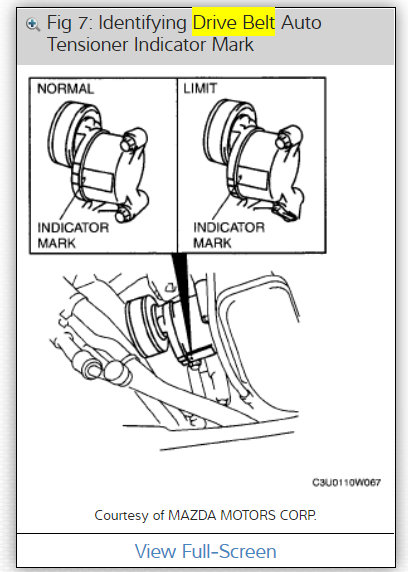

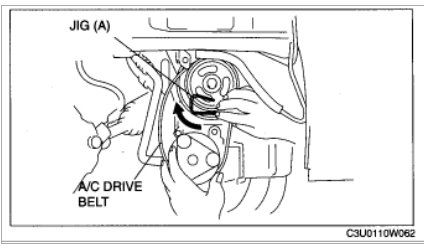

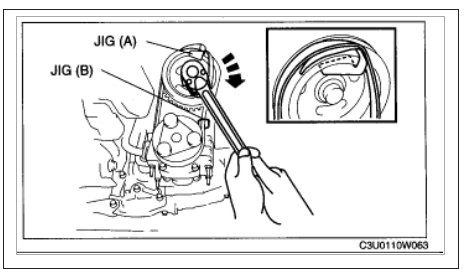

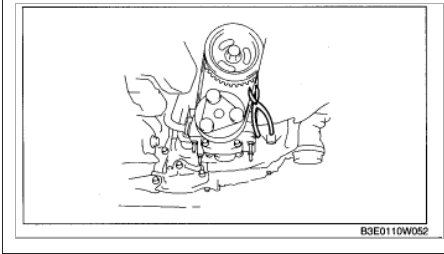

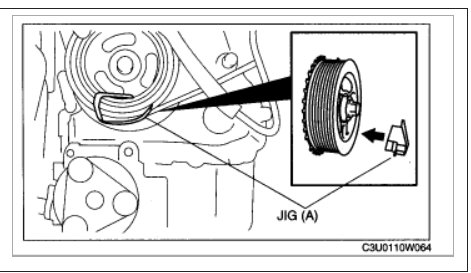

Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+3
Monday, December 29th, 2008 AT 11:41 PM
