IM trying to find a diagram for my Power Distribution box

Tiny
JDUB09
  • MEMBER
  • 1992 FORD F-150
  • V8
  • 2WD
  • AUTOMATIC
  • 200,000 MILES
Im trying to find a diagram for my Power Distribution box, dont have owners manual so I cant see it.
Tuesday, October 5th, 2010 AT 12:44 AM

1 Reply

Tiny
DOCFIXIT
  • MECHANIC
  • 18,828 POSTS
Hello,

Here is a guide to help you test the fuse with the fuse location and identification below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

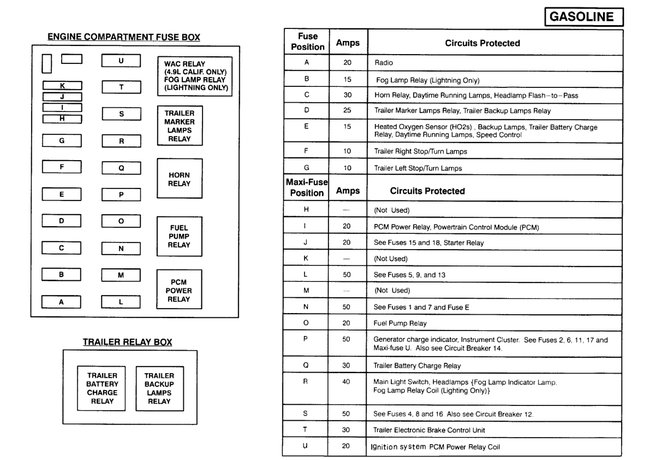

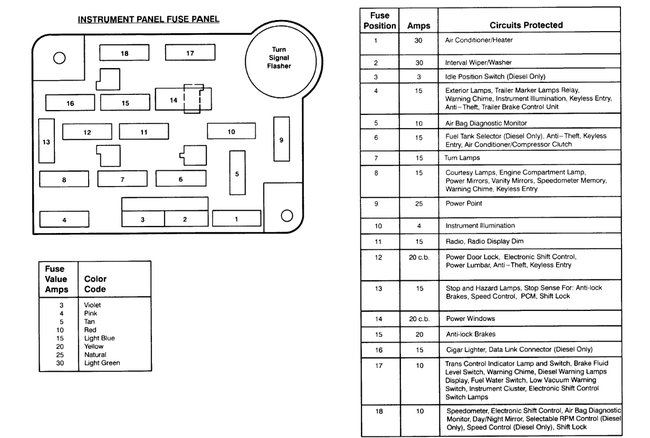

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
