Auto Air condition wiring diagram needed?

Tiny
DANUSKA SAMPATH
  • MEMBER
  • 1993 TOYOTA LANDCRUISER
  • 4.2L
  • 4 CYL
  • 4WD
  • AUTOMATIC
  • 150,000 MILES
I'm looking for Auto Air condition (Climate control) wiring diagram.
Saturday, September 24th, 2022 AT 3:54 PM

5 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,230 POSTS
Hi,

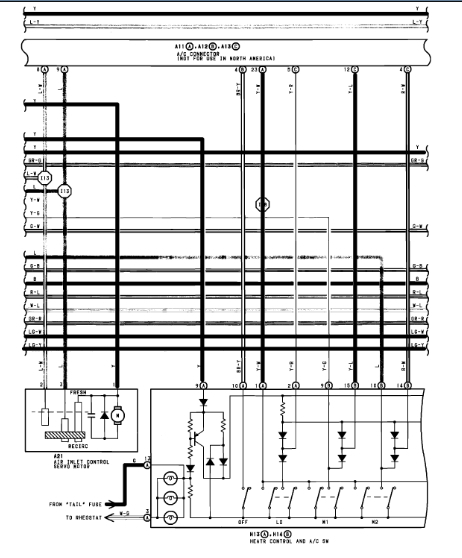

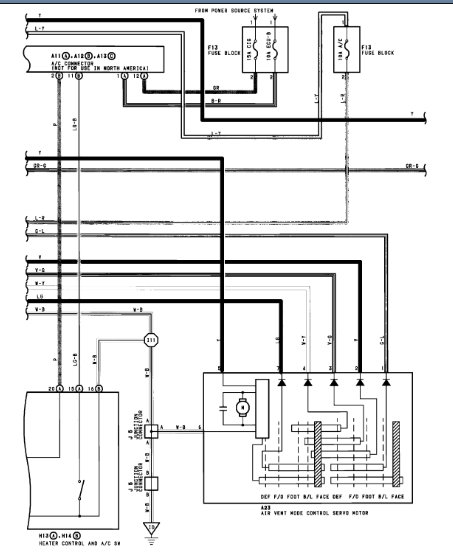

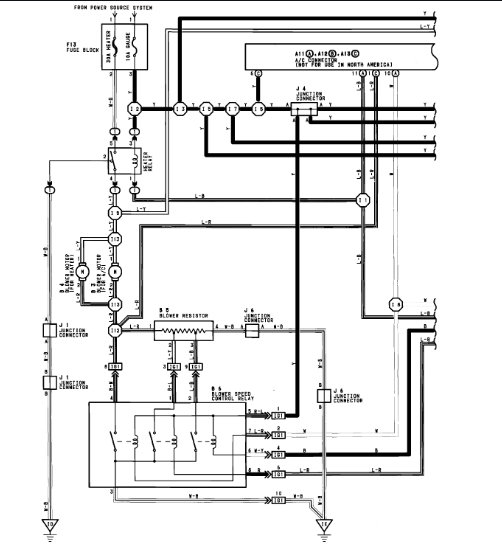

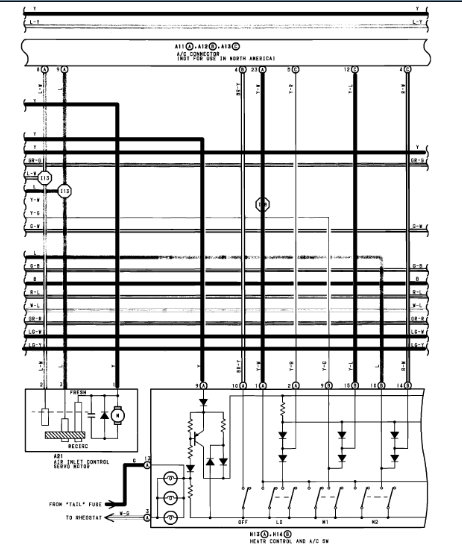

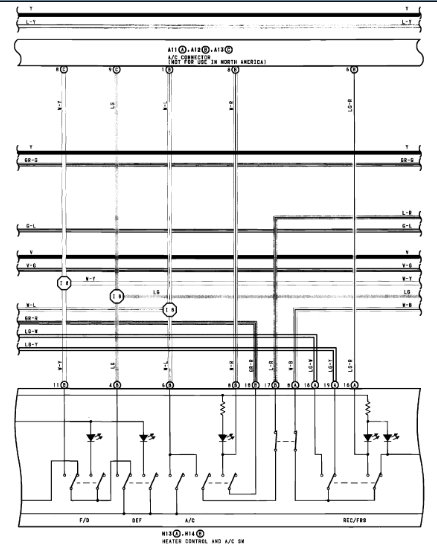

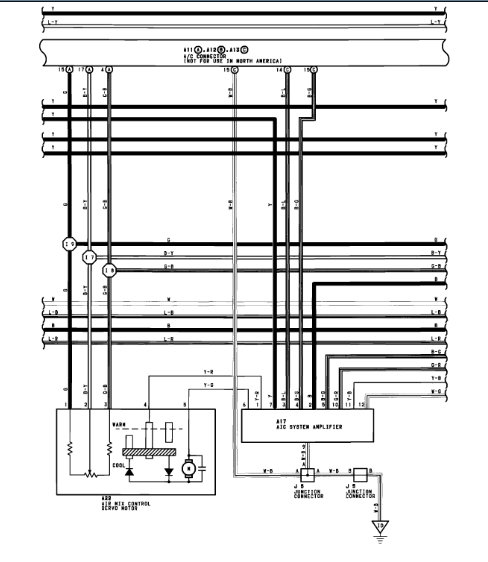

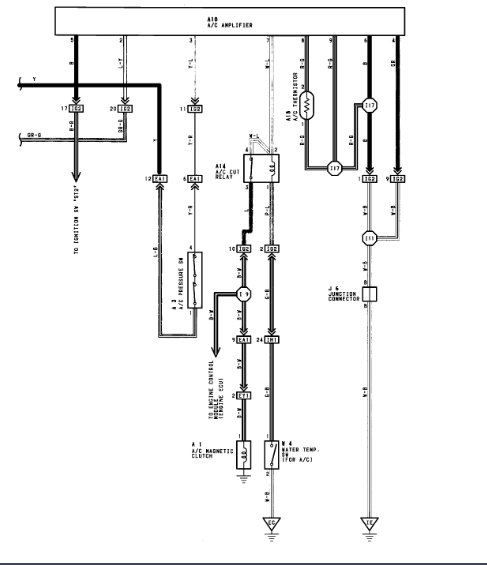

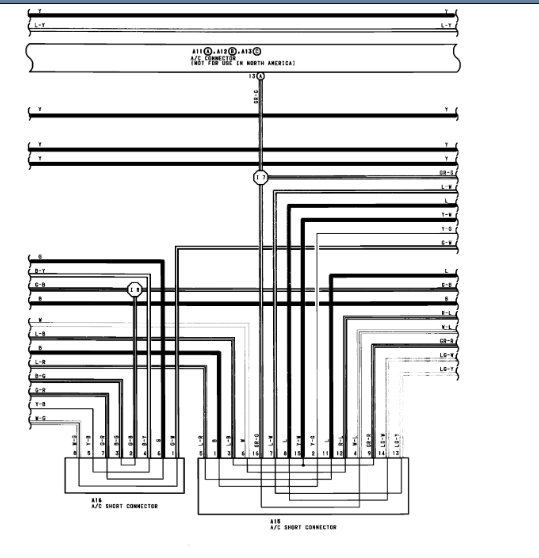

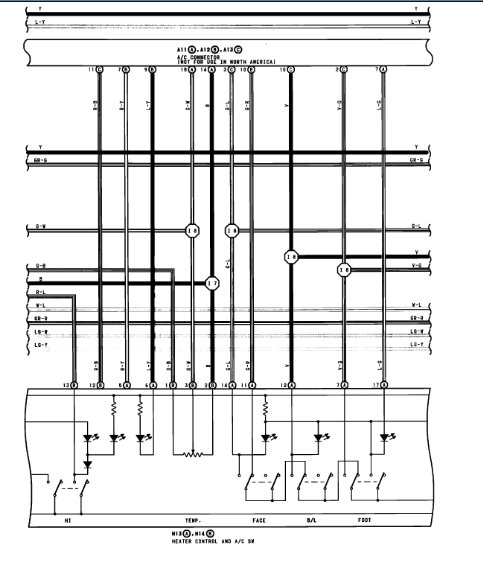

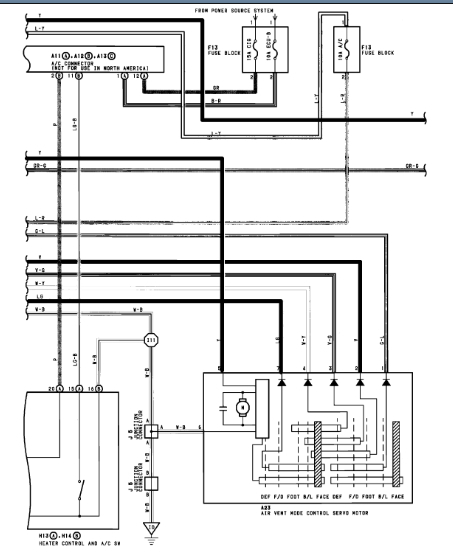

The only thing I was able to find is the OEM wiring schematics which can be difficult to follow. Take a look through them and let me know if they help.

I do have better schematics for the manual control, so let me know if that would help in any way.

Take care,

Joe

See pics below.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
-1
Saturday, September 24th, 2022 AT 11:21 PM
Tiny
DANUSKA SAMPATH
  • MEMBER
  • 3 POSTS
I'm looking for a Toyota Land Cruiser 80 vx limited wiring diagram (Auto Air condition).
Was this
answer
helpful?
Yes
No
Sunday, September 25th, 2022 AT 12:01 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,230 POSTS
Hi,

The wiring schematic I sent is the only thing I am seeing. I'm not sure where you are located and if there is a variation, but when I go to Toyota Land Cruiser in my manual, I only have one option. Are you in the US?

Joe
Was this
answer
helpful?
Yes
No
Sunday, September 25th, 2022 AT 5:57 PM
Tiny
DANUSKA SAMPATH
  • MEMBER
  • 3 POSTS
I got it from another source. Thank you for the help appreciated. I am from New Zealand.
Was this
answer
helpful?
Yes
No
Sunday, September 25th, 2022 AT 10:29 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,230 POSTS
Hi,

You are very welcome. I just wish I could have been of more help. Is it possible for you to upload what you found? I would be interested in comparing what I have to it. Also, it may help others in the future as well.

Let me know.

Take care of yourself,

Joe
