Mitsubishi Trouble Codes OBD1

AD
Step by step guide on how to retrieve Mitsubishi obd1 (1996 and earlier) diagnostic trouble codes.

Difficulty Scale: 2 of 10

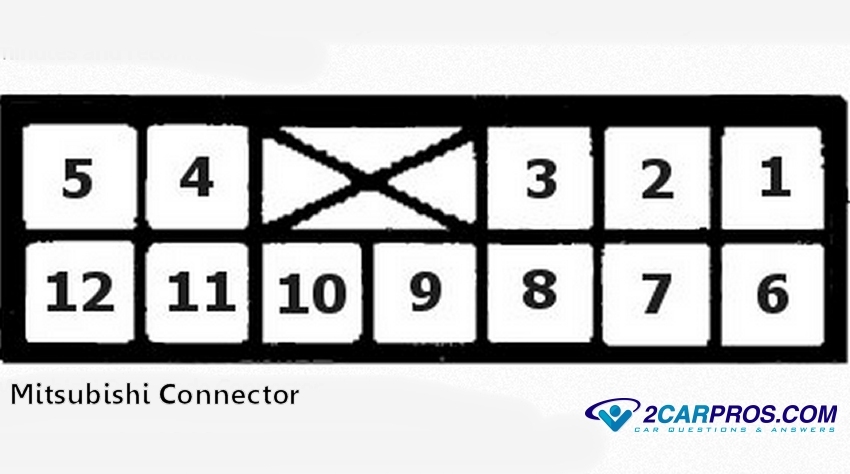

Step 1 - To gather troubles codes from the system locate the diagnostic data 12 port connector which is located under the dash by the kick panel on the driver's side.

Step 2 - Use an analog style of voltmeter (sweeper arm) set the voltmeter dial to continuity. Next, insert the positive lead into the number #1 terminal and the black or ground lead into the #12 terminal. Turn the ignition key to the "ON" position and observe the voltmeter needle sweeping from right to left. The first set of sweeps will be the first digit of the code followed by a second set of sweeps which will be the second digit. For example, if the meter sweeps twice and then pauses and then sweeps four more times, the code number would be 24.

Step 3 - To re-start code gathering simply turn the ignition key to the "OFF" position and then turn it back "ON" again. Once the repairs have been made, clear the codes by removing the negative battery cable for two minutes and then reconnect.

Trouble Codes OBD1

Code 11 Oxygen sensor fault

Code 12 Air flow sensor fault

Code 13 Intake temperature sensor

Code 14 Throttle position sensor fault

Code 15 SC Motor position sensor fault

Code 21 Engine coolant temperature sensor

Code 22 Crank angle sensor fault

Code 23 No.1 cylinder TDC sensor fault

Code 24 Vehicle speed sensor

Code 25 Barometric pressure sensor

Code 31 Knock sensor fault

Code 32 Manifold pressure sensor

Code 36 Ignition timing adjustment signal

Code 39 Oxygen sensor fault

Code 41 Injector fault

Code 42 Fuel pump fault

Code 43 EGR fault

Code 44 Ignition coil on 3.0L engines (1 and 2 cylinders)

Code 52 Ignition coil on 3.0L engines (2 and 5 cylinders)

Code 53 Ignition coil on 3.0L engines (3 and 6 cylinders)

Code 55 AV valve position sensor

Code 59 Heated oxygen sensor

Code 61 Transaxle control unit cable for automatic transmission

Code 62 Warm-up control valve position sensor

AD

AUTHOR


Written by
Co-Founder and CEO of 2CarPros.com
35 years in the automotive repair field, ASE Master Technician, Advanced Electrical and Mechanical Theory.


COMMENTS TO THIS ARTICLE


Please use our question form if you have a specific question about your car as we are not able to give you a full answer on this page.



Article first published (Updated 2014-07-24)
