Transmission was replaced on this vehicle fault code P0890, P0847 and P084C, can I get the TCM connector view, TCM wire diagram and fuse.

Tiny
MALLYBOY
  • MEMBER
  • 2014 NISSAN X-TRAIL
  • 2.5L
  • 4 CYL
  • 4WD
  • AUTOMATIC
  • 56,067 MILES
Transmission was replaced on this vehicle, and it was not driving fine. Then I began to access the fault p0890: transmission control module using test lamp and I notice that there was no battery voltage to illuminate the test lamp on the TCM connector but there was ignition, so I have checked the fuse location that powers the TCM battery voltage line but I didn't see. I also used diagrams for a 2013 Nissan Rogue fuse box diagram, but they are not the same.
Please I need the TCM connector view, TCM wire diagram and fuse box diagram for this vehicle for me to solve this problem
SPONSORED LINKS
Monday, December 18th, 2023 AT 12:03 AM

4 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 42,966 POSTS
The 2014 Nissan X-Trail displays three transmission-related diagnostic trouble codes:

P0890: This code indicates an issue with the Transmission Control Module (TCM) power relay sense circuit, suggesting a discrepancy in the battery voltage supplied to the TCM.

P0847: This code signifies a problem in the transmission fluid pressure sensor/switch "B" circuit, pointing to a low circuit condition in this system.

P084C: This code generally denotes an electrical issue within the transmission fluid pressure sensor (TFPS) sensor circuit.

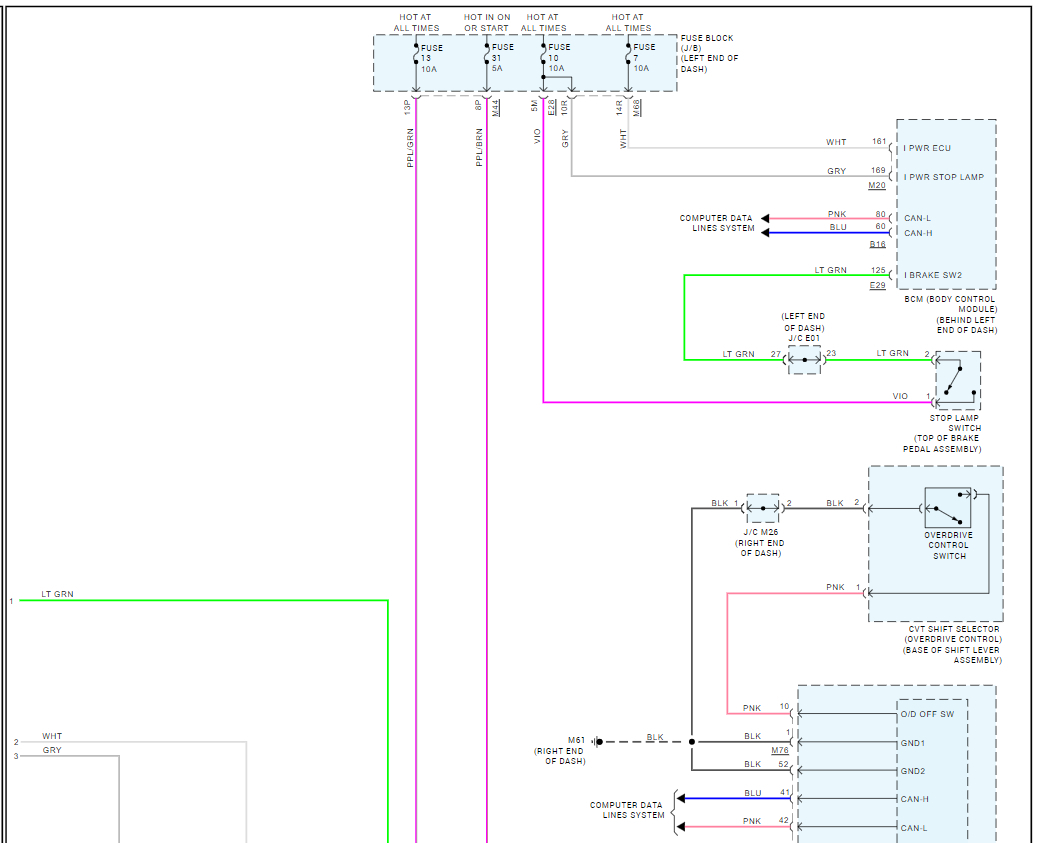

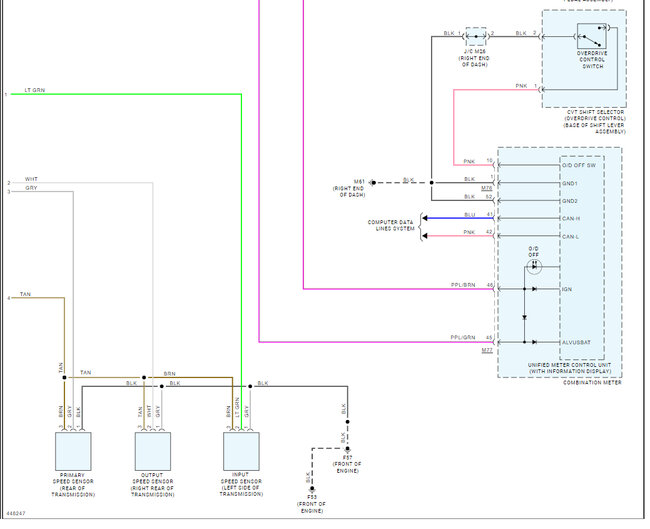

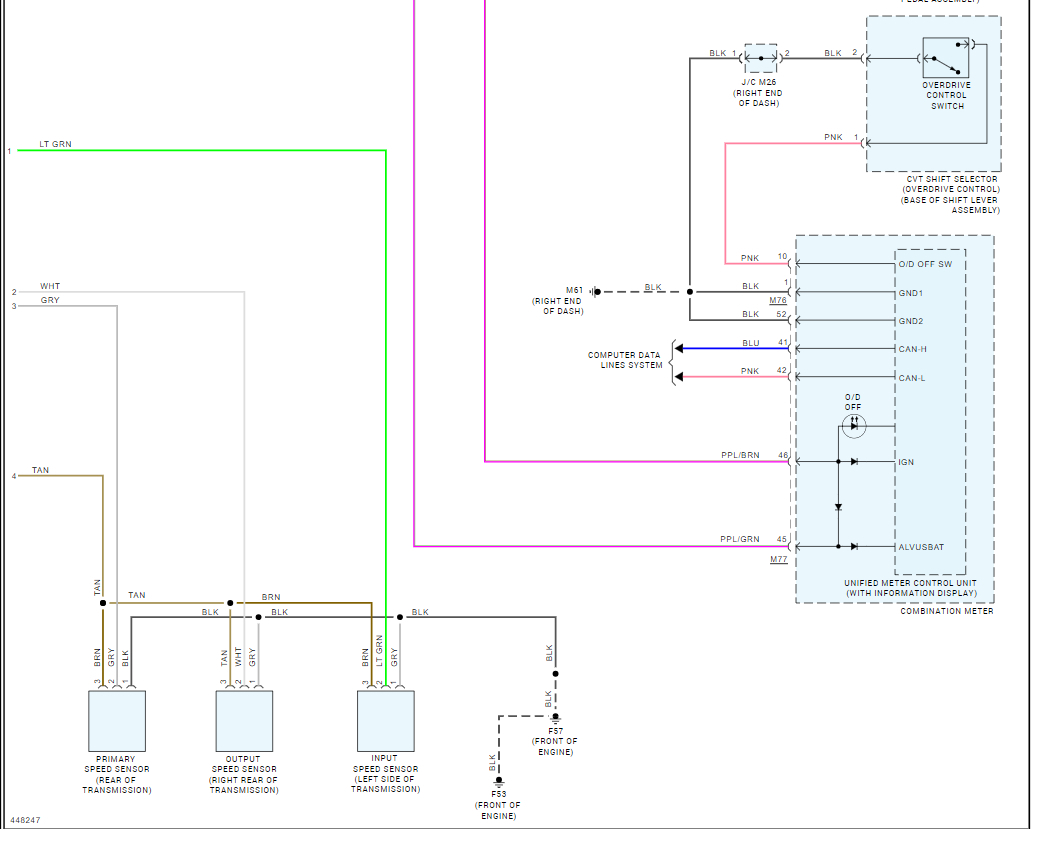

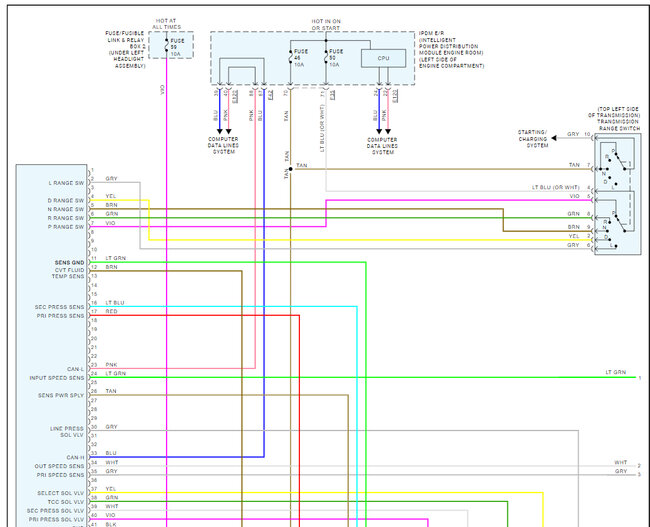

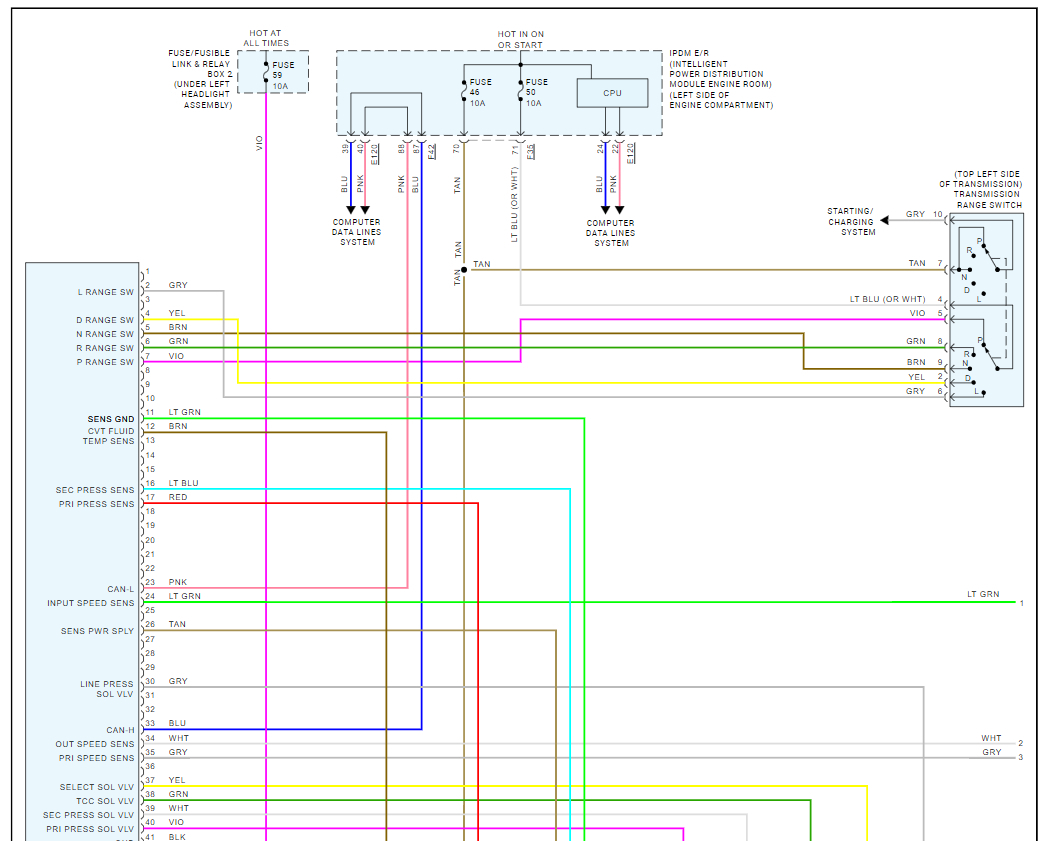

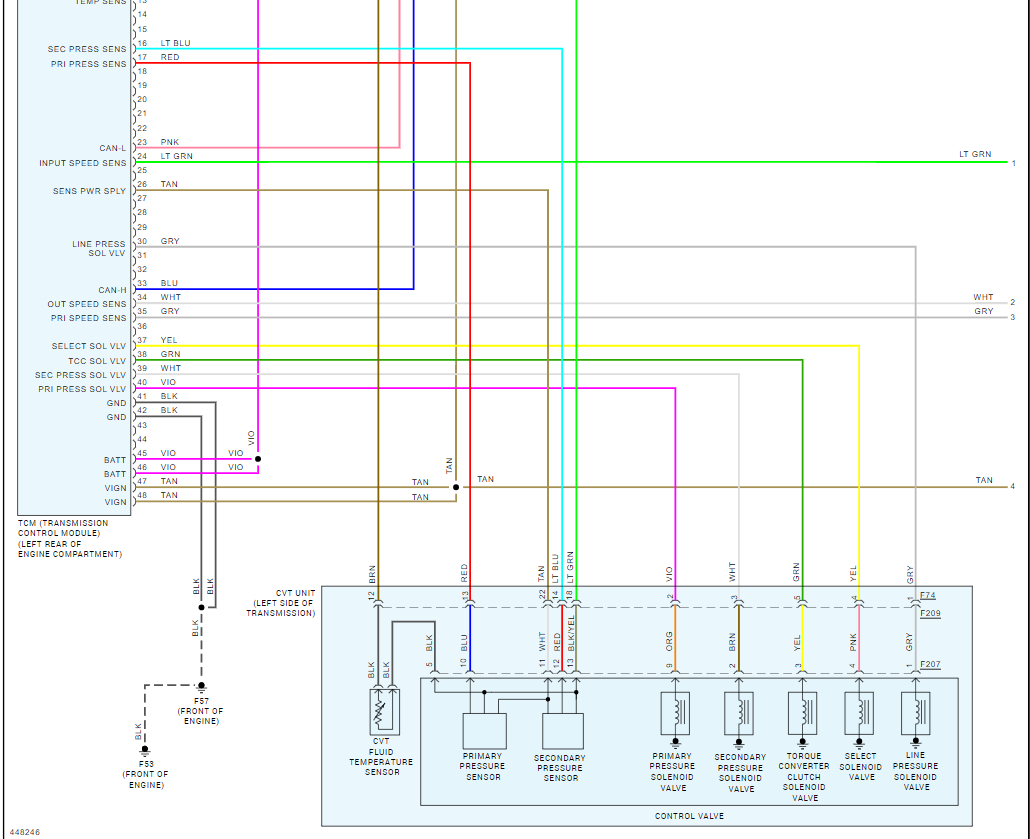

To troubleshoot, consider replacing the TCM relay and then activate the system to detect a click, indicating proper function. If this occurs, proceed to have the TCM professionally tested. Below are the transmission wiring diagrams for further reference. Please keep us updated on the developments.
