Interior problem
2005 Toyota Camry 4 cyl Two Wheel Drive Automatic 70000 miles

Where can I find a diagram, in an exploded view of the center console. Need to remove and retrieve items that have slipped between the emergency brake, into the console. And repair the adjustment for the drink holder.
Avatar
Cjtod
July 19, 2010.



Repair Procedure

NOTE :Place all removed interior parts on a protected surface to prevent damage. When disconnecting the wiring connectors, do NOT pull on the wires. Pull on the connector only.

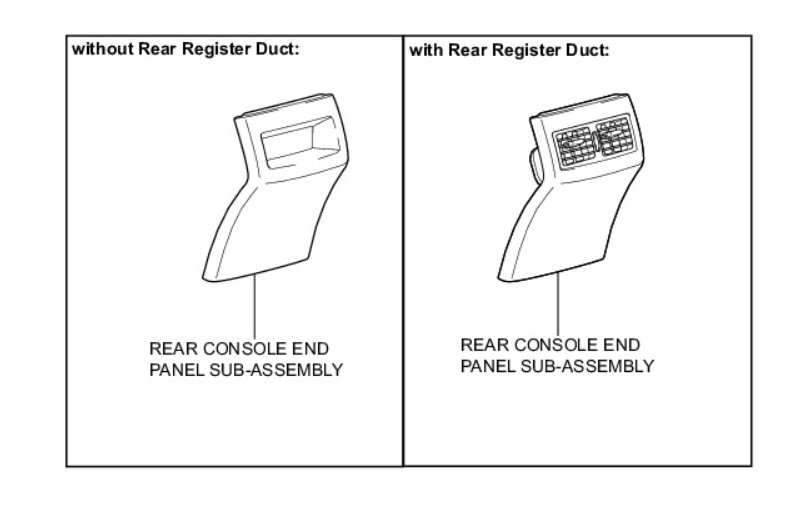

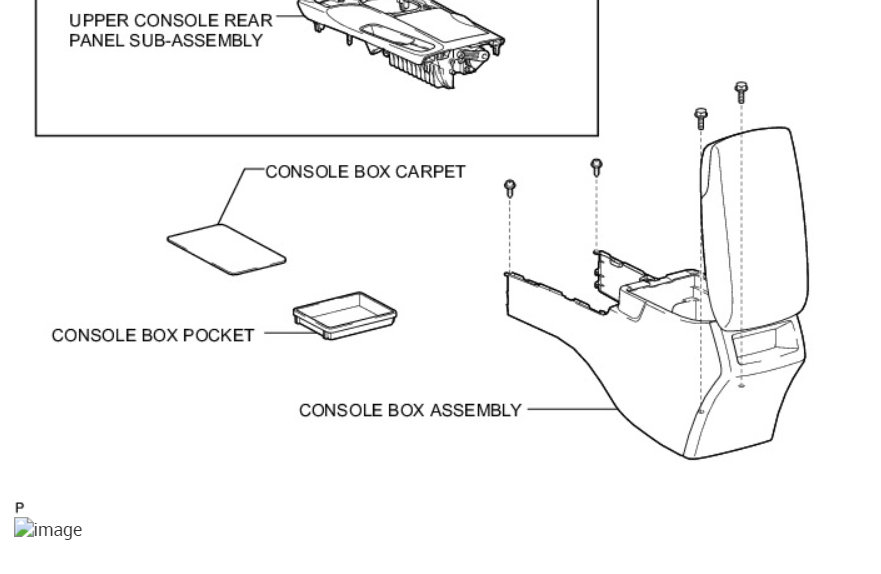

http://www.2carpros.com/forum/automotive_pictures/12900_c_9.jpg



1. Set the parking brake.

2. Using a molding remover, disengage the claw and 8 clips. Then remove the shifter garnish panel.

HINT:
Set the shift lever in the "N" position (ATM only).

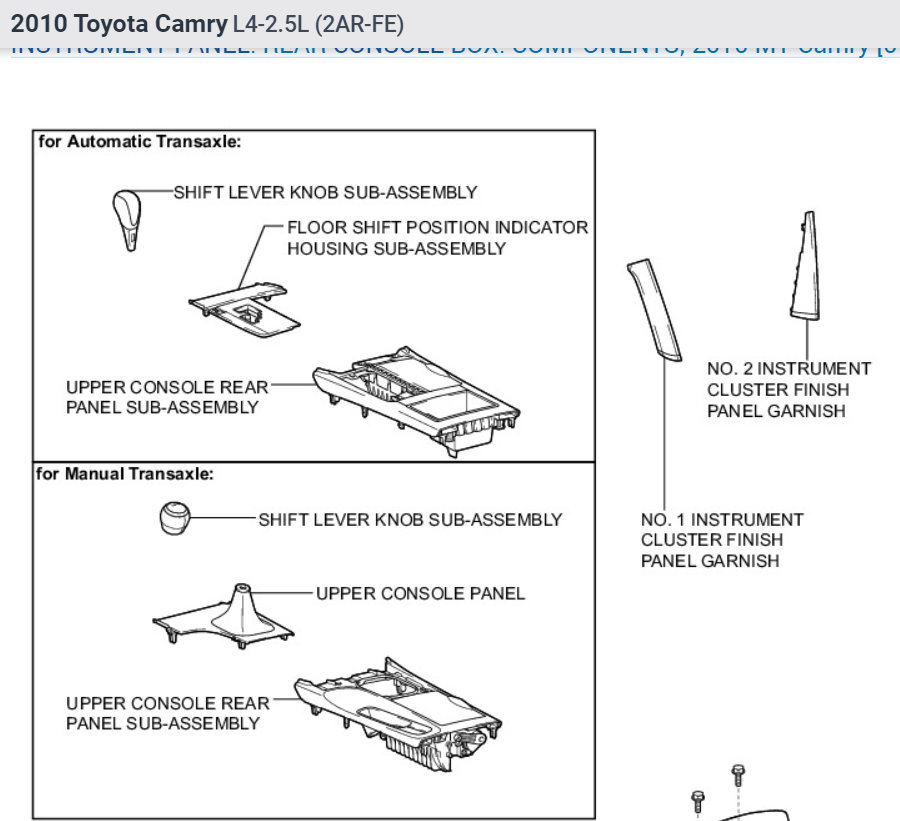

http://www.2carpros.com/forum/automotive_pictures/12900_c1_36.jpg

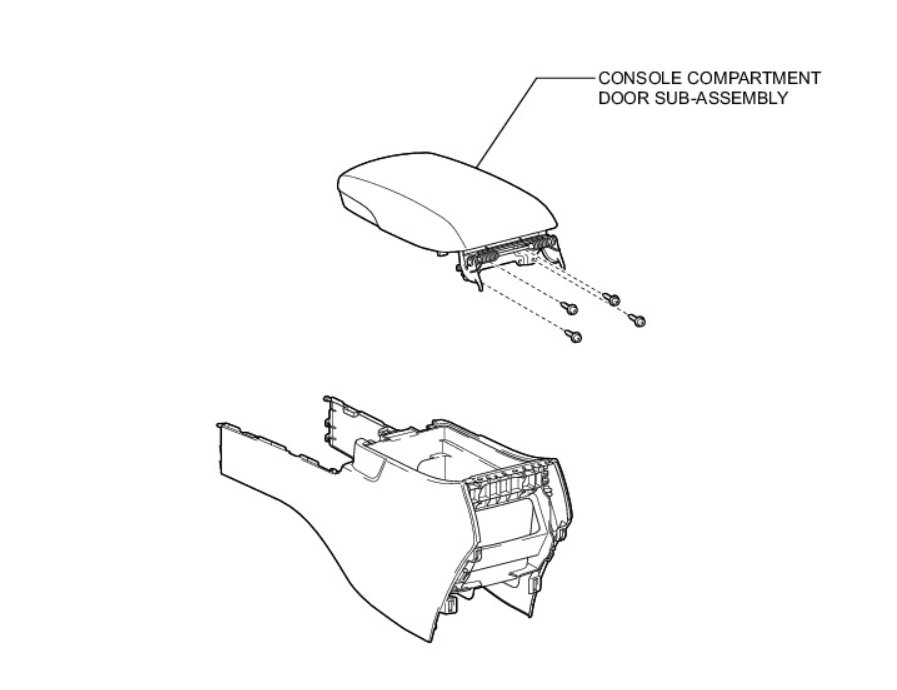

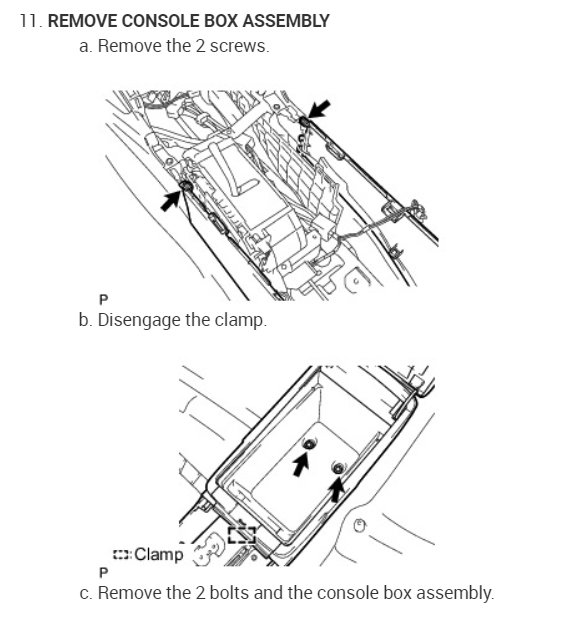

3. Remove the console storage box sub-assembly.

A. Using a molding remover, disengage 4 clips.

B. Disconnect any connectors and remove the console panel sub-assembly.

4. Install the new storage box and reinstall the shifter garnish panel in reverse order.

A. Reconnect any disconnected connectors.

B. Verify that all panels fit together properly with no uneven gaps.
