1989 Oldsmobile Delta 88 turn signal diagram

DISCENNA57

MEMBER
1989 OLDSMOBILE DELTA 88
6 CYL
2WD
AUTOMATIC
17,500 MILES

I was fixing my sisters steering column and when I removed the cancelling cam, a piece (not sure what it is, must be for the actual lever that activates the turn signal) fell out and im not sure where it goes. All I need is a diagram of the turn signal cam to show which piece go where (including the parts that connects to the turn switch)

Thanks for your help!

4 Replies

BLUELIGHTNIN6

MECHANIC
16,542 POSTS

Hello and thanks for donating

Is this for a non-tilt or a tilt style steering column?

Was this

answer

helpful?

Yes

No

Wednesday, August 25th, 2010 AT 4:01 PM

DISCENNA57

MEMBER
8 POSTS

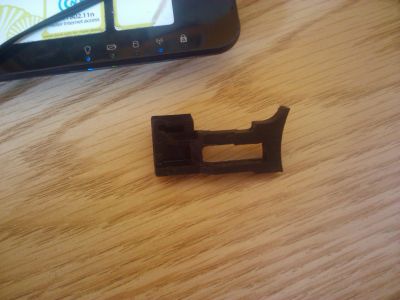

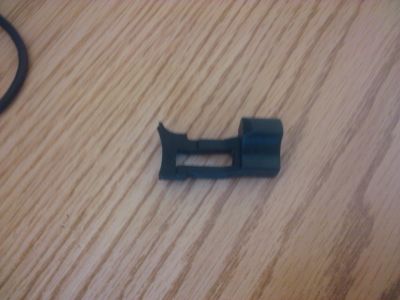

This is tilt steering. I bought a chiltons manual hoping that it would have a diagram in there but nothing. i took a picture of the piece hopefully you can tell me what it is.

and again thanks for your help!

SPONSORED LINKS

Was this

answer

helpful?

Yes

No

Wednesday, August 25th, 2010 AT 4:38 PM

BLUELIGHTNIN6

MECHANIC
16,542 POSTS

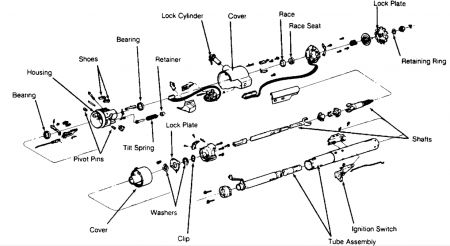

See if these images help any

Was this

answer

helpful?

Yes

No

Wednesday, August 25th, 2010 AT 4:54 PM

DISCENNA57

MEMBER
8 POSTS

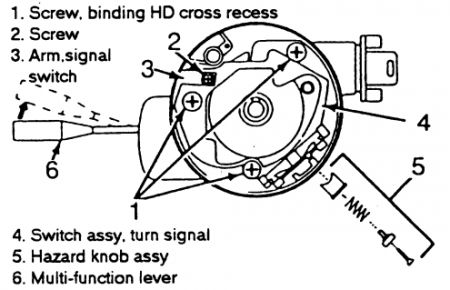

Nice! Thank you very much but where the piece fell was in the compartment between the lever (6) and the arm signal switch (3). Iin that compartment I assume holds the mechanics that moves the turn signal cam. If you have any insight on where that part might fit that would be great!

Thanks again for the diagram!

Was this

answer

helpful?

Yes

No

-1

Wednesday, August 25th, 2010 AT 6:14 PM
